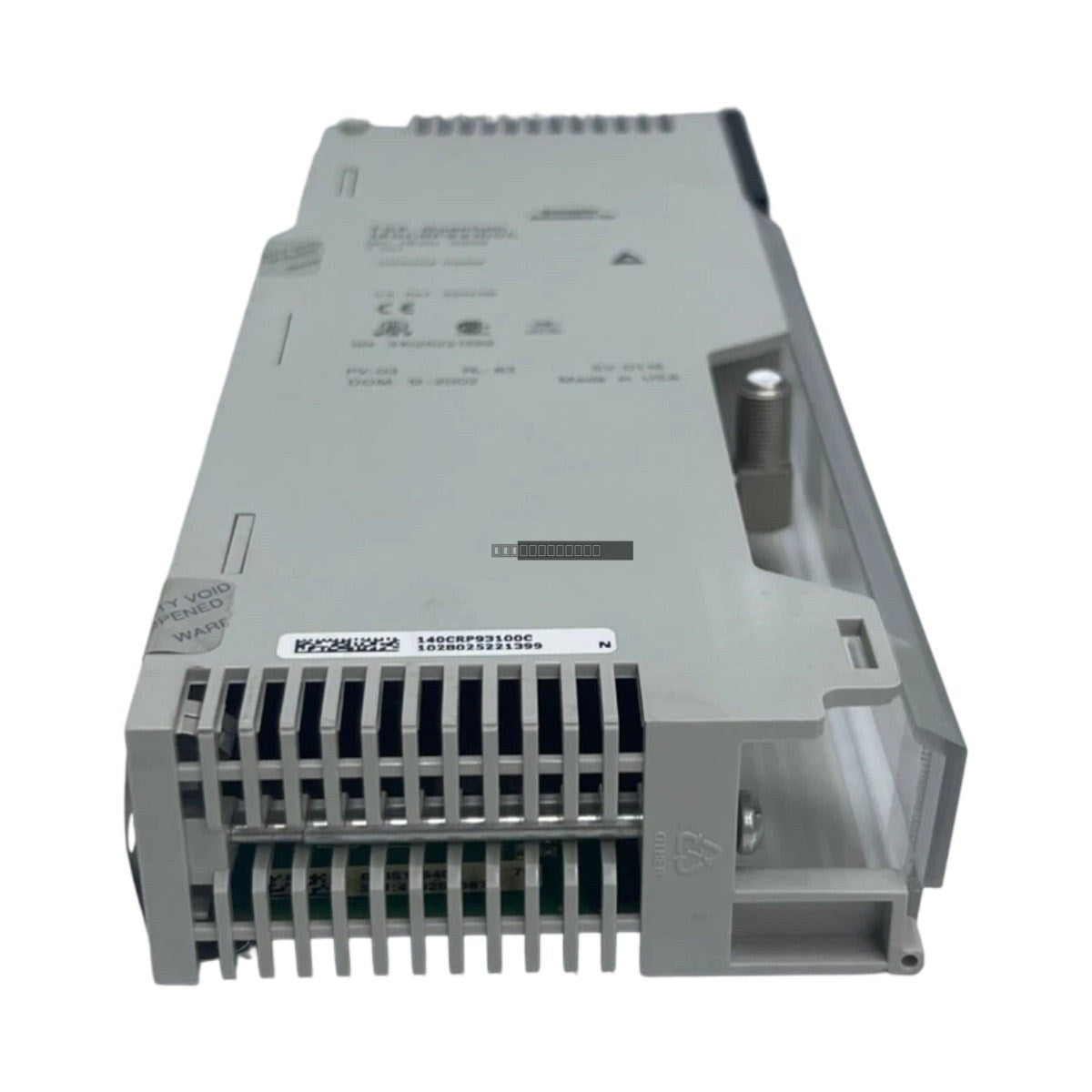

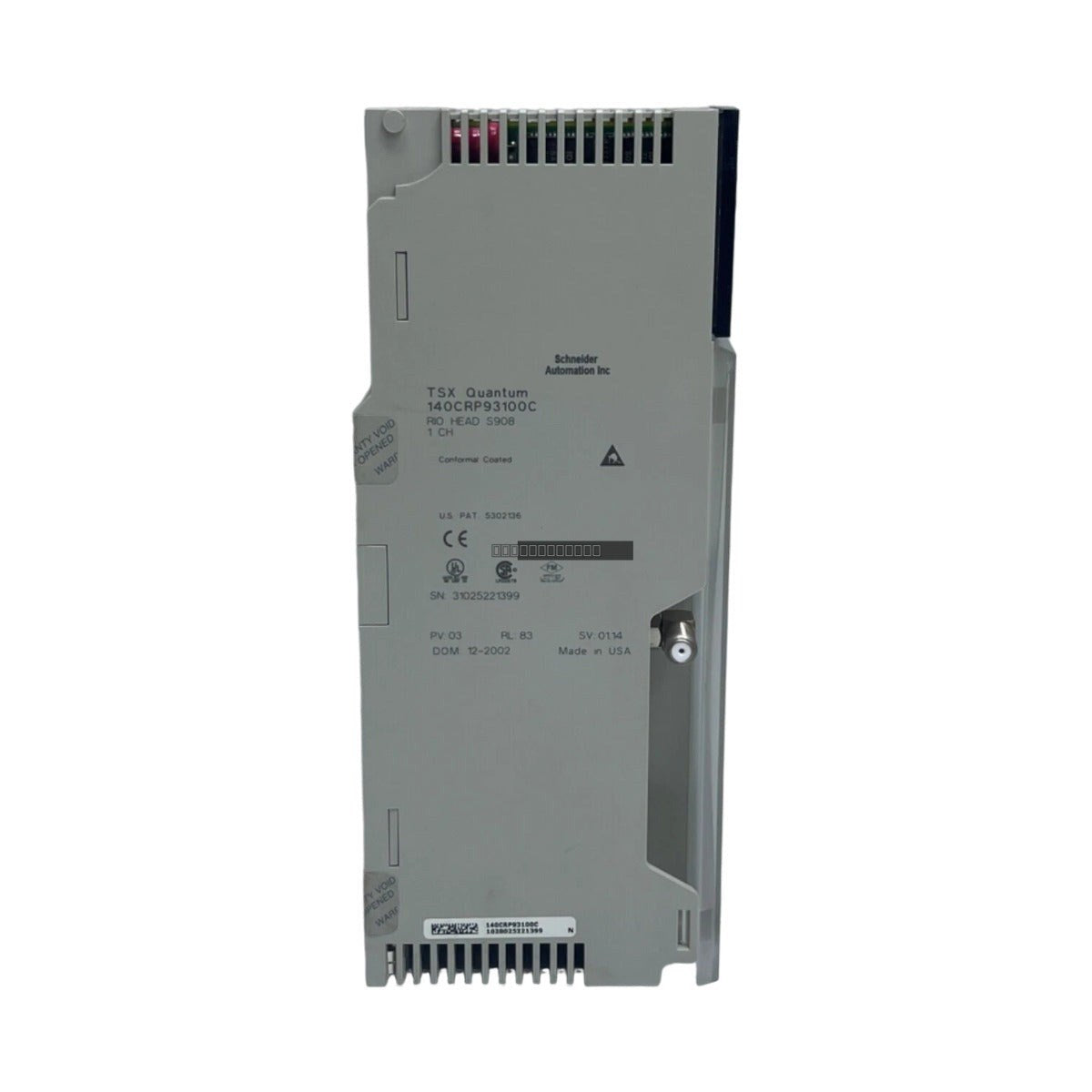

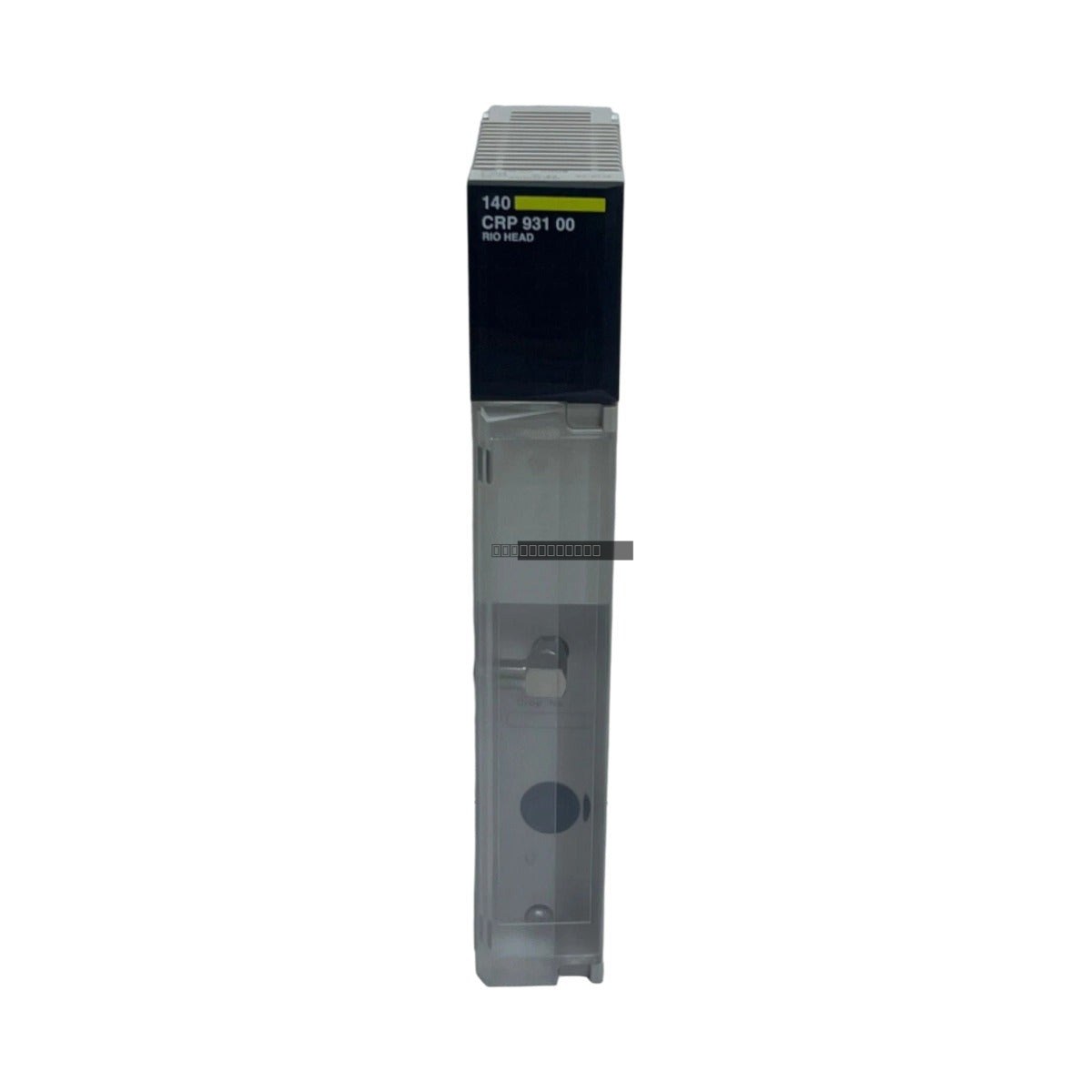

Schneider Electric 140CRP93100C Modicon Quantum RIO Head End Adaptor

Schneider Electric 140CRP93100C Modicon Quantum Remote I/O Head End Adaptor

Availability: 5 left in stock

DescriptionThe Schneider Electric 140CRP93100C is a high-performance Remote I/O (RIO) head end adaptor module designed for the Modicon Quantum automation...

SKU: 140CRP93100C

Manufacturer: Schneider
Product No.: 140CRP93100C
Product Type: Remote I/O Module
Product Origin: France
Payment:T/T, Western Union
Weight: 310g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Schneider Electric 140CRP93100C is a high-performance Remote I/O (RIO) head end adaptor module designed for the Modicon Quantum automation platform. This module acts as the critical interface between the main processor and distributed I/O drops, facilitating deterministic communication across industrial networks. Engineered for reliability in demanding environments, the 140CRP93100C features conformal coating to protect against corrosive gases, moisture, and harsh atmospheric conditions, making it suitable for oil and gas, power generation, and large-scale manufacturing infrastructure.

Features

Deterministic Communication: Utilizes a high-speed token bus protocol to ensure predictable data exchange across the RIO subnetwork.
Conformal Coating: The 'C' suffix indicates specialized protection on PCB assemblies, enhancing longevity in chemically aggressive or high-humidity environments.
Diagnostic LEDs: Integrated front-panel indicators provide real-time status updates, including communication health, network activity, and module diagnostics.
Scalable Architecture: Supports up to 27 RIO drops per network, allowing for flexible expansion of distributed control systems.
Robust Connectivity: Designed for reliable operation over 75 Ohm coaxial cable media.

Applications

This module is typically deployed in large-scale distributed control systems (DCS) where reliable, real-time communication is required between the central controller and remote field devices. Common applications include:

Oil and gas refining and petrochemical processing.
Power generation and distribution facilities.
Large-scale mining and material handling operations.
Water and wastewater treatment plants requiring long-distance I/O communication.

Technical Specifications

Brand	Schneider Electric
Model	140CRP93100C
Series	Modicon Quantum
Module Type	Remote I/O Head End Adaptor
Transmission Rate	1.544 Mbit/s
Transmission Medium	75 Ohm Coaxial Cable
Power Dissipation	3 W
Bus Current Requirement	600 mA
Drop Capacity	Up to 27 RIO drops
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Humidity	0 to 95 percent non-condensing

Installation Guidelines

Power Down: Always disconnect power from the Quantum backplane before inserting or removing the module to prevent electrical damage.
Slot Selection: Ensure the module is seated firmly in the appropriate slot of the Quantum rack as defined by the system configuration.
Grounding: Ensure the rack is properly grounded according to local electrical codes to mitigate EMI/RFI interference.
Cable Routing: When using coaxial cables, ensure proper shielding and avoid routing communication cables alongside high-voltage power lines to prevent signal degradation.
Handling: Use standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal components.

FAQ

What does the 'C' suffix signify in the 140CRP93100C model number?
The 'C' suffix indicates that the module is conformal coated, providing an additional layer of protection against moisture, dust, and corrosive gases in harsh industrial environments.

Can this module be used for redundant network configurations?
Yes, the 140CRP93100C is designed to support media redundancy when paired with appropriate network components and configured within the Quantum system architecture.
