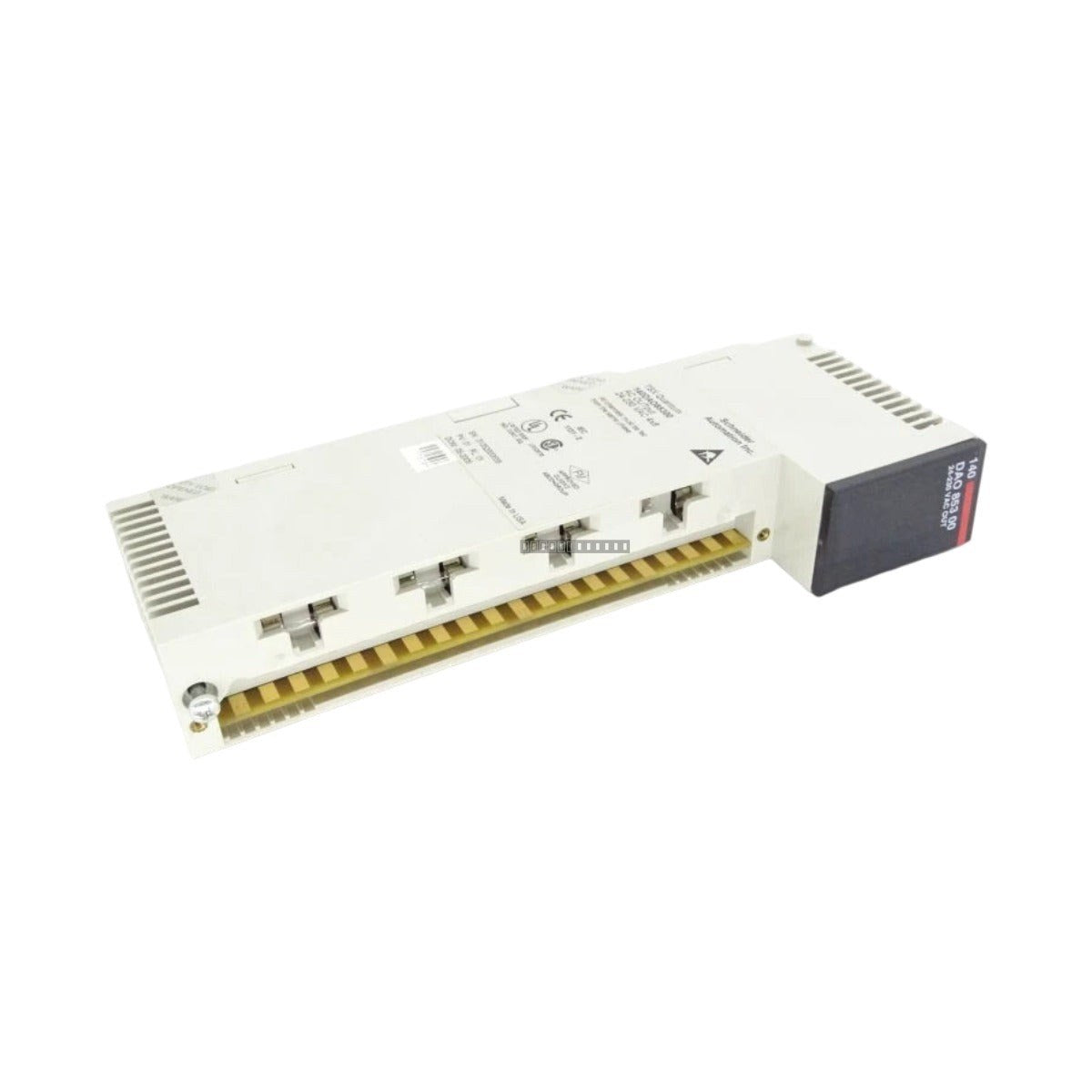

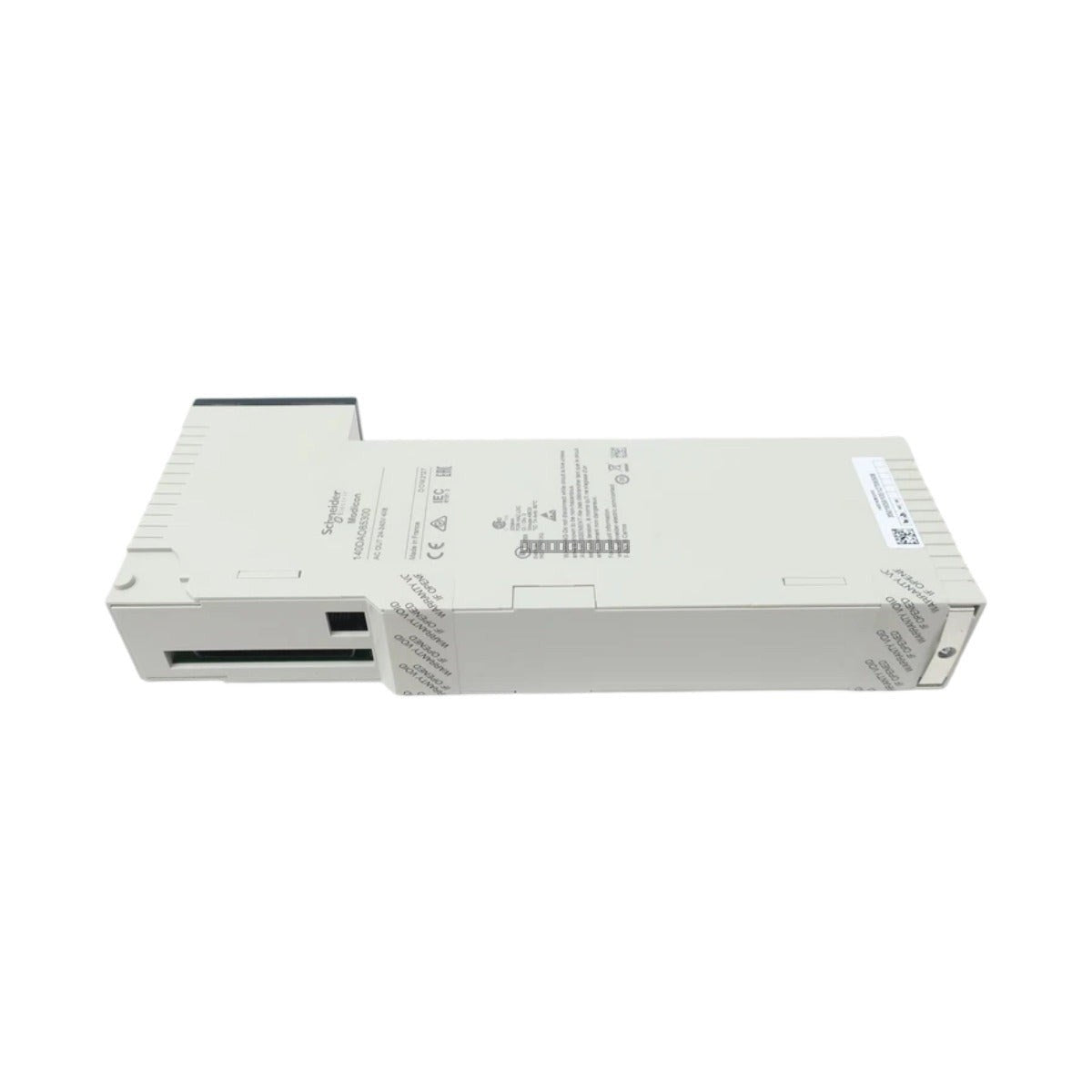

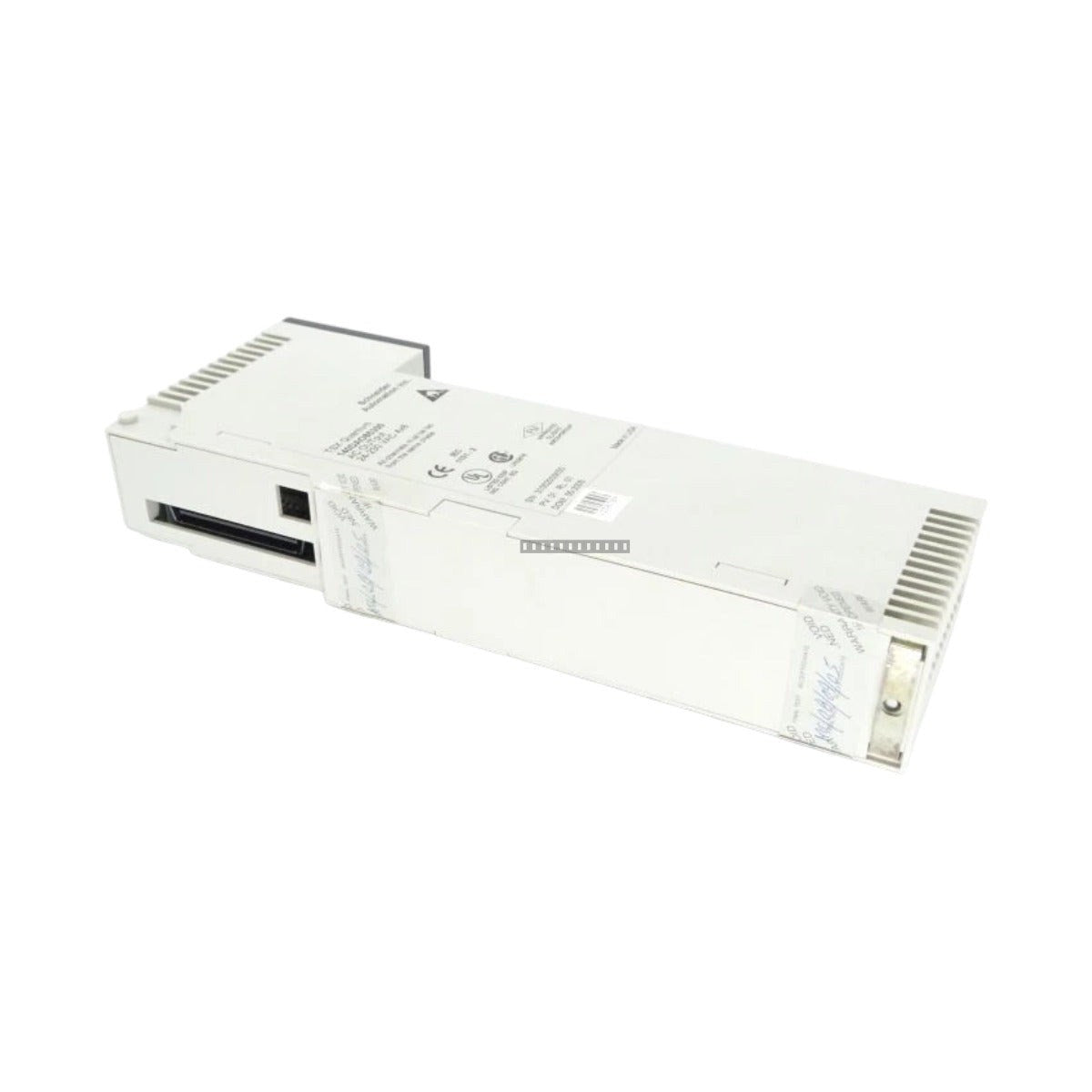

Schneider Electric 140DVO85300C Modicon Quantum Discrete Output Module

Schneider Electric 140DVO85300C Modicon Quantum Discrete Output Module

Availability: 9 left in stock

DescriptionThe Schneider Electric 140DVO85300C is a high-density discrete output module designed for the Modicon Quantum automation platform. Engineered for demanding...

SKU: 140DVO85300C

Manufacturer: Schneider
Product No.: 140DVO85300C
Product Type: Discrete Output Module
Product Origin: France
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Schneider Electric 140DVO85300C is a high-density discrete output module designed for the Modicon Quantum automation platform. Engineered for demanding industrial environments, this module provides 32 output channels capable of driving field devices such as solenoids, relays, and indicators. The unit features conformal coating to ensure reliable operation in environments exposed to humidity, chemical contaminants, and corrosive atmospheres. It provides galvanic isolation and real-time monitoring to protect the central processor from field-side faults, significantly reducing system downtime.

Features

32 discrete output channels for high-density control.
Conformal coating for enhanced protection against harsh environmental conditions.
Galvanic isolation between field outputs and the backplane.
Active electronic fusing for autonomous channel fault isolation.
Integrated LED matrix for real-time status diagnostics of communication, power, and individual channel logic.
Designed for compatibility with the Modicon Quantum backplane architecture.

Applications

This module is suitable for critical industrial applications including oil and gas refining, power generation, and metallurgical mining processes where reliable digital signal control is required.

Technical Specifications

Brand	Schneider Electric
Model	140DVO85300C
Series	Modicon Quantum
Channels	32 Outputs
Nominal Voltage	24 VDC
Voltage Range	10 to 30 VDC
Max Current Per Channel	0.5 A
Max Current Per Module	16 A
Isolation Voltage	500 VDC (channel-to-backplane)
Power Dissipation	6 W typical
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Humidity	0 to 95 percent non-condensing

Installation Guidelines

Ensure the system power is disconnected before installing or removing the module from the Quantum backplane.
Handle the module using ESD-safe practices to prevent damage to internal electronic components.
Ensure the module is fully seated in the rack slot to maintain proper backplane connection.
Verify that external field power is within the specified 10 to 30 VDC range before energizing.
Route field wiring away from high-EMI sources to minimize signal interference.
Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the 0 to 60 deg C range.

FAQ

Does this module require conformal coating? Yes, the 140DVO85300C comes standard with conformal coating to protect against corrosive industrial environments.

What is the maximum current capacity? The module supports up to 0.5 A per channel, with a total maximum module current of 16 A.

How are faults handled? The module features active electronic fusing that isolates faulty channels autonomously, allowing the remaining outputs to continue functioning.
