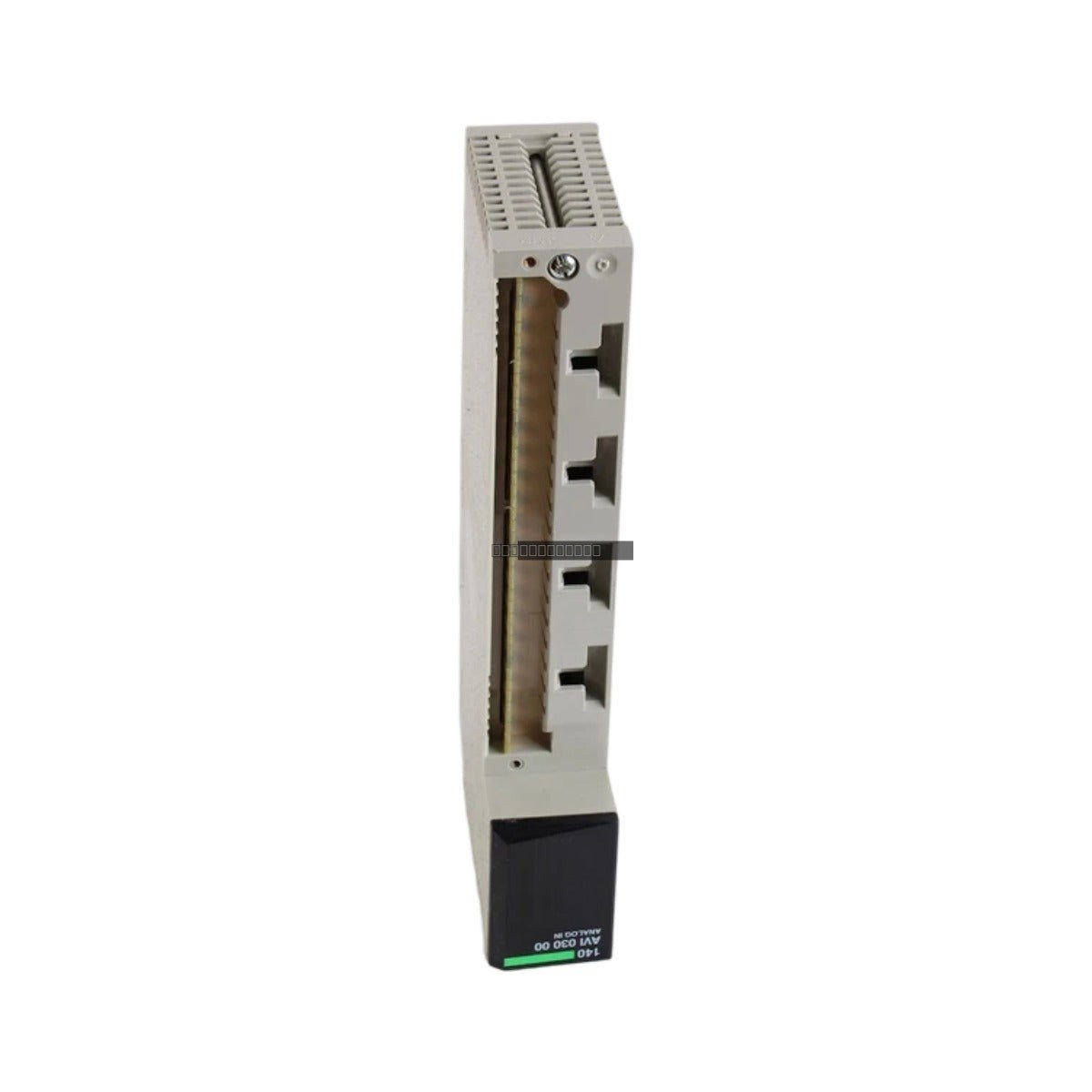

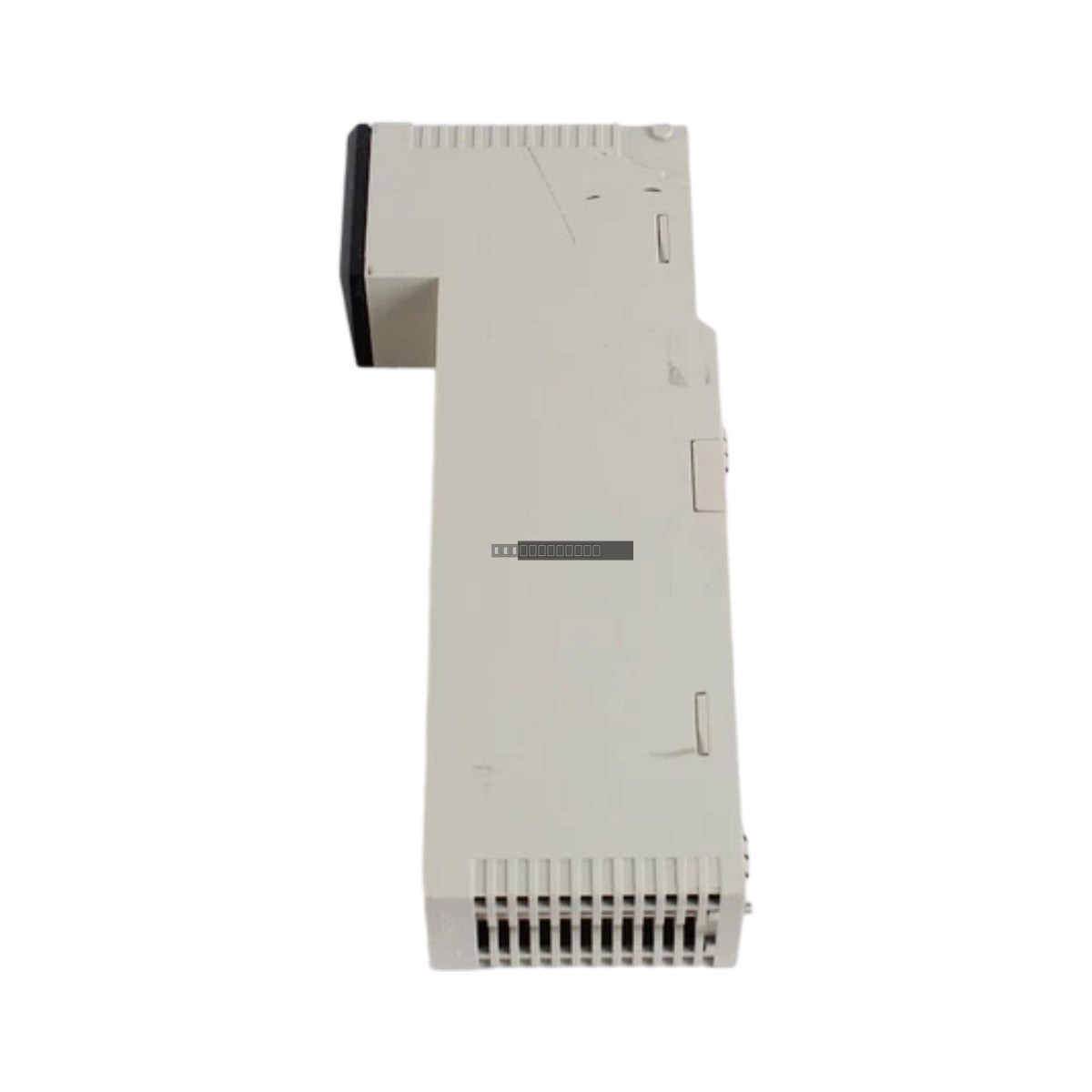

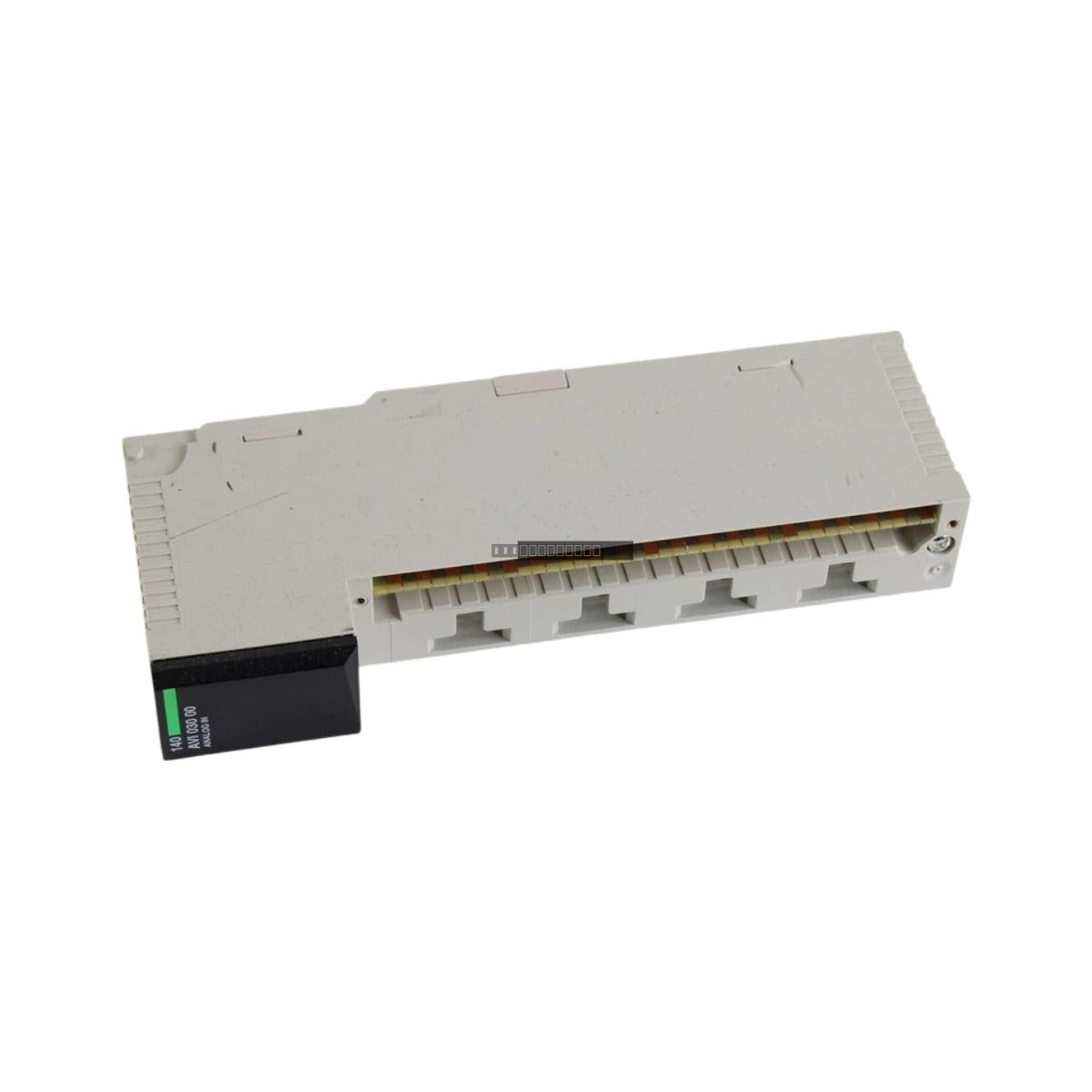

Schneider 140AVI03000C Modicon Quantum Analog Input Module

Schneider Modicon Quantum 140AVI03000C Analog Input Module

Availability: 10 left in stock

Description The Schneider Electric 140AVI03000C is a high-performance analog input module designed for the Modicon Quantum automation series. This unit...

SKU: 140AVI03000C

Manufacturer: Schneider
Product No.: 140AVI03000C
Product Type: Analog Input Module
Product Origin: France
Payment:T/T, Western Union
Weight: 680g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Schneider Electric 140AVI03000C is a high-performance analog input module designed for the Modicon Quantum automation series. This unit features 8 independent, software-configurable input channels capable of processing both voltage and current signals. Engineered with a conformal coating, the 140AVI03000C is purpose-built for deployment in demanding industrial environments where moisture, dust, or corrosive airborne contaminants are present, such as chemical processing, water treatment, and heavy manufacturing facilities.

Features

8-channel analog input capacity with multi-range flexibility.
Integrated conformal coating on printed circuit board assemblies for enhanced environmental resilience.
Galvanic isolation between field-side inputs and the backplane logic bus to prevent common-mode noise and ground loop interference.
12-bit analog-to-digital resolution providing high-precision signal conversion.
Selectable input ranges including standard voltage (0-5V, 0-10V, +/- 5V, +/- 10V) and current (4-20mA) loops.
Built-in open-circuit detection for current loop monitoring.

Technical Specifications

Model	140AVI03000C
Brand	Schneider Electric
Channels	8
Resolution	12-bit
Voltage Input Impedance	1 Megaohm (min)
Current Input Impedance	250 Ohms
Backplane Power	320 mA at 5 VDC
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Isolation (Channel-to-Bus)	1000 VAC
Isolation (Channel-to-Channel)	500 VDC

Installation Guidelines

Ensure the Modicon Quantum backplane is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is fully seated in the rack slot and the locking mechanisms are engaged to maintain a reliable backplane connection.
Use shielded twisted-pair cabling for all analog signal inputs to minimize electromagnetic interference (EMI).
Maintain proper grounding practices for cable shields at the field end to mitigate noise pick-up.
Ensure adequate ventilation in the control cabinet to keep ambient temperatures within the specified 0 to 60 deg C operating range.

FAQ

What does the 'C' suffix signify in the 140AVI03000C model number?
The 'C' suffix indicates that the module has been treated with an automated conformal coating, providing an insulating layer that protects the internal electronics from harsh environmental conditions like humidity and corrosive gases.

Is this module compatible with standard 4-20 mA loops?
Yes, the module supports 4-20 mA current loops using internal 250 Ohm precision sensing resistors, with configurable settings accessible via the system software.
