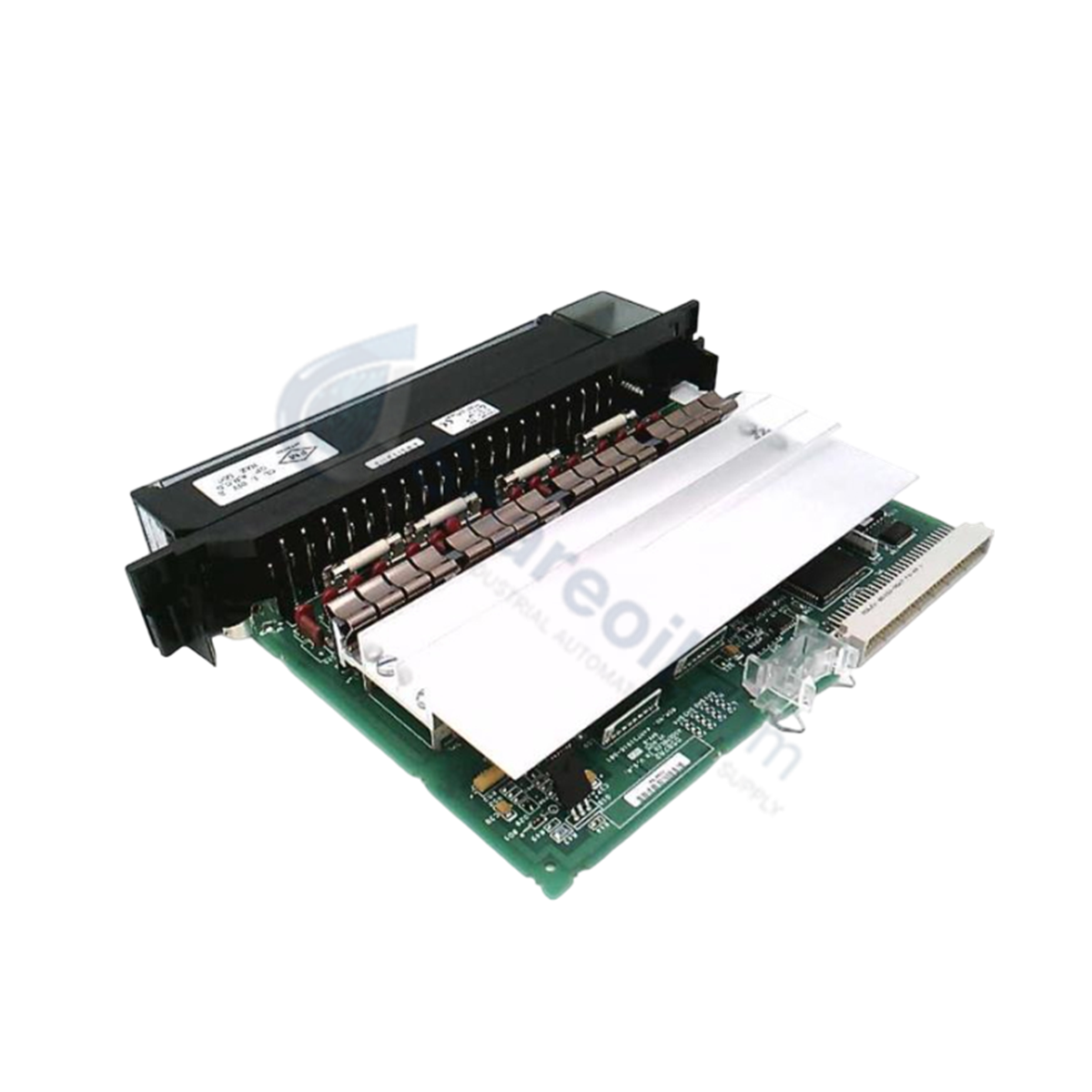

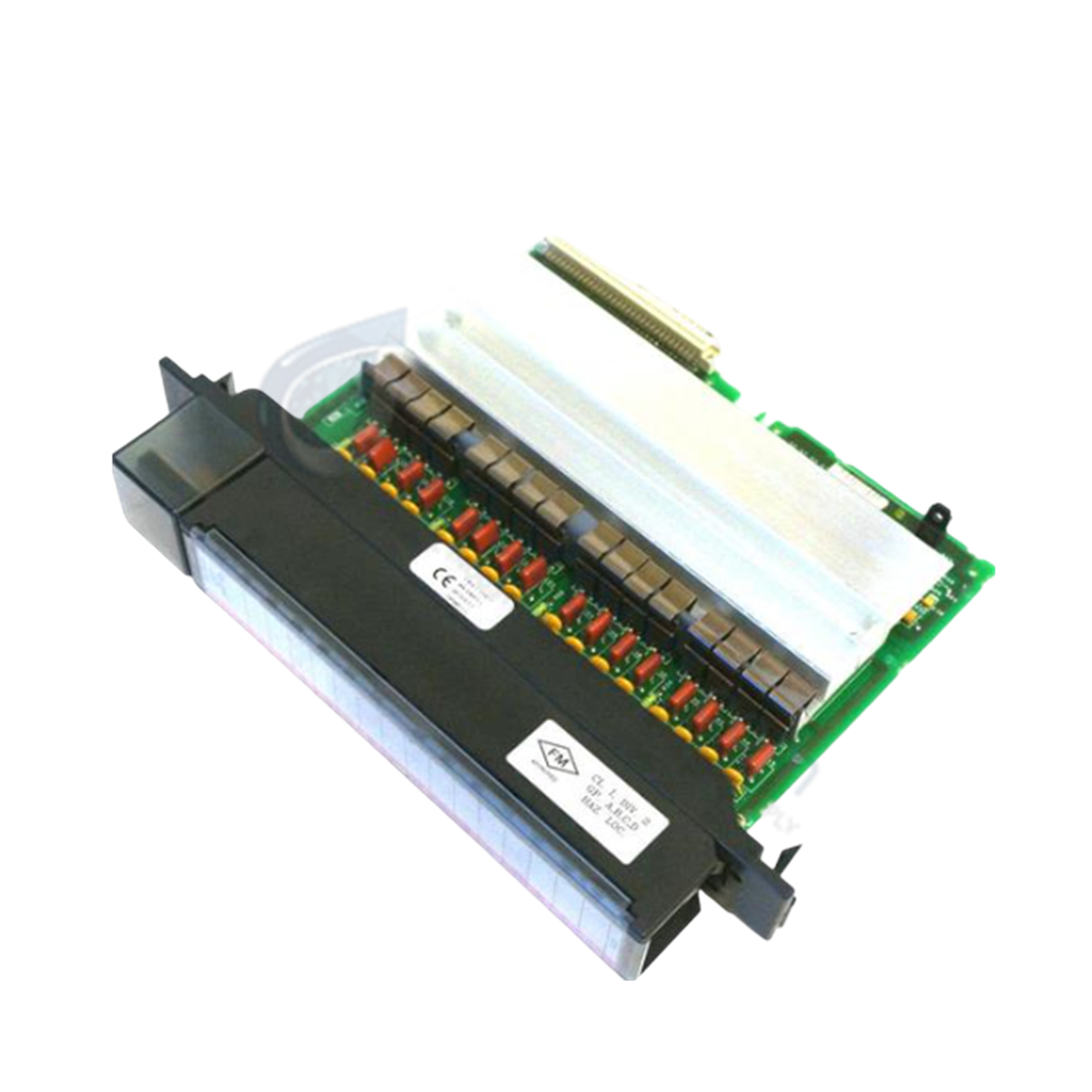

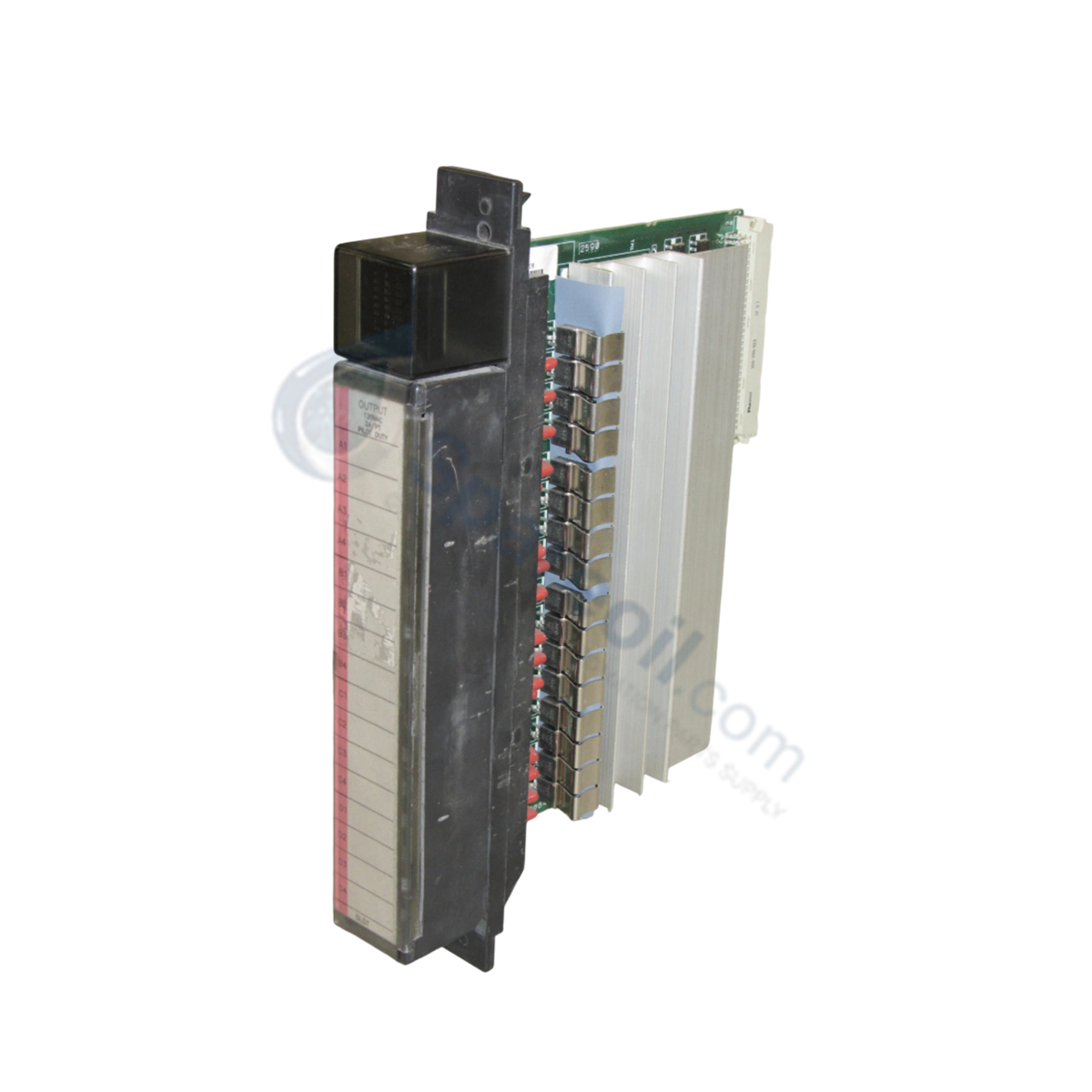

The GE IC697MDL340, also cataloged as the IC697MDL340 Discrete Output Module, operates as a dedicated hardware component for 120 VAC discrete load switching within Series 90-70 PLC platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC697MDL340 |
| Brand | GE Fanuc Emerson |
| Origin | USA / Global Manufacturing |
| Weight | 0.65 kg (1.43 lbs) |
| Dimensions | Single-Slot Series 90-70 Module Form Factor |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Power supplied via Series 90-70 backplane bus |
| Series | Series 90-70 |
| Product Type | Discrete Output Modules |
| Output Points | 16 points |
| Operating Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Rated Current | 2 A per point |
| Inrush Capability | High inrush capacity (10x rated current) |
Backplane Bus Communication Velocity and System Integration
The IC697MDL340 processes digital control logic state commands from the central processing unit over the Series 90-70 backplane bus. High-speed backplane bus communication velocity guarantees rapid output state updates across all 16 channels during each controller scan execution cycle.
Designed with a high inrush capacity of up to 10x rated current (20 A surge per channel), the output circuits safely control heavy inductive AC field loads such as motor starters, solenoids, and contactors. Embedded firmware flash compatibility across Series 90-70 system controllers allows seamless integration and I/O density scaling across modular automation racks.
Frequently Asked Questions
Q: What is the maximum peak inrush current rating for individual channels on the IC697MDL340?
A: Each point features a high inrush capability rated at 10x its standard 2 A operating current (up to 20 A peak surge).
Q: What power source frequency is compatible with the AC output circuits of the IC697MDL340?
A: The module channels are designed to operate on standard 120 VAC power at line frequencies of 50/60 Hz.
Q: How many backplane slots does the IC697MDL340 require when installed in a Series 90-70 chassis?
A: The module is built in a standard single-slot form factor and occupies one slot on the backplane rack.
Field Installation Guidelines
- Always isolate field power and backplane supply voltages prior to inserting or removing the module from the rack chassis.
- Verify that the total continuous current across all output points does not exceed the maximum backplane thermal dissipation limits for the enclosure.
- Route AC load wiring separately from low-level DC analog or communication cables to minimize electromagnetic coupling.
- Ensure all field power connections are equipped with appropriate external fuses to protect individual channels and field field wiring runs.
