Description

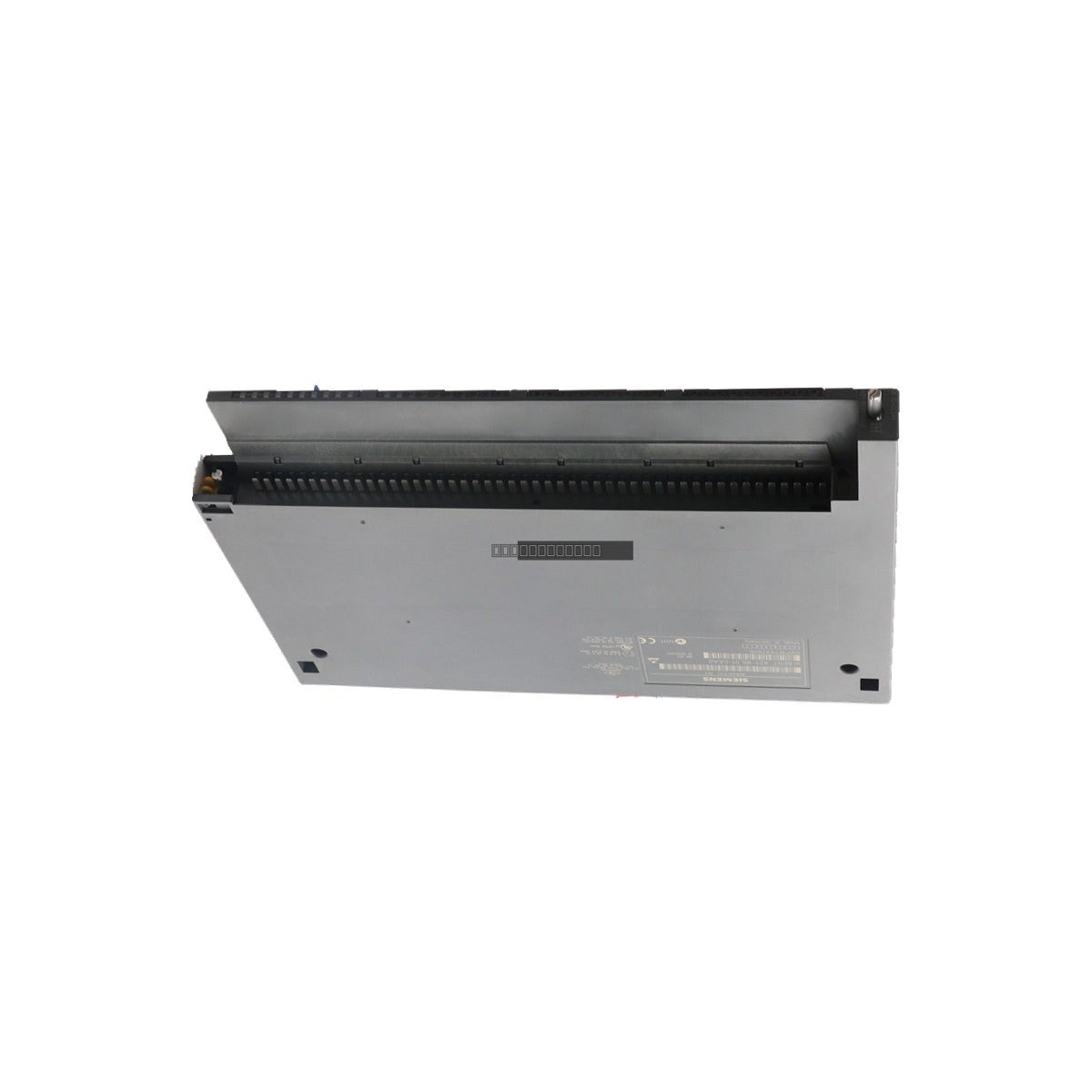

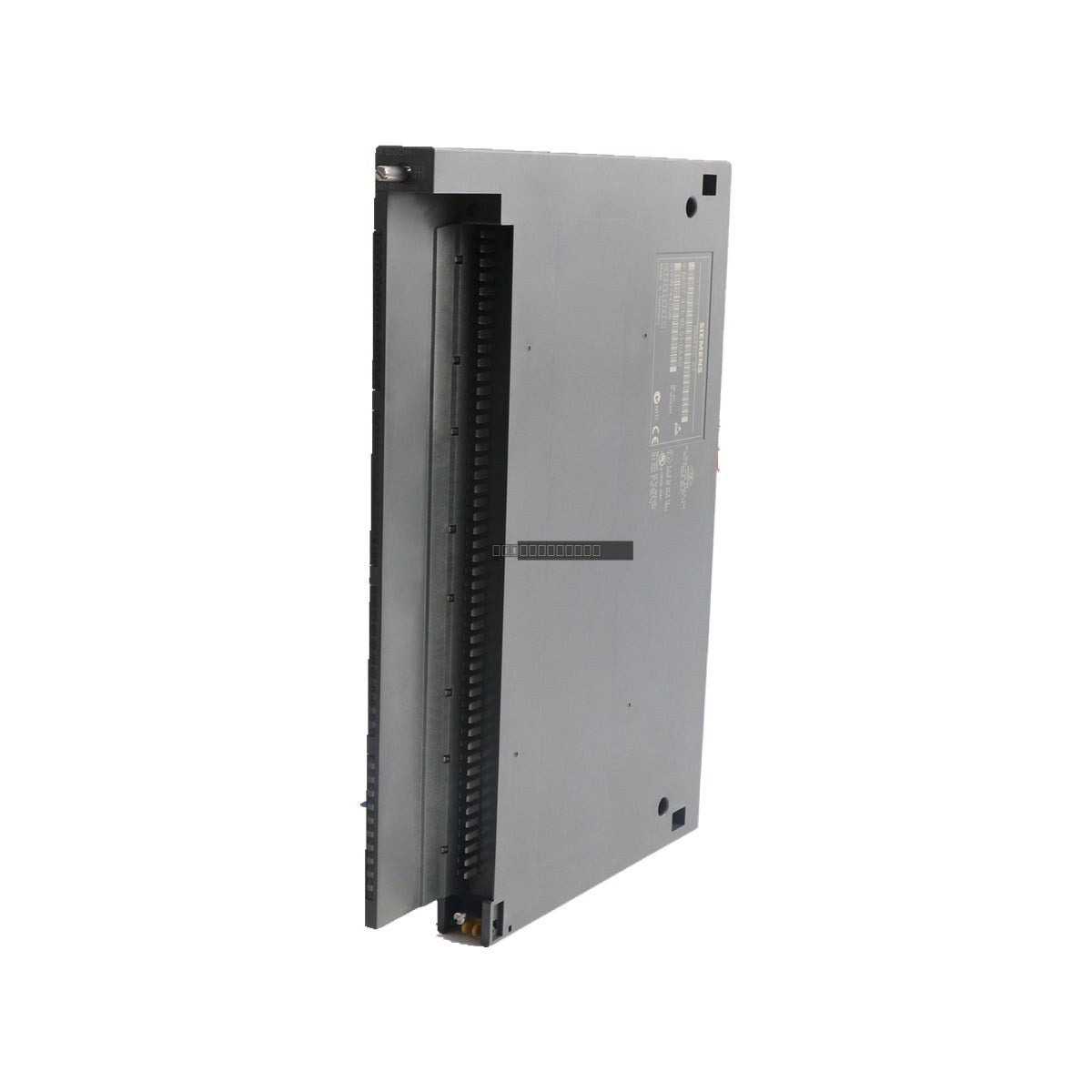

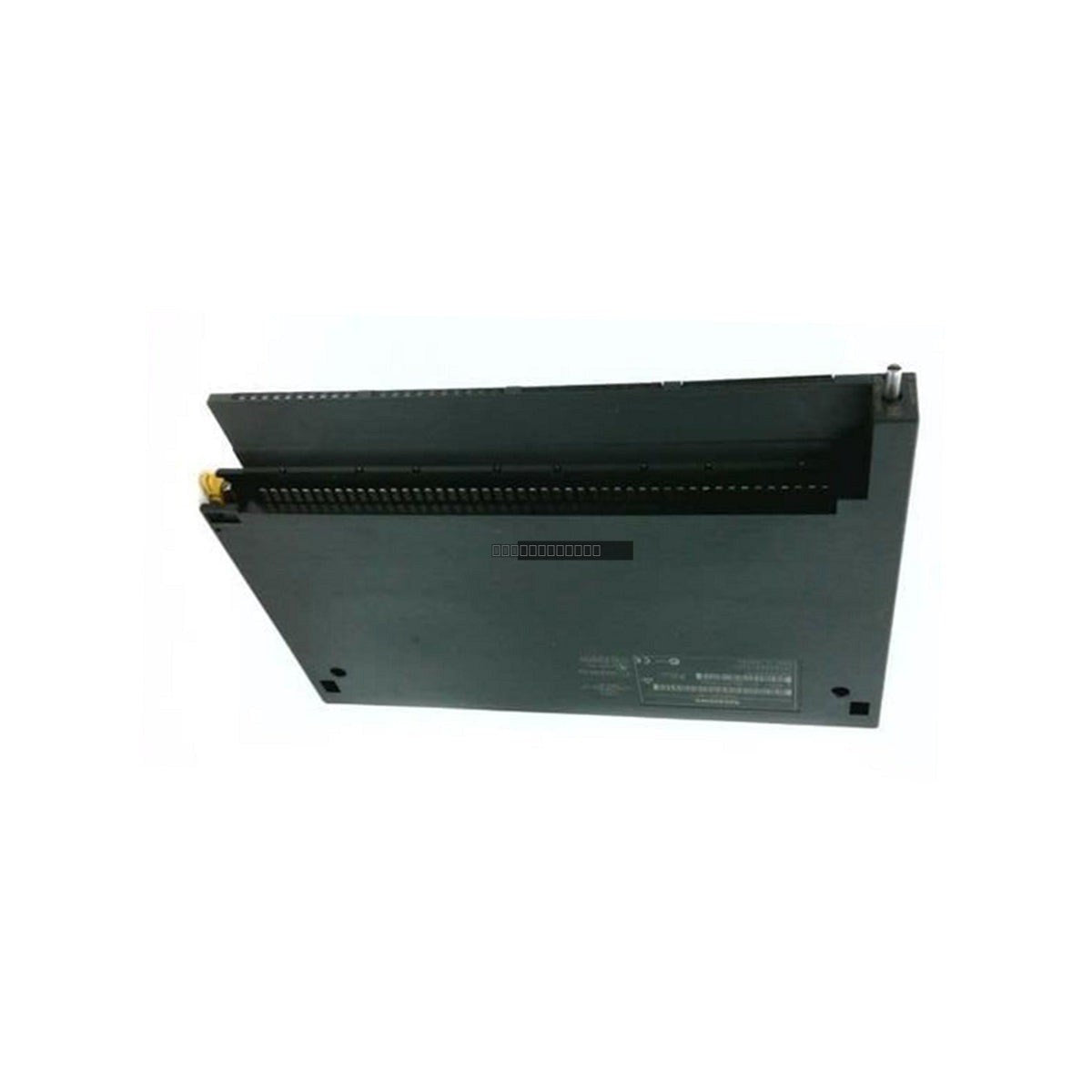

The Siemens 6ES7421-1BL01-0AA0 is a high-density digital input module designed for the SIMATIC S7-400 programmable logic controller (PLC) system. As part of the SM 421 series, this module provides 32 isolated digital input channels, facilitating robust signal acquisition in industrial automation environments. It is engineered to interface with 24 V DC field signals, providing reliable status monitoring for sensors, switches, and other binary control devices.
Features
- 32 isolated digital input channels for high-density signal processing.
- Rated for 24 V DC input voltage.
- Integrated isolation tested at 500 V DC to ensure signal integrity and protection against electrical noise.
- Optimized for seamless integration into the S7-400 rack system.
- Low power consumption with a typical power loss of 6 W.
Technical Specifications
| Product Model | 6ES7421-1BL01-0AA0 |
| Module Type | SM 421 Digital Input Module |
| Number of Inputs | 32 |
| Input Voltage (Rated) | 24 V DC |
| Signal "0" Range | -30 V DC to +5 V DC |
| Signal "1" Range | 13 V DC to 30 V DC |
| Power Consumption (Backplane) | 5 V DC, max. 20 mA |
| Power Loss (Typical) | 6 W |
| Isolation | 500 V DC |
Installation Guidelines
- Ensure the S7-400 rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the module is correctly seated in the rack slot and the locking mechanism is engaged.
- Use shielded cabling for input signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Maintain proper ventilation within the control cabinet to dissipate the 6 W of typical power loss.
- Ensure all field wiring is terminated according to the local electrical codes and the specific wiring diagram for the 6ES7421-1BL01-0AA0.
FAQ
Is this module compatible with all S7-400 CPUs?
The 6ES7421-1BL01-0AA0 is designed for use within the SIMATIC S7-400 system. Compatibility depends on the specific CPU and rack configuration; always verify your hardware configuration in the STEP 7 software environment.
What is the isolation rating of this module?
The module features an isolation rating tested at 500 V DC, which provides separation between the field inputs and the internal backplane bus circuitry.
