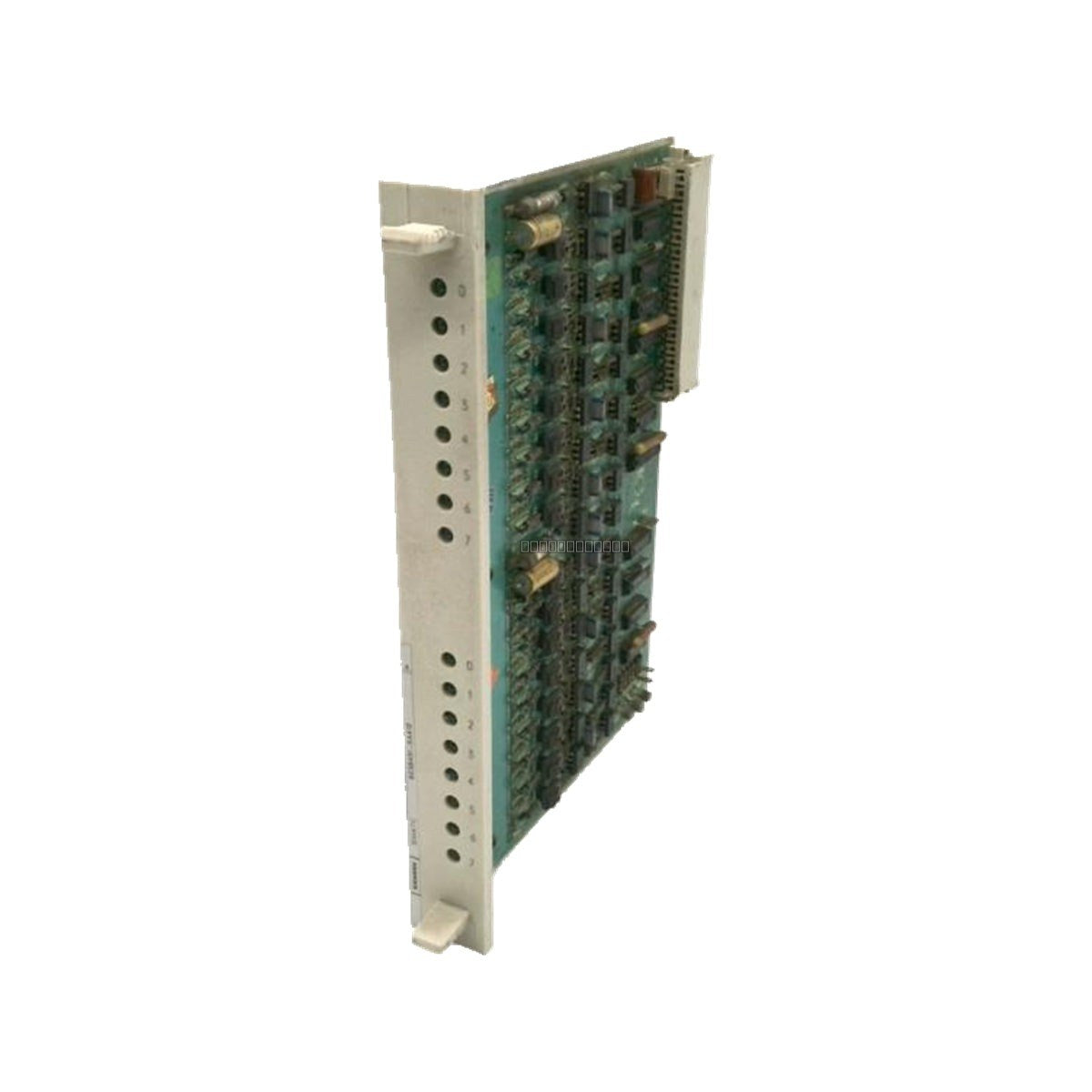

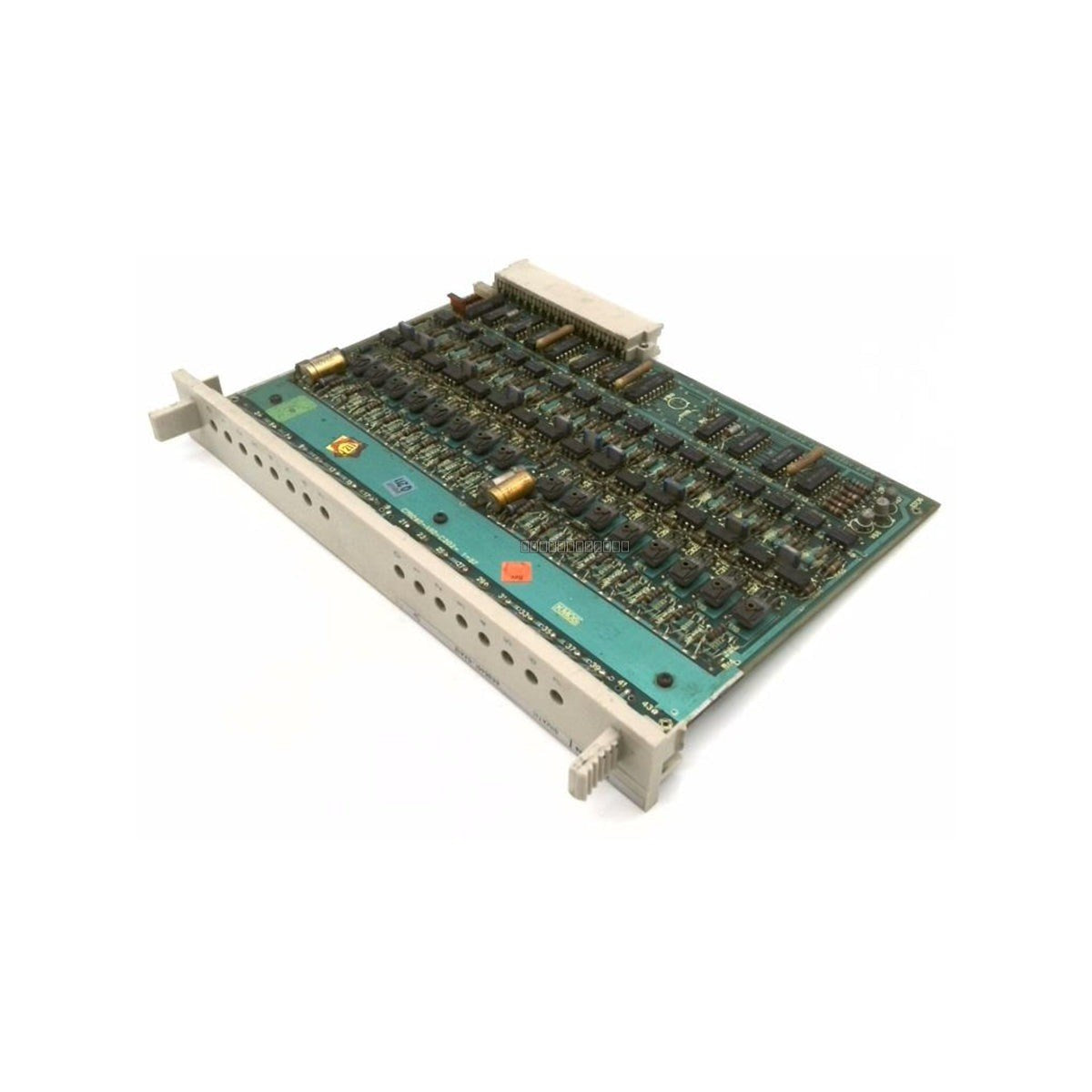

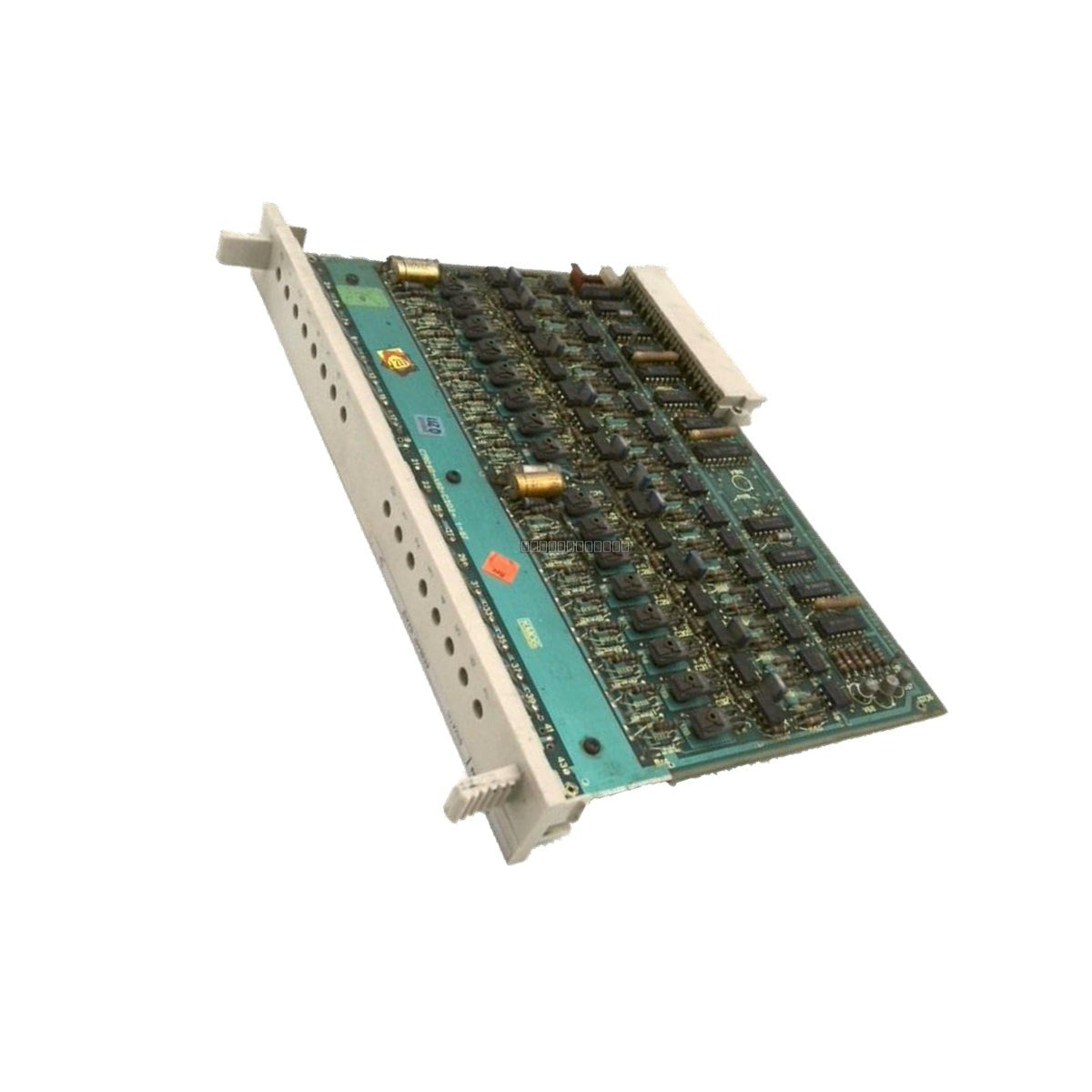

Siemens 6ES5451-5AA12 Simatic S5 Digital Output Module

Availability: 0 left in stock

DescriptionThe Siemens 6ES5451-5AA12 is a digital output module designed for integration with the Simatic S5-130 and S5-150 programmable logic controller...

SKU: 6ES5451-5AA12

Manufacturer: Siemens
Product No.: 6ES5451-5AA12
Product Type: Digital Output Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens 6ES5451-5AA12 is a digital output module designed for integration with the Simatic S5-130 and S5-150 programmable logic controller series. This module provides 16 discrete output channels, facilitating the reliable control of industrial actuators such as solenoid valves, contactors, and status indicators. Engineered for demanding environments, the unit features floating output architecture to provide galvanic isolation between the PLC backplane and field-side devices, reducing the risk of ground loops and electromagnetic interference.

Features

16-channel digital output density for efficient rack space utilization.
Floating (isolated) output configuration for flexible load-switching and fault containment.
Integrated surge protection and short-circuit monitoring for inductive load handling.
Compatible with legacy Siemens Simatic S5-130 and S5-150 control systems.
Robust construction suitable for high-availability industrial applications.

Applications

This module is typically deployed in heavy-duty manufacturing, chemical processing, and automotive assembly environments where reliable discrete control of field equipment is required. It is suitable for driving standard 24 VDC industrial loads.

Technical Specifications

Model	6ES5451-5AA12
System Compatibility	Simatic S5-130 / S5-150
Output Channels	16
Output Voltage	24 VDC
Current Capacity	0.5 A per channel
Isolation	Floating / Galvanically Isolated
Operating Temperature	0 to 60 deg C

Installation Guidelines

Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
Verify that the module is correctly seated in the designated S5 chassis slot and that the locking mechanism is engaged.
Use shielded cabling for field connections to minimize EMI, especially when driving inductive loads.
Ensure proper grounding of the S5 chassis to maintain signal integrity and safety.
Observe the 0.5 A per channel current limit to prevent thermal overload of the output circuitry.

FAQ

Is this module compatible with modern S7 systems?

No, the 6ES5451-5AA12 is specifically designed for the legacy Simatic S5-130 and S5-150 series and is not directly compatible with S7-300 or S7-1500 hardware.

Does this module require an external power supply?

Yes, the module operates on a 24 VDC nominal supply which must be provided to the field-side terminals to drive the connected outputs.
