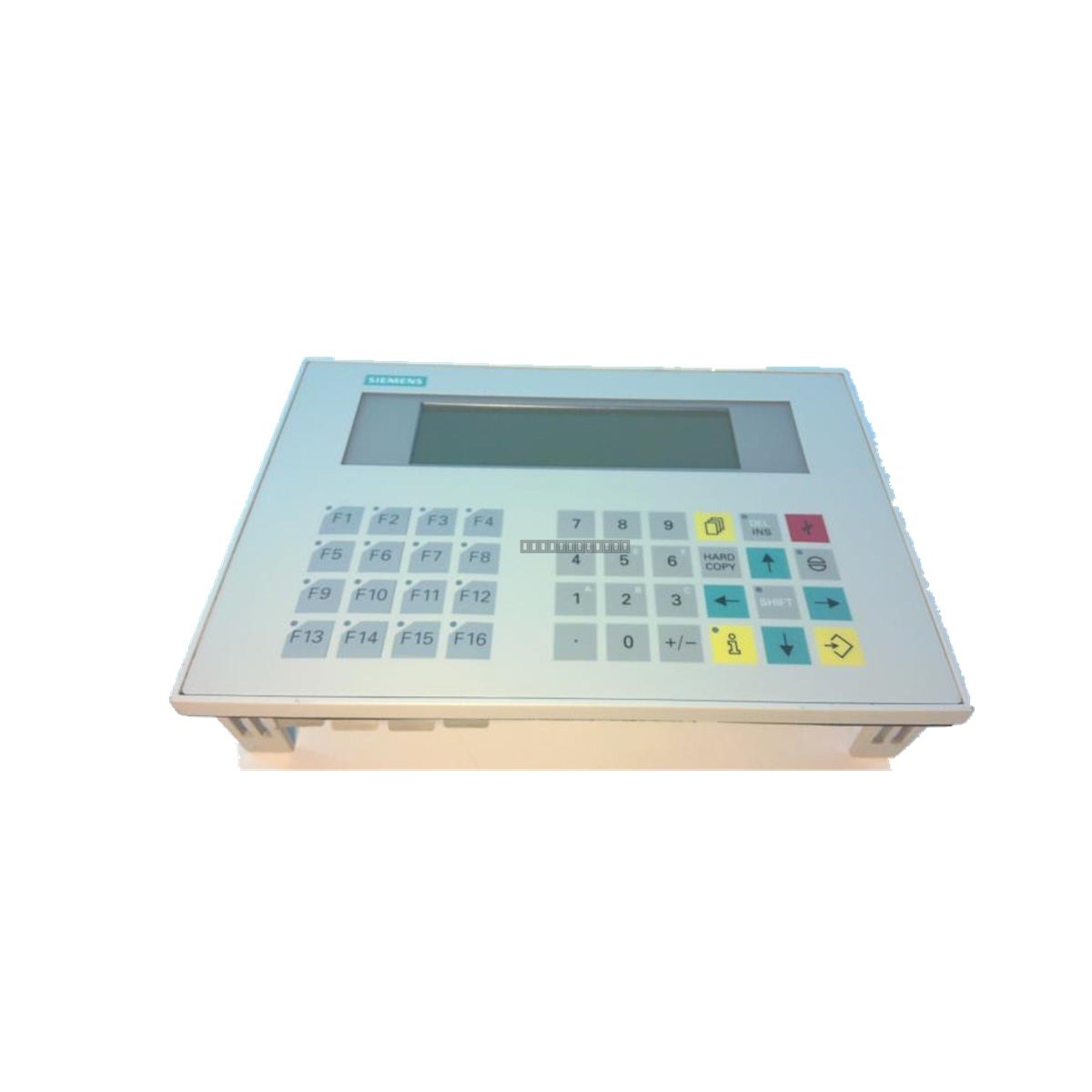

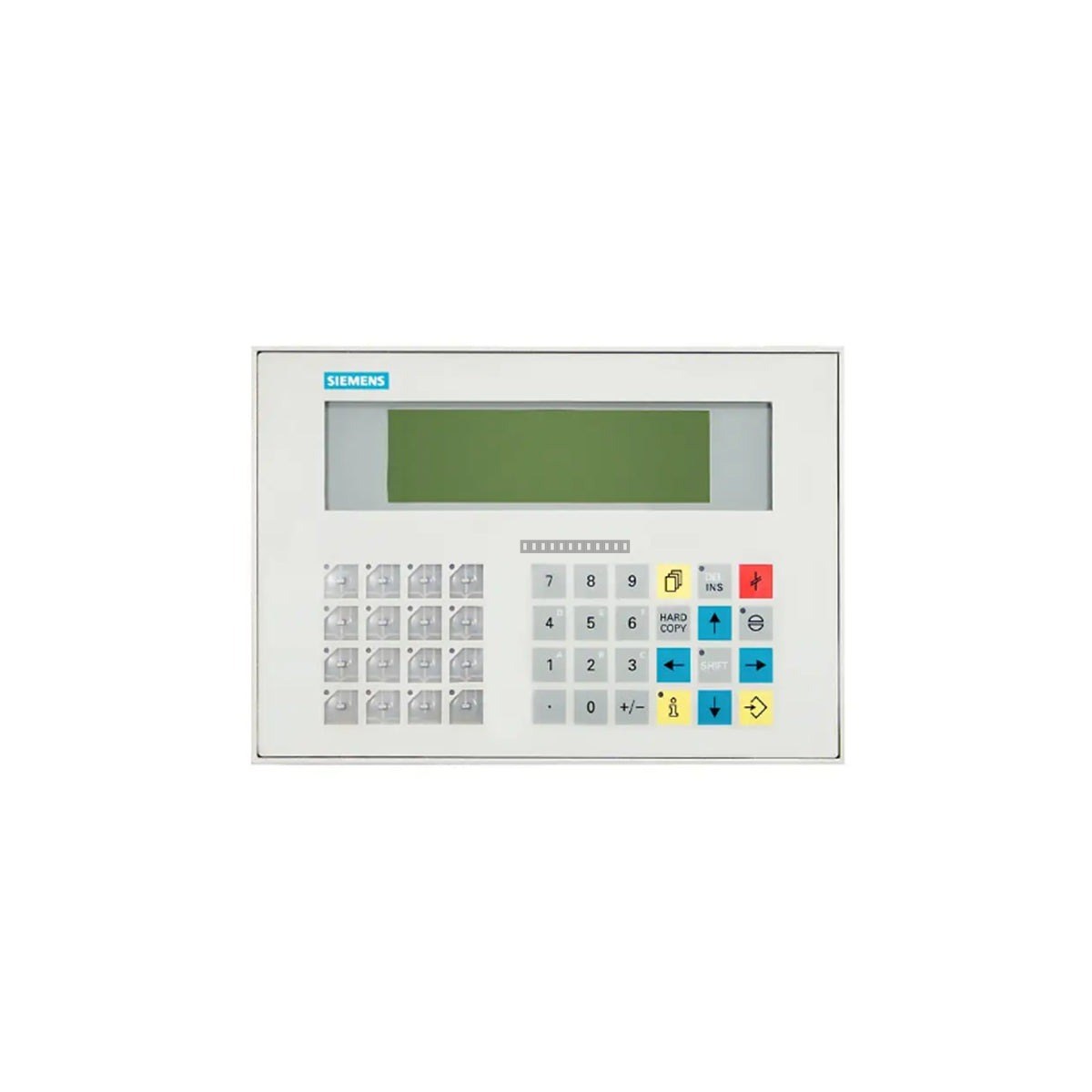

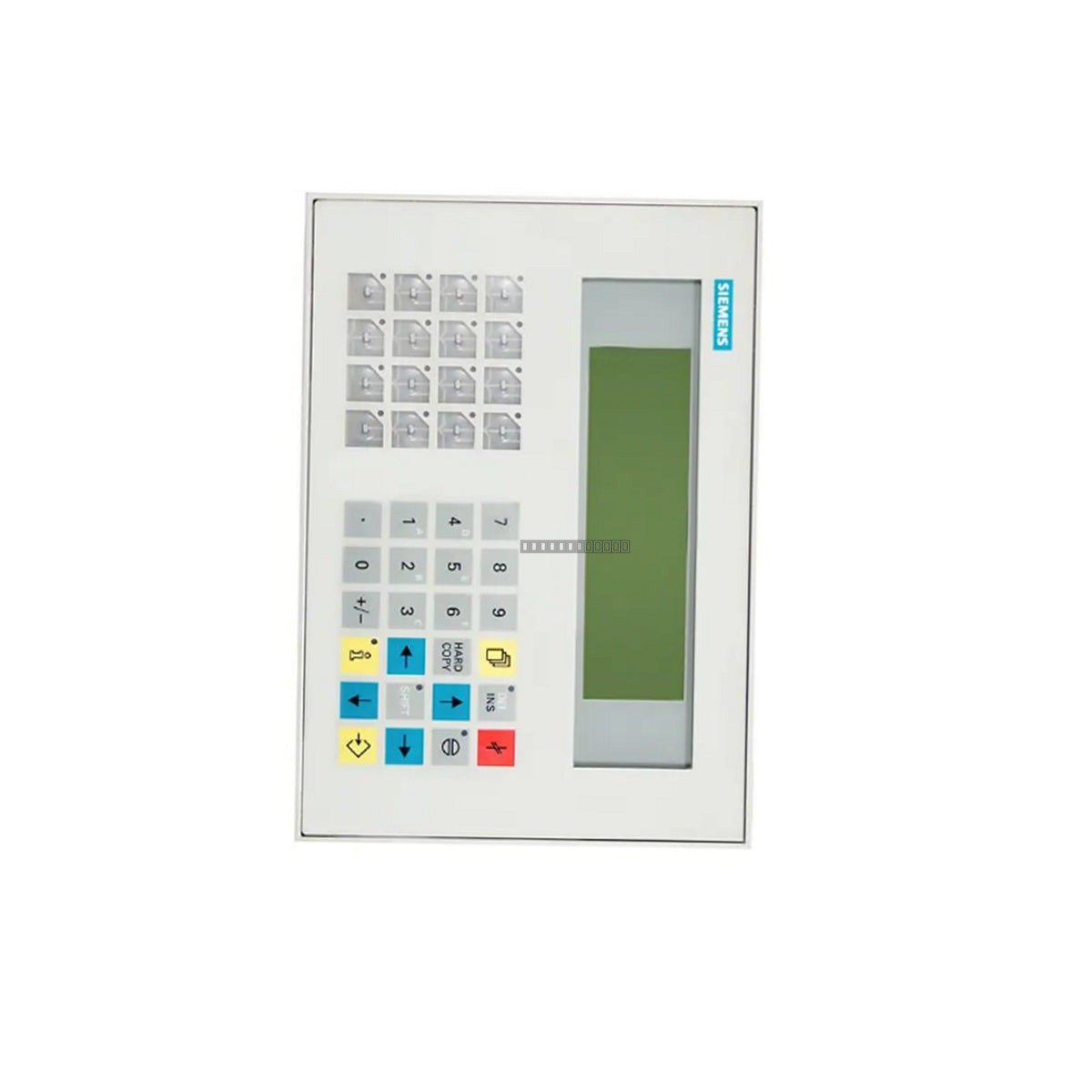

Siemens 6AV3515-1MA00 Simatic S5 OP15B Operator Panel

Availability: 10 left in stock

DescriptionThe Siemens 6AV3515-1MA00 (OP15B) is a robust operator interface terminal engineered for the Simatic S5 automation series. This unit serves...

SKU: 6AV3515-1MA00

Manufacturer: Siemens
Product No.: 6AV3515-1MA00
Product Type: Operator Panel
Product Origin: Germany
Payment:T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens 6AV3515-1MA00 (OP15B) is a robust operator interface terminal engineered for the Simatic S5 automation series. This unit serves as a critical human-machine interface (HMI), enabling operators to monitor process variables, adjust setpoints, and perform real-time diagnostics directly on the factory floor. Designed for reliability in demanding industrial environments, the OP15B provides a clear, configurable display and a durable input interface, making it a standard component for legacy S5-based control systems in sectors such as power generation, petrochemicals, and heavy manufacturing.

Features

Configurable monochrome LCD display supporting two modes: 4 lines of 20 characters (8 mm height) or 8 lines of 40 characters (4.5 mm height).
Sealed membrane keypad designed for tactile feedback and environmental protection against dust and moisture.
Deterministic serial communication interface for stable integration with Siemens Simatic S5 programmable logic controllers.
Compact, panel-mount form factor suitable for control room consoles and machine-level enclosures.

Applications

The OP15B is widely utilized in legacy automation architectures where direct, reliable interaction with the PLC is required. Typical applications include:

Monitoring and control of automated mining and extraction equipment.
Parameter visualization and fault diagnostic reporting in petrochemical refining processes.
Control room interface for power generation and distribution systems.
General machine-level control for legacy manufacturing lines.

Technical Specifications

Model	6AV3515-1MA00 (OP15B)
Brand	Siemens Simatic S5
Display Type	Monochrome LCD
Display Modes	4-line (20 chars/line) or 8-line (40 chars/line)
Character Height	8 mm (4-line) / 4.5 mm (8-line)
Input Interface	Sealed membrane keypad
Power Supply	24 VDC
Operating Temperature	0 to 50 deg C

Installation Guidelines

Ensure the panel is mounted in a clean, dry location with adequate ventilation to maintain operating temperatures within the 0 to 50 deg C range.
Verify the supply voltage is a stable 24 VDC before connecting to the unit.
Use shielded communication cables to prevent electromagnetic interference (EMI) from high-voltage equipment or variable frequency drives.
Ensure the gasket is properly seated during panel mounting to maintain the integrity of the membrane keypad against environmental contaminants.
Always power down the controller and the operator panel before connecting or disconnecting communication cables to prevent electrical damage.

FAQ

Is this unit compatible with modern S7 controllers?

The 6AV3515-1MA00 is specifically designed for the Simatic S5 ecosystem. Compatibility with S7 systems is generally not supported without specialized protocol conversion hardware.

What is the primary maintenance requirement for the OP15B?

Maintenance is minimal due to the solid-state design. We recommend periodic inspection of the membrane keypad for wear and ensuring that the rear communication terminals remain free of corrosion and debris.
