Description

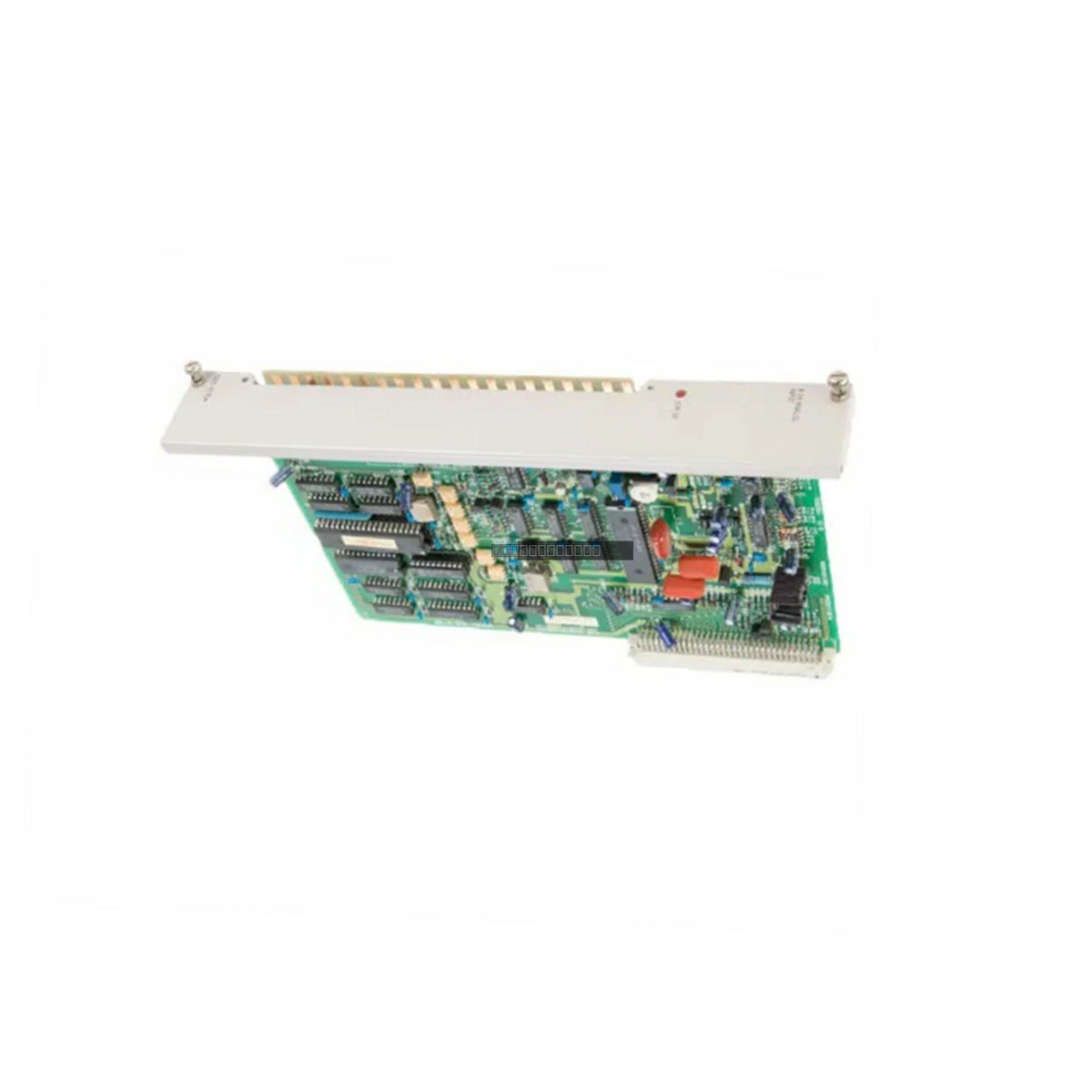

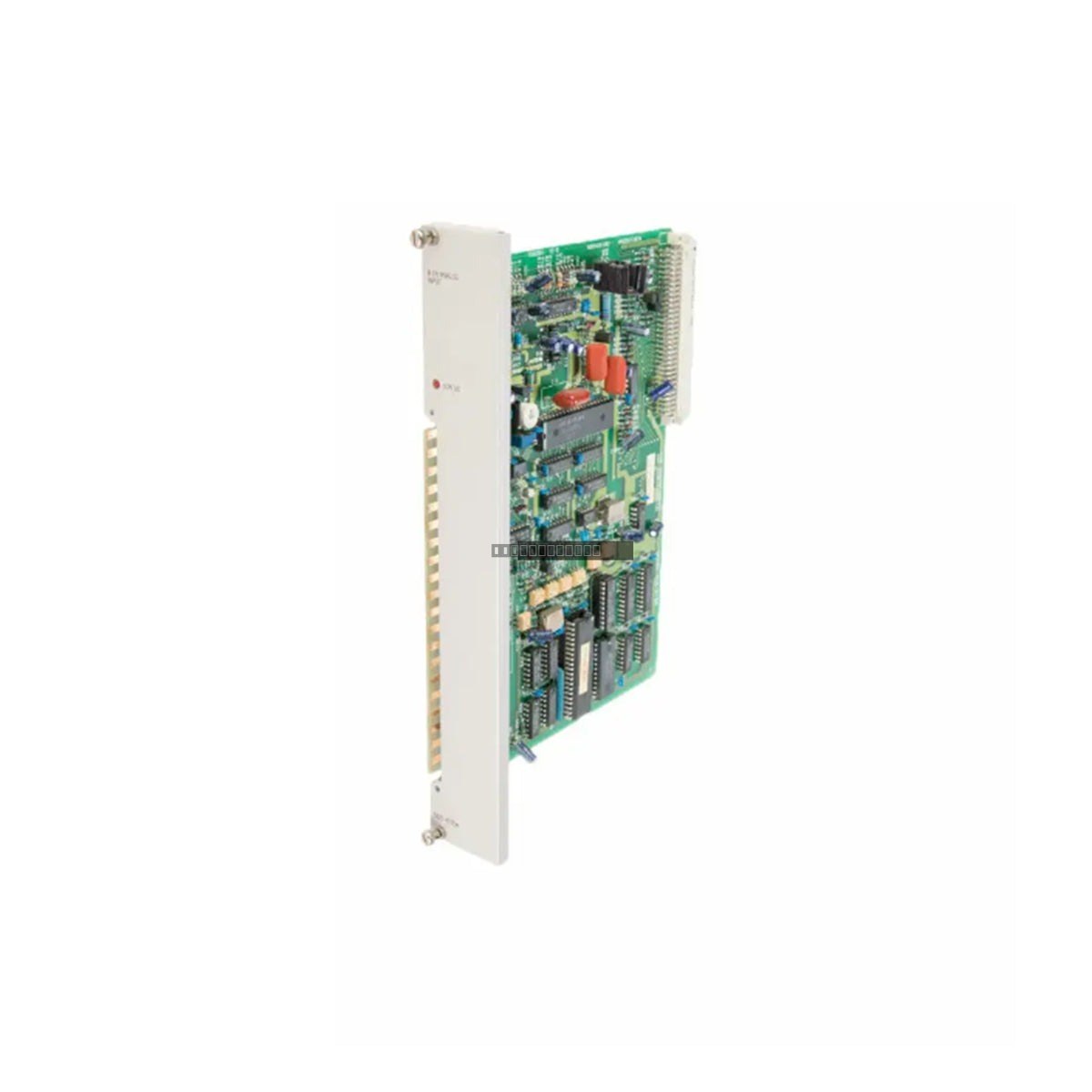

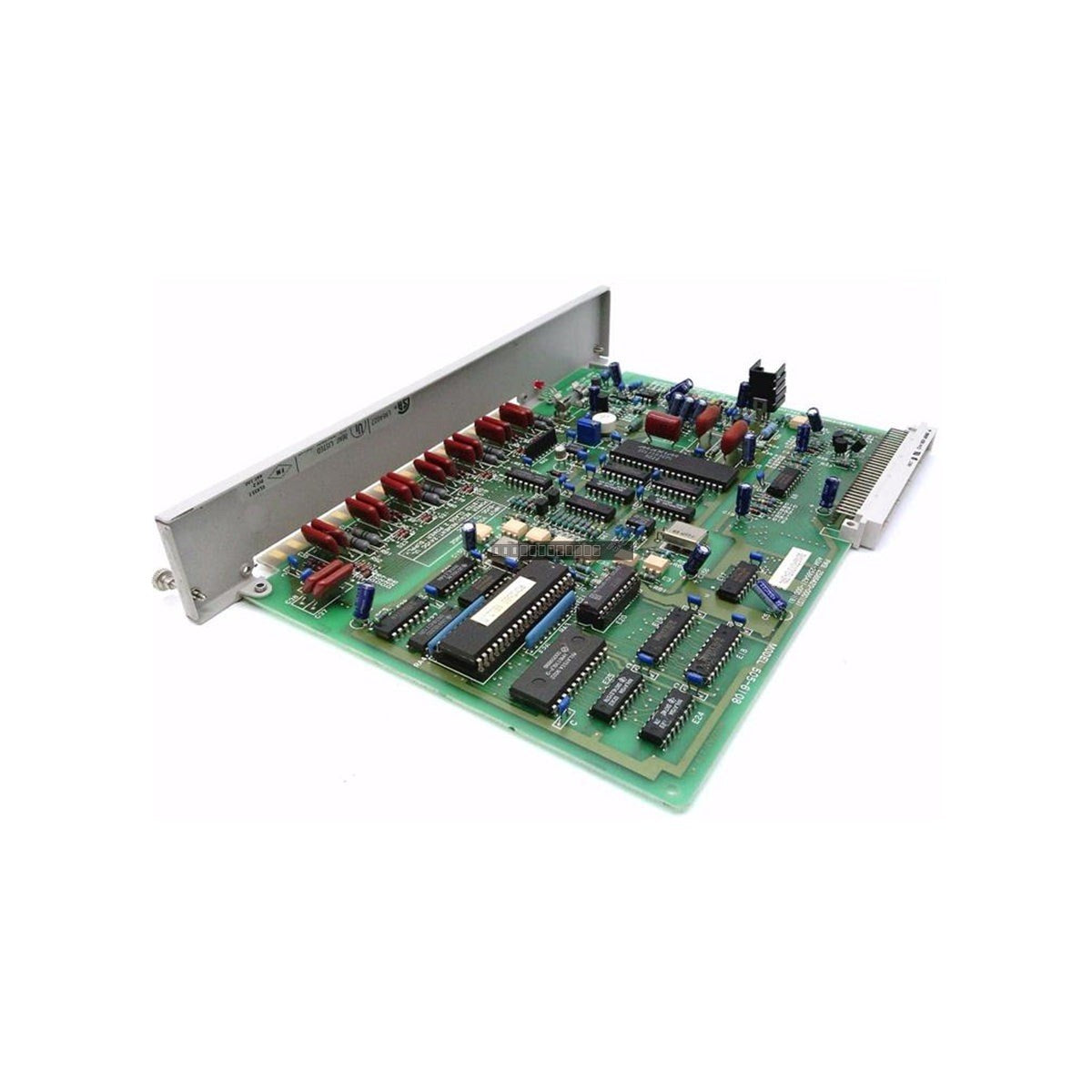

The Siemens 505-6108 is an 8-channel analog input module designed for the SIMATIC TI 505 programmable logic controller (PLC) series. This module provides high-resolution data acquisition for industrial control applications, supporting both current and voltage input signals. As a single-wide module, it is engineered for efficient integration into existing TI 505 rack systems to monitor process variables such as pressure, flow, temperature, or position sensors.
Features
- 8-channel analog input capacity for multi-point process monitoring.
- 12-bit resolution for precise signal conversion.
- Compatible with standard current and voltage signal ranges common in industrial instrumentation.
- Single-wide module design for optimized rack space utilization.
- Designed specifically for the legacy SIMATIC TI 505 controller architecture.
Applications
This module is typically utilized in manufacturing and process automation environments where analog feedback from field instrumentation is required for control loops or data logging. Common applications include monitoring analog sensors in chemical processing, water treatment, and discrete manufacturing assembly lines.
Technical Specifications
| Product Model | 505-6108 |
| Manufacturer | Siemens |
| Module Type | Analog Input Module |
| Channel Count | 8 Channels |
| Resolution | 12-bit |
| Form Factor | Single-wide |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the 505-6108 module to prevent electrical damage.
- Verify that the module is correctly seated in the backplane connector to ensure proper communication with the CPU.
- Use shielded twisted-pair cabling for analog signal inputs to minimize electromagnetic interference (EMI) and noise pickup from high-voltage lines.
- Ensure proper grounding of the signal cable shields at the source or the cabinet ground bus, following standard industrial grounding practices.
- Maintain adequate airflow around the PLC rack to prevent overheating, as analog modules can be sensitive to extreme temperature fluctuations.
FAQ
Is the 505-6108 still being manufactured?
No, this model has been discontinued by the manufacturer. It is typically sourced through industrial spare parts suppliers for maintenance and lifecycle extension of legacy TI 505 systems.
Does this module support both voltage and current inputs?
Yes, the 505-6108 is designed to handle both analog current and voltage inputs, making it versatile for various field device configurations.
