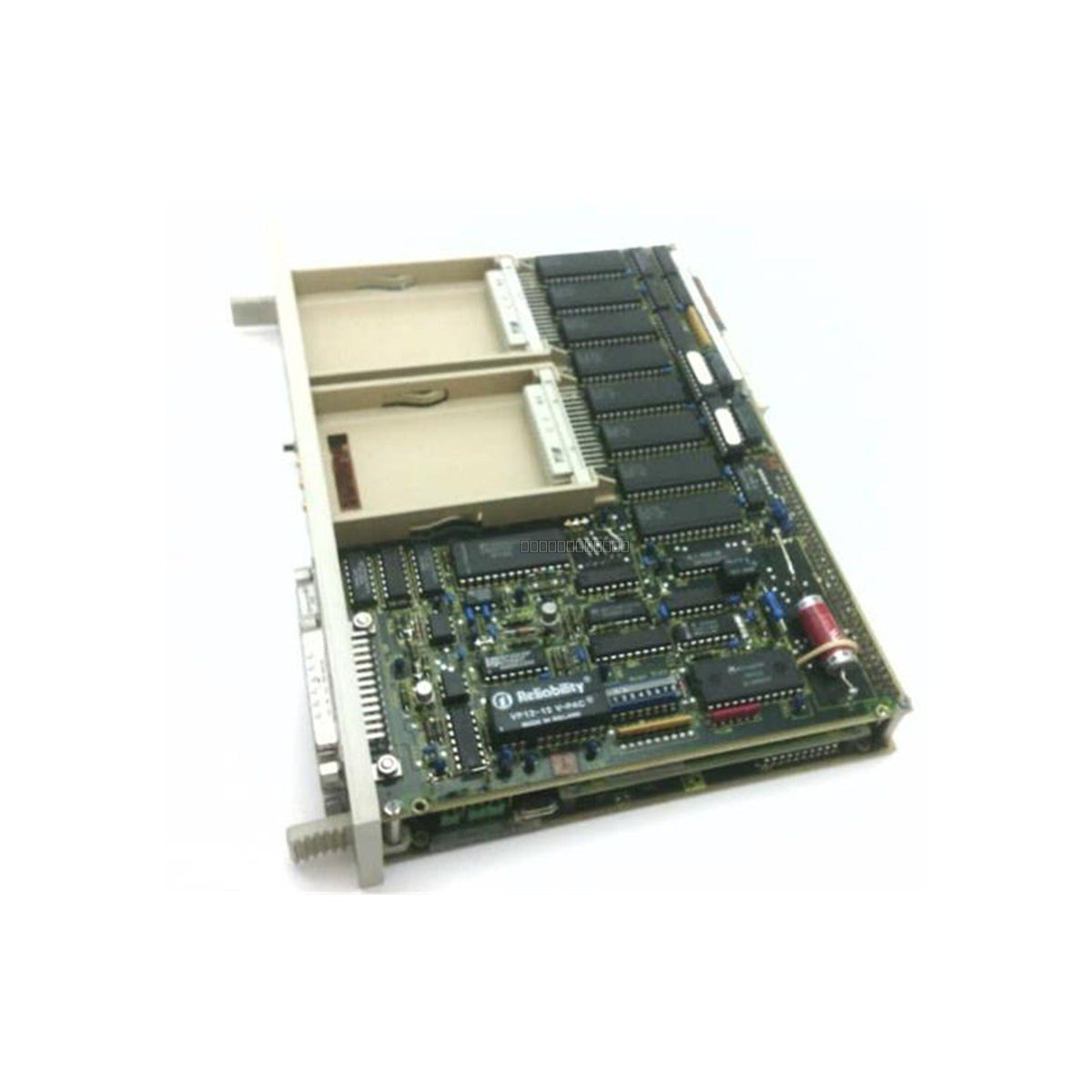

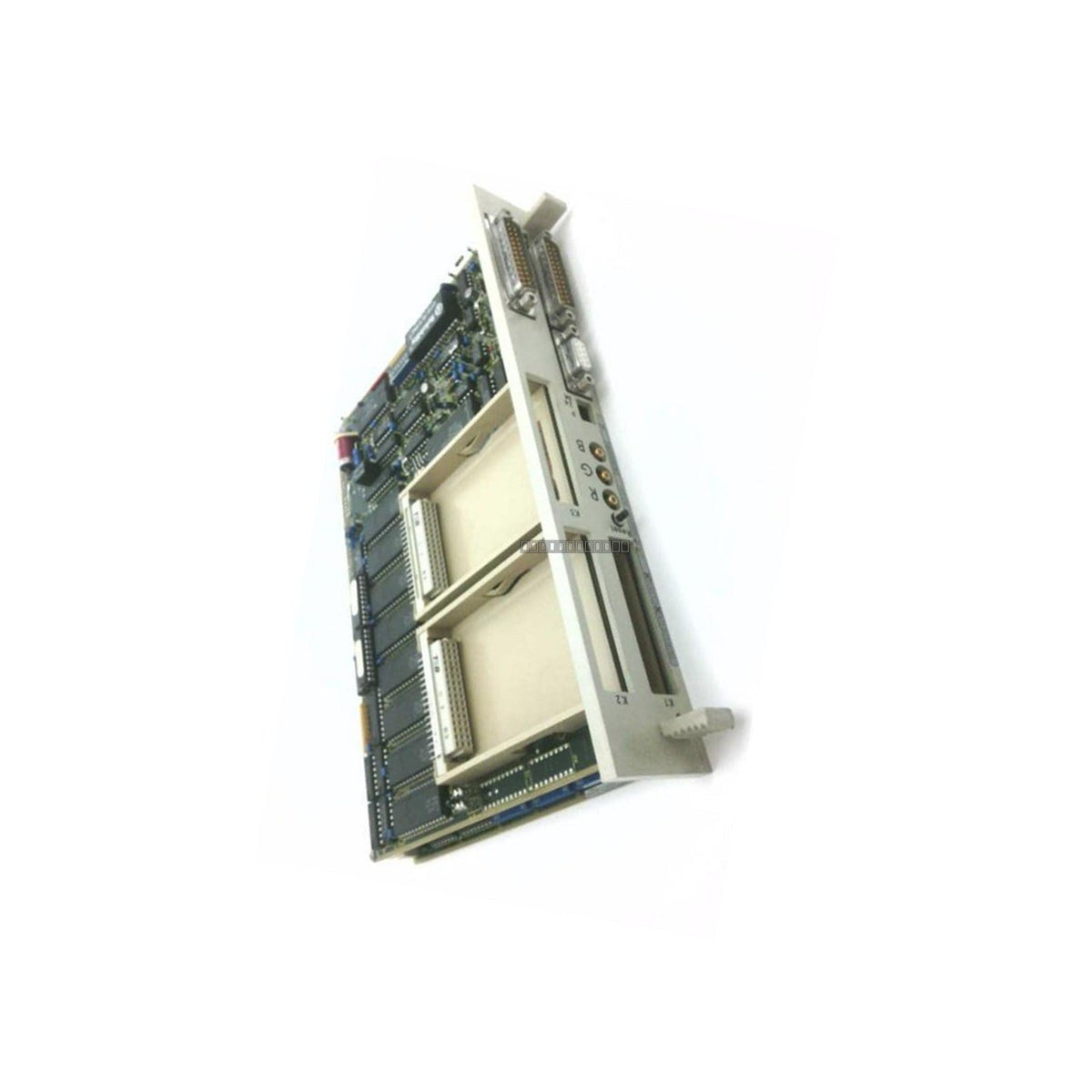

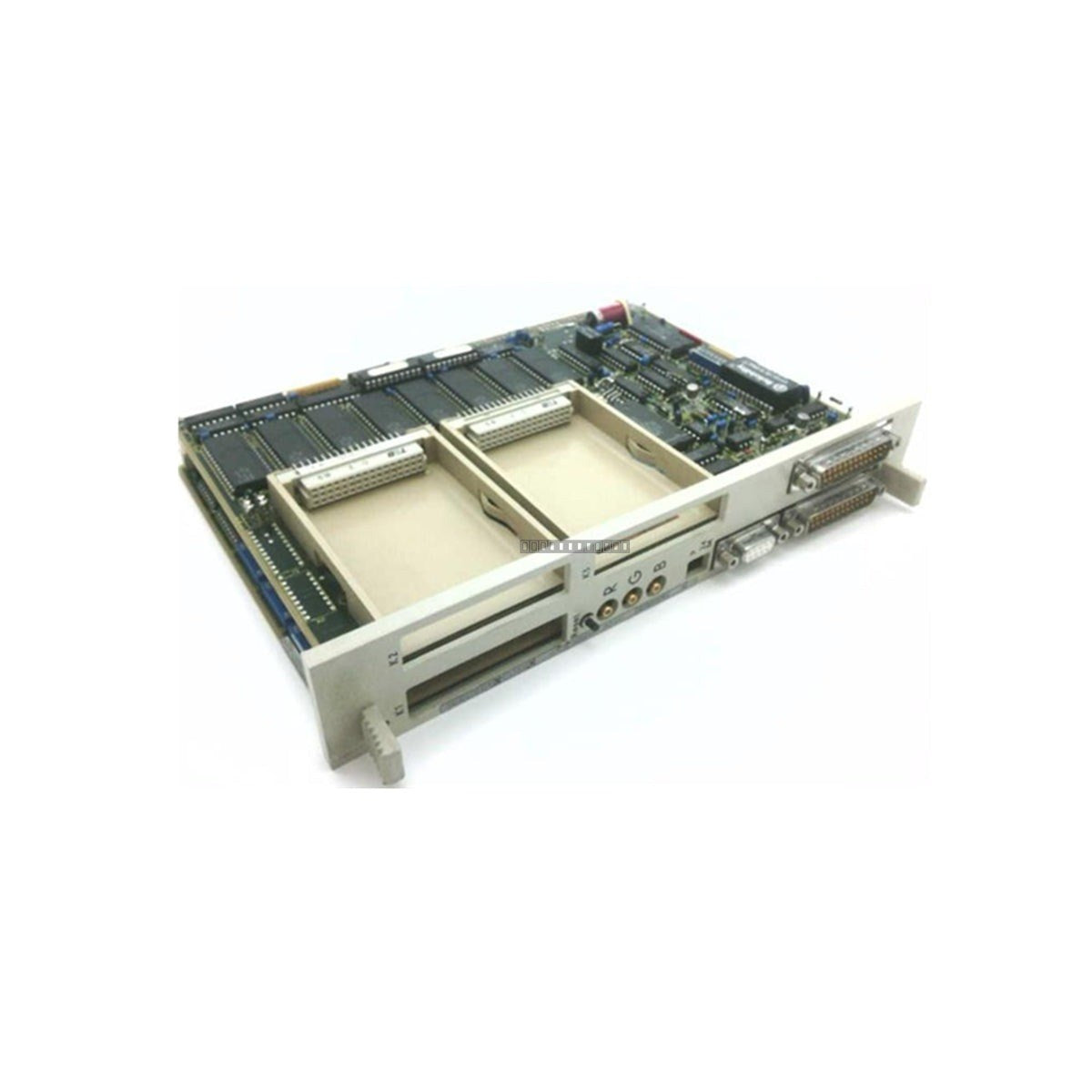

Siemens 6FM1470-3CA21 SIMATIC S5 WF470 Display Module

Availability: 3 left in stock

DescriptionThe Siemens 6FM1470-3CA21 is a specialized display and interface module designed for the SIMATIC S5 Intelligent Processors family. Engineered specifically...

SKU: 6FM1470-3CA21

Manufacturer: Siemens
Product No.: 6FM1470-3CA21
Product Type: Display Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 600g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens 6FM1470-3CA21 is a specialized display and interface module designed for the SIMATIC S5 Intelligent Processors family. Engineered specifically for the WF470 positioning processor, this unit facilitates real-time monitoring, parameterization, and diagnostic feedback for industrial motion control applications. By providing a direct operator interface, the module enables efficient management of complex positioning sequences in environments such as metal fabrication, high-speed assembly, and material handling.

Features

Integrated display interface for WF470 positioning processors
56 KB internal RAM for local data logging and sequence buffering
Three physical slots for scalable memory module expansion
High-speed backplane communication for deterministic motion control
Designed for seamless integration with SIMATIC S5 rack-based systems

Applications

This module is primarily utilized in automated manufacturing systems requiring precise multi-axis motion control. It is commonly deployed in heavy-duty industrial environments where rapid diagnostic feedback and local process parameterization are essential for maintaining system uptime and operational efficiency.

Technical Specifications

Model	6FM1470-3CA21
Series	SIMATIC S5 Intelligent Processors
Internal Memory	56 KB RAM
Memory Expansion	3 Slots
Power Consumption	15 W
Operating Temperature	0 degC to 55 degC
Mounting	Standard S5 Rack Assembly
Communication	Proprietary WF470 Bus Interface

Installation Guidelines

Ensure the SIMATIC S5 rack power is disconnected before installing or removing the module to prevent electrical damage.
Verify that the module is correctly seated in the designated S5 rack slot to ensure proper backplane contact.
Maintain adequate spacing within the cabinet to allow for proper ventilation and heat dissipation, keeping the ambient temperature within the 0 degC to 55 degC range.
Handle with standard ESD precautions to protect sensitive internal components.
Ensure all memory modules are securely seated in their respective slots before powering up the system.

FAQ

Q: Is this module compatible with non-S5 systems?
A: No, the 6FM1470-3CA21 is specifically designed for the Siemens SIMATIC S5 rack architecture and the WF470 positioning processor.

Q: Can the memory capacity be expanded?
A: Yes, the module features three physical slots designed to accommodate additional memory modules for increased storage capacity.
