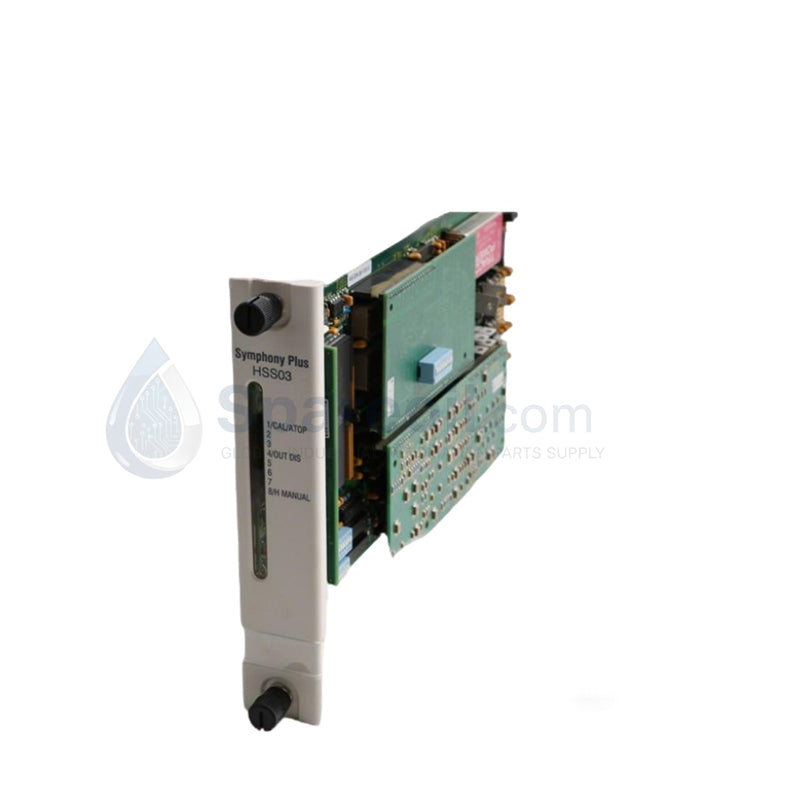

SPHSS03 ABB Harmony Rack Hydraulic Servo Control Module

SPHSS03 ABB Harmony Rack Hydraulic Servo Control Module

Availability: 10 left in stock

ABB SPHSS03 Harmony Rack Series Hydraulic Servo Control The ABB SPHSS03, also cataloged as the SPHSS03 Hydraulic Servo Module, operates...

SKU: SPHSS03

Manufacturer: ABB
Product No.: SPHSS03
Product Type: Hydraulic Servo Modules
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 600g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

ABB SPHSS03 Harmony Rack Series Hydraulic Servo Control

The ABB SPHSS03, also cataloged as the SPHSS03 Hydraulic Servo Module, operates as a dedicated hardware component for high-speed closed-loop regulation of hydraulic actuators within Symphony Plus and Harmony Rack platforms. This module coordinates valve positioning for turbine governing systems by processing physical position feedback signals and generating precise output currents to drive electro-hydraulic servo valves.

Hardware Specifications

Parameter	Specification
Model	SPHSS03
Brand	ABB
Origin	USA / Europe
Weight	0.60 kg
Dimensions	Standard Harmony Rack module form factor
Operating Temp	0 to +60 deg C
Power Consumption	15 Watts maximum
Controller Interface	Symphony Plus / Harmony Rack (HR) Series
Control Loop Type	Closed-loop with LVDT feedback
Processing Time	Less than 1 ms
Position Accuracy	Plus or minus 0.1%
Feedback Support	Linear Variable Differential Transformer (LVDT)
System MTBF	Greater than 100,000 hours
Redundancy	Dual redundant power paths supported

Industrial Control & Drive Backplane Characteristics

The architecture of this component relies heavily on synchronous communication with the master controller. The unit executes deterministic algorithms utilizing integrated backplane bus communication velocity licences to maintain fixed loop iteration times under 1 ms. High I/O density scaling allows a single rack row to manage multiple independent servo loops. The on-board processing unit maintains complete firmware flash compatibility with legacy Harmony block configurations, ensuring that firmware updates do not introduce transmission lag or alter the step response curves of connected hydraulic positioning loops.

Frequently Asked Questions

Q: Does the module support hot-swap replacement while the turbine control loop is active?

A: No, online hot-swap of the SPHSS03 is restricted during active turbine operation. Removal of the module breaks the active hydraulic servo loop, which drops the valve drive current to zero and forces the associated hydraulic dump valves into a trip state. The turbine must be parked or the specific loop isolated before hardware extraction.

Q: How does the module handle a sudden loss of one of its power feeds?

A: The module is engineered with dual independent hardware power paths. Internal high-speed diode-ORing circuitry balances incoming power from redundant backplane rails. A voltage drop or complete failure on one rail causes an immediate shift to the secondary supply line without interrupting processor execution or altering the servo output current.

Q: Can the LVDT feedback parameters be calibrated directly through the module hardware?

A: Hardware calibration via physical potentiometers is not supported. All zero, span, and phase-demodulation settings for the connected Linear Variable Differential Transformers are software-configured through engineering workstation tools and downloaded directly into the module flash memory.

Field Installation Guidelines

Mount the module into its assigned slot on the Harmony Rack subplane, pushing firmly until the front-panel captive screws align with the threaded inserts of the chassis. Tighten the screws to a torque rating of 0.5 Nm to ensure mechanical stability against high-frequency turbine deck vibrations. Field wiring for the LVDT feedback loops and servo coil outputs must utilize individual twisted, overall shielded pairs with a minimum cross-section of 0.5 mm2 (AWG 20). Terminate all cable shields at the designated chassis ground bus bar inside the enclosure; do not ground the shields at the actuator terminal box to prevent ground loop currents from distorting the feedback signal. Maintain at least 100 mm of clearance between the hydraulic signal wires and high-power AC motor supply lines within the cable management trays.
