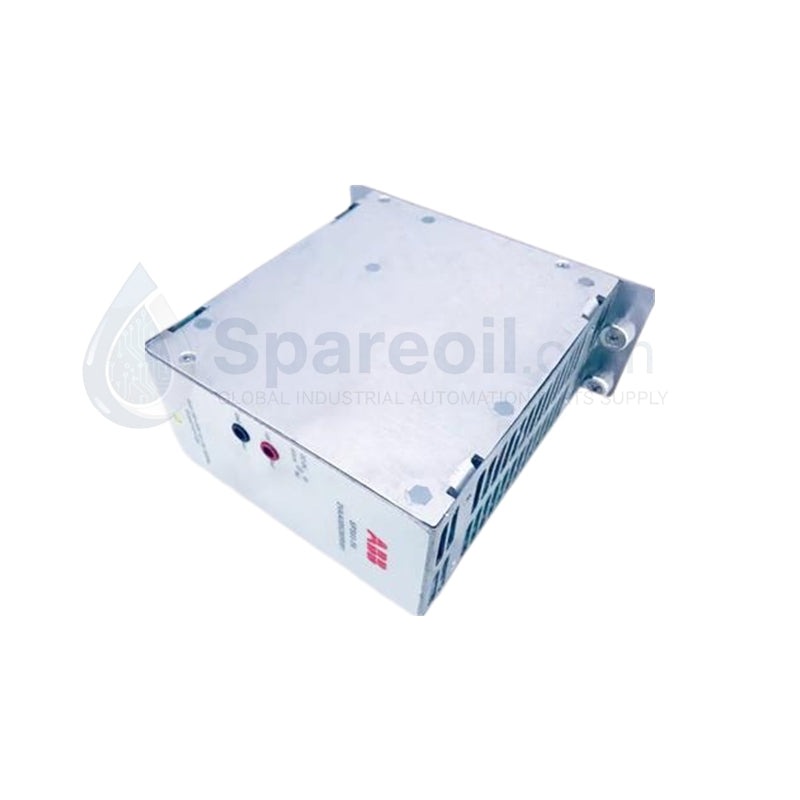

ABB SPS03-5V Symphony Plus Series
The ABB SPS03-5V, also cataloged as the SPS03-5V Switching Power Supply Module, operates as a dedicated hardware component for primary logic power conversion within Symphony Plus and INFI-90 distributed control system (DCS) architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SPS03-5V (Order Number: 2VAA008280R001) |
| Brand | ABB (Bailey Controls) |
| Origin | Germany |
| Weight | Standard series footprint weight (1.8 kg) |
| Dimensions | 119 mm x 158 mm x 188 mm |
| Operating Temp | -20 to +60 deg C |
| Power Consumption | Calculated based on active load delivery (~100 W output) |
| Input Voltage Range | 100-240 VAC (50/60 Hz) |
| Nominal Output Voltage | +5 VDC |
| Output Current | Up to 20 A |
| Voltage Accuracy | +-0.5% |
| Ripple & Noise | < 1% Peak-to-Peak |
| Efficiency | >85% at Full Load |
| Hot-Swappable | Yes |
| Redundancy | N+1 Redundant Configuration Support |
| Compliance | CE, UL, CSA, RoHS |
Industrial Control and Drive Hardware
The switching power supply architecture interfaces with internal backplane bus communication velocity pathways to distribute high-current logic potentials. By regulating a continuous 20 A stream specifically across the +5 VDC line, the unit supports substantial I/O density scaling arrays across local CPU and communication hardware blocks. Internal noise isolation filters limit ripple voltages to less than 1% peak-to-peak, maintaining clean gate voltages and logic parity during external line disturbances.
Frequently Asked Questions
Q: What specific subcomponents rely on the +5 VDC output managed by the SPS03-5V module?
A: This module delivers dedicated low-voltage power directly to core processor logic arrays, high-speed communication bus circuits, and critical backplane microprocessors that operate exclusively on +5 VDC thresholds.
Q: How is this unit handled during live hardware maintenance inside a powered rack?
A: The physical contact design supports hot-swappable replacement, enabling operators to pull or insert the module under live load conditions without disrupting the execution cycles of adjacent controllers.
Q: What configuration is required to achieve N+1 active redundancy with this module series?
A: Built-in cross-decoupling components allow multiple units to be installed in parallel on a single system backplane block, which enables automatic load sharing and zero-delay power takeover if a single supply fails.
Field Installation Guidelines
Lock the power supply module securely into the designated rack allocation chassis using the integrated guide rails and panel fasteners. Route all incoming primary AC electrical utility lines within grounded metallic wiring ducts separated from sensitive low-voltage instrumentation lines and high-current motor control feeds. Connect the protective earth grounding point directly to the main cabinet ground copper busbar using a short, low-impedance conductor strap. Enforce a minimum 50 mm clearance gap above and below the ventilated module surfaces to maintain free vertical thermal air convection currents.
