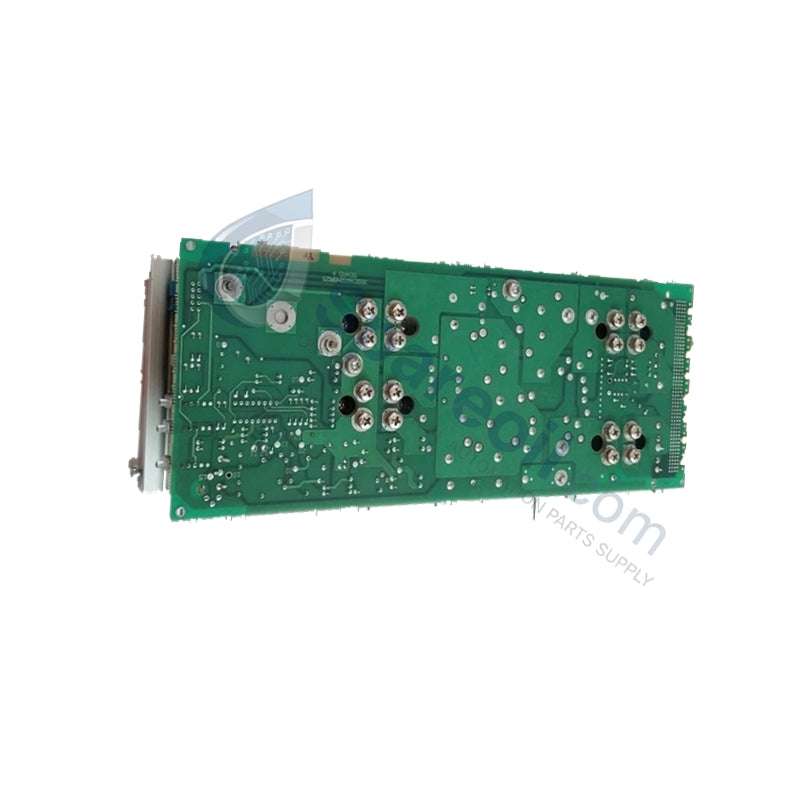

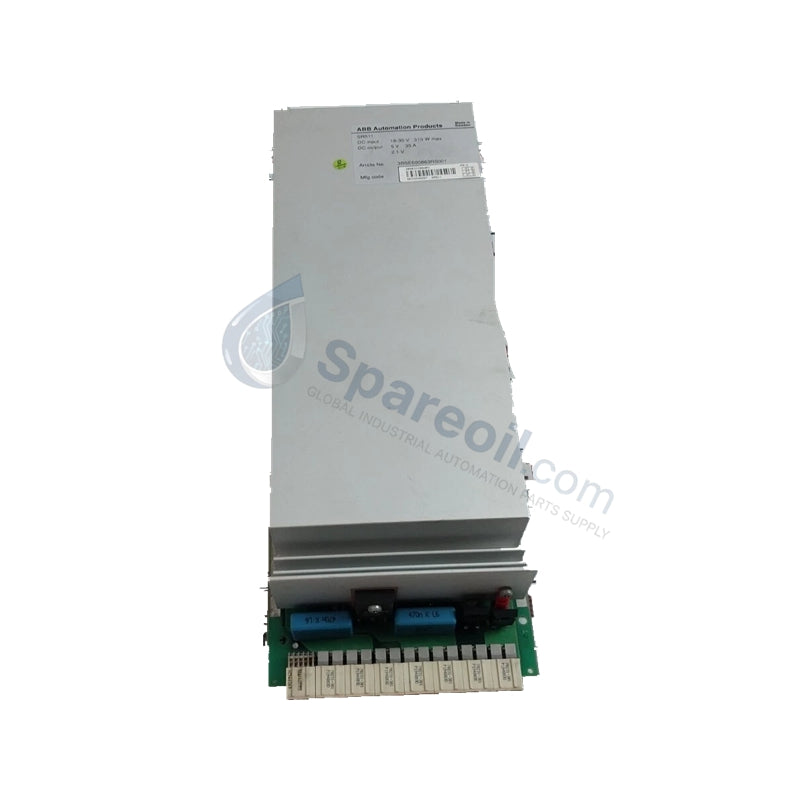

SR511 ABB Advant OCS Controller Regulator Brand New

Availability: 10 left in stock

Product Overview The ABB SR511 (3BSE000863R1) functions as a high-capacity power regulator and supply module specifically engineered for the Advant...

SKU: SR511

Manufacturer: ABB
Product No.: SR511
Product Type: Voltage Regulators
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The ABB SR511 (3BSE000863R1) functions as a high-capacity power regulator and supply module specifically engineered for the Advant OCS and AC 800M controller families. It accepts a wide input range of 18–30V DC and converts it into precisely regulated 24V and 5V outputs to power internal controller logic and I/O subsystems. Capable of handling up to 35A, the SR511 serves as the energy heart for high-density automation racks, ensuring that fluctuations in field power do not disrupt sensitive processor operations. We provide this unit as 100% Brand New and Original in factory-sealed packaging.

Technical Specifications

The SR511 utilizes advanced switching technology to maintain thermal efficiency while delivering high-current output.

Attribute	Specification Details
Model Number	SR511
Product ID	3BSE000863R1
Type	Power Supply / Regulator
Input Voltage	18 - 30 V DC
Output Voltages	24 V DC / 5 V DC
Output Current	Up to 35 A (Total capacity)
System Compatibility	Advant OCS, AC 800M, Freelance, S800 I/O
Isolation	Galvanic isolation between field and system bus
Operating Temp	–25 °C to +70 °C
Dimensions	11.7 cm x 24.3 cm x 5.4 cm
Net Weight	1.6 kg
Certifications	CE, UL, RoHS

Engineering Advantages

The SR511 addresses the rigorous power demands of large-scale industrial control racks through several engineering innovations:

High-Current Stabilization: Unlike standard regulators, the SR511 delivers up to 35A, allowing it to power an entire subrack of I/O modules and processors. This centralized power approach reduces the need for multiple smaller supplies, simplifying cabinet wiring.
Thermal Resilience: The module operates effectively in temperatures ranging from –25 °C to +70 °C. This wide thermal window allows for installation in remote instrument enclosures (RIEs) and cabinets where ambient heat typically degrades standard power components.
Hot-Swap Availability: When integrated into compatible S800 I/O base units, the SR511 supports hot-swap replacement. This allows maintenance teams to swap power modules without de-energizing the entire controller station, effectively eliminating unplanned downtime.
Voltage Sag Protection: The regulator handles input fluctuations between 18V and 30V. It maintains a rock-steady 5V logic supply even during significant voltage sags on the primary DC bus, protecting the controller from unexpected reboots or data corruption.

FAQs

Is the ABB SR511 a digital input module or a power supply?

The SR511 is primarily a Regulator/Power Supply. While some technical databases may cross-reference similar footprints for digital input cards (like DI810), the SR511 3BSE000863R1 is specifically designed for 24V/5V power regulation within the Advant and AC 800M architecture.

Does this product come with a warranty?

Yes. Every Brand New ABB SR511 we ship includes a 12-month factory warranty. It arrives in original factory packing to ensure the unit meets all manufacturer quality control standards.

What is the significance of the 5V output?

The 5V output powers the internal logic circuits and communication processors within the Advant OCS backplane. Without a clean, regulated 5V source, the controller cannot execute logic or communicate with the network, making the SR511 a critical component for system health.

Can the SR511 be used in marine or explosive atmospheres?

The SR511 carries standard industrial certifications (CE, UL). For specific Marine or ATEX Zone 2 applications, please verify the exact version against your project’s compliance certification requirements, as some variants include additional protective coatings for offshore use.
