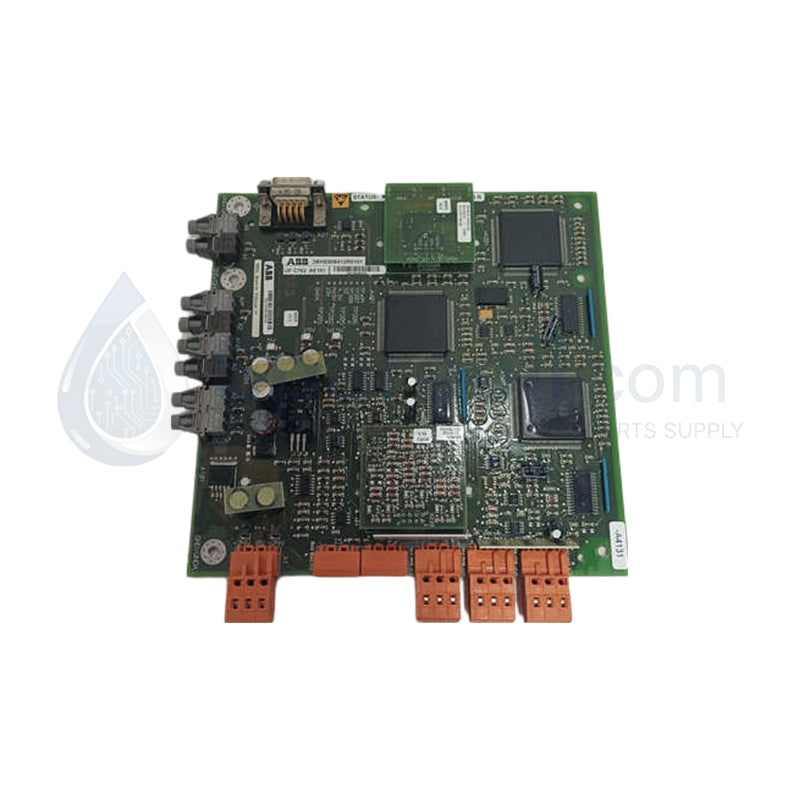

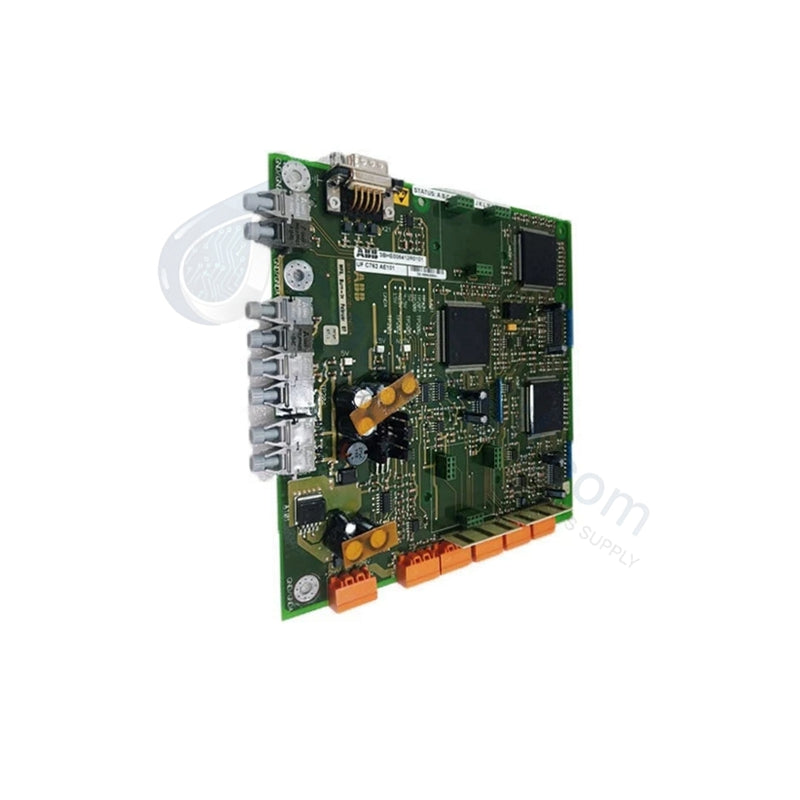

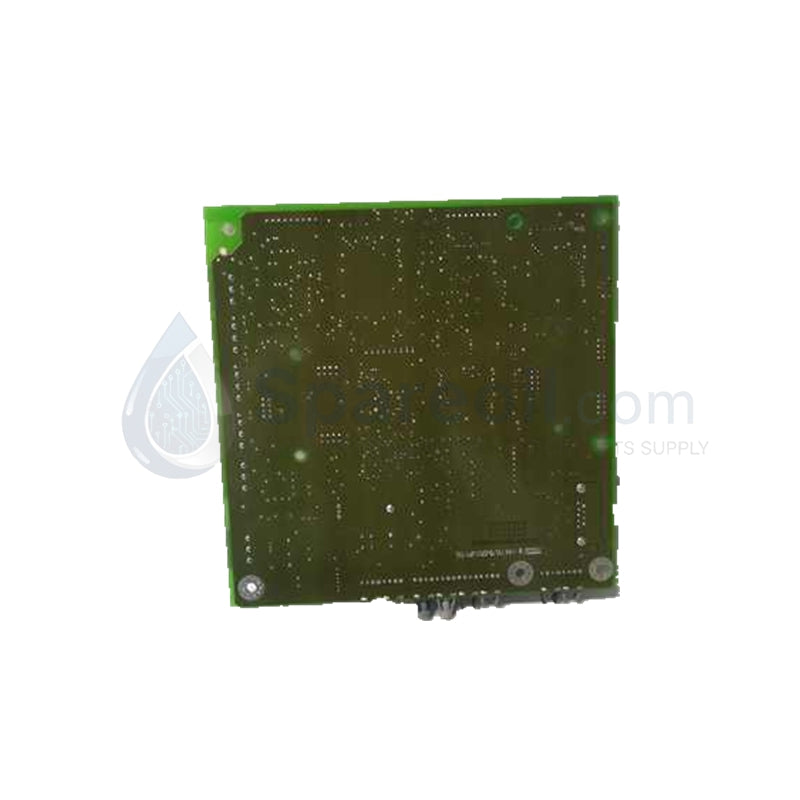

ABB UFC762AE101 AC800M CVMI Interface Board

The ABB UFC762AE101, also cataloged as the ABB 3BHE006412R0101 CVMI Interface Board, operates as a dedicated hardware component for synchronous voltage measurement and control execution within AC800M and excitation control networks.

Hardware Specifications

Parameter	Specification
Model	UFC762AE101
Part Number	3BHE006412R0101
Brand	ABB
Series	AC800M / Unitrol / Excitation Systems
Module Type	Control and Voltage Measurement Interface (CVMI)
Power Consumption	24 VDC Nominal
Redundancy	Dual-channel redundant architecture support
Interface Network Protocols	Modbus TCP/RTU, Profibus DP, Ethernet
Cycle Response Time	Less than or equal to 10 ms
Operating Temp	-10 to +55 deg C
Mounting Type	Standard ABB I/O rack or panel mount
Reliability (MTBF)	Greater than 75 years in TMR configurations
Dimensions	Standard ABB controller rack interface dimensions
Weight	0.6 kg
Origin	Switzerland

Industrial Control and Deterministic Networks

The ABB UFC762AE101 integrates directly into backplane bus communication velocity frameworks to manage high-speed data exchanges between field instruments and the processor core. This processing speed allows for precise I/O density scaling during massive voltage tracking sequences without degrading communication response times. Operating on synchronous communication architectures, the module bridges field data to Profinet or EtherNet/IP deterministic networks to execute real-time loop feedback loops. Furthermore, the unit features built-in firmware flash compatibility parameters, allowing verified system software upgrades to occur via the centralized backplane without altering hardware wiring or interrupting concurrent system monitoring tasks.

Frequently Asked Questions

Q: How does the UFC762AE101 manage data transmission delays during a dual-channel processor switchover?

A: The board features hardware-arbitrated redundancy logic that achieves switchover execution within the 10 ms processing cycle limit. This timing parameter ensures that backplane bus communication remains deterministic and uninterrupted during a failure.

Q: Is the firmware flash memory on this CVMI board compatible with hot-swapping procedures?

A: No. While the hardware architecture supports live physical insertion into a powered subrack, firmware flash updates require the module to be placed in an isolated configuration mode to prevent data corruption or unintended device behavior on the local bus.

Q: What are the backplane current budget considerations for allocating multiple UFC762AE101 boards in a single slot subrack?

A: Each interface board operates primarily on the local 24 VDC subrack power bus. System layout design must account for total power consumption metrics based on the cumulative maximum load values to prevent voltage drops along the internal bus rails.

Field Installation Guidelines

Subrack Mounting Security: Slide the board assembly smoothly along the subrack guide rails until the backplane connectors are fully engaged. Fasten all captive retention screws securely to the chassis frame to ensure proper grounding and mechanical stability against vibration.
Shield Continuity and Grounding: Connect the overall instrument cable shield to the dedicated low-impedance ground bus bar inside the enclosure panel. Never use the module front plate or subrack mounting screws as the single point of functional earth termination.
Network Cable Routing Constraints: Route all high-speed Ethernet and Profibus DP communication cables inside separated, grounded wire ducts. Maintain a minimum distance of 300 mm from high-voltage AC lines or motor drive supply cables to prevent electromagnetic signal cross-talk.
External Sensor Termination: Terminate voltage sensor wiring at the dedicated terminal block interfaces. Check that all compression connections are tightened according to standard factory specifications before verifying loop power levels.
