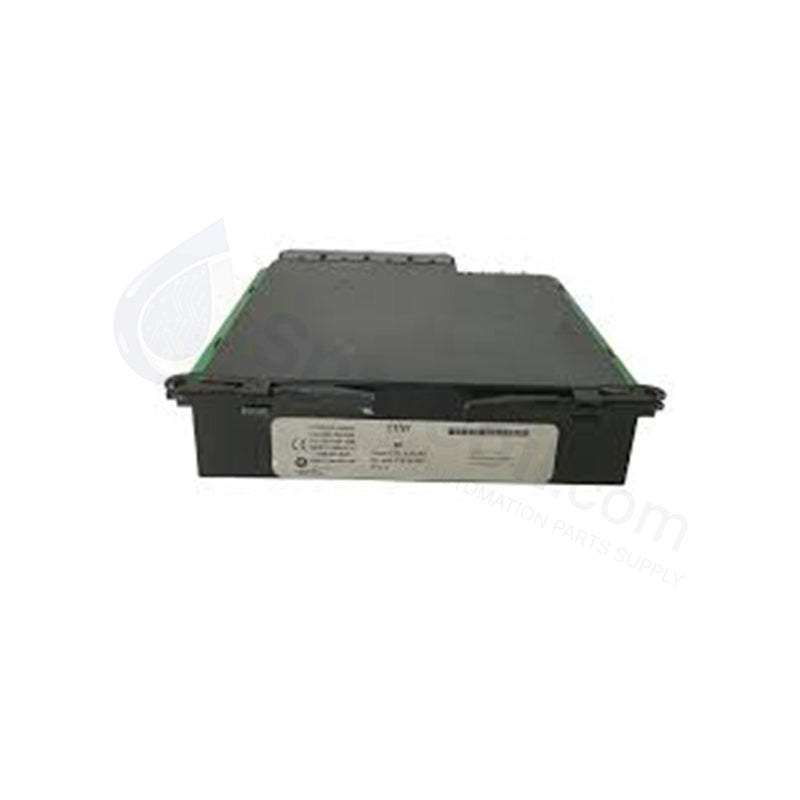

GE Multilin UR6EV Universal Relay Digital Input Module
Configured for high-speed contact status monitoring in Universal Relay (UR) series chassis, the GE Multilin UR6EV (UR6EV Digital Input Module) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | UR6EV |
| Brand | GE Multilin |
| Origin | Canada |
| Module Type | Digital Input / Contact Input Module |
| System Platform | Universal Relay (UR) Series (B30, C30, D60, G60, etc.) |
| Configuration | Modular Plug-in Card |
| Isolation | High-level galvanic isolation |
| Communication | Internal high-speed bus / Ethernet integration |
| Operating Voltage | Sourced via UR chassis backplane power rail |
| Operating Temp | -20 to +60 deg C |
| Dimensions | 3.8 x 11.5 x 4.5 cm |
| Weight | 0.6 kg |
Backplane Bus Communication Velocity and I/O Density Scaling
The UR6EV expands the I/O density scaling of utility-grade protection systems by routing discrete contact state signals directly into the UR platform core logic. The card employs optimized onboard hardware debounce filtering to eliminate mechanical transient noise from high-voltage breaker contacts before routing the clean data stream to the chassis internal high-speed bus. This deterministic bus communication velocity ensures real-time status reporting to the primary protective CPU within sub-millisecond frames. High-level galvanic isolation parameters insulate the internal processing microchips from external common-mode surges and electromagnetic interference common to substation environments.
Frequently Asked Questions
Q: Does the UR6EV contact input card allow online hot-swap servicing during live substation monitoring operations?
A: No. The UR6EV module must not be extracted or inserted while the Universal Relay chassis is energized. Physical handling under power can create electrical arcs across the high-density backplane bus connectors, risking firmware flash corruption or a critical hardware breakdown.
Q: How does the UR6EV hardware manage contact debounce parameters for fast-acting circuit breaker position switches?
A: The module architecture uses software-configurable digital filters inside the local logic array. Engineers can modify the millisecond input filtering thresholds within the UR configuration environment to suppress contact bounce while maintaining high-speed trip execution timing.
Q: What onboard diagnostic metrics indicate a physical input channel hardware failure?
A: The module routes real-time health data across the internal bus to the chassis display terminal. An internal self-test failure or galvanic boundary breakdown drops the front-panel LED indicator status and registers a critical module fault log entry.
Field Installation Guidelines
- Chassis Tracking and Insertion Alignment: Align the UR6EV circuit board edges precisely with the designated vertical guide slots of the Universal Relay enclosure. Push the card body forward until the rear edge pin connectors match firmly with the backplane plug receptacles, then tighten the retaining screws.
- Control Circuit Wiring Segregation: Route all discrete contact input field wiring bundles away from low-voltage communication paths and high-voltage transformer secondary connections to limit electromagnetic noise pick-up.
- Shield Grounding Framework: Terminate all external contact input shielding braided wires directly at the central panel ground terminal block. Maintain a single-point earth bond to prevent ground loop currents from shifting the input reference potential.
- Ambient Thermal Maintenance: Confirm that the protective relay panel ventilation grids are free from blockage. Maintain steady internal air movement to guarantee that the ambient operating pocket stays within the -20 to +60 deg C specification boundaries.
