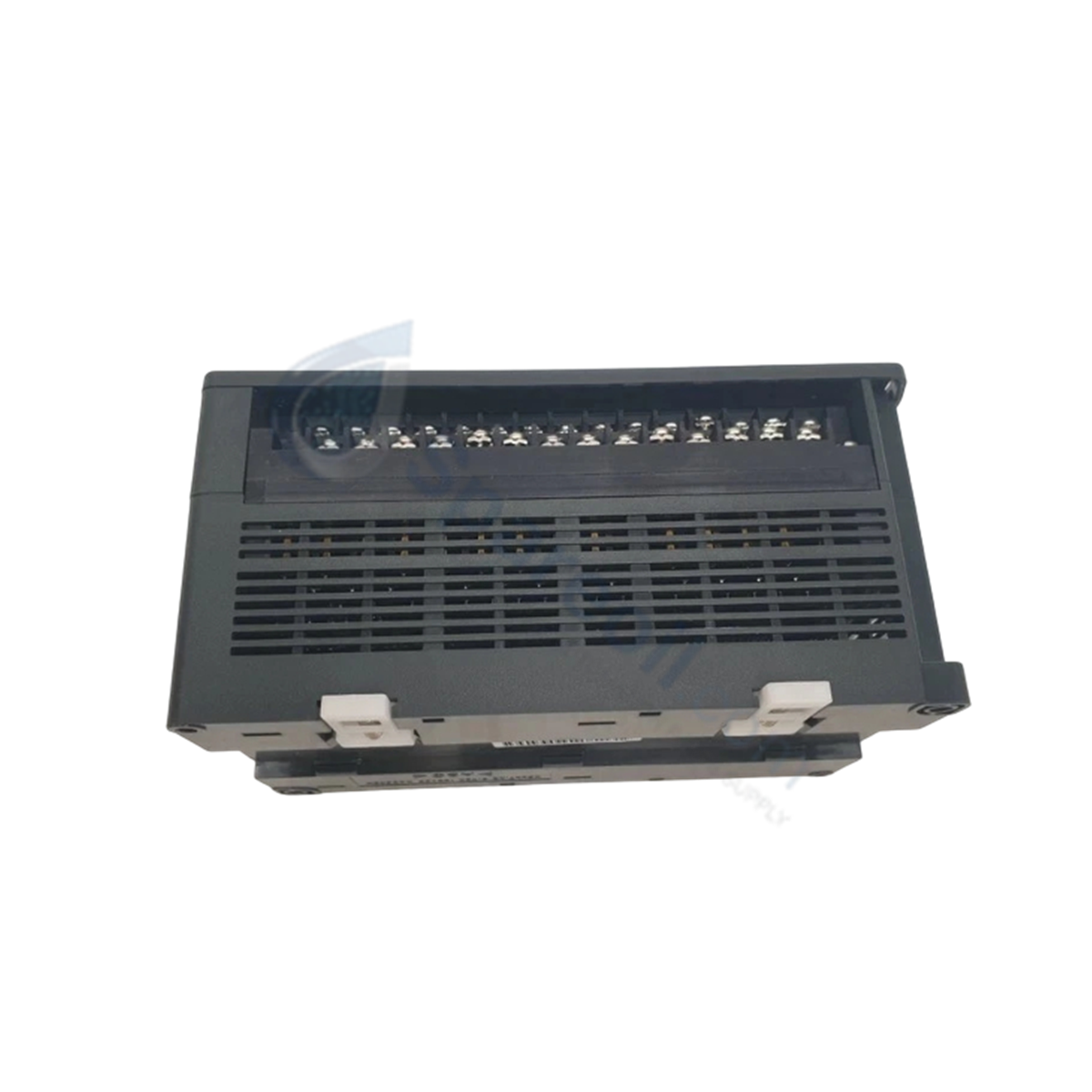

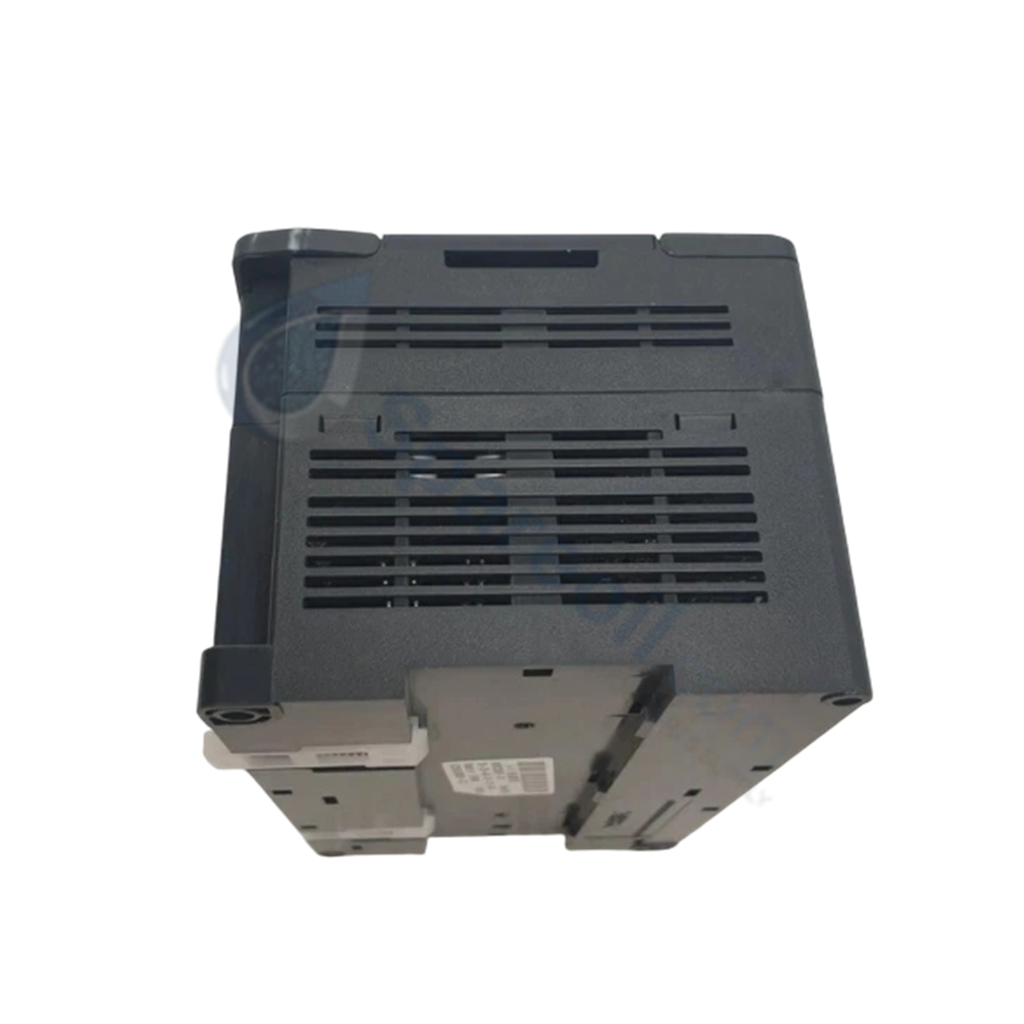

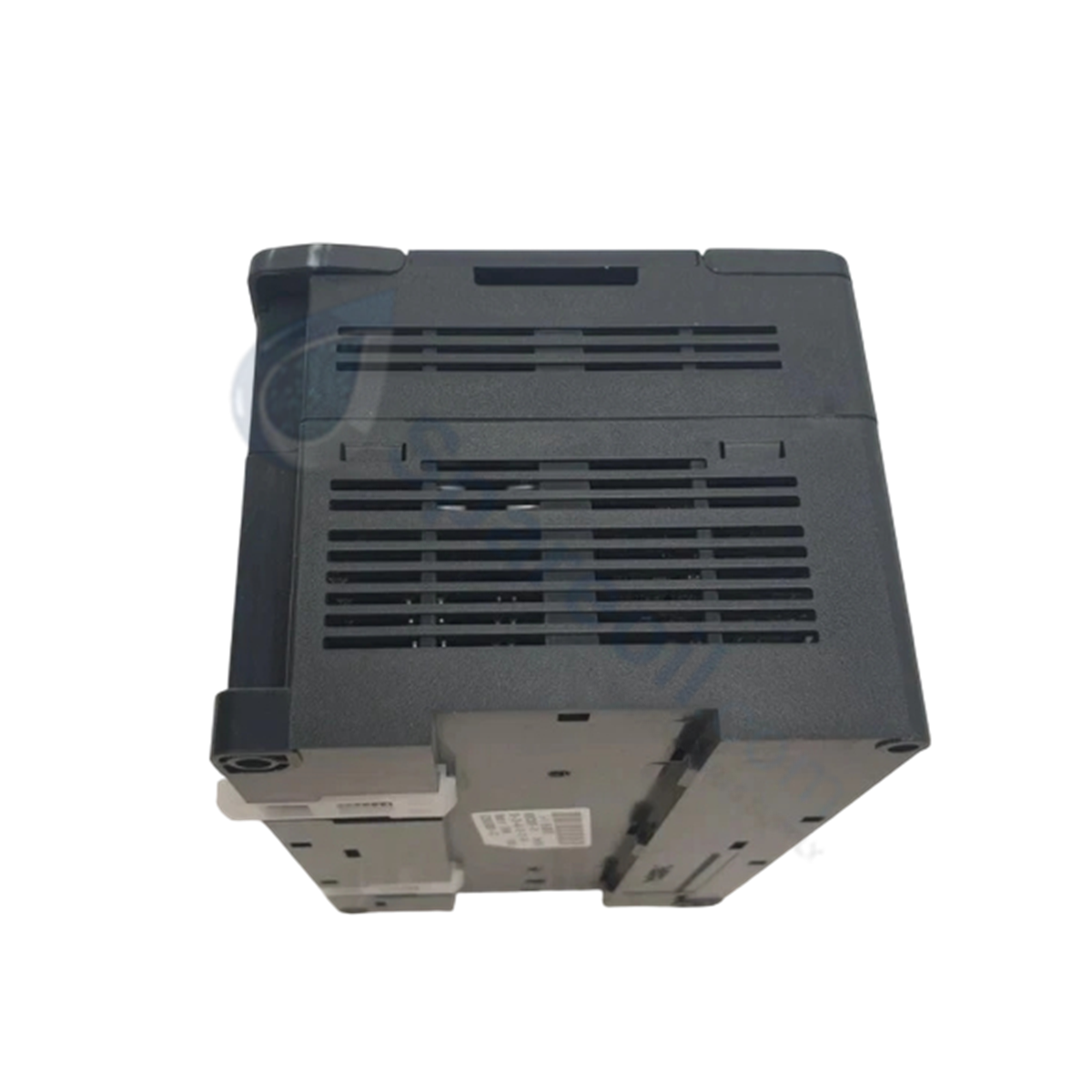

The GE IC200UDR040, also cataloged as the IC200UDR040 Programmable Logic Controller, operates as a dedicated hardware component for discrete process control and field output switching within VersaMax Micro platforms. Powered by a 24 VDC supply voltage, the module processes 24 digital inputs supporting both positive and negative logic configurations alongside 16 normally-open relay outputs. Operating within a 40-point discrete architecture, the device executes real-time logic routines to isolate and actuate field instruments across localized control networks.

Hardware Specifications

Parameter Specification
Model IC200UDR040
Brand General Electric
Origin USA
Weight 0.91 kg (2.00 lbs)
Dimensions Standard VersaMax Micro Frame
Operating Temp 0 to 60 deg C
Power Consumption 24 VDC primary supply
Total Discrete I/O 40 Points
Digital Inputs 24 points (Positive/Negative Logic)
Output Type Normally-Open Relay Outputs
Output Count 16 points
Operating Voltage 24 VDC

Deterministic Network Backplane Communication & I/O Density Scaling

The IC200UDR040 executes deterministic scan cycles while managing data transfers to supervisory networks over Profinet or EtherNet/IP gateways. High I/O density scaling allows 40 local points to operate simultaneously without degrading internal scan velocity or communication responsiveness. Integrated firmware flash compatibility maintains user program retention and field output state stability during transient DC power sags.

Frequently Asked Questions

Q: How are positive and negative logic configurations selected for the 24 digital inputs?

A: Input logic selection (sink or source) is configured by wiring the field common terminal to either the positive rail or the DC return of the 24 VDC power supply.

Q: What are the primary switching characteristics of the output channels on the IC200UDR040?

A: The 16 output channels utilize electromechanical, normally-open relay contacts, providing galvanic isolation for switching independent AC or DC load circuits.

Q: Does the IC200UDR040 require a separate power feed for internal logic and relay driving?

A: The controller runs from a primary 24 VDC supply voltage that powers internal processing logic as well as the relay coils.

Field Installation Guidelines

  1. Power Isolation: De-energize all 24 VDC main power and external output load circuits before mounting, wiring, or inspecting the unit.

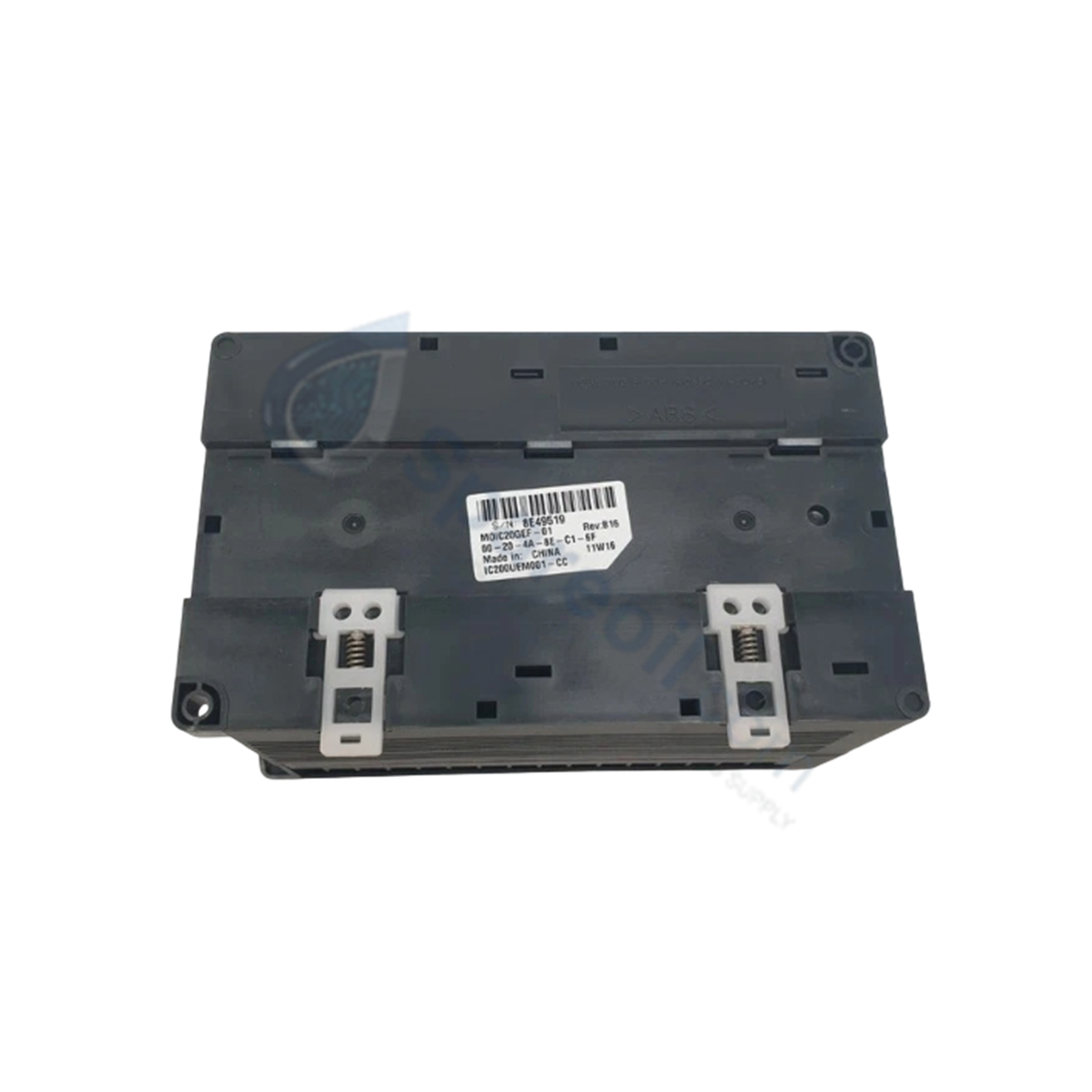

  2. DIN Rail Mounting: Secure the controller onto a standard 35 mm DIN rail or surface-mount it using M4 panel screws. Ensure the mounting rail is bonded to protective earth (PE).

  3. Discrete Wiring Separation: Route 24 VDC input lines and output load wiring in separate conduit or cable trays away from high-voltage AC power lines to suppress electromagnetic interference.

  4. Relay Contact Protection: Install inductive surge suppressors (flyback diodes for DC loads or RC snubbers for AC loads) across field-actuated inductive loads to extend relay contact service life.

  5. Thermal Management: Maintain at least 50 mm of vertical clearance above and below the controller housing to allow adequate convection airflow across the 0 to 60 deg C operating range.
