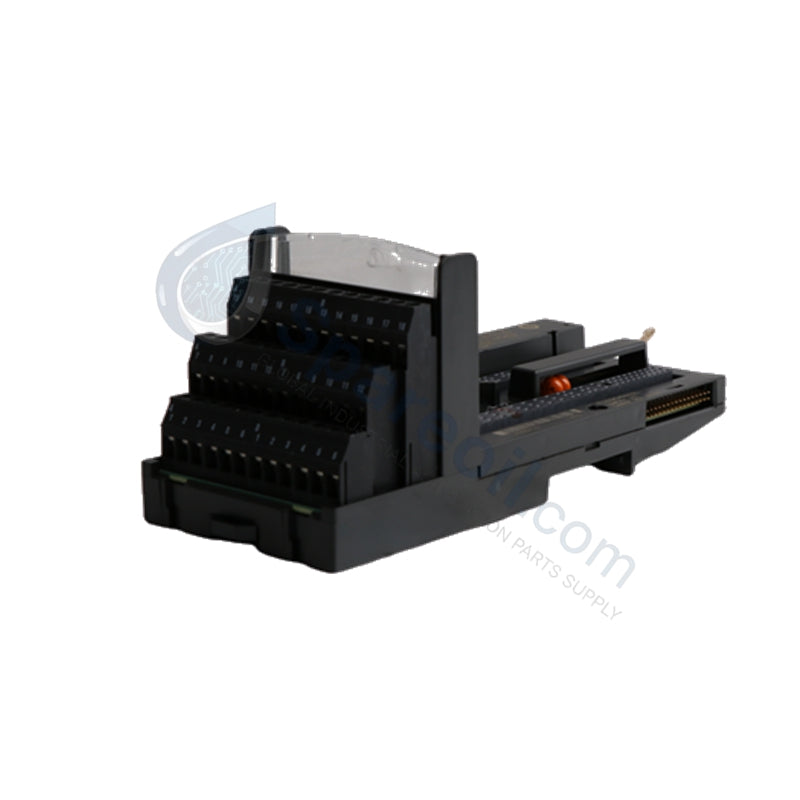

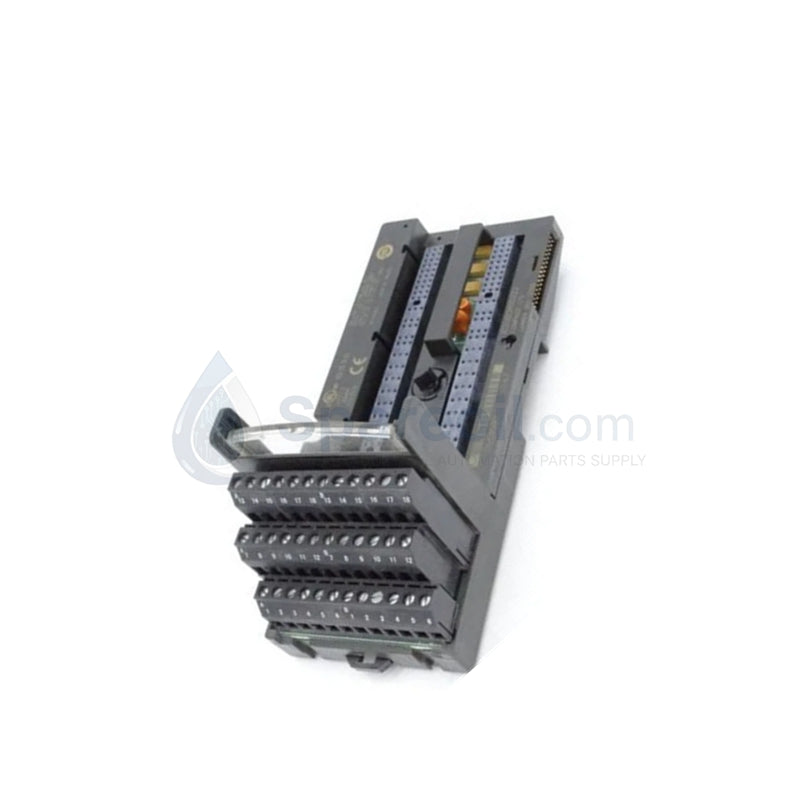

VersaMax IC200CHS022L Compact I/O Mounting Base GE

Availability: 10 left in stock

Product Overview The GE IC200CHS022L serves as the foundational interface for the VersaMax I/O system. This compact box-style carrier provides the mechanical...

SKU: IC200CHS022L

Manufacturer: GE Fanuc
Product No.: IC200CHS022L
Product Type: Industrial Terminal Blocks
Product Origin: USA
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The GE IC200CHS022L serves as the foundational interface for the VersaMax I/O system. This compact box-style carrier provides the mechanical mounting, electrical field wiring terminals, and the essential backplane communication interface for individual I/O modules. We supply this unit as 100% Brand New and Original, ensuring maximum uptime for critical industrial control loops and automated manufacturing lines.

Technical Specifications

Parameter	Specification
Terminal Count	36 IEC-style terminals (A1–A18, B1–B18)
I/O Capacity	Supports up to 32 I/O points per module
Voltage Range	0–264 VAC (Tolerates transients up to 300 VAC)
Current Rating	2 A per point / 8 A total maximum
Wire Gauge	AWG #14–#22 (Single), AWG #18 (Dual)
Mounting Options	35mm DIN-rail or Panel Mounting
Dimensions	163.5 mm x 66.8 mm x 50 mm
Operating Temp	-40 °C to +70 °C

Engineering Advantages

Zero-Cable Backplane Expansion: The integrated carrier-to-carrier connectors eliminate the need for external ribbon cables. Sliding the carriers together establishes the internal data bus instantly, reducing points of failure and speeding up assembly.
High-Density Small Footprint: By utilizing a vertical box-style design, the IC200CHS022L minimizes cabinet width. This allows engineers to fit more I/O points into tight enclosures without sacrificing wiring accessibility.
Electrical Robustness: The carrier withstands voltage spikes up to 300 VAC. This internal resilience protects sensitive I/O electronics from the "dirty" power environments often found in heavy industrial plants or utility substations.
Simplified Maintenance: A built-in wiring card holder allows technicians to label every connection point clearly. This prevents wiring errors during module replacement and shortens Mean Time to Repair (MTTR).

FAQs

Q: Does the IC200CHS022L support both AC and DC I/O modules?

A: Yes. The carrier operates as a universal mounting base for the VersaMax series, supporting various I/O types. Ensure the module's voltage requirements fall within the 0-264 VAC operating range of the carrier's terminals.

Q: What is the primary difference between this and the 'CHS002' standard carrier?

A: The IC200CHS022L is a "Compact Box-Style" carrier. It features a smaller footprint and IEC-style box terminals, whereas standard carriers often use barrier-style or extended terminal strips which occupy more horizontal space on the DIN rail.

Q: How should I handle grounding for EMC compliance?

A: Mount the carrier on a zinc-plated, yellow-chromate DIN rail. Ensure the DIN rail makes a solid connection to a low-impedance earth ground. This path dissipates electromagnetic interference and ensures the stability of high-speed backplane signals.

Q: Can I install this carrier in high-vibration environments?

A: For high-vibration applications, utilize the panel-mounting holes rather than relying solely on the DIN rail clips. Secure the carrier directly to a rigid backplate to prevent mechanical fatigue on the terminal connections.
