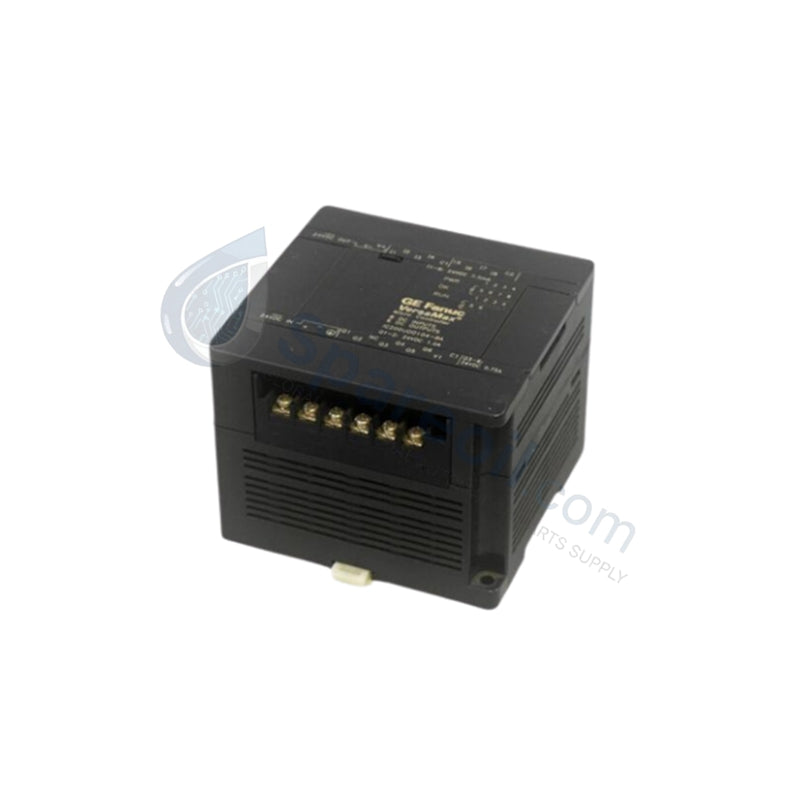

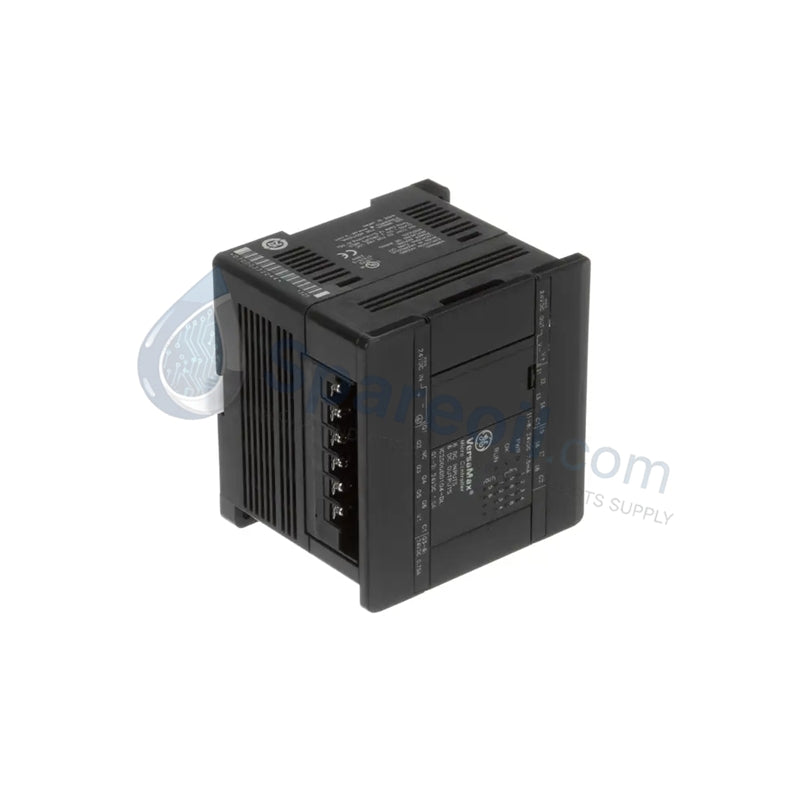

VersaMax Micro 14-Point PLC New | IC200UDD104 GE Fanuc

Availability: 10 left in stock

Product Overview The IC200UDD104 serves as a highly efficient, entry-level controller within the VersaMax Micro PLC family. This 14-point all-in-one unit integrates...

SKU: IC200UDD104

Manufacturer: GE Fanuc
Product No.: IC200UDD104
Product Type: Discrete I/O Units
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The IC200UDD104 serves as a highly efficient, entry-level controller within the VersaMax Micro PLC family. This 14-point all-in-one unit integrates a CPU, power supply, and digital I/O into a single housing. It provides 8 digital inputs and 6 transistor outputs, specifically engineered for small-scale industrial applications and OEM machinery. We supply this component as 100% Brand New and Original, ensuring your automation system benefits from factory-spec reliability and precise real-time logic execution.

Technical Specifications

Feature	Details
Manufacturer	GE Fanuc (Emerson Automation)
Series	VersaMax Micro
Total I/O Points	14 Points
Discrete Inputs	8 Inputs (24 VDC, Sink/Source Configurable)
Discrete Outputs	6 Outputs (24 VDC Transistor)
Output Current	2 x 1.0A / 4 x 0.5A
Power Supply	24 VDC
Input Power Rating	4 Watts
Communication	RJ-45 Serial Port (RS-232)
Expansion	Supports up to 4 Expansion Units
Maximum Physical I/O	126 Points (via expansion)
Mounting	35mm DIN Rail or Panel Mount

Engineering Advantages

Optimized Power Distribution: The IC200UDD104 features a tiered output current design. Two of the six transistor outputs handle higher loads (1.0 Amp), while the remaining four handle standard 0.5 Amp loads. This allows the PLC to drive larger solenoids or contactors directly without requiring external interposing relays.
Flexible Input Circuitry: The 8 digital inputs accommodate both positive and negative logic. This flexibility ensures the controller interfaces seamlessly with a variety of field sensors, including NPN or PNP proximity switches, reducing your hardware overhead.
Rapid Logic Response: The integrated CPU delivers fast cycle times suitable for high-speed OEM machinery. It executes complex control algorithms and monitors high-frequency signals with minimal propagation delay.
Modular Scalability: Despite its compact "Micro" footprint, the IC200UDD104 connects to up to four expansion modules. This allows the system to grow from a simple 14-point controller to a comprehensive station managing up to 126 I/O points.
Space-Saving Architecture: The unit fits easily into shallow control cabinets. The integrated design eliminates the need for a separate rack or power supply module, significantly reducing the overall footprint of your electrical enclosure.

FAQs

What is the difference between the output ratings on the IC200UDD104?

The module differentiates its 6 outputs to provide application flexibility: 2 outputs support up to 1.0 Amp for driving heavier inductive loads, while 4 outputs support up to 0.5 Amp for standard logic signaling and small indicators.
Can I program this unit with modern GE/Emerson software?

Yes. The IC200UDD104 supports programming via Proficy Machine Edition (PME). It utilizes the standard RJ-45 serial port (RS-232) for logic uploads and online diagnostics.
Does the unit require an external power supply?

The IC200UDD104 operates on 24VDC field power. You must provide a stable 24VDC source to the power terminals to run the internal CPU and energize the transistor output circuits.
How do I protect the transistor outputs from short circuits?

Because transistor outputs are sensitive to overcurrent, we recommend installing external fast-acting fuses. For inductive loads (like solenoids), always install suppression diodes (flyback diodes) to prevent back-EMF spikes from damaging the internal solid-state components.
