VersaMax Micro 28-Point Expansion New

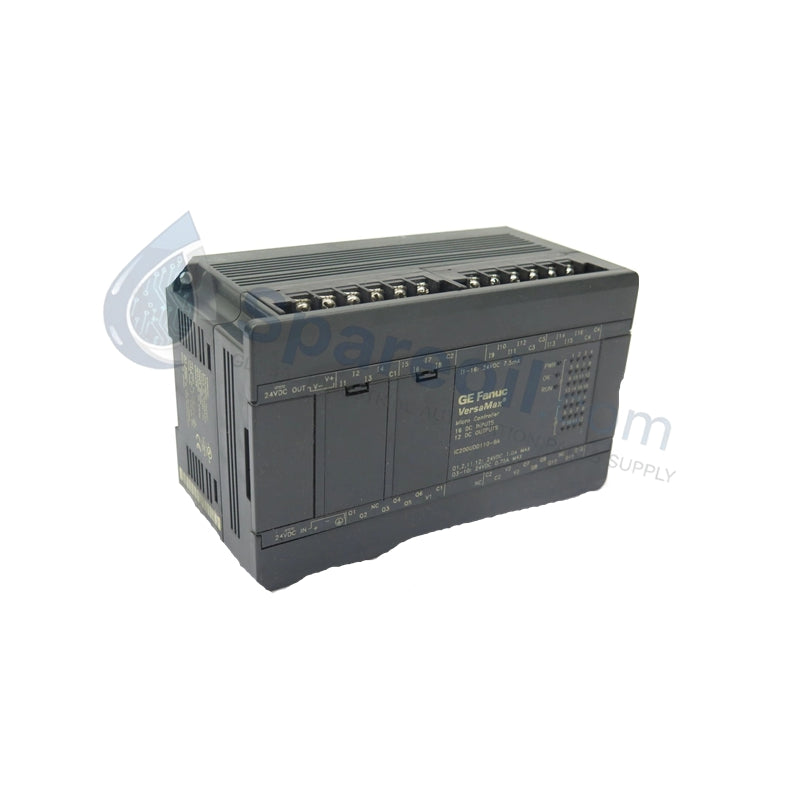

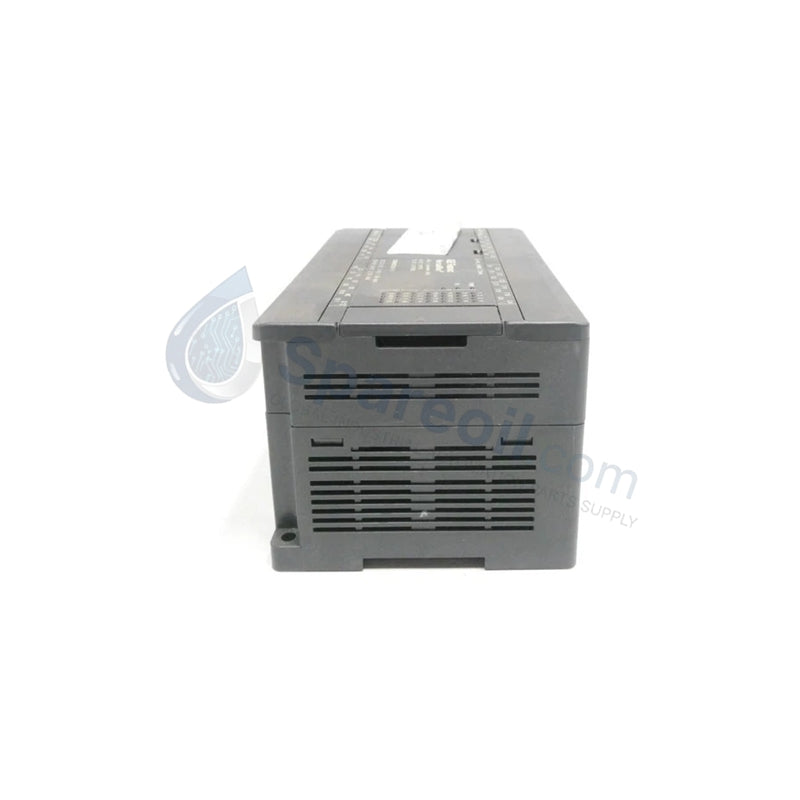

VersaMax Micro 28-Point Expansion New | IC200UEX214 GE Fanuc

Availability: 10 left in stock

Product Overview The IC200UEX214 significantly extends the capabilities of the VersaMax Micro PLC family by adding 28 discrete I/O points to a...

SKU: IC200UEX214

Manufacturer: GE Fanuc
Product No.: IC200UEX214
Product Type: Discrete I/O Units
Product Origin: USA
Payment:T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The IC200UEX214 significantly extends the capabilities of the VersaMax Micro PLC family by adding 28 discrete I/O points to a single controller base. This expansion unit integrates 16 digital inputs and 12 transistor outputs, all operating on a standard 24 VDC platform. It provides the necessary density for mid-sized automation tasks without requiring a full rack-based PLC migration. We supply this product as 100% Brand New and Original, ensuring full compatibility with your existing VersaMax Micro architecture and long-term field reliability.

Technical Specifications

Feature	Details
Manufacturer	GE Fanuc / Emerson
Product Line	VersaMax Micro
Total I/O Points	28 Points
Input Configuration	16 Inputs (24 VDC, Positive/Negative Logic)
Output Configuration	12 Outputs (24 VDC Transistor)
Power Supply Rating	24 VDC (5 Watts Consumption)
Sensor Power Output	200 mA at 24 VDC
Expansion Limit	Supports 1–4 units per Micro PLC base

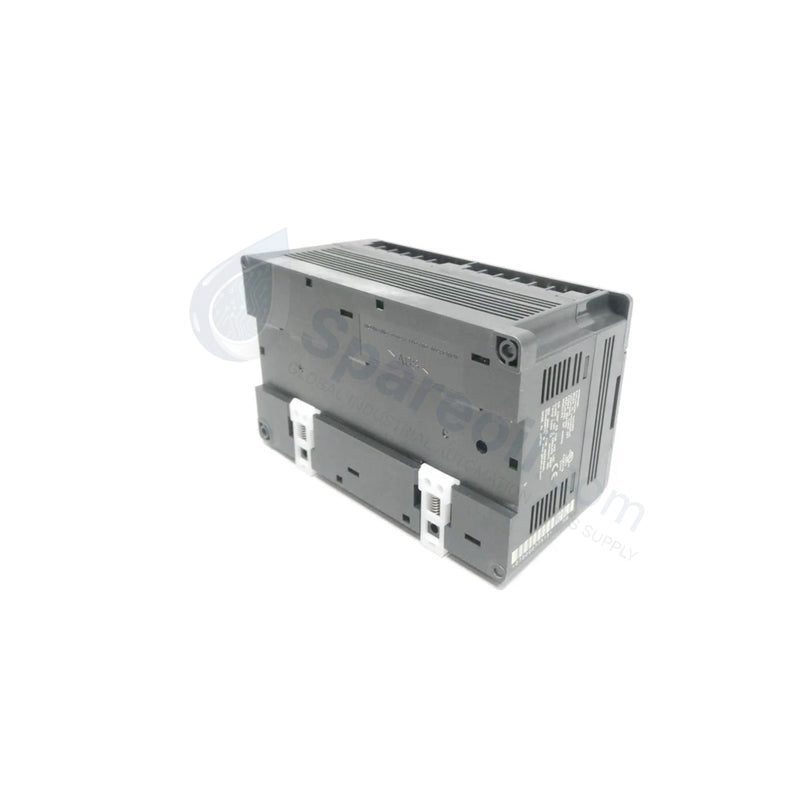

Mounting	35mm DIN Rail
Weight	0.91 kg (2.00 lbs)

Engineering Advantages

High-Density Footprint: The IC200UEX214 packs 28 I/O points into a compact chassis. This allows machine builders to increase sensor and actuator counts in constrained electrical enclosures where space is at a premium.
Bi-Directional Input Logic: The 16 digital inputs support both sink and source (positive/negative) logic. This flexibility allows engineers to interface with a wide variety of field devices, including NPN/PNP proximity sensors and dry contacts, without adding interposing relays.
Direct Sensor Powering: The unit provides a dedicated 200 mA sensor power supply at 24 VDC. This feature simplifies wiring by allowing the expansion unit to power local sensors directly, reducing the need for external distribution blocks.
Rapid Logic Execution: Designed specifically for real-time control, the expansion unit maintains high-speed communication with the Micro PLC base. It ensures minimal signal propagation delay for time-critical OEM machinery applications.
Simplified Scalability: The modular design supports the daisy-chaining of up to four expansion units per controller. This allows the system to scale incrementally as machine requirements evolve, protecting the initial investment in control hardware.

FAQs

Can the IC200UEX214 operate as a standalone controller?

No. The IC200UEX214 is a dedicated expansion unit. It requires a connection to a VersaMax Micro PLC base controller to function, as it does not possess an independent CPU for logic execution.
What type of protection is required for the transistor outputs?

Transistor outputs are susceptible to overcurrent and inductive surges. We strongly recommend installing external fusing for each output circuit and using flyback diodes when switching inductive loads like solenoid valves or DC contactors.
Is the 24 VDC power supply included for the inputs?

The unit requires an external 24 VDC power source to operate. However, it does provide a regulated 200 mA output specifically to power field sensors, which helps reduce the load on your primary system power supply.
Is this unit compatible with both GE Fanuc and Emerson-branded VersaMax Micro PLCs?

Yes. Despite the brand transition from GE Fanuc to Emerson, the IC200UEX214 remains fully compatible across all generations of the VersaMax Micro series.
