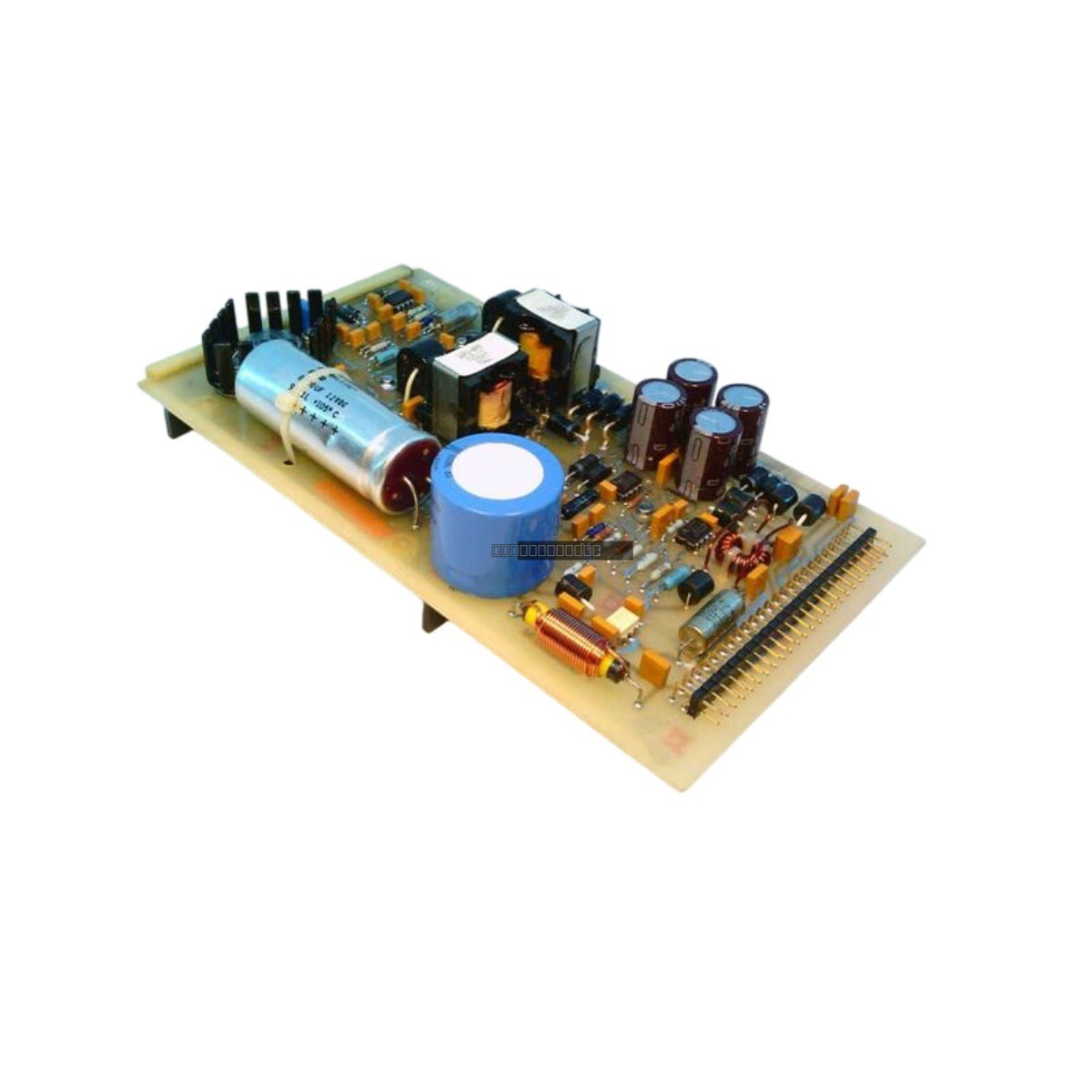

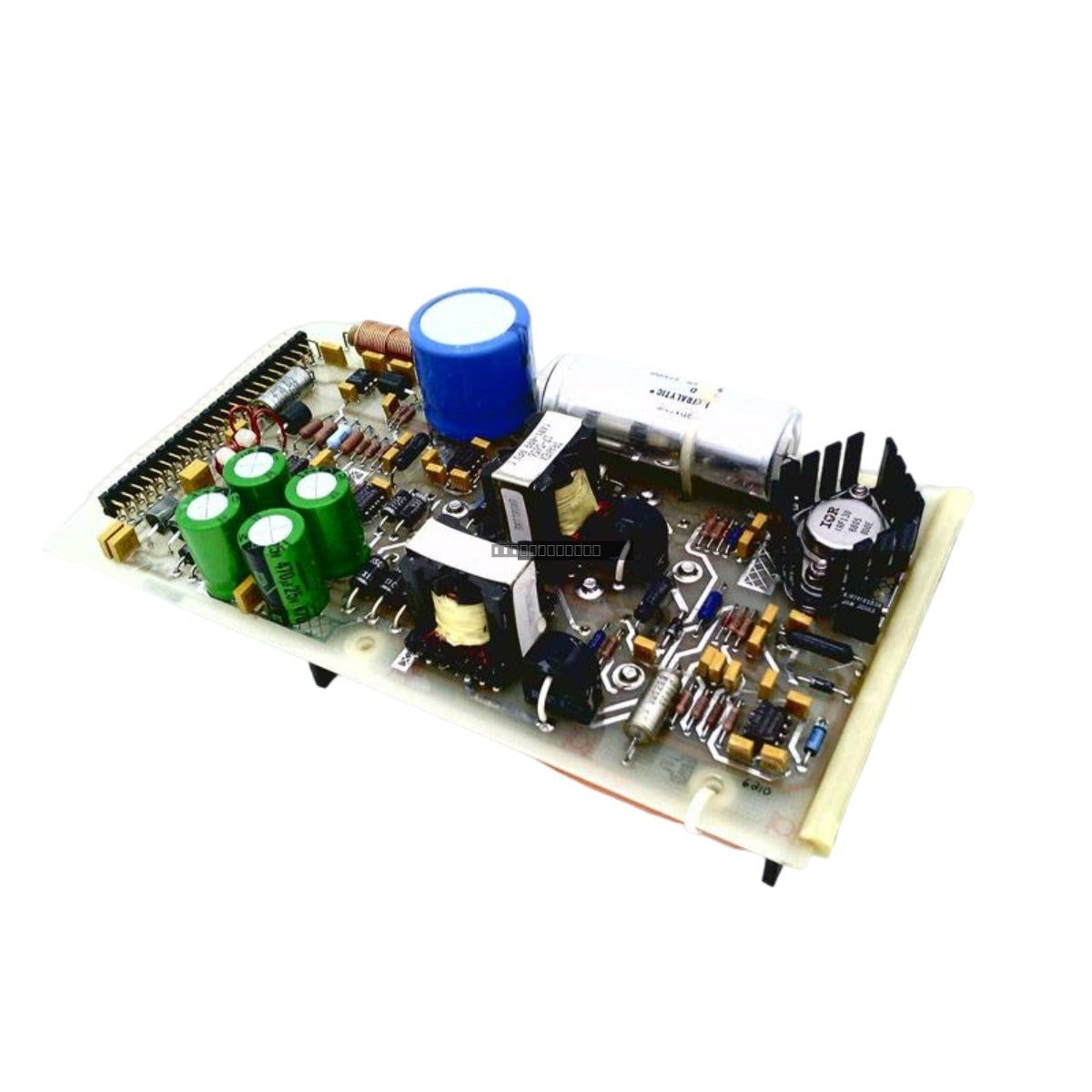

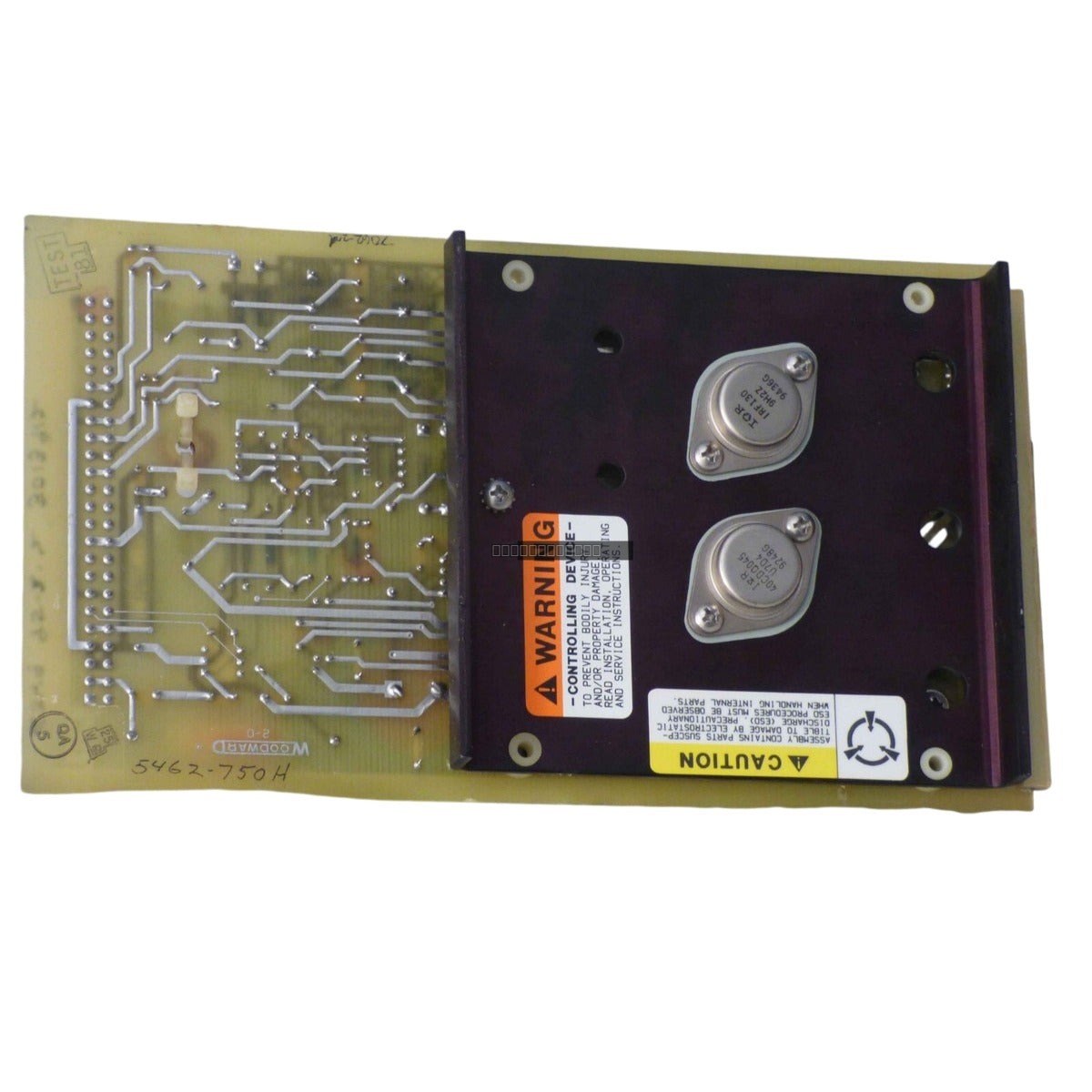

Woodward 5462-750 Open Frame Power Supply Module

Availability: 10 left in stock

DescriptionThe Woodward 5462-750 is a legacy open-frame power supply module designed for high-reliability performance in industrial control environments. This unit...

SKU: 5462-750

Manufacturer: Woodward
Product No.: 5462-750
Product Type: Power Supply Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 610g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Woodward 5462-750 is a legacy open-frame power supply module designed for high-reliability performance in industrial control environments. This unit is engineered to provide stable, isolated power to sensitive control electronics, making it a critical component in turbine management and steam control systems. By incorporating a robust dual-transformer architecture, the module ensures consistent voltage regulation, effectively mitigating the risks of electrical noise and instability that can lead to unexpected downtime in power generation and petrochemical facilities.

Features

Reliable dual-transformer design for improved isolation and load management.
Open-frame chassis construction optimized for passive, natural convection cooling.
Integrated 48-pin male header interface for high-density, secure connectivity to system backplanes.
Engineered for integration into legacy Woodward control assemblies and sub-panels.
Compact footprint suitable for internal cabinet mounting in harsh industrial environments.

Applications

This module is widely utilized in professional power generation, refinery, and chemical processing automation. It is specifically intended for use in turbine control systems, actuator drive circuits, and complex PLC-based logic panels where high-integrity power distribution is required for operational continuity.

Technical Specifications

Model Number	5462-750
Brand	Woodward
Module Type	Open Frame Power Supply
Transformer Config	Dual Transformer
Interface	48-pin Male Header
Operating Temperature	0 to 60 deg C
Cooling Method	Natural Convection
Mounting	Internal Sub-assembly

Installation Guidelines

Ensure the system is fully de-energized before installing or removing the module.
The 5462-750 is designed for internal sub-assembly mounting; ensure adequate clearance around the open frame to allow for proper natural convection cooling.
Verify that the 48-pin male header is correctly aligned and fully seated into the mating backplane connector to prevent electrical arcing or poor contact.
Maintain proper grounding of the chassis to the cabinet backplane to minimize EMI interference.
Handle with care to avoid damage to the exposed transformer windings and sensitive electronic components.

FAQ

Is the Woodward 5462-750 still in production? No, this is a legacy module and has been discontinued by the manufacturer. We supply these as reliable spare parts for existing systems.

What type of cooling does this module require? This unit relies on natural convection cooling. It should be installed in an area with sufficient airflow and within the specified temperature range of 0 to 60 deg C.

How does this module connect to the control system? The module utilizes a standard 48-pin male header connector for all power and feedback signal distribution.
