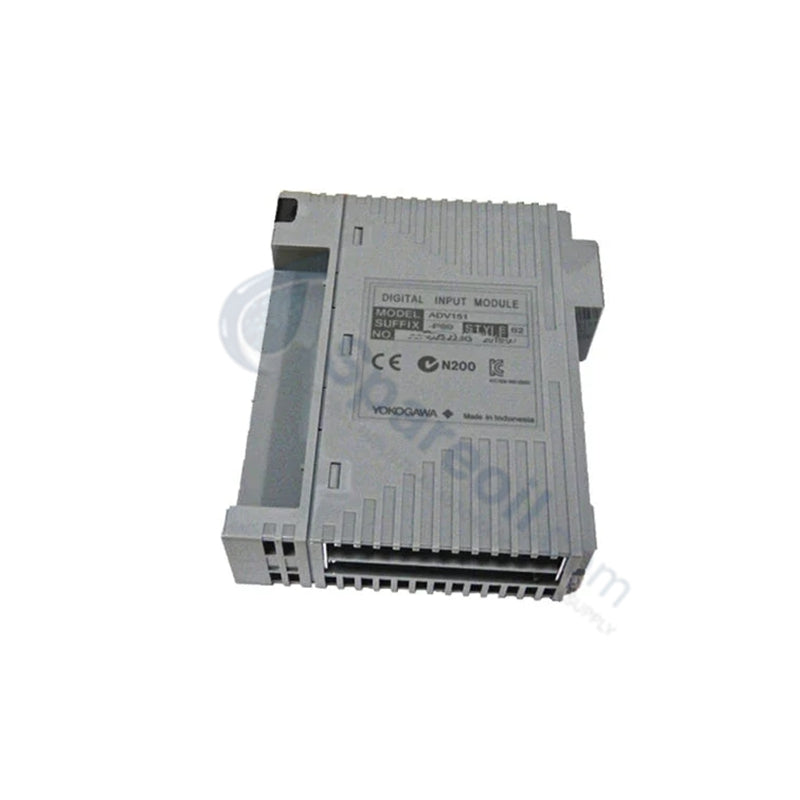

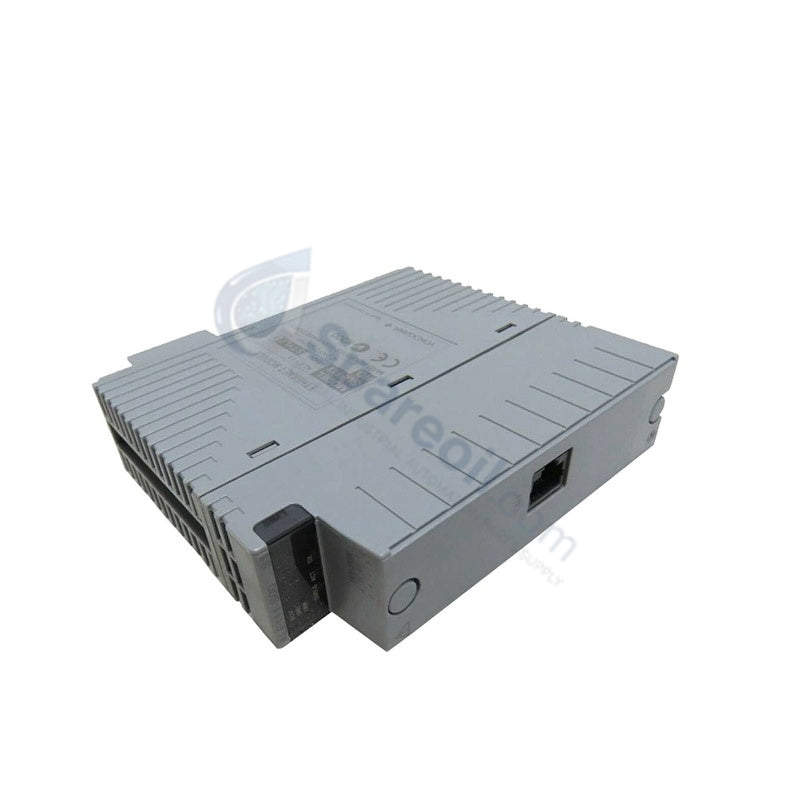

Yokogawa ADV151-E50/D5A00 FIO Digital Input Module

Configured for high-density status signal acquisition in CENTUM VP distributed control systems, the Yokogawa ADV151-E50/D5A00 (ADV151 Digital Input Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The ADV151 series utilizes specific ordering and suffix codes to define hardware capability, sequence-of-events recording, and physical interface connections:

Base Model (ADV151): Designates a 32-channel, 24 VDC isolated digital input module.
SOE Suffix (-E): Identifies built-in Sequence of Events (SOE) capture capability for precise time-stamping of status transitions.
Environmental Suffix (5): Establishes compliance with ISA G3 corrosion specifications, enabling operation in harsh environments from -20 to 70 deg C.
Explosion Protection Suffix (0): Indicates a standard design lacking intrinsic safety explosion protection.
Option Code (/D5A00): Establishes integration with a dedicated KS Cable Interface Adapter configured for 32-channel digital connections.

Hardware Specifications

Parameter	Specification
Model	ADV151-E50/D5A00
Brand	Yokogawa
Origin	Japan
Weight	0.35 kg (1.5 kg shipping weight including adapter)
Dimensions	Standard Yokogawa FIO module slot dimensions
Operating Temp	-20 to 70 deg C
Power Consumption	500 mA (at 5 V DC backplane power)
Input Channels	32 status inputs (isolated in groups of 16)
Rated Input Voltage	24 VDC
Input ON / OFF Voltage	ON: 18 to 26.4 VDC, OFF: less than or equal to 5.0 VDC
Input Current	4.1 mA per channel
Isolation	2 kV AC system-to-input for 1 minute; 500 VAC between common groups

Channel-to-Channel Isolation and Diagnostics

The digital input module provides robust electrical isolation to protect internal control logic, featuring a 2 kV AC system-to-input isolation barrier alongside a 500 VAC barrier between the two 16-channel common groups. This grouped isolation architecture prevents ground loop currents from circulating between separate field power grids. For diagnostic precision, the SOE capture circuitry records status transitions with high temporal resolution, registering fast-acting pushbuttons and process switches with a hardware response time of less than or equal to 8 ms.

Frequently Asked Questions

Q: How is the common return path wired, and does it support mixed voltage sources?

A: The 32 channels are isolated in two groups of 16. Each 16-channel group shares a common return path, meaning you must reference all 24 VDC signals within a single group to the same electrical polarity.

Q: Can the /D5A00 option code be field-retrofitted or replaced with pressure clamp terminals?

A: The /D5A00 option configures the card with a dedicated KS Cable Interface Adapter at the factory. Converting to standard pressure clamp terminals requires replacing the front connector block assembly with a compatible terminal block model.

Q: Is this card hot-swappable in a dual-redundant configuration?

A: Yes. When you configure two ADV151 modules in adjacent slots as a dual-redundant pair, you can replace a failed card while the redundant partner continues scanning the field status inputs.

Field Installation Guidelines

Interface Cable Routing: Route the KS interface cable through separate, grounded metallic wiring ducts to shield the 24 VDC digital signals from nearby high-voltage AC motor or drive cabling.
Cabinet Grounding: Ensure that the DIN rail or rack subplate maintains a low-resistance connection to the master instrument ground to optimize the 2 kV AC galvanic isolation performance.
G3 Environment Management: Keep the system cabinet doors closed and maintain positive cabinet pressure in process environments to preserve the ISA G3 conformal coating on the internal circuitry.
Transient Suppression: Install external suppression diodes across inductive field loads (such as interposing relays or solenoids) that share field power wiring with the input channels to block inductive voltage spikes.
