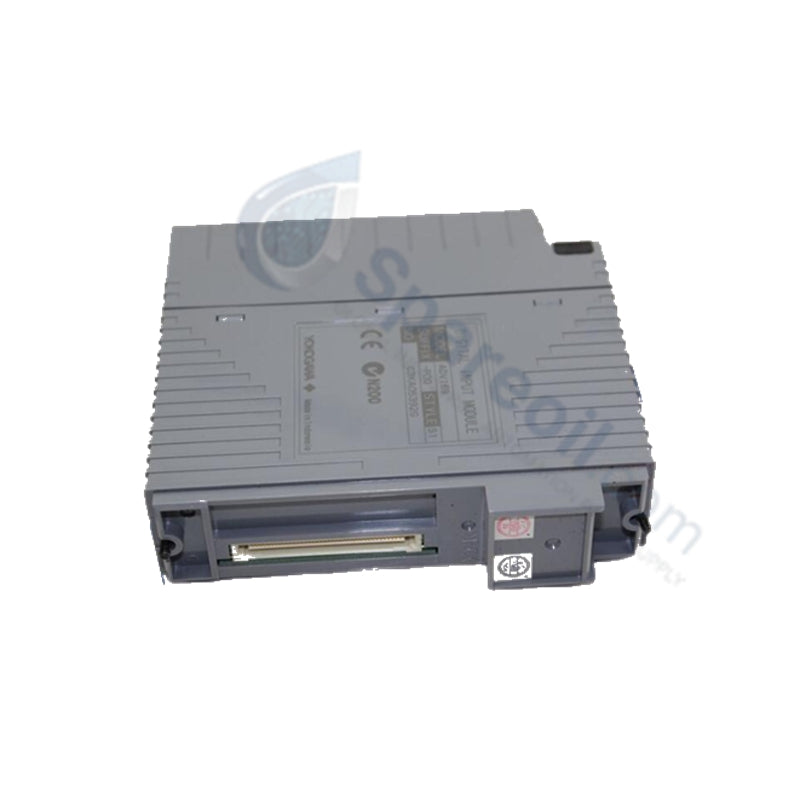

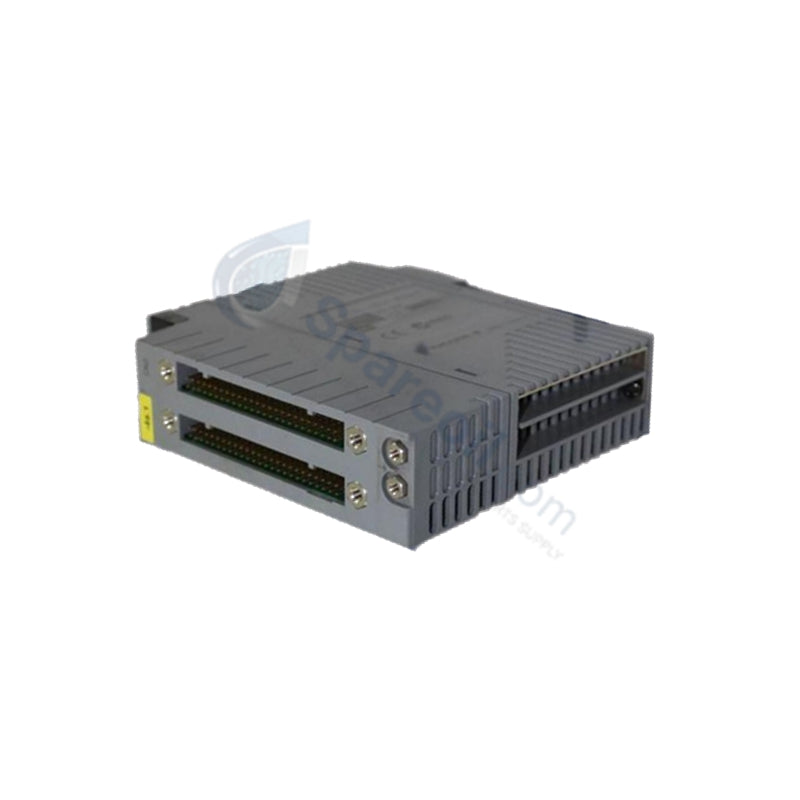

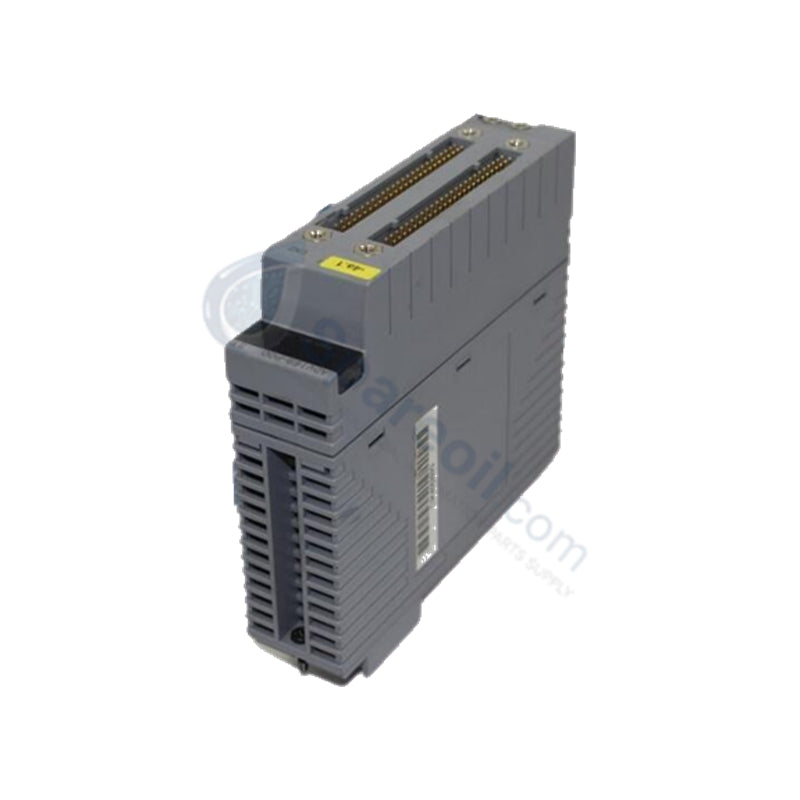

Yokogawa ADV551-P03 CENTUM VP/CS 3000 Digital Output Module

The Yokogawa ADV551-P03, also cataloged as the ADV551 Digital Output Module, operates as a dedicated hardware component for discrete signal transmission within CENTUM VP, CS 3000, and ProSafe-RS Safety Instrumented System platforms. The hardware processes electronic command logic from the system controllers, converting interior calculations into 32 independent channels of 24 V DC nominal voltage outputs. These binary physical paths drive external electrical circuits, switching field-located solenoids, interlock relays, and audible or visual notification indicators directly based on runtime bus commands.

Hardware Specifications

Parameter Specification
Model ADV551-P03 S2 (Equivalent to PDV551-P03)
Brand Yokogawa
Origin USA
Weight 0.3 kg
Dimensions 5.1 cm x 10.7 cm x 12.7 cm
Operating Temp -20 deg C to +70 deg C
Power Consumption 24 V DC via backplane, ~0.6 A
Output Channels 32 discrete voltage outputs
Nominal Output Voltage 24 V DC
Output Current Capacity 0.5 A per channel maximum
Switching Response Time Less than or equal to 1 ms
Dielectric Strength 500 V AC for 1 minute
Insulation Resistance Minimum 10 MΩ at 500 V DC
Interface Connection Pressure clamp terminal / MIL connector array
Interconnect Cable Yokogawa AKB series shielded cables

Channel-to-Bus Optical Isolation and Discrete Logic Execution

The architecture employs permanent optical isolation between the internal microprocessor logic layers and the 32 discrete field terminal loops. This optical layout blocks field-side transient surges, preventing voltage induction from propagating backward into the controller logic backplane. The output sub-circuits enforce distinct electrical separation between the interior electronics and the field power distribution network. The fast solid-state switching components maintain deterministic execution latencies below 1 ms per channel, sustaining the strict response intervals required by safety interlock configurations and distributed shutdown networks without inducing command execution delays.

Frequently Asked Questions

Q: What are the installation restrictions concerning hot-swapping this digital output card? A: The hardware architecture supports live removal and insertion under powered backplane conditions. Technicians must ensure that active field loops are isolated or bypassed in the engineering workstation prior to physical extraction to avoid triggering accidental field device status changes during the uncoupling process.

Q: How does the module handle short-circuit conditions or current overloads on an individual terminal path? A: Each channel limits output current to the maximum 0.5 A capacity boundary. Sustained field loop faults exceeding nominal specifications require upstream fuse installation or external circuit protection to prevent localized thermal stress within the interface connector pins.

Field Installation Guidelines

Mount the module assembly vertically into the assigned slot of the system I/O rack until the locking tabs click into position. Terminate all external discrete wiring using Yokogawa AKB series shielded cable assemblies, ensuring the outer shield mesh grounds directly at the main instrument bus bar inside the enclosure. Maintain strict separation between these 24 V DC signal lines and heavy power cables in the wire ducts to prevent inductive noise coupling. Use a torque-controlled driver to tighten the pressure clamp terminal interfaces to stop vibration-induced loosening. Verify that the ambient air environment within the cabinet remains below +70 deg C by checking that the ventilation paths remain unobstructed.
