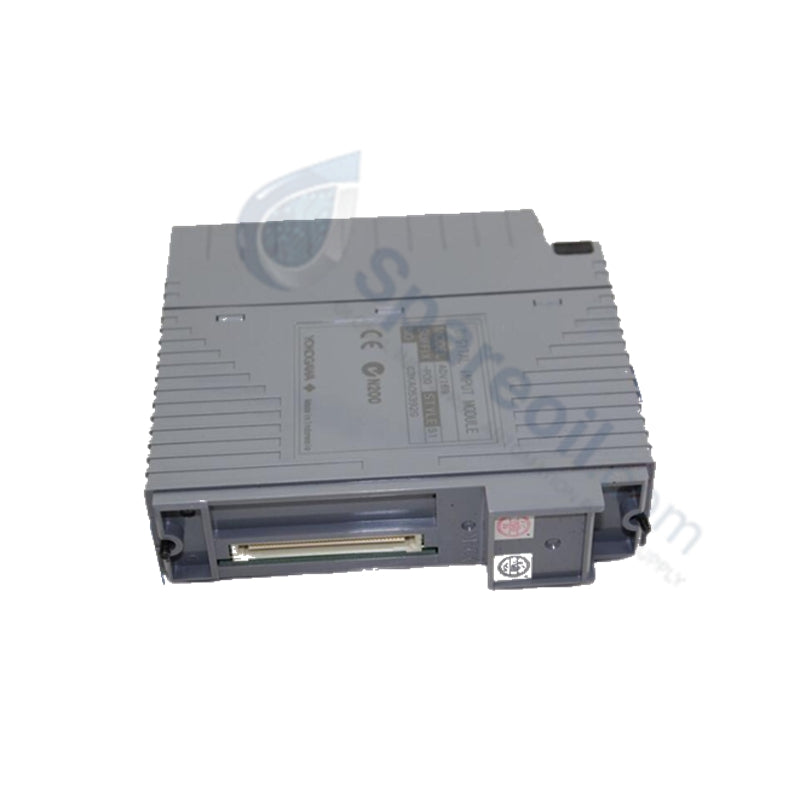

Yokogawa ADV161-P51 FIO Series Digital Input Module

The Yokogawa ADV161-P51 serves as the primary ADV161 Digital Input Module utilized to execute binary signal acquisition across CENTUM VP and ProSafe-RS platforms. The hardware senses incoming logical voltage potentials and dry contact topologies, converting physical field loop dynamics into structured system logic words via 64 isolated input processing blocks.

Suffix Breakdown & Model Matrix

  • Base Model (ADV161): Specifies the 64-channel, 24 VDC isolated high-density digital input platform configuration.
  • P Suffix: Designates the integration of a physical pushbutton input hardware tracking circuit that captures rising/falling edges.
  • 5 Suffix: Denotes a structural module housing constructed without external faceplate status display windows and lacking explosion protection certificates.
  • 1 Suffix: Confirms the application of factory-applied ISA Standard G3 conformal coating for components designated for harsh or humid operating locations.

Hardware Specifications

Parameter Specification
Model ADV161-P51
Brand Yokogawa Electric Corporation
Origin Japan
Weight 0.3 kg (Shipping Weight: 1.5 kg)
Dimensions 130 x 119.9 x 32.8 mm
Operating Temp 0 to +55 deg C
Storage Temp -40 to +85 deg C
Power Consumption Approx. 550 mA at 5 VDC from system backplane rail
Input Channels 64 digital inputs arranged in groups of 16
Rated Input Voltage 24 VDC nominal (operational range: 20.4 to 26.4 VDC)
Input ON Voltage 20 to 26.4 VDC
Input OFF Voltage Less than or equal to 5.0 VDC
Input Current 2.5 mA per channel (+/-20%)
Max Allowable Voltage 30 VDC
Response Time Less than or equal to 3 ms (status input configuration)
Isolation Voltage 2 kV AC (signal-to-system, 1 minute); 500 V AC between commons per 16 channels
External Connection Dedicated AKB337 MIL connector interface cable

Process Control & DCS Instrumentation

The Yokogawa ADV161-P51 incorporates channel-to-channel and channel-to-system optical isolation parameters to preserve backplane data path clarity, blocking incoming transient electrical spikes up to a 2 kV AC threshold. The internal processing chips track discrete signal conditions across four separate electrical common zones divided into 16 channels each, which prevents ground loop interference from distorting voltage reads on adjacent wires. The module board runs concurrent edge-counting routines on the pushbutton channel nodes, managing input transitions in less than or equal to 3 ms to pass structured pulse data directly onto the central controller bus.

Frequently Asked Questions

Q: How do field technicians debug broken loop signals if this module configuration lacks physical status display LEDs?

A: Field workers diagnose circuit integrity by polling the software register bits inside the CENTUM VP human-machine interface or checking hardware health tags compiled by the master distributed control system station.

Q: Can this hardware interface directly with mechanical dry contacts without auxiliary power loops?

A: No. The internal logic registers dry contact states by sensing current loop closure, requiring an external 24 VDC loop wetting voltage to drive the 2.5 mA per channel load across the field contact boundaries.

Q: What environmental threshold does the G3 designation guarantee during deployment?

A: The factory conformal coating safeguards the internal copper traces and surface-mount components from gas corrosion, preventing airborne sulfur and chlorine concentrations from generating low-resistance oxidation shorts.

Field Installation Guidelines

  • MIL Cable Anchorage: Lock the AKB337 MIL connector assembly securely onto the front slot receiving pins. Tighten all structural latch brackets to maintain sound terminal contact under severe industrial vibration conditions.
  • Earth Potential Bonding: Clamp the system frame enclosure to the main instrument ground bar. Ensure that the field ground tracking path shows an impedance measurement below 1 Ohm to verify the 2 kV AC surge protection capabilities.
  • Wetting Voltage Management: Connect the external 24 VDC source lines through inline fuses to limit electrical surge propagation during sudden field short circuits.
  • Signal Cable Separation: Route the high-density MIL input bundle inside dedicated low-voltage wiring trays. Maintain a minimum spatial distance of 300 mm from high-voltage motor starters and three-phase power lines to block induced electromagnetic spikes.
