AIP826-2 Yokogawa CENTUM VP Datasheet & Technical Manual

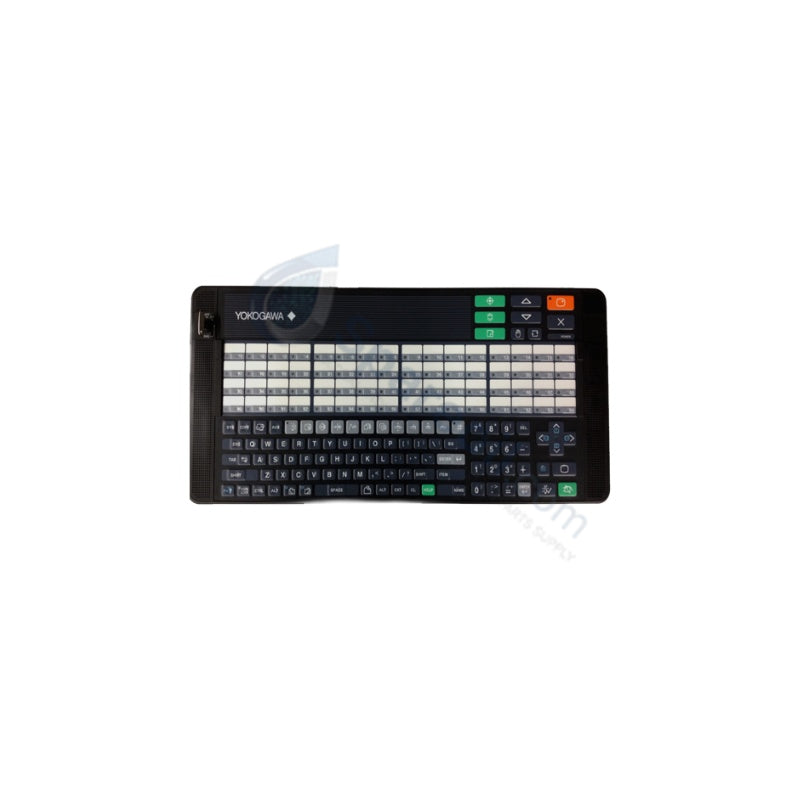

AIP826-2 Yokogawa CENTUM VP Industrial Operation Keyboard

AIP826-2 Yokogawa CENTUM VP Industrial Operation Keyboard

التوفر: 99 متوفر في المخزون

Yokogawa AIP826-2 CENTUM VP Industrial Operation Keyboard The Yokogawa AIP826-2, also cataloged as the Yokogawa AIP826 Industrial Operation Keyboard, operates...

رمز المنتج: AIP826-2

Manufacturer: Yokogawa
Product No.: AIP826-2
Product Type: Operation Keyboards
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Yokogawa AIP826-2 CENTUM VP Industrial Operation Keyboard

The Yokogawa AIP826-2, also cataloged as the Yokogawa AIP826 Industrial Operation Keyboard, operates as a dedicated hardware component for alarm handling, process navigation, and system control within CENTUM VP HIS platforms. The peripheral infrastructure converts tactile switch matriculation into deterministic digital input strings routed directly to the host Human Interface Station processor.

Suffix Breakdown & Model Matrix

AIP826: Base model identification for the industrial operation flat keyboard chassis.
-2: Specific revision suffix denoting configuration adjustments for interface compatibility and housing assembly.

Hardware Specifications

Parameter	Specification
Model	AIP826-2
Brand	Yokogawa
Origin	Japan
Weight	2.0 kg
Dimensions	440 x 285 x 52 mm
Operating Temp	5 to 40 deg C
Storage Temp	-20 to 60 deg C
Power Supply	5 VDC plus/minus 5% via host USB bus
Power Consumption	Maximum 1 A current draw
Interface Ports	Dual USB Type-A ports
USB Standards	USB 2.0 (Keyboard matrix) / USB 1.1 (Audio system)
Function Keys	64 programmable operator keys
Integrated Audio	Built-in USB speaker and buzzer
Color	Black (Munsell No. N1.5 equivalent)

Distributed Control System Panel Integration

The hardware design integrates dedicated operator interface controls alongside a 64 programmable key matrix to execute instantaneous setpoint modifications and display window manipulation. The input scanning logic operates transparently relative to the 4-20 mA HART loop protocol layer, enabling rapid alarm acknowledgment and loop muting directly from the localized physical switches. By implementing dual isolated USB connections, the internal controller partitions the low-power data registers from the audio transducer supply, achieving channel-to-channel isolation that limits common-mode electrical noise feedback into the HIS workstation backplane.

Frequently Asked Questions

Q: Why must both USB connections remain fully engaged with the target HIS PC during active process operations?

A: The peripheral architecture splits functions across separate physical pipelines. One USB Type-A link supports the USB 2.0 interface for standard keystroke matrix scanning, while the secondary link provides power and control data for the built-in USB 1.1 audio speaker and diagnostic buzzer.

Q: Can this keyboard execute legacy operations on older CENTUM software architectures?

A: The module maintains logical compatibility for configuration mapping across CENTUM VP and CENTUM CS 1000 environments, serving as a modern physical form-factor replacement for earlier legacy keyboards.

Q: What indicates a hardware failure within the localized audio signaling circuits?

A: Internal diagnostics register connection status via the host operating system driver layers; failure of the USB 1.1 link will suppress the audible buzzer output during automated process alarm distributions.

Field Installation Guidelines

Mount Orientation: Fasten the keyboard flat onto the control room desktop console surface, or attach it via the integrated rear mounting hole patterns to a standard VESA bracket. Tighten all retention hardware to counter dynamic mechanical stress from continuous operational manual use.
Interface Cable Routing: Route the dual USB cables through dedicated wireways beneath the workstation console. Maintain physical separation from high-voltage AC lines or power distribution cables to mitigate electromagnetic induction hazards.
Functional Grounding: Ground the console workspace infrastructure directly to the central instrumentation clean earth bus. Ensure all cable shielding bonds properly to discharge accumulated static potentials before they reach the internal input matrix registers.
