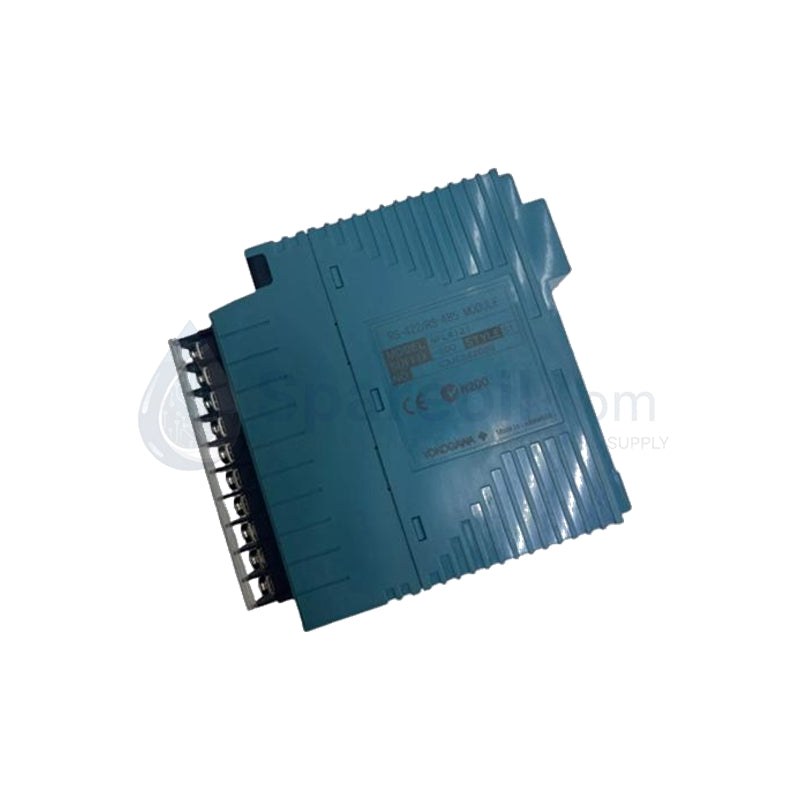

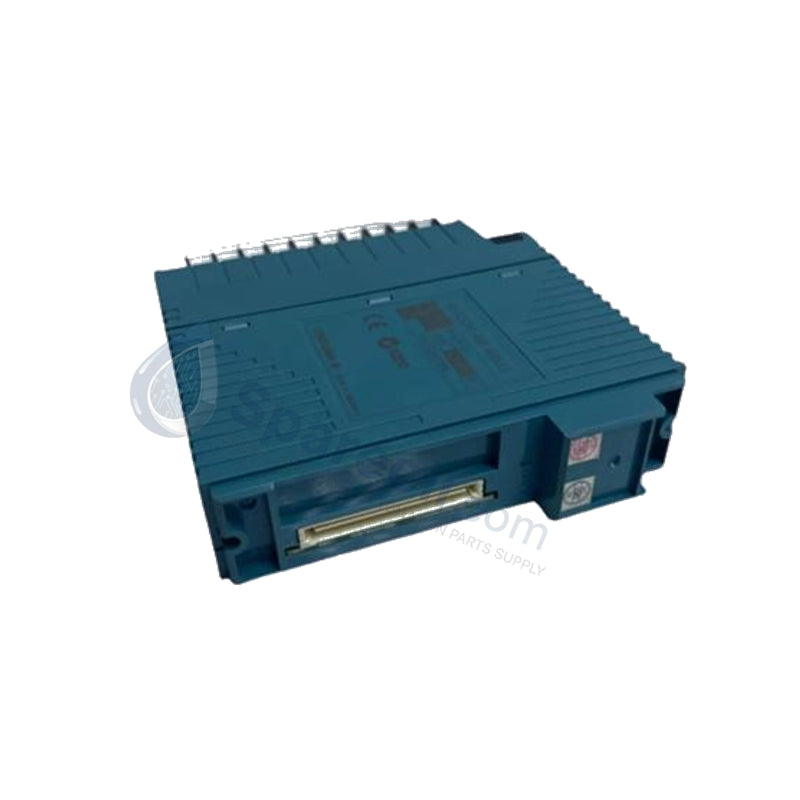

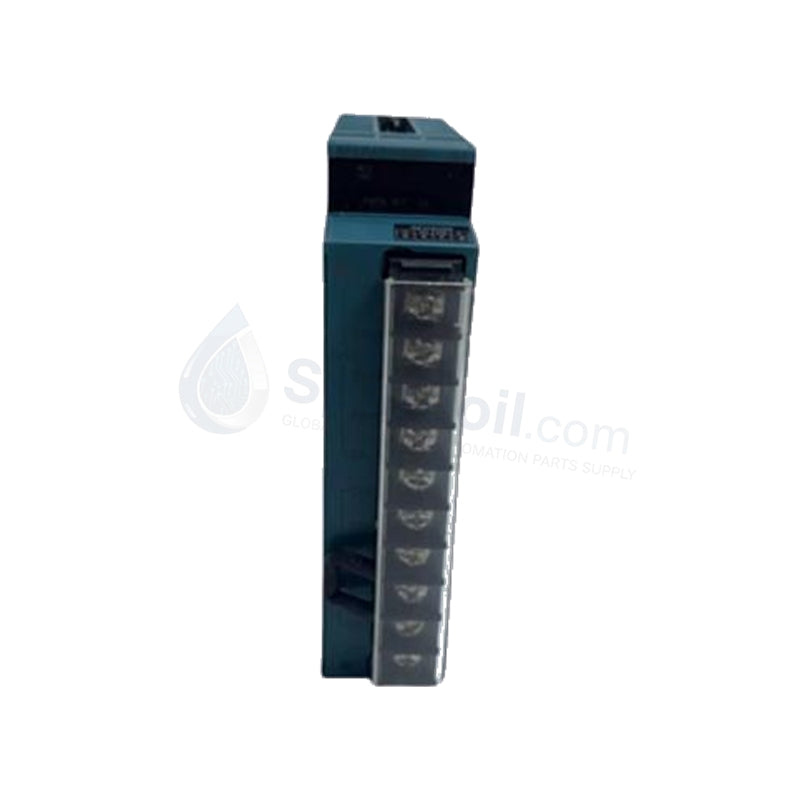

Yokogawa NFAI135-S50 Analog Input Module

Configured for high-density signal acquisition in FIO subsystems, the Yokogawa NFAI135-S50 (NFAI135-S50/CCC01 Analog Input Module) provides direct physical electrical execution for process monitoring.

Hardware Specifications

Parameter Specification
Model NFAI135-S50/CCC01
Brand Yokogawa
Origin Japan
Weight 0.3 kg
Dimensions 150 mm x 20 mm x 100 mm
Operating Temp -10 deg C to +55 deg C
Power Consumption 150 mA at 5 V DC, 450 mA at 24 V DC
Channel Capacity 8 Isolated inputs
Signal Compatibility 4-20 mA DC

Process Control and Signal Integration

The NFAI135-S50 module interfaces with field transmitters to acquire 4-20 mA DC current loop signals. It employs 16-bit A/D conversion to ensure high-precision data acquisition, supporting HART protocol transparency for remote diagnostics and configuration of smart field instruments. The internal architecture features channel-to-channel and channel-to-system galvanic isolation, protecting the backplane from common-mode electrical transients and ground loops. Designed to meet IEC 61508 SIL2 requirements, the module facilitates reliable signal transmission in demanding safety instrumented systems (SIS) and distributed control platforms.

Frequently Asked Questions

Q: Does the module support HART pass-through when configured for standard 4-20 mA inputs?

A: Yes, the module is engineered for full HART protocol pass-through, allowing digital diagnostic data to be overlaid on the analog signal loop without interrupting the primary control measurement.

Q: Is this module capable of providing loop power to the connected field transmitters?

A: The module is designed for loop-powered or externally powered 4-20 mA configurations. Ensure that the total current draw of the field devices remains within the module's specified channel limits.

Q: How should a channel fault be diagnosed if the system reports an out-of-range error?

A: First, verify the loop continuity at the terminal block. If the signal remains out of range, check the module's diagnostic registers for specific bit-level flags indicating a sensor burn-out or loop-current deviation.

Field Installation Guidelines

  • Mounting and Ventilation: Install the module within an approved FIO subsystem rack. Maintain at least 50 mm of clearance above and below the module to promote convective heat dissipation, ensuring the ambient temperature remains within the -10 deg C to +55 deg C operating range.
  • Wiring and Grounding: Use shielded, twisted-pair cabling for all input signals. Terminate the cable shields to the cabinet common ground bus at the entry point. Do not bridge the signal negative terminal to the chassis ground, as this negates the isolation benefits.
  • Torque Specifications: Secure all connections to the terminal block using the manufacturer-specified torque. Improper torque can lead to intermittent signal variations caused by thermal cycling and mechanical vibration.
  • Segregation: Maintain physical separation between analog input loops and AC power conductors or high-power switching cables to mitigate electromagnetic interference and maintain measurement stability.
