Schneider Electric BMXXBE2005 Modicon X80 Backplane Extender Kit

The Schneider Electric BMXXBE2005 serves as the primary BMXXBE2005 Backplane Extender Kit utilized to execute multi-rack expansion configurations across Modicon M340 automation platform networks.

Hardware Specifications

Parameter	Specification
Model	BMXXBE2005
Brand	Schneider Electric
Origin	France
Weight	0.634 kg (22.363 oz)
Dimensions	6.200 cm x 20.300 cm x 22.200 cm (Package 1)
Operating Temp	Technical data not specified
Power Consumption	Technical data not specified (Passive bus extensions)
Product Type	Backplane Extender Kit

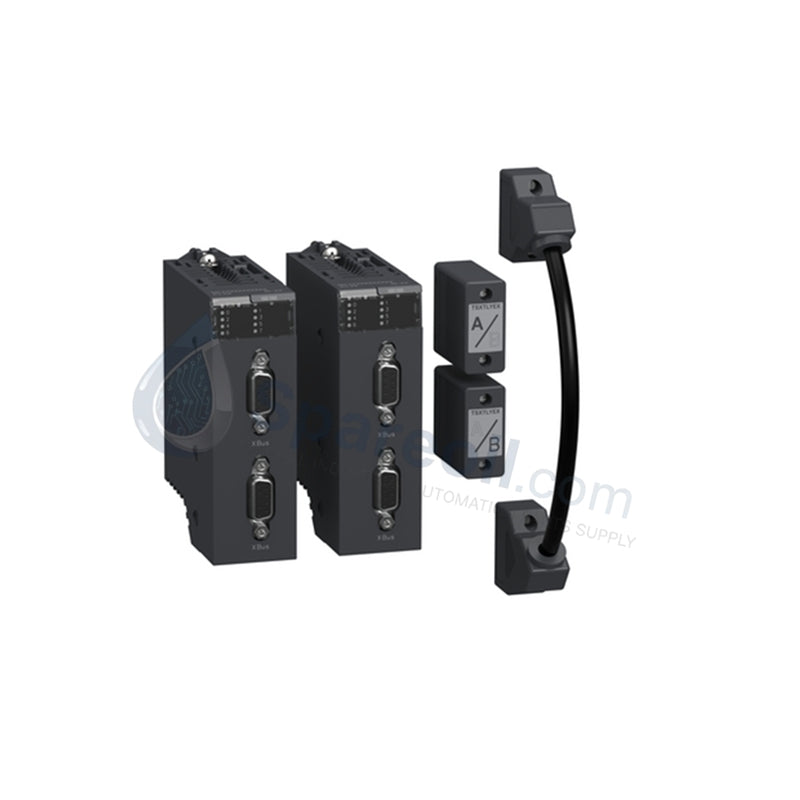

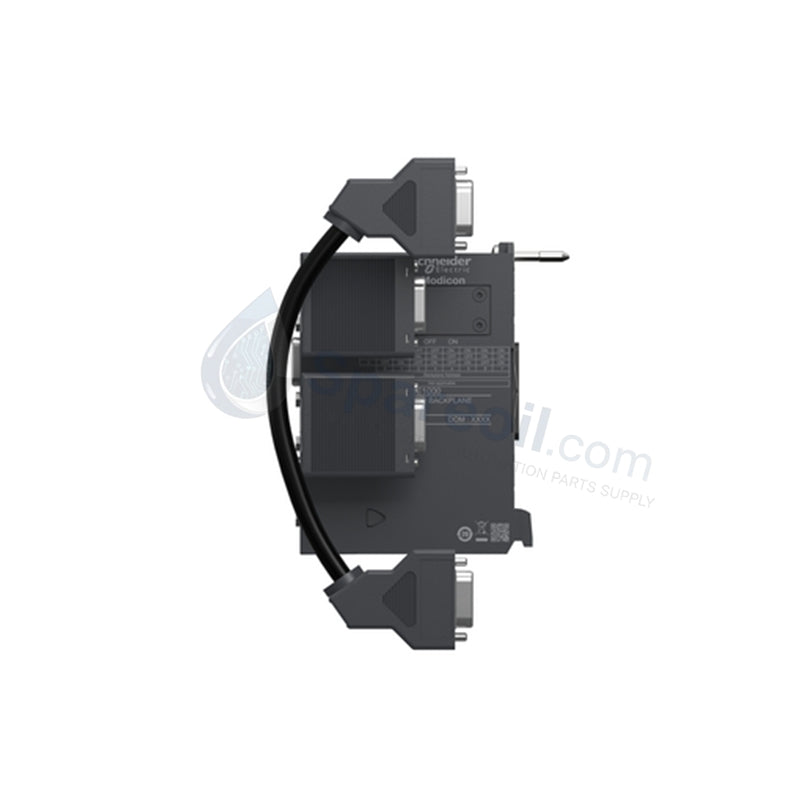

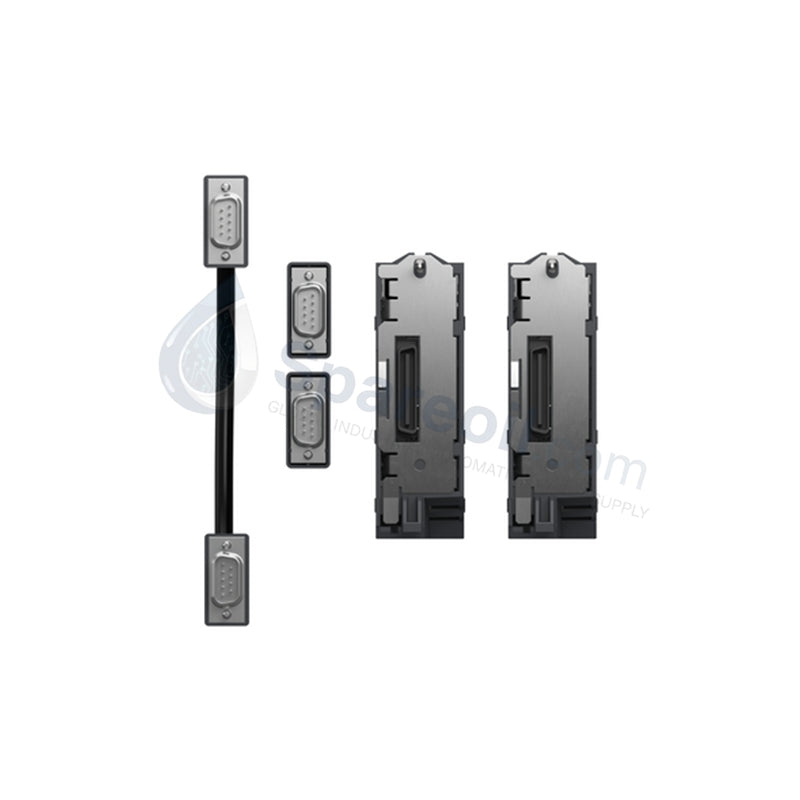

Kit Composition	2 x BMXXBE1000 Rack Expansion Modules, 1 x BMXXBC008K Extension Cordset (0.8 m), 1 x TSXTLYEX Line Terminator Set (2 pieces)
Product Compatibility	Modicon M340 / X80 backplanes
Maximum Configuration	2-rack configuration layout
Directives	2014/35/EU (Low Voltage), 2014/30/EU (EMC), 2014/34/EU (ATEX)
Certifications	CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX Zone 2/22, IECEx Zone 2/22
Standards	IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10

Industrial PLC Control & Drive Networks Properties

Operating inside the Modicon X80 hardware architecture, this expansion kit enables parallel backplane bus communication velocity across multiple physical racks, supporting continuous logic synchronization. The physical-layer hardware preserves internal I/O density scaling characteristics by mapping remote slots directly onto the primary rack register layout without adding network translation overhead. The included TSXTLYEX line terminators isolate the bus trace paths, maintaining signal fidelity across Profinet / EtherNet/IP deterministic networks and preventing signal reflection from disrupting local firmware flash compatibility boundaries during active process execution.

Frequently Asked Questions

Q: What specific hardware components are included in the BMXXBE2005 kit assembly?

A: The standard kit comprises two BMXXBE1000 backplane expansion modules, one 0.8 m BMXXBC008K interconnecting cordset, and a complete set of two TSXTLYEX bus line terminators required to cap the communication line ends.

Q: Can this extender kit be deployed in atmospheres containing hazardous explosive gases?

A: Yes. The hardware complies with the 2014/34/EU ATEX directive and carries certified ratings for installation in ATEX and IECEx Zone 2/22 hazardous environments, as well as Class I Division 2 locations.

Q: How many racks can be interconnected using this specific model variant?

A: The BMXXBE2005 kit is pre-configured and optimized to support a dual-rack (2-rack) hardware topology.

Field Installation Guidelines

Mount the BMXXBE1000 modules directly into the designated expansion slots located on each Modicon backplane rack. Isolate all primary system power supplies before making any physical alterations to the rack structure. Install the 0.8 m BMXXBC008K extension cordset into the front panel connectors of the expansion modules, ensuring that the integration locking tabs engage completely. Insert the TSXTLYEX line terminators into the open ports at each far end of the extended bus path to close the circuit loop. Route all backplane bus cables through separate cable ducts inside the cabinet enclosure, maintaining physical isolation from variable speed drive lines and high-current AC motor leads to minimize electrical noise induction.
