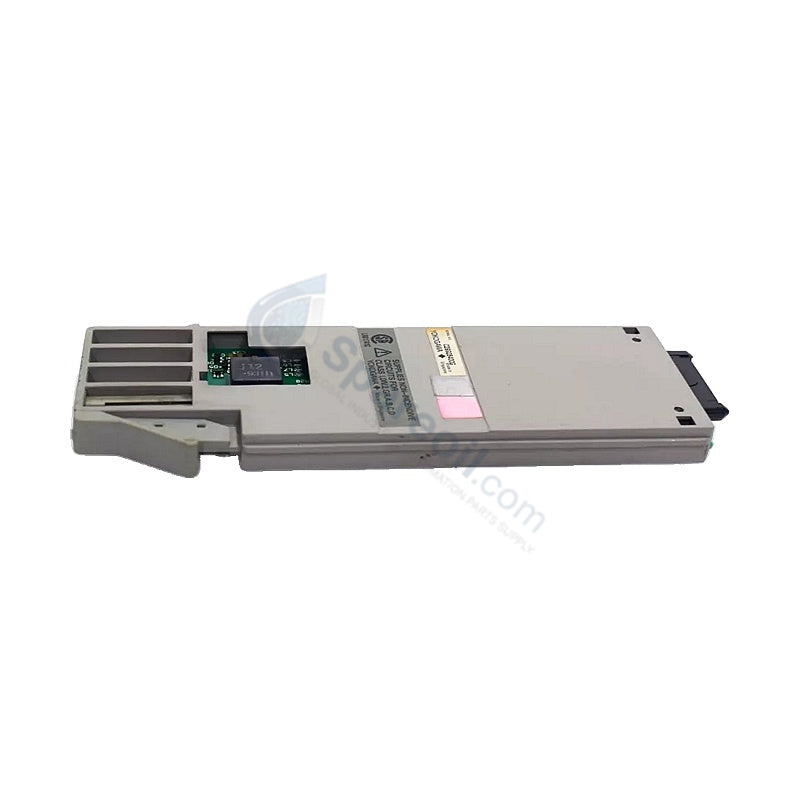

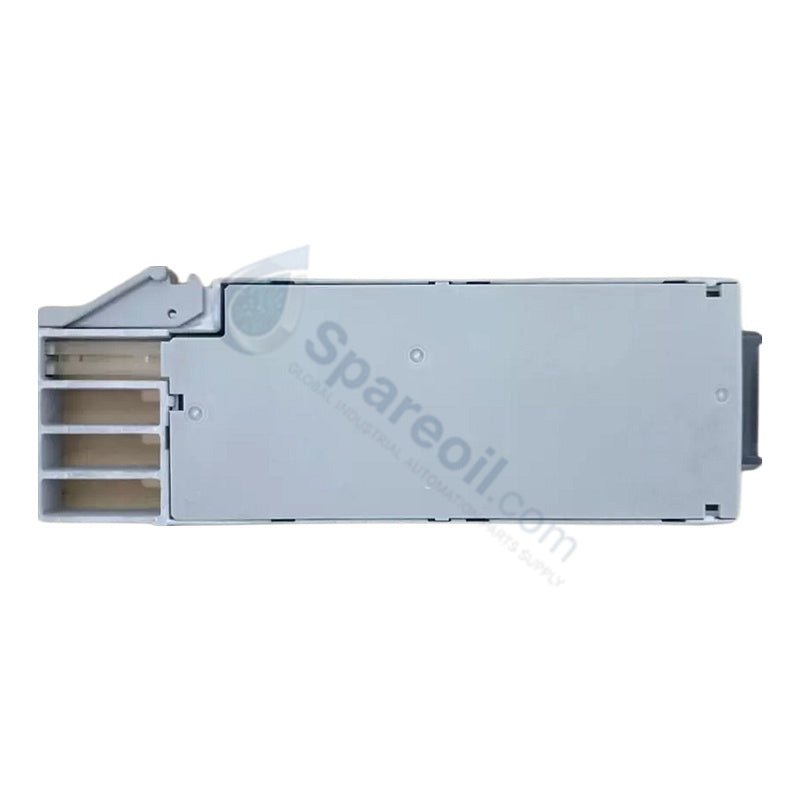

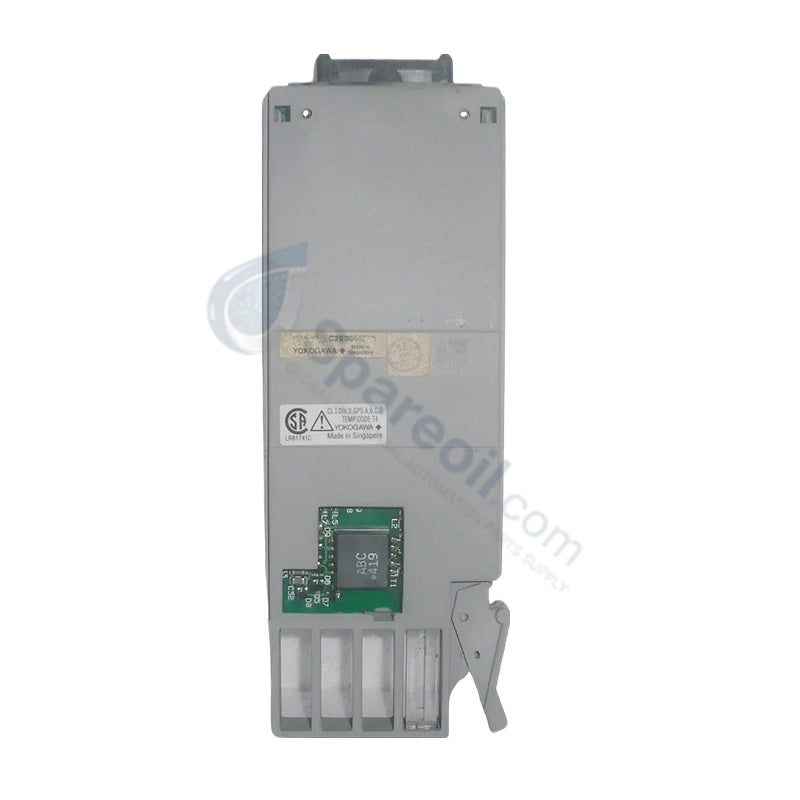

YOKOGAWA AAM50-S1 CENTUM Analog Input Module

Configured for high-density 16-channel analog signal acquisition in CENTUM CS/CS3000 platforms, the YOKOGAWA AAM50-S1 (AAM50 Analog Input Module) provides direct physical/electrical execution for process transmitter loops.

Hardware Specifications

Parameter Specification
Model AAM50-S1
Brand Yokogawa Electric Corporation
Origin Japan
Weight 0.15 kg
Dimensions 76 mm x 25 mm x 178 mm
Operating Temp 0 deg C to +55 deg C
Power Consumption 5 VDC via backplane bus
Number of Channels 16 analog input channels
Supported Signals Current (4-20 mA DC, 0-20 mA DC), Voltage (0-10 VDC, +/-10 VDC)
Measurement Accuracy +/-0.1% of reading
Resolution 12-bit / 16-bit ADC conversion
Isolation Voltage 1500 VDC (input to output logic) / 1500 VAC (channel-to-ground)

Process Control & Channel Isolation Characteristics

Engineers utilize the AAM50-S1 module to capture high-density field transmitter telemetry across Field Control Stations (PFCS/PFCD) via the 4-20 mA HART loop protocol. Integrated galvanic isolation rated at 1500 VDC breaks ground loops and isolates field-side electrical surges from the internal system backplane. Active noise filtering suppresses high-frequency electromagnetic interference (EMI) across all signal paths before digitizing. Internal health diagnostics continuously monitor loop wiring to detect open circuits, signal over-range conditions, and analog-to-digital converter execution status.

Frequently Asked Questions

Q: How does the module handle fault isolation during field wiring short circuits?

A: Optical and transformer galvanic isolation barriers rated at 1500 VDC prevent high-voltage electrical faults on field wiring terminals from migrating across the backplane connector, keeping the central processor node operational.

Q: What mounting options support the physical installation of the AAM50-S1 card?

A: Installers insert the module directly into standard CENTUM Node Interface Units (NIU), Field Control Station nests, or I/O expansion racks via integrated backplane guide rails and connector slots.

Q: How do internal diagnostics communicate signal faults to the central control processor?

A: Diagnostic routines scan each channel for wire breaks, out-of-range current/voltage thresholds, and internal hardware faults, setting system status flags that transmit across the 5 VDC backplane bus directly to the DCS database.

Field Installation Guidelines

Inspect the target slot inside the Node Interface Unit or I/O rack for debris before inserting the module card edge. Slide the card firmly along the slot guide rails until the backplane connector locks completely into position. Wire field loops using shielded twisted-pair cabling, terminating all cable shields at a dedicated cabinet earth bus bar to eliminate ground potential loops. Avoid running field signal wires in close proximity to high-voltage AC power distribution lines or frequency drives. Maintain proper cabinet air circulation to keep the ambient enclosure temperature strictly between 0 deg C and +55 deg C during continuous operation.
