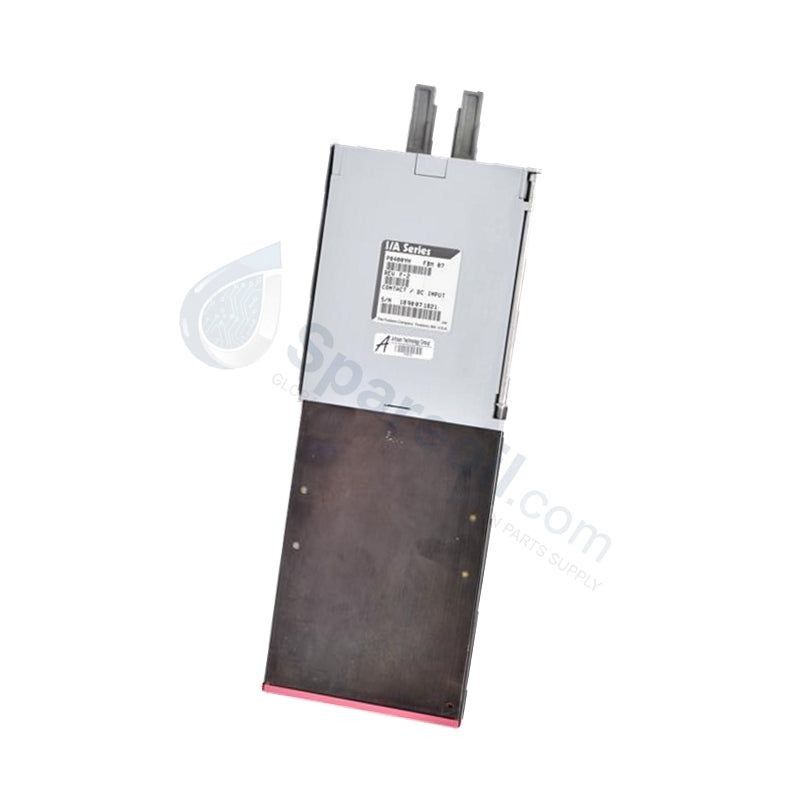

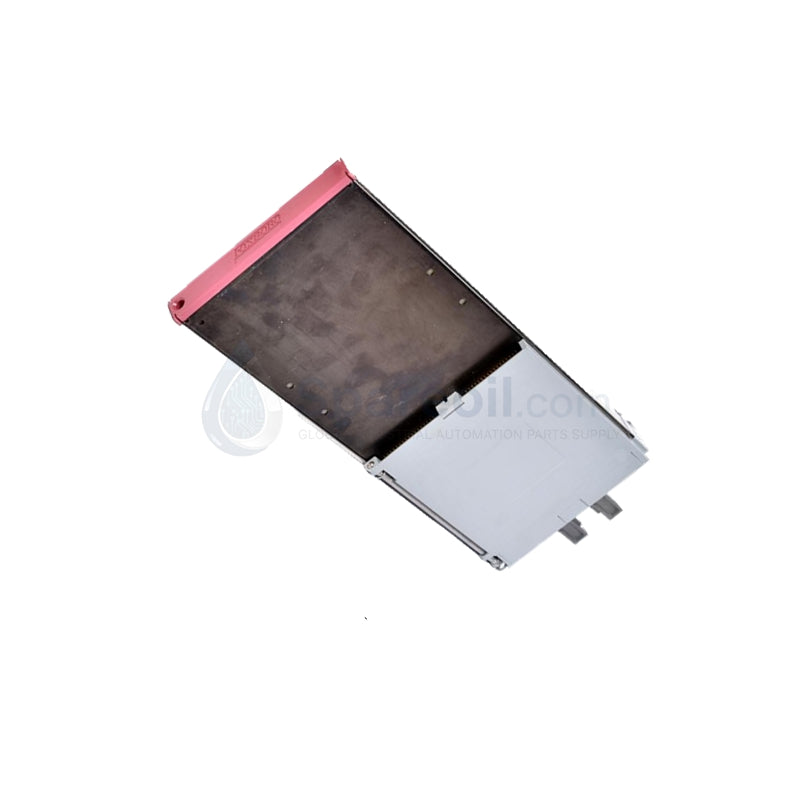

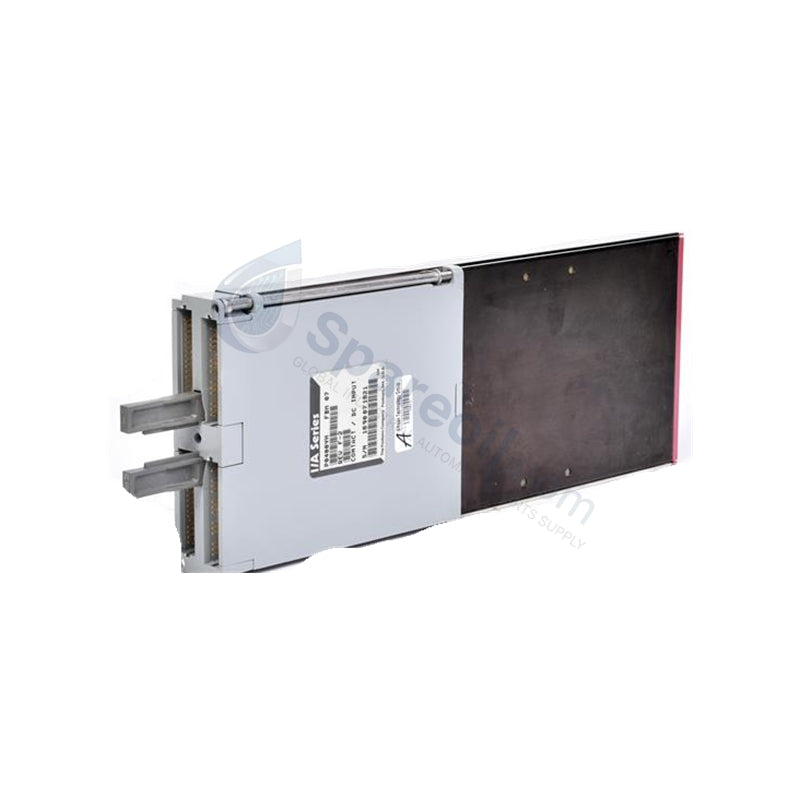

Foxboro CM400YH I/A Series FBM Interface Module

Configured for analog signal acquisition within Foxboro I/A Series DCS frameworks, the Foxboro CM400YH, also cataloged as the CM400YH Fieldbus Module, operates as a dedicated hardware component for processing field transmitter electrical potentials. This baseplate-mounted interface card isolates and conditions incoming direct current voltage or current variables before routing them over the proprietary parallel system bus. By executing continuous analog-to-digital data conversions at the rack level, this component prevents electrical line noise from corrupting the master processing loop of the control system.

Hardware Specifications

Parameter Specification
Model CM400YH
Brand Foxboro (Invensys)
Origin United States
Weight 0.25 kg
Dimensions Standard single-width FBM profile envelope
Operating Temp 0 to 60 deg C
Power Consumption Low-voltage DC draw supplied directly via host FBM baseplate
Module Type Fieldbus Module (FBM) Analog Interface
Platform Compatibility Foxboro I/A Series DCS
Input Configuration Multiple isolated analog sensing channels
Signal Compatibility DC current (4-20 mA) / DC voltage inputs
Galvanic Isolation Channel-to-channel and channel-to-bus structural isolation
Local Signaling Light-emitting diode (LED) status array for hardware and loop verification
Storage Temperature -40 to 85 deg C
Operating Humidity 5 to 95 percent relative humidity non-condensing
IP Degree of Protection IP20
Certifications CE, UL, CSA

Channel-to-Channel Isolation and Loop Protocol Filtering

This Fieldbus Module maintains data integrity across complex control loops through an integrated network of localized galvanic isolation barriers. Every instrumentation path incorporates a dedicated transformer-coupled or optoelectronic screening layer designed to eliminate common-mode noise interferences and ground loop current shifts between channels. The front-end electronics execute continuous signal filtering to block transient electromagnetic disruptions, preventing high-voltage field spikes from tracking backward into the central backplane logic gates. This shielding layout ensures that the digitizing circuits maintain high conversion accuracy across all input lines, even within high-density signal wire trays.

Frequently Asked Questions

Q: How does the CM400YH module behave when an open-circuit fault occurs on an active 4-20 mA field loop?

A: The module internal diagnostic logic continuously checks the raw loop current level. If a line break occurs and the signal falls below the lower detection threshold, the onboard processor alters the status bits of the corresponding register to alert the host DCS, while illuminating the associated channel fault LED indicator.

Q: Is this FBM component hot-swappable during active process operations?

A: Yes. The structural design of the baseplate connectors allows live insertion and extraction under power. The internal grounding pins establish an electrical circuit before the signal pins engage, ensuring that hot-swapping does not generate bus communication transients or interrupt adjacent modules.

Q: What action is required if the module health LED switches to a blinking red sequence?

A: A blinking red indicator flags an internal hardware self-test failure, commonly caused by a corrupted memory block or an uncalibrated analog-to-digital converter circuit. The module should be removed from the slot, checked for contact contamination, and replaced if the fault persists after re-insertion.

Field Installation Guidelines

  • Baseplate Engagement: Position the module perfectly square over the designated baseplate slot, sliding it firmly along the guide tracks until the rear multi-pin header mates completely with the backplane socket. Secure the mechanical retention screws.
  • Shield Wire Termination: Strip the analog field cable jackets to expose the drain wires, terminating them directly to the local metallic enclosure ground bus using low-impedance grounding clamps. Do not ground the shields at both ends of the run.
  • Cable Routing Gaps: Separate all low-voltage analog input signal leads from high-voltage AC motor lines, variable frequency drives, and inductive switching networks by a minimum of 300 mm within the panel wire ducting.
  • Enclosure Cooling Limits: Ensure that the cabinet features adequate ventilation louvers or an active heat exchanger to prevent the localized ambient air temperature surrounding the FBM assembly from crossing the 60 deg C operational ceiling.
