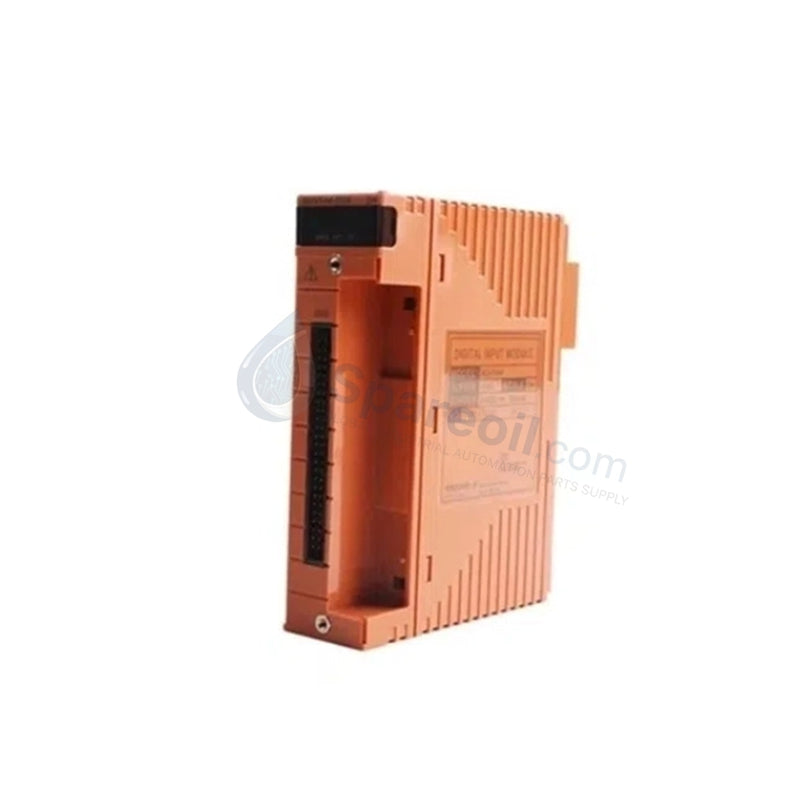

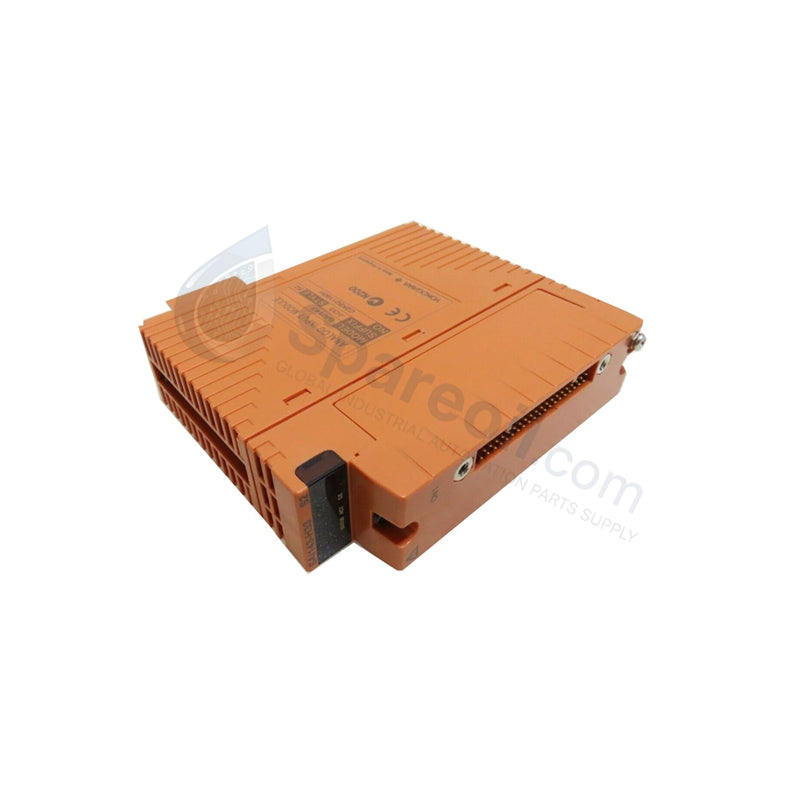

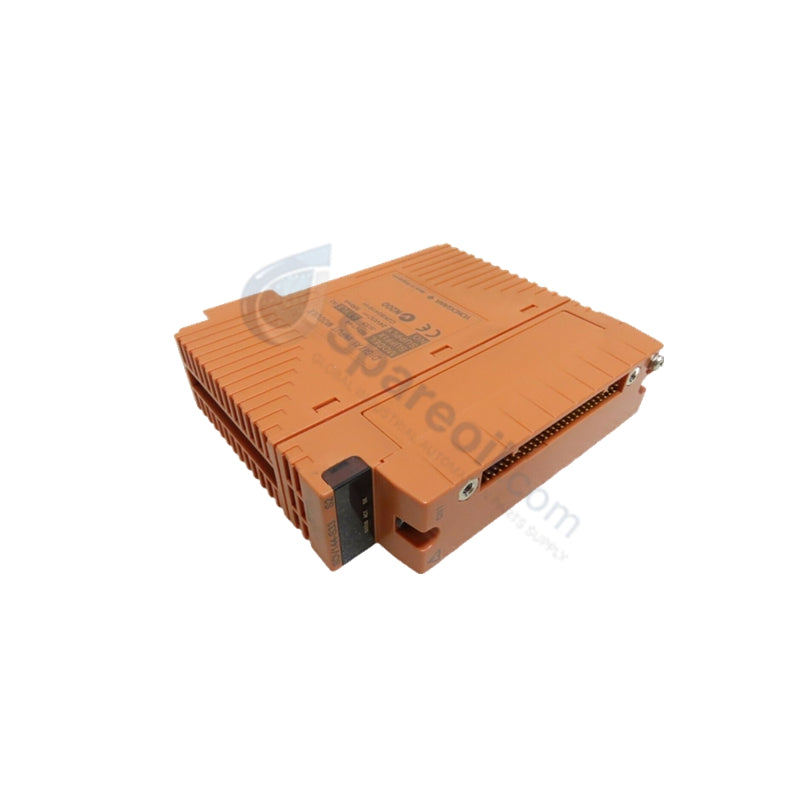

Digital Output Module Yokogawa SDV144-S13 ProSafe-RS

التوفر: 99 متوفر في المخزون

Yokogawa SDV144-S13 ProSafe-RS Series Module The Yokogawa SDV144-S13 operates as a dedicated hardware component for direct physical/electrical execution within CENTUM...

رمز المنتج: SDV144-S13

Manufacturer: Yokogawa
Product No.: SDV144-S13
Product Type: Digital Output Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Yokogawa SDV144-S13 ProSafe-RS Series Module

The Yokogawa SDV144-S13 operates as a dedicated hardware component for direct physical/electrical execution within CENTUM VP, CS 3000, and ProSafe-RS platforms. The hardware commands 16 discrete signal paths, transforming internal digital logic command sequences into direct electrical current transitions to operate external field loads. By executing real-time line checking algorithms through a dedicated processing layout, the module manages discrete current loop parameters to enforce automated switching actions directly over the safety backplane bus network.

Hardware Specifications

Parameter	Specification
Model	SDV144-S13
Brand	Yokogawa
Origin	USA
Weight	0.2 kg
Dimensions	260 mm x 180 mm x 60 mm
Operating Temp	-10 to +60 deg C
Power Consumption	Not Specified
Product Type	Digital Output Modules
Output Channels	16 discrete channels
Signal Type	Discrete ON/OFF (relay/solenoid drive)
Output Voltage	24 VDC nominal
Output Current	Up to 0.5 A per channel
Isolation	Optical isolation per channel
Response Time	5 ms or less
Diagnostics	Short-circuit and overload detection
Mounting	Rack-mounted

Process Control Network Architecture and Galvanic Isolation

The digital switching circuits integrate hardware safety processing paths designed to isolate field instrumentation loops from the central logic rack assembly. Internal channel-to-channel isolation networks block inductive voltage spikes generated by high-power field solenoids, halting common-mode electrical noise before it crosses the logic backplane. The module architecture works alongside external marshalling panels to maintain independent 24 VDC output paths, allowing multi-channel digital loop configurations to run concurrently without thermal build-up or signal cross-talk degradation inside the card enclosure.

Frequently Asked Questions

Q: How does the output circuit react when a field wiring loop experiences an electrical short-circuit or current overload?

A: The onboard diagnostic layer tracks electrical load current metrics for each channel. If the loop draw surpasses the 0.5 A peak specification, the internal fault circuit trips the affected line, logs an error state, and sets a diagnostic flag across the backplane bus to signal the controller logic.

Q: Can an operator execute online hot-swap extraction of this module while the chassis rack power remains active?

A: Live module swapping depends strictly on the structural layout rules of the host sub-rack slot. Technicians must check the system infrastructure documentation to ensure that active slot communication lines tolerate online removal before breaking the physical backplane link.

Q: What physical system variance does the S13 suffix denote in the hardware production matrix?

A: The suffix code maps to specific internal component revisions, trace layout variations, or factory testing certifications. Field engineers must match the S13 suffix designation with the corresponding safety system configuration files to ensure full software and hardware alignment.

Field Installation Guidelines

Chassis Earth Grounding: Bolt the module securely into the rack slot, confirming that the metal ground tabs establish an unpainted connection with the bare metal chassis frame to give transient surges a low-impedance ground path.
Drain Wire Shield Matrix: Terminate all incoming twisted-pair field shields straight to the dedicated earth ground bar within the enclosure. Do not route these shield wires through the active signal pins of the module interface terminal.
Separation of Signal Channels: Route low-voltage digital signal conductors inside dedicated plastic wireways, keeping a minimum space separation of 200 mm from high-power AC distribution runs or variable frequency drive cables.
Connector Tension Testing: Inspect the front-panel multi-pin connector retention hardware to verify that all attachment screws match the original specification torque, preventing physical connection shifts that trigger measurement errors.
