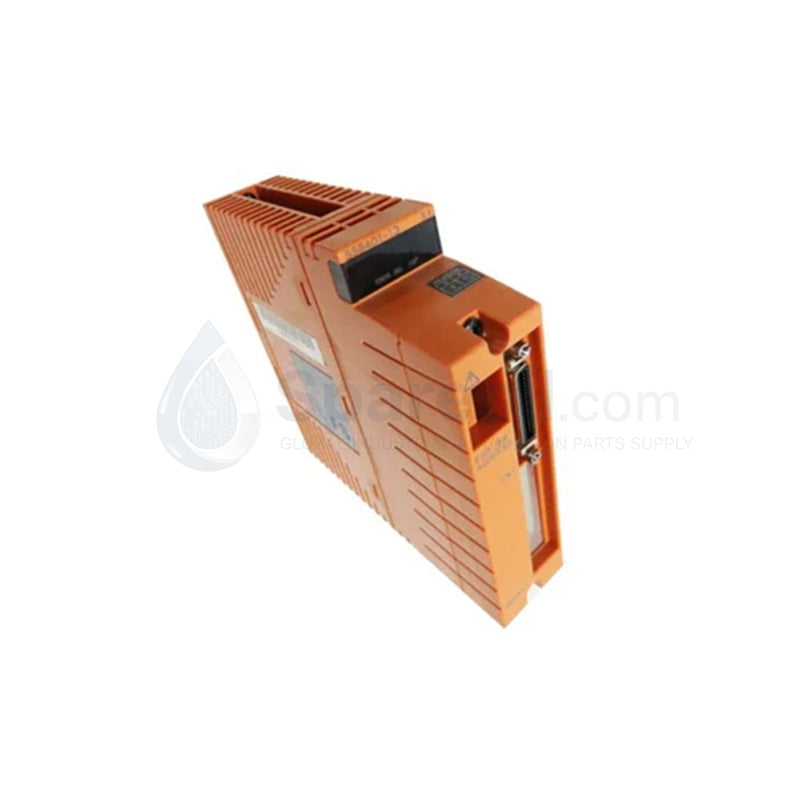

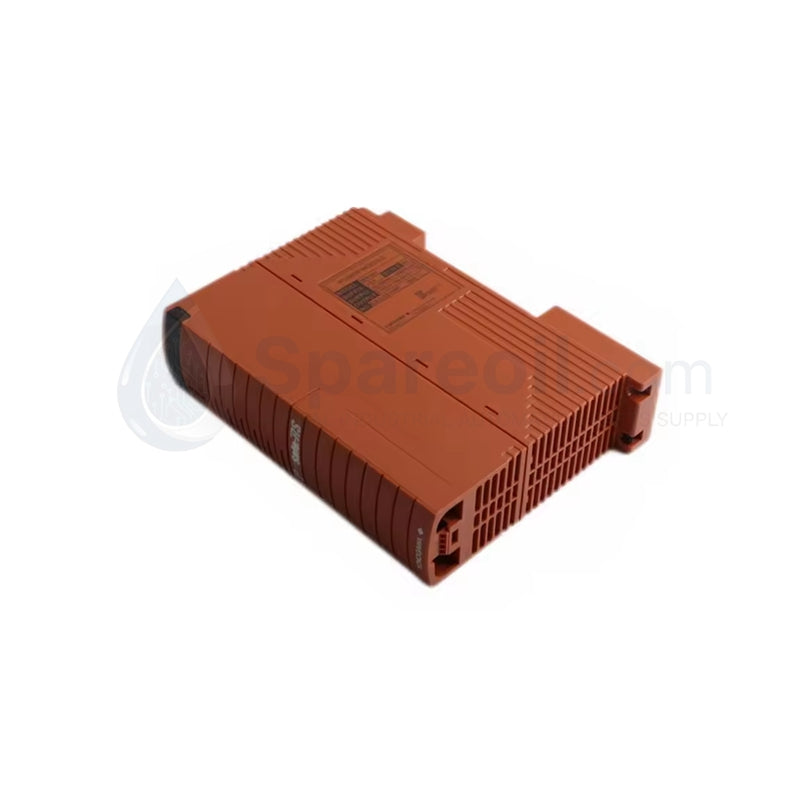

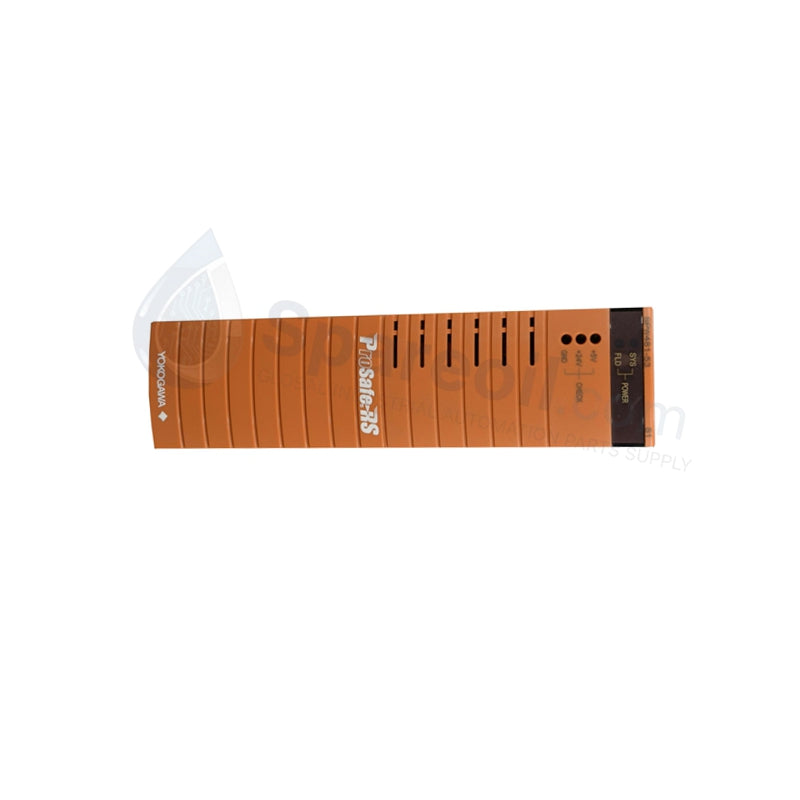

Yokogawa SDV531-L53/B4D00 Digital Output Module

Configured for safety-critical digital state control within ProSafe-RS SIS architectures, the Yokogawa SDV531-L53/B4D00 (SDV531 Digital Output Module) provides direct electrical execution of output signal switching.

Suffix Breakdown & Model Matrix

Code Component	Description
SDV531	Base Model: 8-channel Digital Output Module with module isolation
-L	Long-distance signal transmission specification
5	Signal cable interface adapter included; no explosion protection
3	ISA Standard G3 coating; operating temperature range -20 to 70 deg C
/B4D00	Dual-redundant pressure clamp terminal block; no surge absorber

Hardware Specifications

Parameter	Specification
Model	SDV531-L53/B4D00
Brand	Yokogawa
Origin	Japan (Manufacturing Standard)
Weight	0.28 kg
Dimensions	75 × 114 × 90 mm
Operating Temp	-20 to 70 deg C
Power Consumption	280 mA @ 5 VDC; 140 mA @ 24 VDC
Output Capacity	8 channels; 24 VDC nominal; 25 mA per channel
Isolation	2 kV AC (Signal/System Ground)

Galvanic Isolation and Safety Integrity

The SDV531-L53/B4D00 implements robust channel-to-channel isolation to maintain signal integrity within Safety Instrumented Systems (SIS). This isolation architecture prevents ground loops and electrical interference from propagating through the ProSafe-RS field bus, ensuring consistent state detection. The internal circuitry provides 2 kV AC dielectric strength between the field output loops and the system ground, which acts as a barrier against external transients. This design ensures that single-point faults in the field device wiring remain contained, upholding the module's fail-safe state execution performance.

Frequently Asked Questions

Q: Can the SDV531-L53/B4D00 be configured for dual-redundant operation?

A: Yes, this module supports dual-redundant configurations via the included /B4D00 dual-redundant pressure clamp terminal block. When paired with a secondary module, the system handles automatic switchover during fault conditions.

Q: What are the primary considerations for replacing the module in an active system?

A: ProSafe-RS hardware supports hot-swapping under specific software control conditions. Technicians must verify that the corresponding control loop is in a 'Maintenance' or 'Manual' state within the Engineering Station to prevent unintended output pulses during module extraction or insertion.

Field Installation Guidelines

Mounting: Secure the module on the designated backplane within the ProSafe-RS cabinet. Ensure the pressure clamp terminal block is fully seated and the locking pins are engaged to provide proper contact force.
Wiring: Use the pressure clamp terminals for field device connections. Ensure wire gauges are compatible with the terminal block (typically 0.5 to 1.5 mm squared). Apply correct torque to avoid mechanical stress on the PCB connectors.
Shielding: To maintain the efficacy of the galvanic isolation, ground cable shields at the cabinet entrance point rather than at the module terminal block to reduce common-mode noise current.
Environment: While the module is rated for up to 70 deg C, maintain adequate clearance (minimum 50 mm) above and below the module to facilitate convection-based heat dissipation.
