EB511-10 Yokogawa CENTUM VP ER Bus Interface Module

EB511-10 Yokogawa CENTUM VP ER Bus Interface Module

التوفر: 10 متوفر في المخزون

Yokogawa EB511-10 CENTUM VP ER Bus Interface Module The Yokogawa EB511-10, also cataloged as the EB511 ER Bus Interface Module,...

رمز المنتج: EB511-10

Manufacturer: Yokogawa
Product No.: EB511-10
Product Type: Bus Interface Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

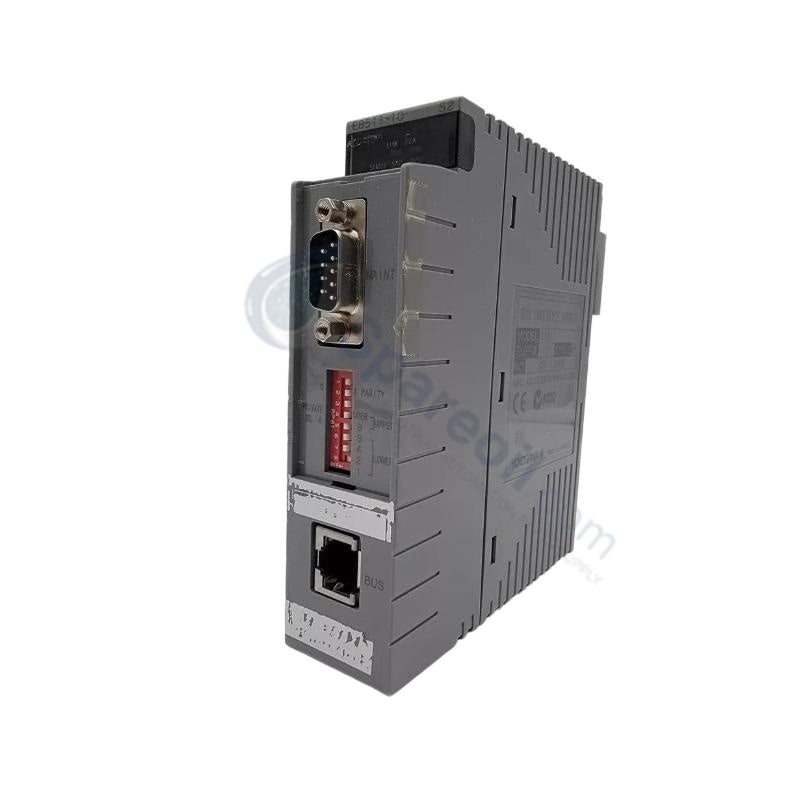

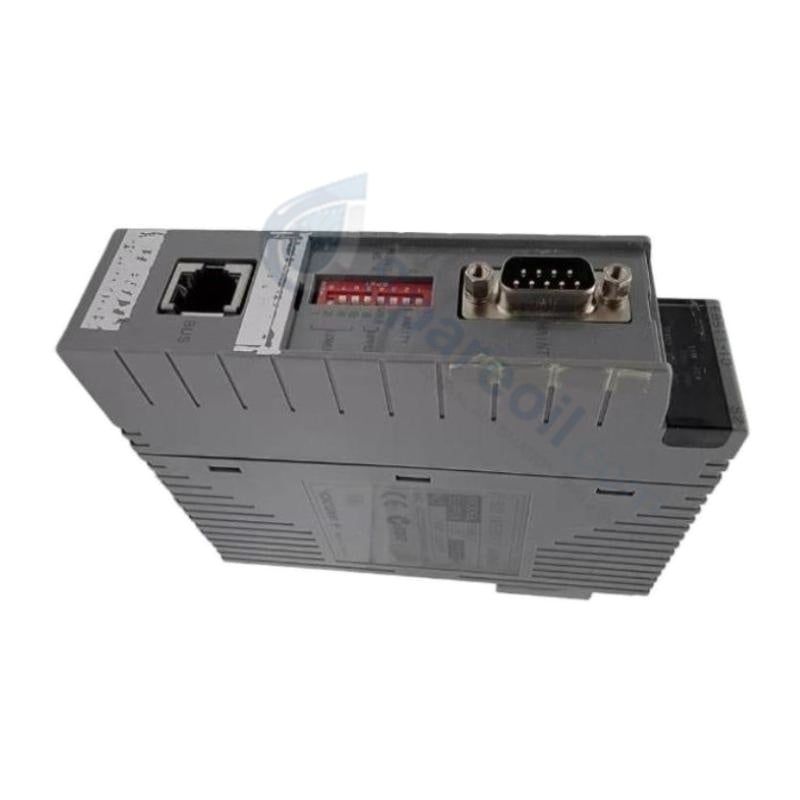

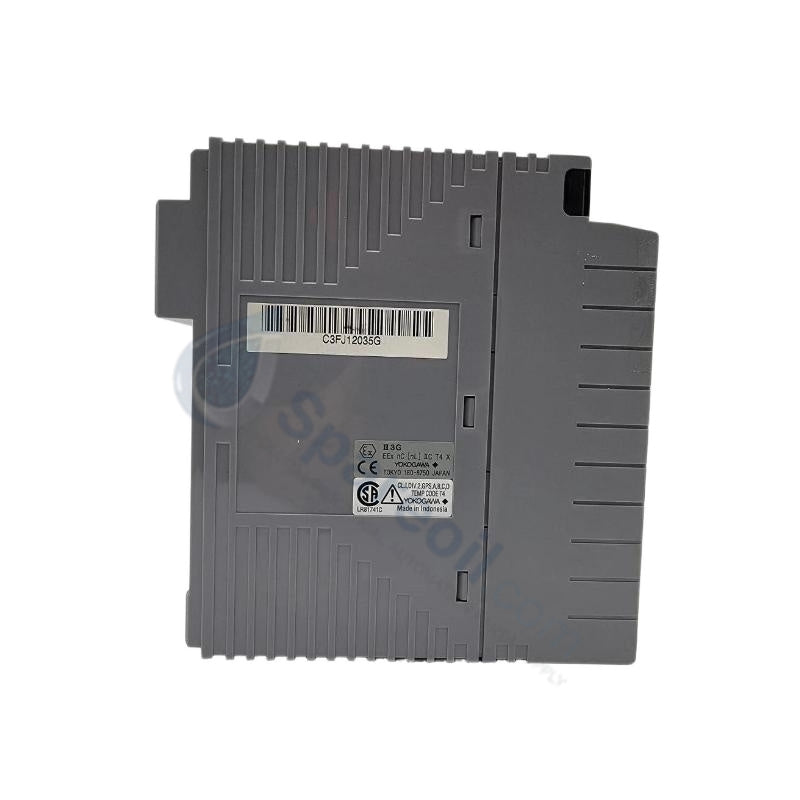

Yokogawa EB511-10 CENTUM VP ER Bus Interface Module

The Yokogawa EB511-10, also cataloged as the EB511 ER Bus Interface Module, operates as a dedicated hardware component for real-time communication between DCS controllers and field devices within CENTUM VP, CENTUM CS, CENTUM 3000, and EXA DCS platforms. The unit processes digital signal routing over an ER Bus protocol matrix, utilizing an IEEE 802.3 10BASE-2 physical layer to link field device sub-networks. It relies on internal transceiver circuitry to drive high-frequency data frames directly through a chassis-isolated BNC terminal interface.

Hardware Specifications

Parameter	Specification
Model	EB511-10 (also designated as EB511-10 S2)
Brand	Yokogawa
Platform	CENTUM VP / CENTUM CS / CENTUM 3000 / EXA DCS
Origin	Japan
Weight	0.3 kg
Dimensions	25 x 127 x 127 mm
Operating Temp	0 to 50 deg C
Storage Temp	-20 to 70 deg C
Power Consumption	Powered via backplane; draws approximately 0.7 A at 5 V DC logic equivalents
Communication Protocol	ER Bus (IEEE 802.3 10BASE-2)
Data Transmission Speed	10 Mbps
Maximum Distance	185 m per segment
Physical Connector Port	BNC interface
Target Slot Installation	ANB10 or AFF50 Field Control Unit (FCU) odd slots
Certification Scope	CE, CSA, EAC compliant

Process Control Loops and DCS Instrument Integration

The module manages the deterministic transmission of process values derived from field transmitters operating on standard 4-20 mA HART loop protocol architectures. The internal isolation transformers enforce proper channel-to-channel isolation parameters between the coaxial network segment and the internal logic processing bus, preventing ground potential variations from degrading data frame integrity. This precise digital timing alignment preserves sample synchronization across distributed I/O blocks, supporting stable communication loops for temperature conversion racks that integrate localized cold junction compensation units.

Frequently Asked Questions

Q: What are the slot restrictions when installing this interface card into a Field Control Unit?

A: The module must be seated exclusively into the designated odd-numbered slots of an ANB10 or AFF50 base unit enclosure. Insertion into even-numbered slots will prevent the backplane pins from establishing communication with the processor.

Q: Can standard thin coaxial cable be mixed with alternative topologies on this segment?

A: No. The physical layer conforms strictly to 10BASE-2 specifications, requiring 50-ohm RG-58 coaxial cabling terminated with proper 50-ohm BNC terminators at each end of the 185 m link segment.

Q: What indicates a physical layer open-circuit or termination failure on the module?

A: A link-fault condition will cause the communication status registers to flag packet errors to the controller, while the corresponding diagnostic indicator on the FCU base housing changes state.

Field Installation Guidelines

BNC Connector Assembly: Ensure all BNC T-connectors are rotated and locked securely onto the module front panel port. Loose bayonet couplings will introduce signal reflections that degrade the 10 Mbps data throughput.
Segment Grounding Constraints: Ground the ER Bus coaxial cable shield at only one single point along the entire cable run to eliminate parallel ground loop currents.
Cabinet Internal Routing: Route the coaxial network segment away from high-amperage AC switchgear and variable frequency drive supply cables to reduce electromagnetic noise coupling.
Base Installation Security: Verify that the module locking latches are completely engaged with the ANB10 or AFF50 chassis frame to prevent accidental extraction under high-vibration conditions.
