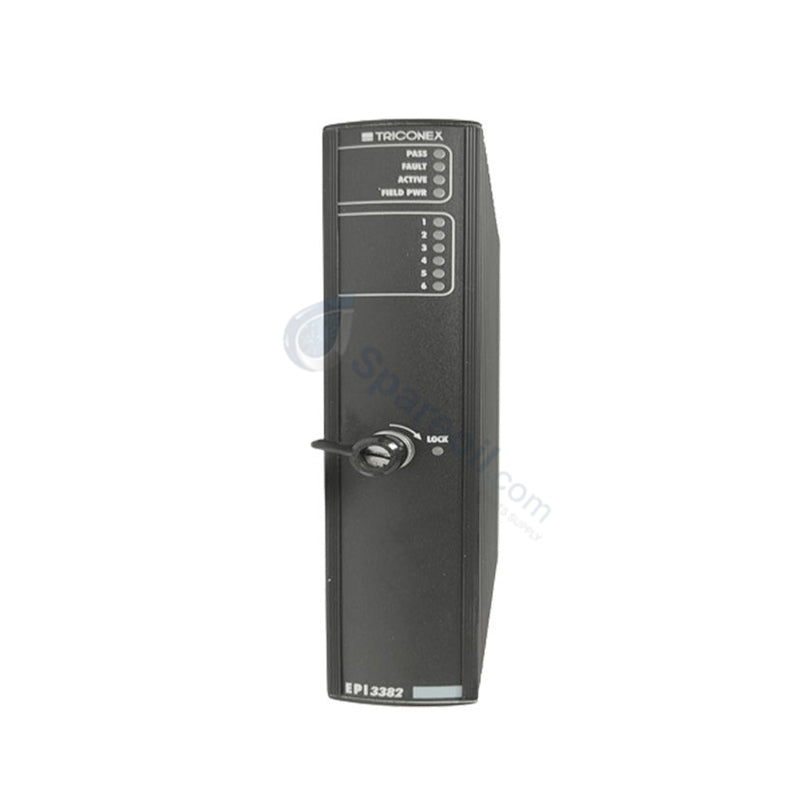

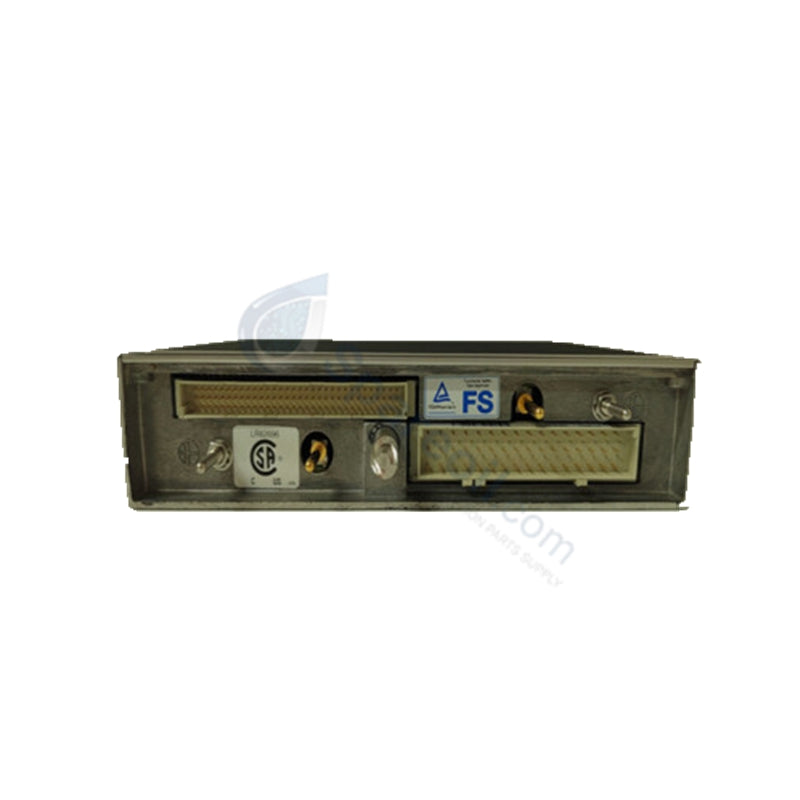

EPI3382 Triconex TriStation 3000 Processor Interface Module

التوفر: 10 متوفر في المخزون

Triconex EPI3382 Enhanced Processor Interface Module Configured for communication execution and safety logic processing in TriStation 3000 networks, the Triconex...

رمز المنتج: EPI3382

Manufacturer: Triconex
Product No.: EPI3382
Product Type: Processor Interface Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 2300g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Triconex EPI3382 Enhanced Processor Interface Module

Configured for communication execution and safety logic processing in TriStation 3000 networks, the Triconex EPI3382, also cataloged as the EPI3382 Enhanced Processor Interface Module, provides direct physical/electrical execution. The hardware establishes data pathways using up to two 10/100 Mbps Ethernet connections while processing instructions via a 36 MHz triple synchronized architecture. It interfaces directly with field arrays across an integrated capacity of 64 digital points and 32 analog points under continuous Triple Modular Redundancy (TMR) monitoring.

Hardware Specifications

Parameter	Specification
Model	EPI3382 (EPI3382 S2)
Brand	Triconex
Origin	United States
Weight	2.3 kg (1.4 kg net configuration base)
Dimensions	315 x 45 x 200 mm
Operating Temp	-40 to +70 deg C
Power Consumption	24 VDC +/-10% (Redundant Inputs)
Architecture	Triple Modular Redundancy (TMR) 2oo3
Processor Speed	36 MHz
Isolation Voltage	2500 VAC channel-to-channel
Protocol Support	Modbus TCP/IP, Modbus RTU/ASCII, TCP/UDP, OPC
Safety Rating	SIL 3 Certified (IEC 61508/61511)

Fail-Safe State Execution

The hardware maintains a deterministic safety loop by deploying three distinct processing channels operating in a parallel 2oo3 voting matrix. Internal hardware diagnostic routines evaluate 78 unique circuit parameters within a fault detection window of less than 5 ms. When an internal component deviation occurs, the processor isolates the affected sub-circuit and masks the fault to guarantee uninterrupted execution of emergency shutdown commands. Galvanic isolation rated at 2500 VAC prevents high-voltage transient surges on the communications bus from propagating into the core logic solver.

Frequently Asked Questions

Q: What are the operational parameters regarding hot-swapping the EPI3382 within an active rack?

A: The module supports online hot-swapping without causing system interruption. Personnel must insert the replacement module into the corresponding slot, allowing the active TMR processors to verify firmware compatibility and download the active logic configuration automatically.

Q: How does the channel-to-channel isolation voltage protect the internal processor logic?

A: The 2500 VAC isolation establishes a physical barrier that prevents field-side electrical faults or ground loops from compromising the synchronized 36 MHz processing core, maintaining structural safety integrity.

Q: Which legacy controller systems maintain direct compatibility with this interface module?

A: The interface module operates within Tricon v9, v10, and v11 control systems using the TriStation 3000 platform, allowing direct integration across legacy backplane architectures.

Field Installation Guidelines

Insert the interface module into the designated slot of the 3U rack-mount chassis until the locking tabs secure the faceplate.
Connect the dual 24 VDC power leads to the independent redundant terminals, ensuring the voltage source remains within the specified +/-10% tolerance band.
Terminate all Ethernet communication cabling using shielded RJ45 connectors to minimize high-frequency electromagnetic noise.
Verify that the ambient operating environment does not exceed the limit of 70 deg C and that relative humidity remains non-condensing.
Ground the chassis framework to a single-point instrument ground bus utilizing standard low-impedance copper conductors.
