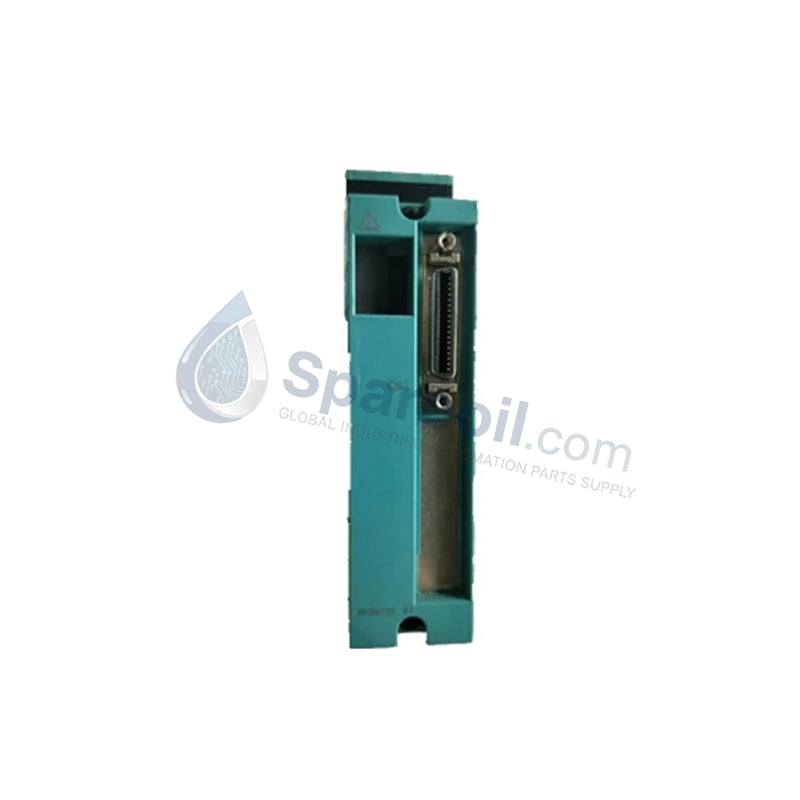

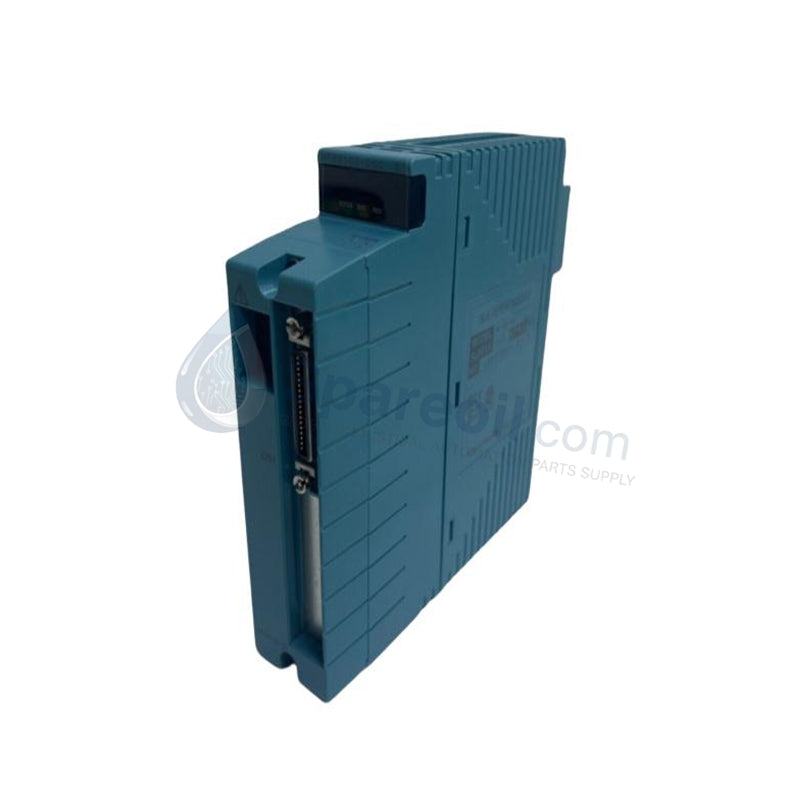

NFAI135-S00 YOKOGAWA CENTUM VP Analog Input Module

NFAI135-S00 YOKOGAWA CENTUM VP Analog Input Module

التوفر: 99 متوفر في المخزون

YOKOGAWA NFAI135-S00 Analog Input Module Configured for high-precision process signal acquisition in CENTUM VP and CS 3000 platforms, the YOKOGAWA NFAI135-S00 (NFAI135-S00 Analog...

رمز المنتج: NFAI135-S00

Manufacturer: Yokogawa
Product No.: NFAI135-S00
Product Type: Analog Input Modules
Product Origin: Japan
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

YOKOGAWA NFAI135-S00 Analog Input Module

Configured for high-precision process signal acquisition in CENTUM VP and CS 3000 platforms, the YOKOGAWA NFAI135-S00 (NFAI135-S00 Analog Input Module) provides direct physical/electrical execution of 16-channel analog current monitoring.

Suffix Breakdown & Model Matrix

NFAI135: Base model identifier for 16-channel analog input functionality.
-S00: Standard hardware revision indicating base firmware compatibility and terminal interface specification.

Hardware Specifications

Parameter	Specification
Model	NFAI135-S00
Brand	YOKOGAWA
Origin	Japan
Weight	0.3 kg
Dimensions	107.5 x 32.8 x 130 mm
Operating Temp	-20 deg C to +60 deg C
Power Consumption	230 mA (5 VDC), 540 mA (24 VDC)
Number of Channels	16 isolated inputs
Input Signal	4-20 mA DC
Accuracy	+/- 0.1% full scale

Process Control and DCS Instrumentation Integrity

The YOKOGAWA NFAI135-S00 utilizes dedicated channel-to-system bus isolation to minimize the impact of ground loops and common-mode interference within sensitive process instrumentation loops. The input architecture supports 4-20 mA HART loop protocol standards, allowing for simultaneous primary process variable acquisition and secondary diagnostic data transmission. Integrated circuitry provides 16-bit A-to-D conversion with a rapid 10 ms update period, ensuring high-fidelity signal capture for control algorithms. To maintain long-term stability, the module employs thermal drift compensation and continuous input abnormality detection, which reports health status directly to the Field Control Station (FCS).

Frequently Asked Questions (FAQ)

Q: Does the NFAI135-S00 support field-side power for 2-wire transmitters?

A: Yes, the module provides 24 VDC loop power to support 2-wire transmitter configurations, provided the total current consumption per channel remains within the defined electrical design limits.

Q: How does the module handle fault conditions on a single input channel?

A: The module performs continuous input abnormality detection. When an out-of-range signal or loop break is identified, the specific channel reports a status error to the system bus, allowing the host software to execute appropriate fault-tolerant control strategies.

Field Installation Guidelines

Mounting: Secure the module into a compatible backplane. Ensure the module is fully latched to maintain electrical continuity with the system bus backplane.
Wiring: Terminate field wiring using shielded twisted-pair cables. To maximize the effectiveness of the channel-to-system isolation, ground the cable shields at a single defined instrumentation grounding point to prevent circulating currents.
Configuration: Verify that the input impedance (nominal 250 Ohm) matches the load requirements of the connected field transmitters to ensure signal accuracy within the specified +/- 0.1% tolerance.
Maintenance: Avoid installing the module in areas subject to extreme vibration or high levels of conductive dust. Periodically inspect the edge connectors for signs of oxidation if operating in humid environments (above 85% RH).
