Foxboro P0950DF I/A Series Termination Assembly The Foxboro P0950DF, also cataloged as the P0950DF Termination Assembly, operates as a dedicated...

رمز المنتج: P0950DF

Manufacturer: Foxboro
Product No.: P0950DF
Product Type: Termination Assemblies
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

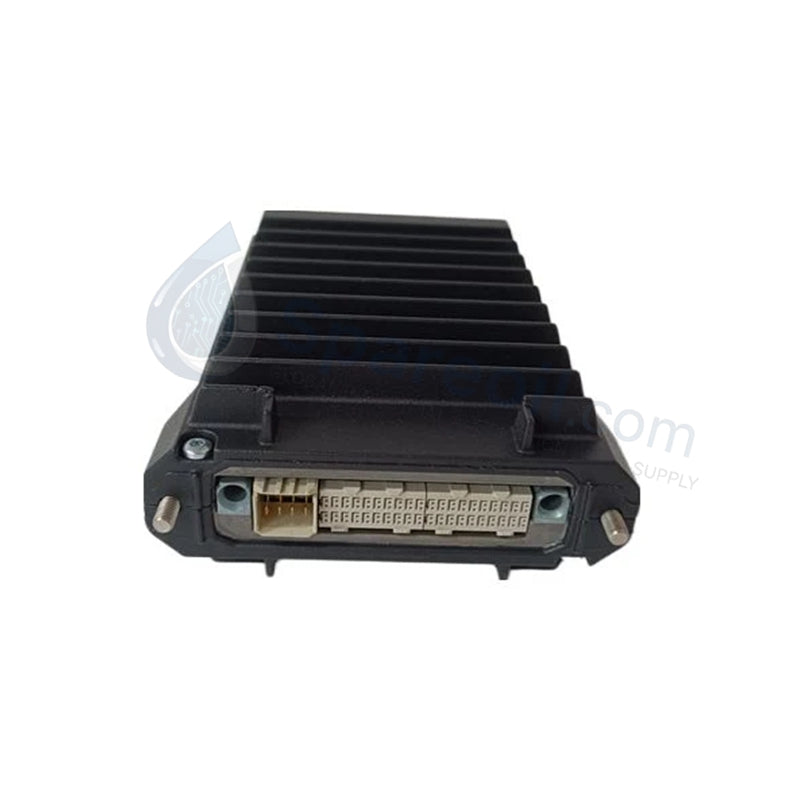

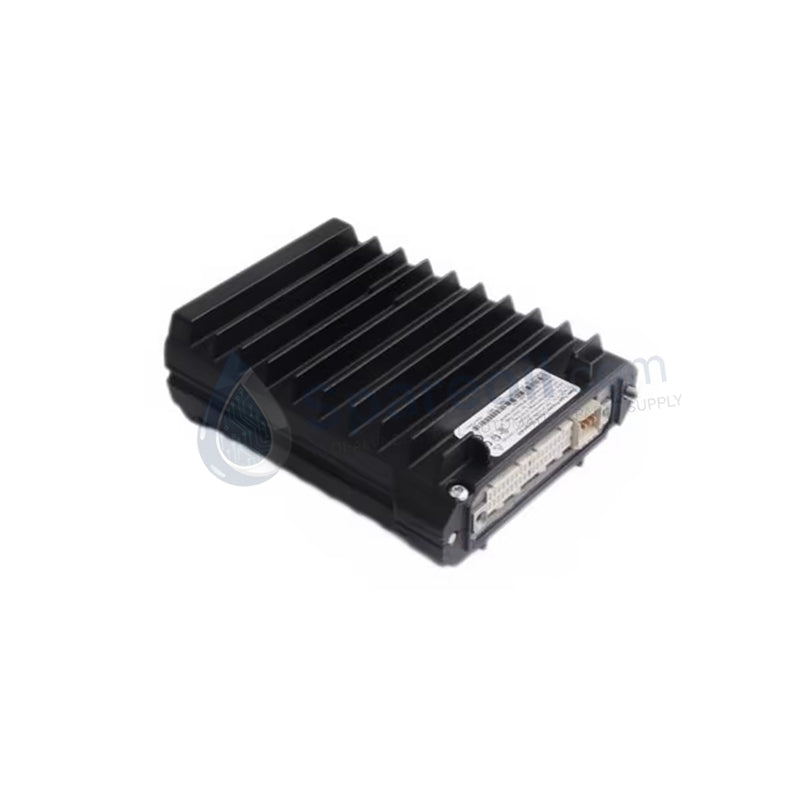

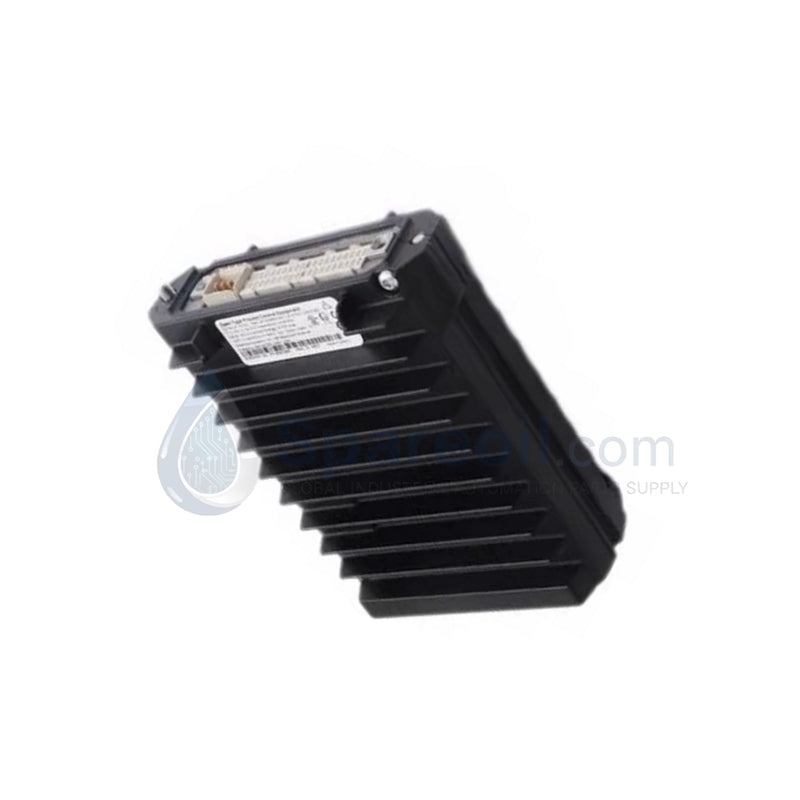

Foxboro P0950DF I/A Series Termination Assembly

The Foxboro P0950DF, also cataloged as the P0950DF Termination Assembly, operates as a dedicated hardware component for field wiring distribution and signal conditioning within I/A Series Distributed Control System platforms. The hardware establishes direct physical connectivity between external analog sensors and primary processing units via the system baseplate interface, supporting eight independent input channels.

Hardware Specifications

Parameter	Specification
Model	P0950DF
Brand	Foxboro (Schneider Electric)
Origin	USA
Weight	400 g
Dimensions	Standard I/A Series termination assembly footprint
Operating Temp	-20 to +60 deg C
Power Consumption	Sourced via FBM module backplane connection
Channel Capacity	8 analog input channels
Supported Signals	Voltage (+/-10 V, +/-5 V, 0-10 V, 1-5 V), Current (0-20 mA, 4-20 mA), Thermocouple (J, K, T, E, S, R, B), RTD (Pt100, Pt1000, Cu50)
Termination Type	Screw-clamp terminals (12-22 AWG)
Isolation	Channel-to-channel and channel-to-ground isolation
Mounting	DIN rail or rack base
Enclosure Rating	IP20 (cabinet installation required)
Storage Temp	-40 to +85 deg C

Process Control & DCS Instrumentation Properties

The component integrates high-density channel-to-channel and channel-to-ground isolation to eliminate common-mode noise and prevent ground loop interference across the eight input circuits. The hardware architecture accommodates multi-signal configurations, enabling concurrent processing of 4-20 mA HART loop protocol transmitters, voltage lines, RTD elements, and thermocouple inputs over separate channels. Automatic cold junction compensation (CJC) algorithms are sustained through localized temperature reference sensors embedded within the termination terminal array to prevent drift under variable ambient thermal loads.

Frequently Asked Questions

Q: How does the termination assembly handle diagnostic faults such as open-circuit conditions?

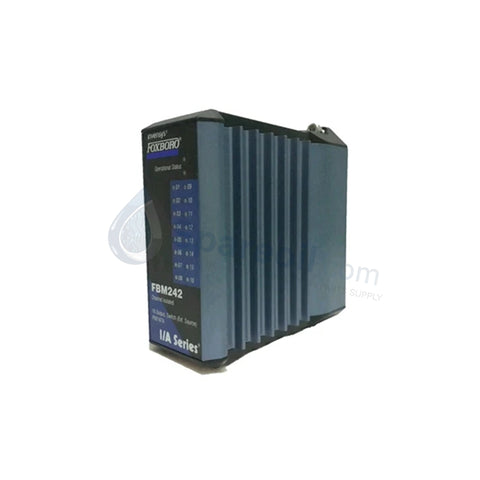

A: The physical board infrastructure provides raw signal diagnostic routing. When paired with compatible modules such as the FBM242 or FBM247, open-circuit and short-circuit conditions are detected at the channel level and reported directly to the DCS backplane.

Q: Is external power required to operate the P0950DF terminal array?

A: No external power feed is required. Operational current for the internal isolation circuits and reference point sensors is supplied directly from the host Fieldbus Module via the integrated backplane connection.

Field Installation Guidelines

Mounting Alignment: Secure the assembly onto standard DIN rails or dedicated rack bases. Verify that the structural locking tabs are completely latched to ensure physical stability against high-frequency cabinet vibrations.
Shield Grounding Protocol: Terminate instrument cable shields directly to the master instrumentation ground bus within the cabinet enclosure. Do not ground the cable shield at both the field device and the P0950DF terminals to prevent induced ground loops.
Wire Termination: Strip field conductors to factory-specified lengths and insert into the screw-clamp blocks (12-22 AWG). Torque all terminal screws to standard ratings to ensure continuous low-impedance electrical contact.
