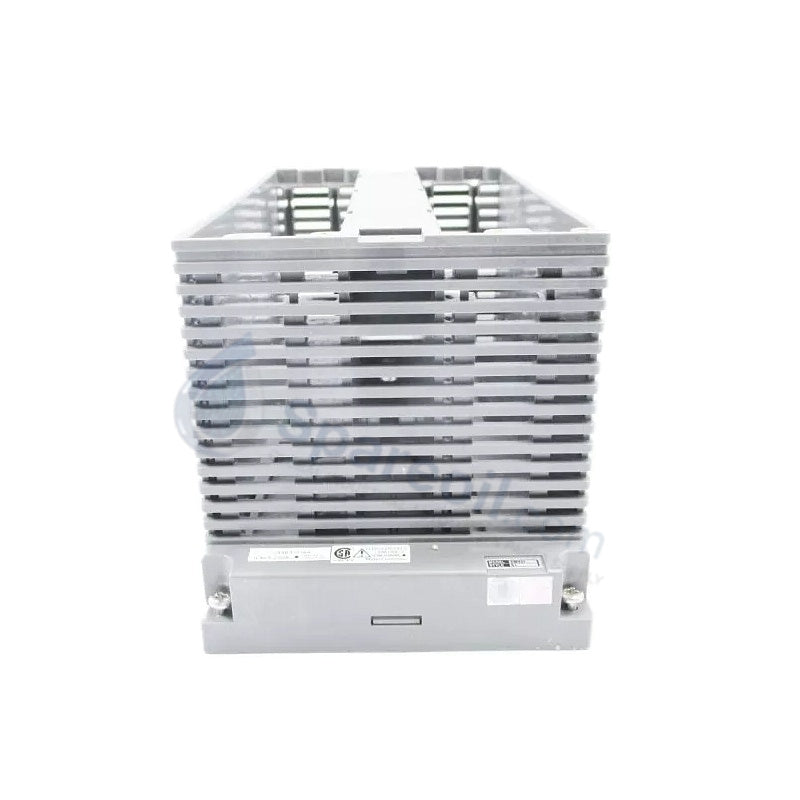

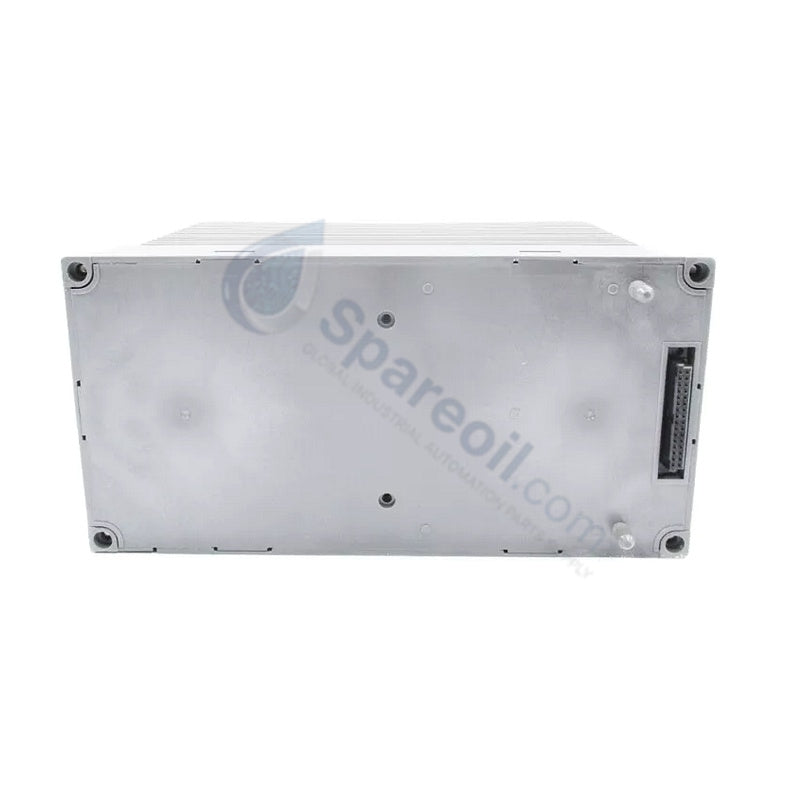

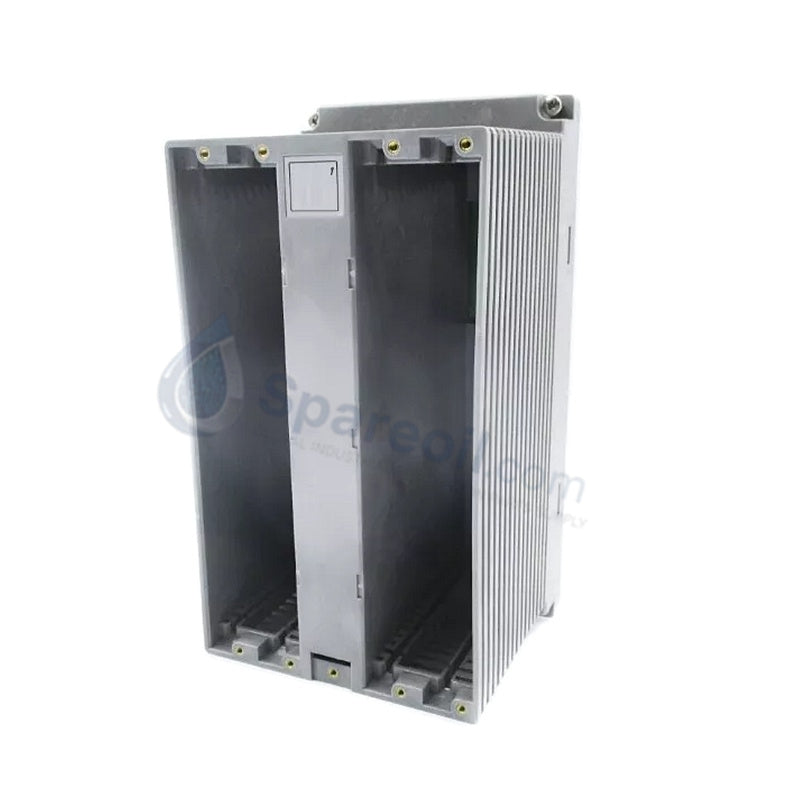

YOKOGAWA AMN21-S1 Relay I/O Module Nest

Configured for signal switching and relay operations in process control systems, the YOKOGAWA AMN21-S1 (AMN21 Relay I/O Module Nest) provides direct physical/electrical execution. The hardware establishes a dedicated backplane interface matrix and structural mounting frame to distribute power and route signals across multiple slide-in relay modules. It operates exclusively within the proprietary architecture of Yokogawa control networks to bridge internal system commands with discrete field elements.

Hardware Specifications

Parameter Specification
Model AMN21-S1
Brand Yokogawa
Origin Japan
Weight 1.5 kg
Dimensions Standard Yokogawa rack format
Operating Temp -10 to +60 deg C
Power Consumption Determined by installed module configuration
System Compatibility CENTUM CS 1000, CS 3000, CENTUM VP
Power Supply Options 24 VDC / 110 VAC / 220 VAC
Relay Capacity Up to 2 A at 250 VAC / 30 VDC
Supported Modules Yokogawa specific relay I/O modules
Humidity 10% to 90% RH (Non-condensing)
Mounting Rack-mounted or cabinet installation

Distributed Control System Technical Characteristics

Operating within the native hardware ecosystem of the CENTUM architecture, this nest enforces strict channel-to-channel isolation parameters between the internal system logic and external discrete circuits. The integrated backplane distributes secondary electrical power lines while suppressing transient voltage spikes. Field terminal arrangements accommodate direct wiring setups, allowing digital commands processed by the central Field Control Station to actuate high-density contact configurations without incurring signal distortion or crosstalk anomalies.

Frequently Asked Questions

Q: Can an operator hot-swap the internal power supply or individual relay cards inside the AMN21-S1 during active system execution?

A: No. Unseating modules or altering hardware connections while the backplane assembly is fully energized runs the risk of inducing unexpected contact state transitions or creating electrical arcs. Always isolate power feeds before servicing the nest components.

Q: Is this nest chassis compatible with third-party distributed control system (DCS) or PLC architectures?

A: No. The backplane pinouts, power distribution rail alignments, and native communications bus are engineered solely for standard proprietary Yokogawa CENTUM systems. Connecting third-party hardware will cause permanent electrical damage to the bus structure.

Q: What are the primary consequences if field inductive load switching spikes exceed the 2 A contact threshold?

A: Exceeding the 2 A at 250 VAC limitation accelerates contact degradation, potentially causing contacts to fuse open or short permanently. To safely isolate the hardware from massive inductive spikes, install external interposing relays or snubbers.

Field Installation Guidelines

  • Cabinet Integration: Anchor the nest assembly horizontally within the assigned space inside the server cabinet. Tighten all retention hardware to the rack frame to damp mechanical vibrations originating from neighboring industrial machinery.
  • Grounding Protocols: Run a solid, low-resistance copper conductor from the chassis ground stud straight to the cabinet Instrument Earth terminal block. Do not daisy-chain this grounding link together with high-power AC safety grounds.
  • Separation of Circuits: Keep all high-voltage relay output wiring isolated from the low-voltage DC logic and communication bus lines. Install physical partitioning or separate wire ways to block electromagnetic noise from corrupting data signals.
  • Cable Strain Management: Support the full physical weight of all incoming field wiring harnesses using structural cable clamps inside the cabinet. Do not allow cable loads to pull directly on the delicate terminal pins of the nest backplane.
