SAI143-H53 Yokogawa SAI143 Datasheet & Technical Manual

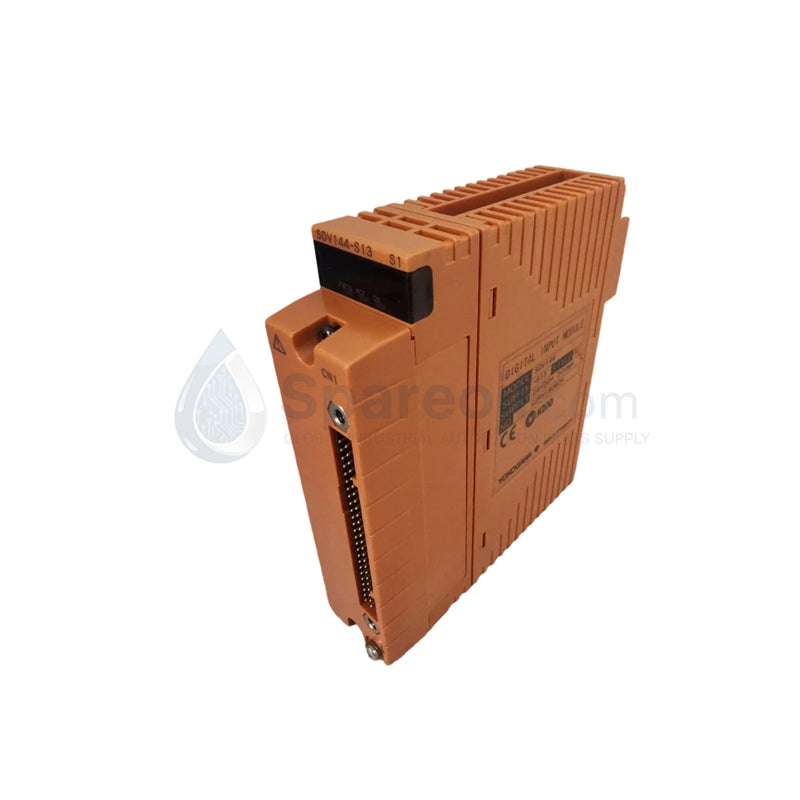

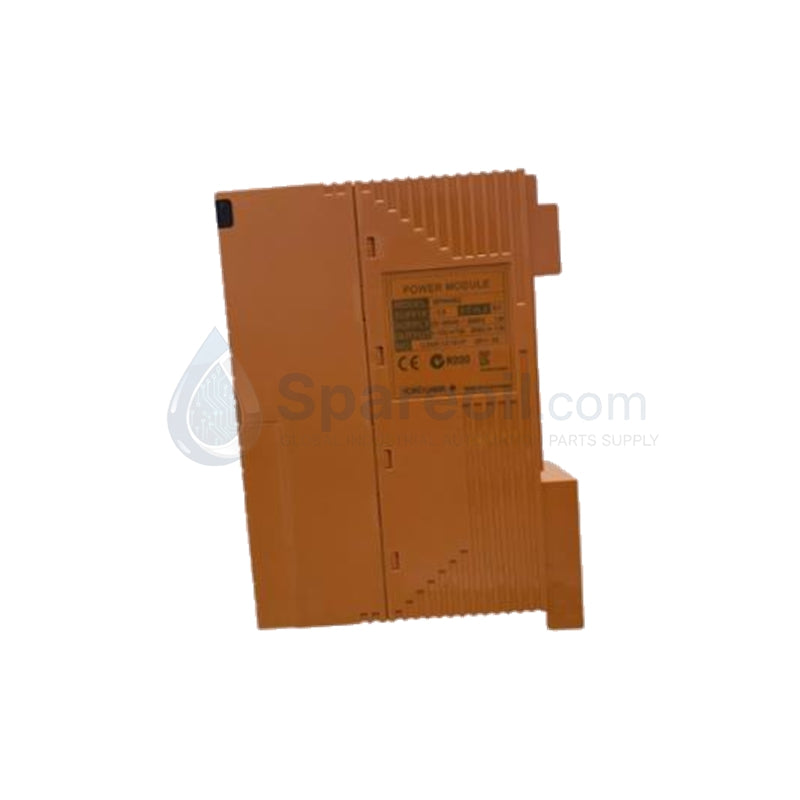

SAI143-H53 Yokogawa ProSafe-RS Analog Input Module

SAI143-H53 Yokogawa ProSafe-RS Analog Input Module

التوفر: 10 متوفر في المخزون

Yokogawa SAI143-H53 Analog Input Module Configured for 16-channel analog signal acquisition in safety instrumented networks, the Yokogawa SAI143-H53 (SAI143 Analog...

رمز المنتج: SAI143-H53

Manufacturer: Yokogawa
Product No.: SAI143-H53
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

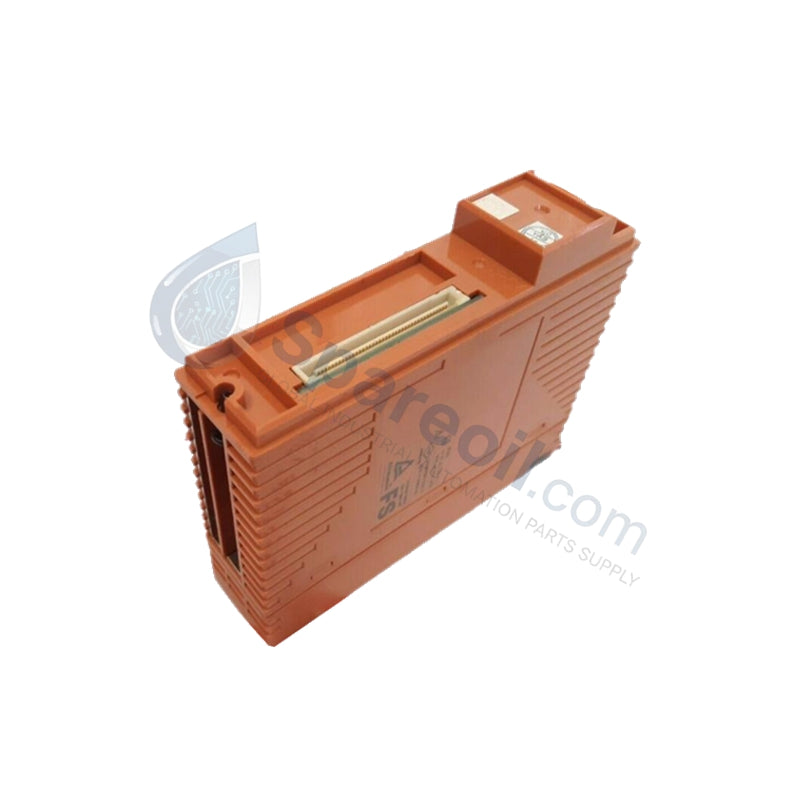

Yokogawa SAI143-H53 Analog Input Module

Configured for 16-channel analog signal acquisition in safety instrumented networks, the Yokogawa SAI143-H53 (SAI143 Analog Input Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Suffix Code	Designation	Technical Parameter
-H	HART Communication	Enriched instrumentation interface [Release: R1.02.00]
5	Connection / Protection Type	Form factor for pressure clamp terminal block or MIL cable; no explosion protection
3	Environmental Conformance	ISA Standard G3 conformal coating; extended temperature rating (-20 to 70 deg C)

Hardware Specifications

Parameter	Specification
Model	SAI143-H53
Brand	Yokogawa
Origin	Japan
Weight	0.34 kg
Dimensions	Standard FIO architecture card scale
Operating Temp	-20 to 70 deg C
Power Consumption	320 mA at 5 VDC system side, 550 mA at 24 VDC loop side
Input Channels	16 channels, module isolation
Signal Range	4-20 mA DC (permissible range 0-25 mA)
Input Impedance	250 Ohm (Power ON), >= 500 kOhm (Power OFF)
Measurement Accuracy	plus or minus 16 uA (within 0.05 to 23 mA spectrum)
Temperature Drift	plus or minus 16 uA per 10 deg C shift
Data Update Frequency	40 ms
Transmitter Power Supply	16.15 VDC minimum (at 20 mA), 26.4 VDC maximum (at 0 mA), 25 mA current limit
Isolation Withstand Voltage	1.5 kV AC between input signal and system for 1 minute

Process Control Communication Architecture

The hardware executes active signal filtering while enforcing physical channel-to-system isolation, isolating the backplane logic from external field line transients up to 1.5 kV AC. Integrated instrumentation circuits support the 4-20 mA HART loop protocol layer, enabling high-frequency digital telemetry modulation over the standard analog loop current without disturbing the primary process variable. The hardware platform handles bi-directional asset data transfers, allowing safety managers to query real-time diagnostics from smart transmitters directly through the FIO system bus. An onboard 2-wire transmitter power switch permits systemic configuration adjustments, executing simultaneous voltage distribution cuts across all 16 channels to safely toggle field equipment levels during automated maintenance shutdowns.

Frequently Asked Questions

Q: Does the SAI143-H53 module accept terminal block matching with the STA4D-0S1 option in dual-redundant setups? A: No. The factory specifications strictly dictate that for dual-redundant pressure clamp configurations, the STA4D-0S1 component must not be deployed due to mismatching circuit paths.

Q: How does the module handle short-circuit faults on the transmitter power supply loop? A: The card contains internal hardware current limiters. If a short-circuit fault conditions the loop, the transmitter supply caps output current at 25 mA max, protecting internal paths until the fault clears.

Field Installation Guidelines

Environmental Conformance Assurance: Verify the mounting environment stays within the -20 to 70 deg C limit, relying on the ISA G3 standard coating to shield logic surfaces from corrosion.
Terminal Insertion Methods: Secure the pressure clamp terminal block or MIL cable interface tightly to front card connectors, verifying no floating strands short adjacent pins.
Shield Termination Rules: Terminate loop shields at the dedicated chassis ground bar rather than signal common paths to keep electrical noise away from the 4-20 mA conversion circuit.
Hazardous Area Isolation: Because suffix 5 variants lack intrinsic safety barriers, you must route input lines through external barriers if field sensors sit in explosion-risk zones.
