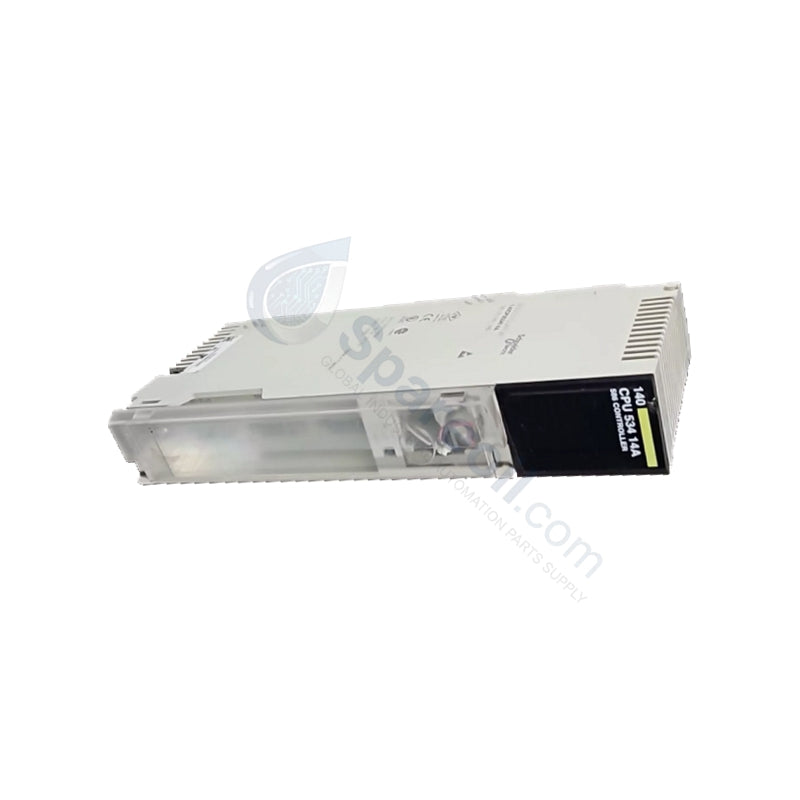

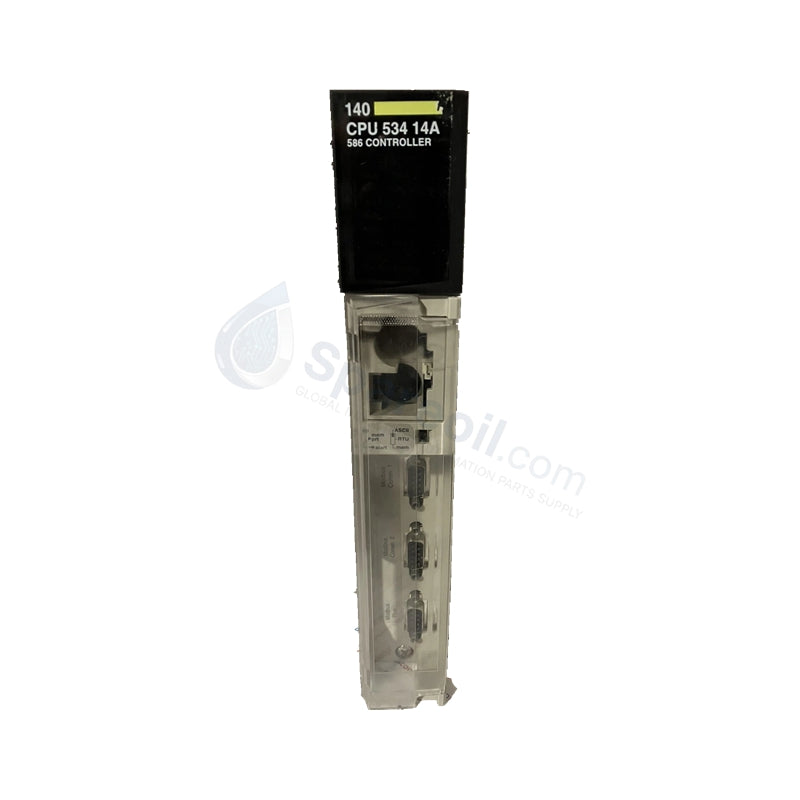

140CPU53414 Schneider Electric CPU Module

Schneider Electric 140CPU53414 Modicon Quantum CPU Module

Schneider Electric 140CPU53414 Modicon Quantum CPU Module

التوفر: 94 متوفر في المخزون

Schneider Electric 140CPU53414 Modicon Quantum CPU Module The Schneider Electric 140CPU53414, also cataloged as the 140CPU53414 CPU Module, operates as...

رمز المنتج: 140CPU53414

Manufacturer: Schneider
Product No.: 140CPU53414
Product Type: CPU Processors
Product Origin: France
Payment:T/T, Western Union
Weight: 850g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Schneider Electric 140CPU53414 Modicon Quantum CPU Module

The Schneider Electric 140CPU53414, also cataloged as the 140CPU53414 CPU Module, operates as a dedicated hardware component for central processing and logic execution within Modicon Quantum automation platform networks.

Hardware Specifications

Parameter	Specification
Model	140CPU53414
Brand	Schneider Electric
Origin	France
Weight	0.85 kg (1.87 lbs)
Dimensions	Standard Quantum module size
Operating Temp	0...60 deg C
Power Consumption	1250 mA backplane bus current requirement
Processor Type	Intel 80486 with math coprocessor
Clock Frequency	100 MHz
Internal Memory	2972 kB RAM (Up to 4 MB SRAM allocation)
Instruction Execution Time	0.1...0.5 ms per 1K instructions (LL984)
Maximum I/O Capacity	Up to 8,000 I/O (Distributed/Remote scaling)
Communication Ports	1 x MB+ (Modbus Plus) Communication Port
Battery Backup	Lithium, 1.2 Ah capacity, ~10 years service life
Backplane Compatibility	Quantum backplane compatible

Deterministic Network Routing and Firmware Flash Compatibility

The 140CPU53414 execution architecture utilizes its integrated math coprocessor to perform high-speed floating-point calculations independent of basic logic scanning. For deterministic operations across remote and distributed networks, the processor manages up to 31 remote drops and 63 distributed drops. Real-time application adjustments depend on firmware flash compatibility profiles, which synchronize instruction runtimes and control logic configurations across Profinet / EtherNet/IP deterministic networks without inducing backplane bus communication velocity latency.

Frequently Asked Questions

Q: What action occurs if the application program exceeds the standard execution cycle time?

A: The processor relies on an internal watchdog timer configured to a fixed duration of 250 ms. If execution cycles fail to reset within this window, the module triggers a fault state and ceases active I/O scanning.

Q: Can the internal RAM data be preserved during a total primary backplane power loss?

A: Yes, the onboard 1.2 Ah lithium battery maintains data retention for the SRAM configuration. The battery maintains a nominal service life of approximately 10 years under standard operating conditions.

Field Installation Guidelines

Ensure the backplane power supply is completely isolated before inserting or removing the CPU module from the standard Quantum slot to avoid component degradation.
Tighten the top and bottom module retention screws into the rack chassis to guarantee proper contact grounding and resistance against industrial vibrations.
Route all Modbus Plus communication cabling in separate wireways away from high-voltage AC power lines to prevent induced electromagnetic interference on the network token path.
Verify that the lithium battery is properly uninsulated and engaged in its holder prior to downloading the application program to prevent logic erasure upon power cycle.
