SDV144-S33 S2 Yokogawa ProSafe-RS Datasheet & Technical Manual

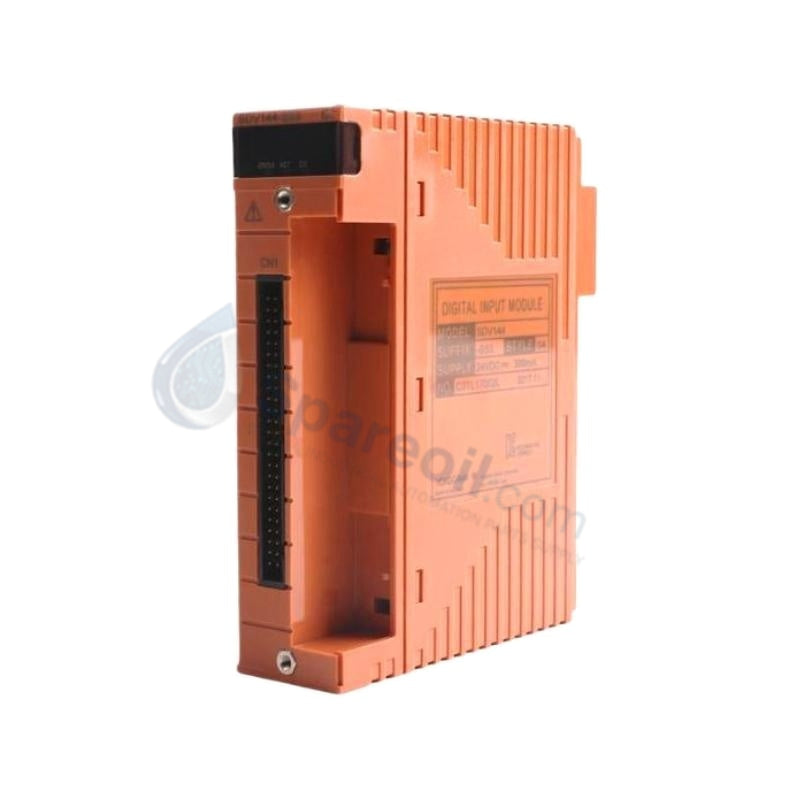

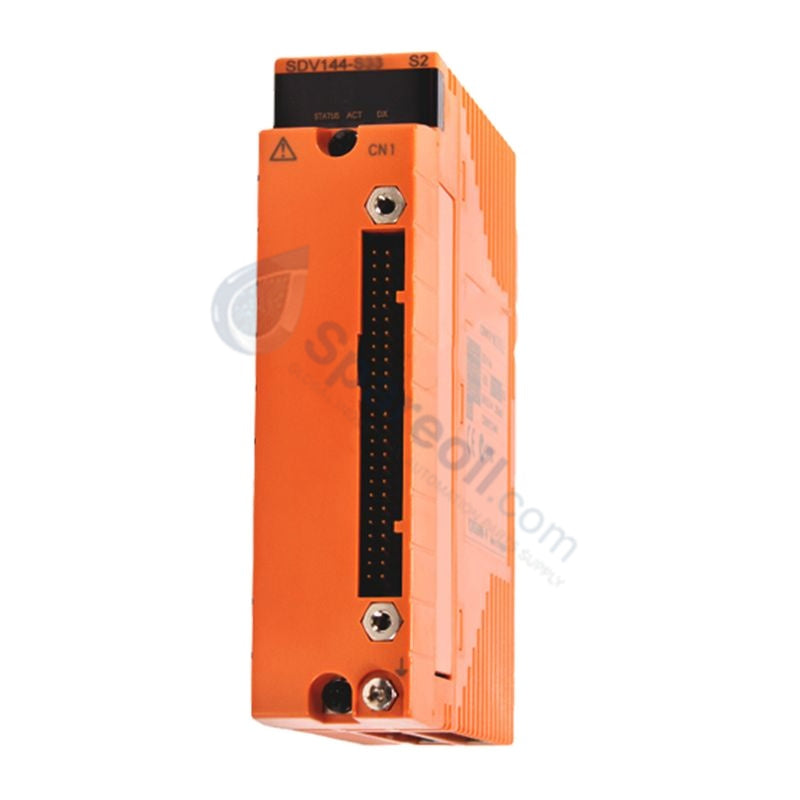

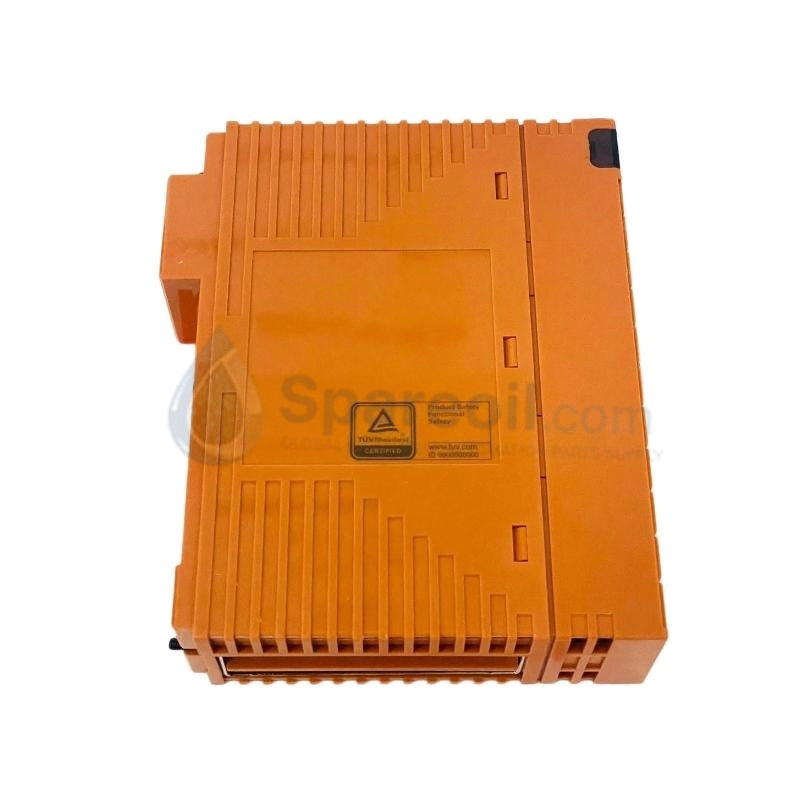

SDV144-S33 S2 Digital Input Module Yokogawa ProSafe-RS SDV144

SDV144-S33 S2 Digital Input Module Yokogawa ProSafe-RS SDV144

التوفر: 20 متوفر في المخزون

Yokogawa SDV144-S33 S2 Digital Input Module The Yokogawa SDV144-S33 S2, also cataloged as the SDV144-S33 Digital Input Module, operates as...

رمز المنتج: SDV144-S33 S2

Manufacturer: Yokogawa
Product No.: SDV144-S33 S2
Product Type: Digital Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 360g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Yokogawa SDV144-S33 S2 Digital Input Module

The Yokogawa SDV144-S33 S2, also cataloged as the SDV144-S33 Digital Input Module, operates as a dedicated hardware component for collecting dry-contact field signal states within ProSafe-RS safety instrumented systems and CENTUM VP automation architectures.

Hardware Specifications

Parameter	Specification
Model	SDV144-S33 S2 (Base Model: SDV144-S33)
Brand	Yokogawa Electric Corporation
Origin	Singapore
Weight	0.36 kg
Dimensions	130 x 30 x 120 mm
Operating Temp	0 deg C to +60 deg C
Power Consumption	290 mA max (5 VDC backplane), 140 mA max (24 VDC external)
Input Channels	16 channels (module isolated)
Input Signal Type	No-voltage contact signals (ON <= 1 kOhm, OFF >= 100 kOhm)
External Power Supply	24 VDC +/- 5% (200 mA current capacity)
Maximum Input Voltage	30 VDC
Isolation Voltage	2000 VAC for 1 minute (input-to-system)
Response Time	40 ms maximum

DCS Process Control and Signal Isolation Features

The SDV144-S33 S2 transfers binary contact states from field switches and relay contacts directly to the safety node unit backplane. Integrated galvanically isolated bus interface protection suppresses high-voltage common-mode transients up to 2000 VAC, protecting internal logic circuits against field wiring surges. Designed for high-integrity safety loops, the module supports dual-redundant pairing to execute continuous fail-safe state execution without interruption during module maintenance. Additionally, downstream signal integrity integrates optional SCB100 open-circuit and SCB110 short-circuit diagnostic termination blocks to continuously monitor field wiring loop continuity.

Frequently Asked Questions

Q: What are the functional differences between style suffix revisions S1, S2, and S3 for the SDV144 module?

A: Style suffix codes designate internal power supply component tolerances, circuit board layout revisions, and system bus driver compatibility levels. System engineers must verify that the replacement module style matches the existing rack backplane and station software revision.

Q: Can the SDV144-S33 S2 operate in a dual-redundant safety input configuration?

A: Engineers can deploy two SDV144-S33 S2 modules in adjacent slots on a dual-redundant safety node unit. The module bus hardware synchronizes contact state sampling across both units, allowing seamless online replacement of a faulted channel card without interrupting loop safety logic.

Field Installation Guidelines

Mount the SDV144-S33 S2 vertically into an authorized slot of a ProSafe-RS or CENTUM VP FIO node unit rack inside a NEMA or IP54 industrial enclosure. Connect external 24 VDC field wiring through a pressure clamp terminal block, MIL cable connector, or AKB331 dedicated signal cable adapter. Maintain separate wire troughs for field input signal wiring and high-voltage power distribution lines to prevent electromagnetic cross-talk. To maximize noise immunity across digital contact loops, engineers must isolate and float the 24 VDC field supply rather than referencing it to the local cabinet structural ground.
