3674 Triconex Tricon Series Datasheet & Technical Manual

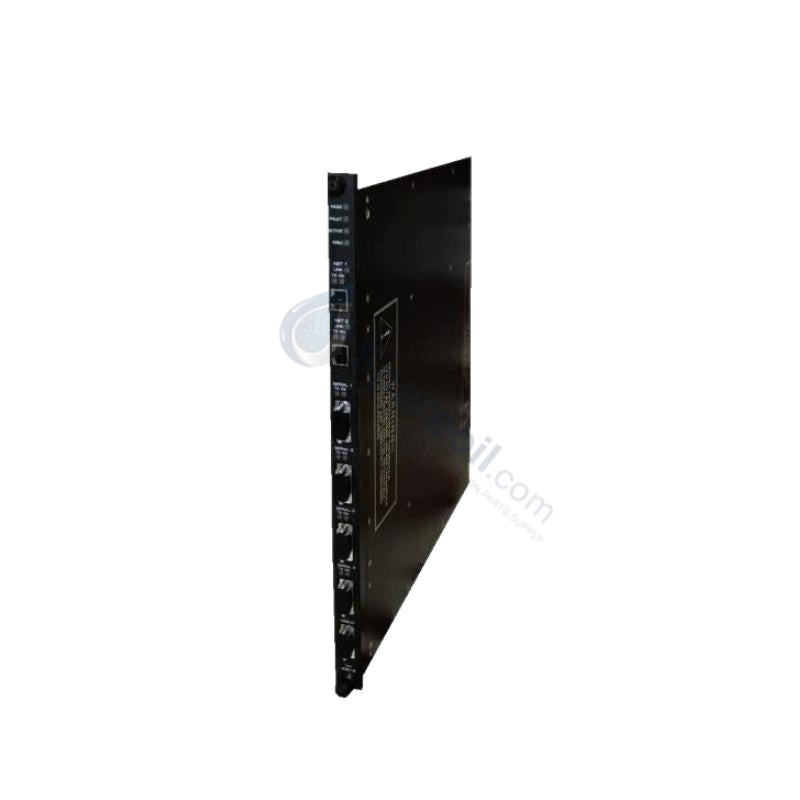

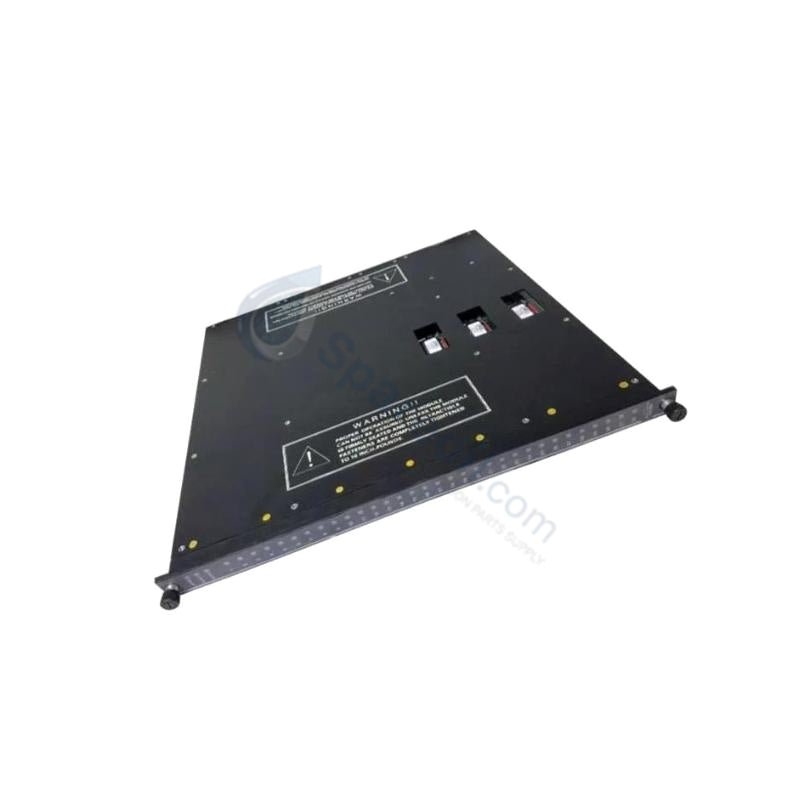

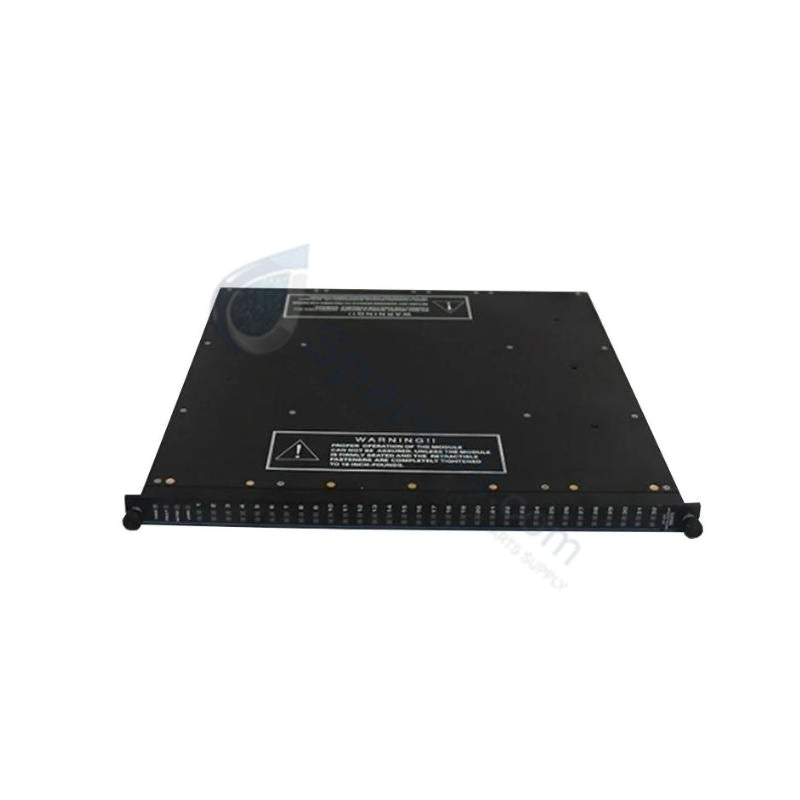

Tricon Dual Digital Output Module | Triconex 3674

Tricon Dual Digital Output Module | Triconex 3674

التوفر: 10 متوفر في المخزون

Triconex 3674 Dual Digital Output Module The Triconex 3674, also cataloged as the 3674 Dual Digital Output Module, operates as...

رمز المنتج: 3674

Manufacturer: Triconex
Product No.: 3674
Product Type: Digital Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Triconex 3674 Dual Digital Output Module

The Triconex 3674, also cataloged as the 3674 Dual Digital Output Module, operates as a dedicated hardware component for discrete control within Tricon Safety Instrumented System platforms. Configured to interface with external 24 VDC field devices including solenoids, relays, and actuators, the hardware delivers direct physical execution via 32 commoned digital output channels. The module channels handle continuous loads up to 2 A per point with a typical switching response latency of under 1 ms, routing commanded safety logic from the centralized controller matrix.

Hardware Specifications

Parameter	Specification
Model	3674
Brand	Triconex
Origin	United States
Weight	Standard chassis-slot module mass
Dimensions	Standard Triconex I/O form factor
Operating Temp	0 to +60 deg C
Power Consumption	Less than 10 W
Output Channels	32 digital outputs (commoned)
Nominal Voltage	24 VDC (operational range: 16 - 30 VDC, maximum 36 VDC)
Current Rating	2 A per point continuous (10 A surge for 10 ms)
Isolation Voltage	Greater than or equal to 1500 VDC channel-to-system
Voltage Drop	Less than 1.5 VDC typical
Safety Certification	IEC 61508 SIL 3, IEC 61511

Triple Modular Redundancy (TMR) and Fail-Safe State Execution

The hardware utilizes a triple modular redundancy (TMR) architecture with integrated 2-out-of-3 (2oo3) voting logic across all 32 discrete channels to eliminate single-point vulnerabilities. Internal processing legs perform continuous cross-checking and opto-isolated sub-circuit diagnostics to intercept stuck-On or stuck-Off failure paths before they alter field loops. A minimum 1500 VDC channel-to-system electrical barrier prevents transient spikes from propagating into the backplane logic, ensuring immediate fail-safe state execution during critical emergency shutdowns.

Frequently Asked Questions

Q: What specific diagnostic responses occur during a field load or fuse fault on the module?

A: The module front panel activates dedicated red FAULT indicators alongside specific per-point On/Off status lights and triggers internal LOAD/FUSE alarms. The processing legs log these events to the system status registers, enabling technicians to identify broken wiring arrays without shutting down power loops.

Q: How does the 3674 module handle active hot-swapping sequences inside the system rack?

A: The physical chassis slot interface permits live online hot-swapping without causing system downtime or interrupting adjacent control paths. Inserting a replacement module executes an automatic hardware validation pass, matches the active controller firmware version, and aligns internal logic parameters before hot-switching execution duties.

Q: What surge suppression constraints limit the use of high-induction inductive loads?

A: Individual points tolerate short-duration surge values up to 10 A lasting up to 10 ms, though continuous current must remain below 2 A. For massive inductive elements, field wiring guidelines dictate the use of external suppression diodes to prevent back-EMF spikes from accelerating module degradation.

Field Installation Guidelines

Slide the dark blue cased module into the target slot inside the Triconex chassis backplane, driving the card home until the top and bottom extraction levers latch completely.
Verify field supply lines stay within the rated 16 to 30 VDC voltage envelope before applying power to prevent thermal stresses across the output switches.
Keep discrete control output lines physically separated from high-voltage AC lines to prevent noise from entering the opto-isolation sections.
Secure all instrument cable shield matrix links directly to the cabinet main low-impedance safety ground bar.
Confirm that cabinet thermal management loops remain operational so that the local module boundary temperature stays within the specified 0 to +60 deg C baseline range.
