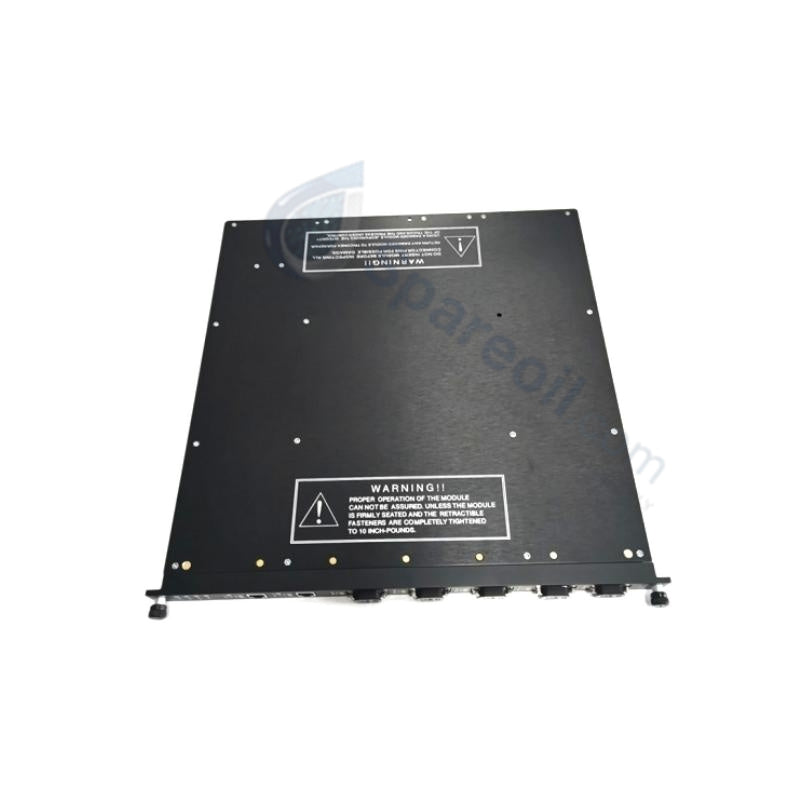

3706A Triconex Supervised Digital Input Module

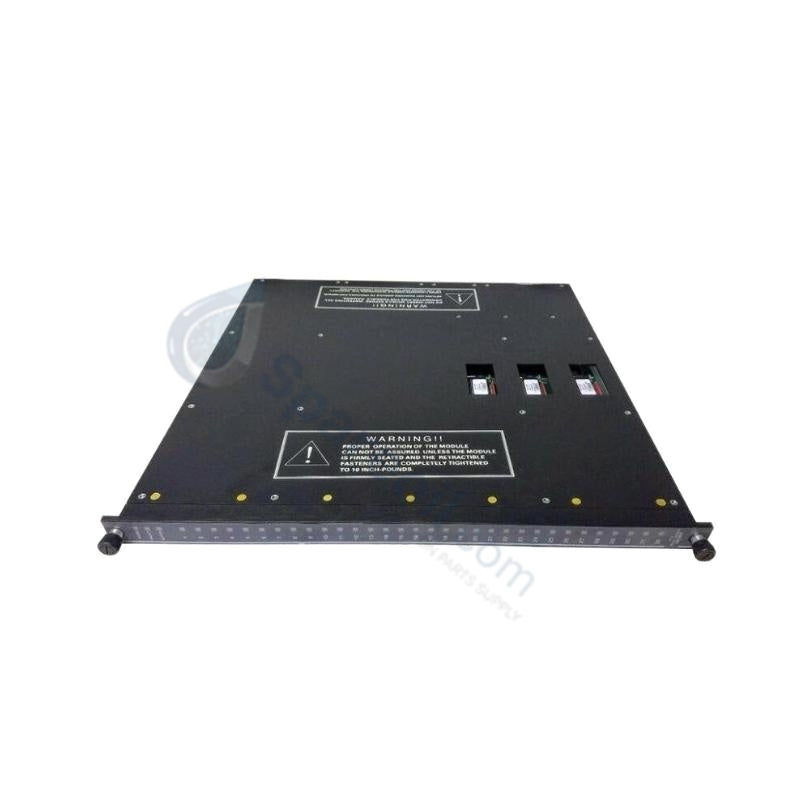

Triconex 3706A 3706 Supervised Digital Input Module TMR System

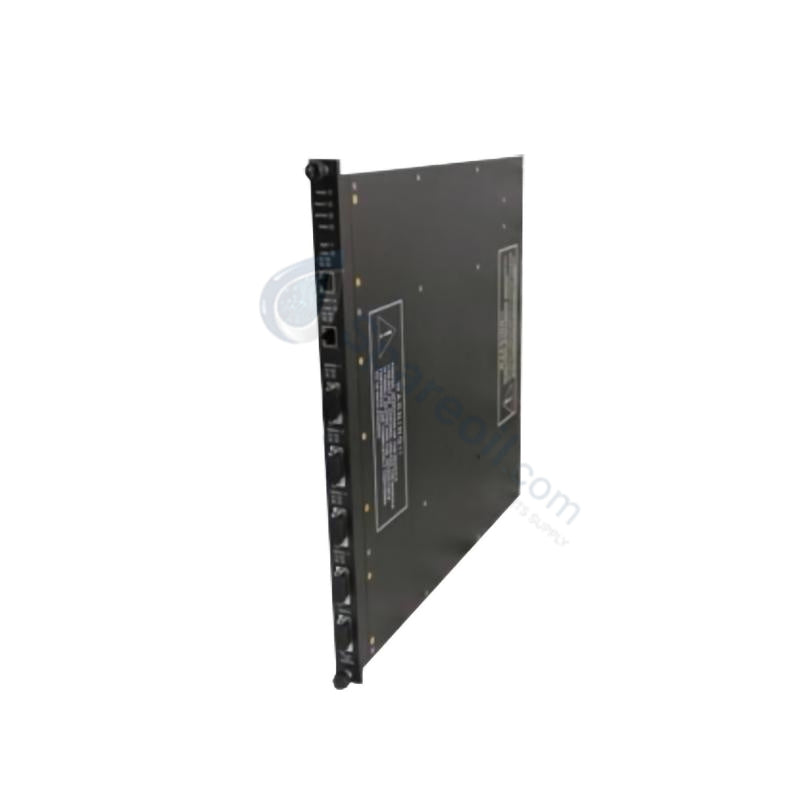

Triconex 3706A 3706 Supervised Digital Input Module TMR System

التوفر: 10 متوفر في المخزون

Triconex 3706A Supervised Digital Input Module The Triconex 3706A, also cataloged as the 3706 Supervised Digital Input Module, operates as...

رمز المنتج: 3706

Manufacturer: Triconex
Product No.: 3706
Product Type: Digital I/O Cards
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Triconex 3706A Supervised Digital Input Module

The Triconex 3706A, also cataloged as the 3706 Supervised Digital Input Module, operates as a dedicated hardware component for discrete signal acquisition within Triconex TMR Safety Instrumented Systems platforms. The hardware establishes continuous physical monitoring of field loops by executing real-time line supervision algorithms alongside automated hardware self-tests. This diagnostic loop validates the physical state of connected field switches and sensor contacts while detecting circuit degradation before logic transitions occur.

Hardware Specifications

Parameter	Specification
Model	3706A (3706)
Brand	Triconex
Origin	United States
Weight	10 kg (Shipping Weight) / 0.5 kg (Net Module Weight)
Dimensions	122 x 87 x 90 mm
Operating Temp	-40 to +70 deg C
Storage Temp	-40 to +85 deg C
Power Consumption	Less than or equal to 10 W
Input Channels	32 supervised digital inputs
Nominal Voltage	24 VDC (18 to 30 VDC operating range)
Input Thresholds	Off-to-On greater than 12 VDC; On-to-Off less than 4 VDC
Response Time	Less than 10 ms typical
Input Impedance	Greater than 1.25 k-ohm
Diagnostics	Open circuits, short circuits, stuck-On/Off faults
Isolation	Greater than or equal to 1500 VDC channel-to-channel and field-to-backplane
Hot-Swappable	Yes
Certifications	IEC 61508 SIL 3, TUV, UL, CE

Triple Modular Redundant Safety Control

The engineering architecture implements a triple modular redundancy (TMR) 2oo3 architecture across all 32 processing tracks to achieve comprehensive fault tolerance. Internal processing channels receive field inputs over three independent microcontrollers that execute automated mid-value voting routines prior to logic execution. Galvanic isolation barriers rated to 1500 VDC decouple the field-side loops from the backplane control plane, preventing external surges from interfering with logic execution. In the event of an unresolvable fault, the module enforces a fail-safe state execution to secure the downstream loop and maintain standard SIL3 operation.

Frequently Asked Questions

Q: How does the module execute line supervision to differentiate between a valid field contact opening and an actual wiring fault?

A: The input circuitry uses an active current monitoring scheme through the 32 input loops. By evaluating the residual loop current against internal hardware baselines, the module distinguishes between standard open/closed switch transitions and anomalous impedance changes indicative of open or short circuits.

Q: What are the functional boundaries for the 1500 VDC electrical isolation limits during continuous operation?

A: The 1500 VDC rating defines the maximum continuous galvanic barrier between independent hardware input channels, as well as between the field-side wiring infrastructure and the internal logic backplane. This isolation suppresses common-mode noise and prevents cross-talk between high-density loops.

Field Installation Guidelines

Backplane Insertion and Retention Mechanics: Slide the module vertically into the allocated slot of the primary chassis interface. Engage the integrated extraction handles to seat the multi-pin rear connector firmly into the backplane layout, and hand-tighten the integrated retention screws to prevent shifting under vibration.
Shield Grounding and Signal Separation Layout: Terminate all input loop shield elements directly at the designated instrument earth plane located on the baseplate chassis assembly. Maintain separate, isolated conduit runs for these 24 VDC supervised digital signal wires, keeping them physically distinct from any parallel high-voltage AC lines.
Termination Screw Tension and Pin Integrity: Inspect all baseplate terminal connections prior to applying field loop power. Ensure that all terminal screws are correctly tightened to maximize face-to-face contact area, which avoids parasitic resistance buildup that could otherwise disrupt the line supervision thresholds.
