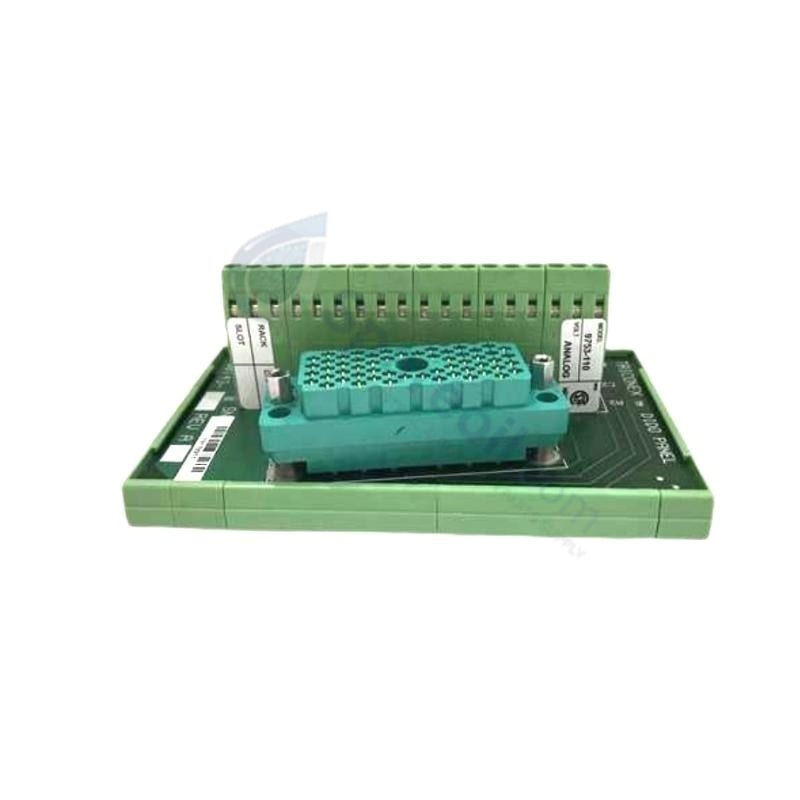

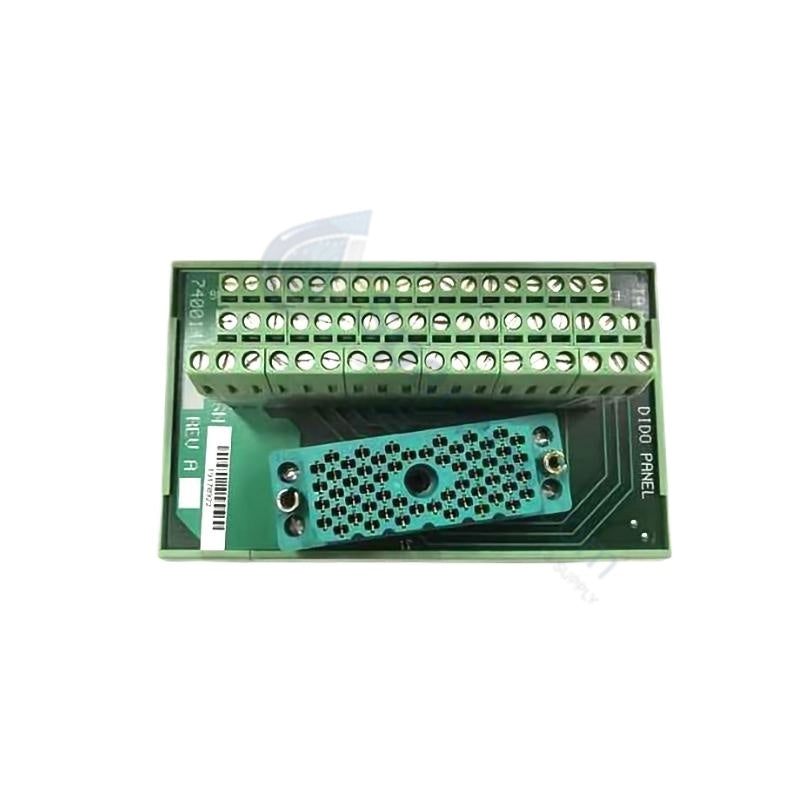

TRICONEX 9753-110 Tricon V9/V10 Series Pulse Termination Panels

TRICONEX 9753-110 Tricon V9/V10 Series Pulse Termination Panels

التوفر: 10 متوفر في المخزون

TRICONEX 9753-110 Tricon V9/V10 Series Terminal Board Configured for pulse verification and discrete signal interfacing in Tricon V9/V10 SIS racks,...

رمز المنتج: 9753-110

Manufacturer: Triconex
Product No.: 9753-110
Product Type: Termination Panels
Product Origin: USA
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

TRICONEX 9753-110 Tricon V9/V10 Series Terminal Board

Configured for pulse verification and discrete signal interfacing in Tricon V9/V10 SIS racks, the TRICONEX 9753-110 (9753-110 Digital Input External Termination Panel) provides direct physical/electrical execution. The hardware routes field-derived pulse train or logic signals to target input cards, establishing isolated data paths directly across the safety backplane network.

Hardware Specifications

Parameter	Specification
Model	9753-110 (Alternate Part Number: 1057680000)
Brand	TRICONEX (Schneider Electric)
Origin	China
Weight	0.34 kg
Dimensions	136 mm x 130 mm x 35 mm
Operating Temp	-40 to +70 deg C
Power Consumption	<= 2 W
Channel Count	32 digital input channels (Scales to 8 pulse inputs or 16 pulse totalizer inputs)
Signal Type	Dry contact, 24 VDC logic, or differential pulse signals
Input Voltage Range	18-32 VDC
Input Current	~6 mA per channel
Isolation	1500 VDC dielectric isolation (field to module side)
Surge Protection	Built-in 1500 VDC suppression
Terminal Wire Spec	12-24 AWG copper; screw-clamp terminals
Storage Temp	-40 to +85 deg C
Humidity Range	5% to 95% non-condensing
Certifications	IEC 61508 SIL3, UL1059, CE, ATEX Zone 2, IP20 protection

Triple Modular Redundancy and Safety Integrity

The termination panel architecture supports a fault-tolerant interface network designed to maintain triple modular redundancy (TMR) 2oo3 processing operations. Galvanic isolation rated at 1500 VDC divides the external field wiring loops from the downstream I/O modules, which stops transient surges from damaging the active processing cards. The passive layout routes incoming logic states and pulse transitions down to dedicated differential terminal pairs, enforcing fail-safe state execution boundaries. These integrated conditioning layers allow the subsystem to operate within strict IEC 61508 SIL3 safety control guidelines.

Frequently Asked Questions

Q: How many 9753-110 panel assemblies are required when interfacing with a high-density pulse totalizer input module? A: The pulse totalizer input modules manage 32 input points. Because a single 9753-110 panel accommodates 16 input signal terminals (IN+ and IN-) in this mode, engineers must deploy exactly two 9753-110 panels per pulse totalizer input module to manage all connections.

Q: What are the exact physical and electrical boundaries for signal configurations on this board? A: The board functions with standard 18-32 VDC logic or dry contacts drawing ~6 mA per channel. When configured for pulse input modules, it hosts 8 differential-input signal terminals with independent IN+ and IN- connections.

Field Installation Guidelines

Mount the panel assembly vertically onto standard DIN rail networks inside the enclosure cabinet. Verify that the routing cables connecting the panel to the Tricon input modules are locked completely into their headers. Terminate the field lines using the integrated screw-clamp terminals, restricting connections to 12-24 AWG copper wire. Ground the external cable shielding arrays directly to the main low-impedance facility instrument ground bus to suppress electromagnetic interference (EMI). Route these low-voltage signal paths through independent raceways away from heavy AC mains cabling to maintain signal clarity for pulse applications.
