Yokogawa YNT511D-P42/KT CENTUM VP Optical Bus Repeater Rack The Yokogawa YNT511D-P42/KT serves as the primary Yokogawa YNT511D Optical Bus Repeater...

رمز المنتج: YNT511D-P42

Manufacturer: Yokogawa
Product No.: YNT511D-P42
Product Type: Optical Bus Repeater Racks
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 3600g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

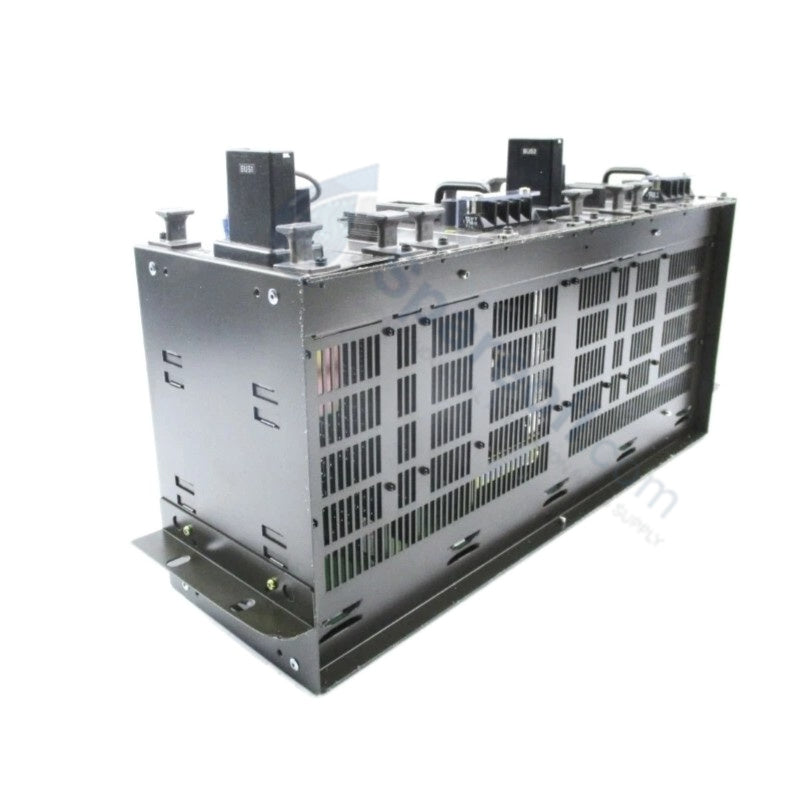

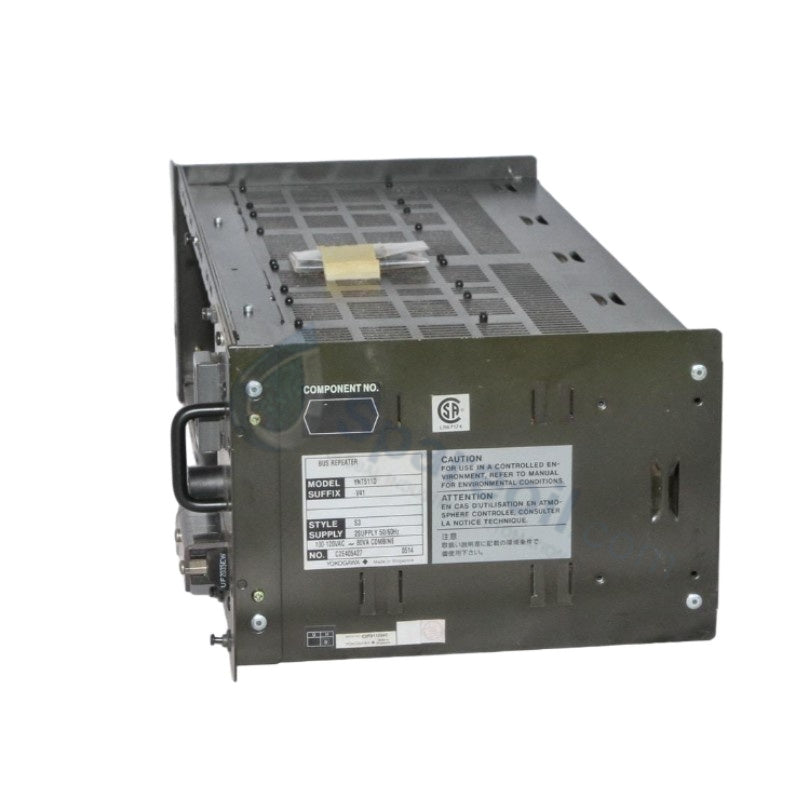

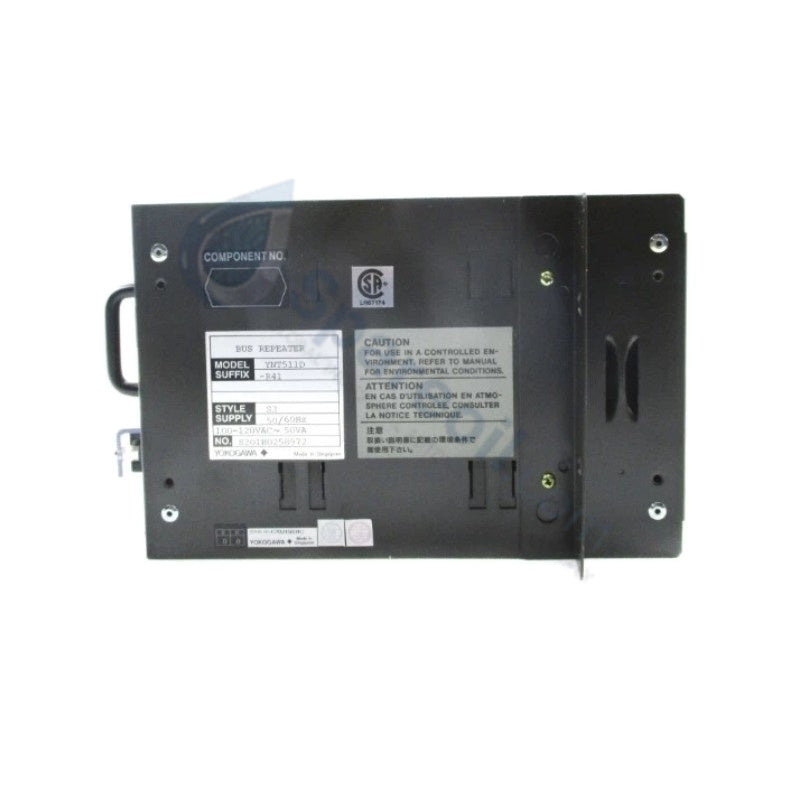

Yokogawa YNT511D-P42/KT CENTUM VP Optical Bus Repeater Rack

The Yokogawa YNT511D-P42/KT serves as the primary Yokogawa YNT511D Optical Bus Repeater Rack utilized to execute optical ESB bus signal regeneration and distance extension across CENTUM VP and CENTUM CS distributed control system platforms. The hardware reconstructs physical optical layer topologies to propagate deterministic control data structures between remote extension nodes and host control processors.

Hardware Specifications

Parameter	Specification
Model	YNT511D-P42/KT
Brand	Yokogawa
Origin	China
Weight	3.6 kg
Dimensions	48.3 x 17.8 x 30.5 cm
Operating Temp	0 to 55 deg C
Power Consumption	Maximum 60 mA current draw
Power Supply	24 VDC
Isolation Voltage	1 kV DC electrical isolation
Physical Media	Optical fiber interface
System Compatibility	CENTUM VP and CENTUM CS DCS networks

Distributed Control System Bus Propagation & Signal Isolation

The hardware manages high-speed backplane conversions by routing incoming light patterns through an integrated transimpedance amplifier matrix. The internal layout operates transparently underneath the 4-20 mA HART loop protocol parameters passed down through the field interfaces, allowing diagnostic parameters to traverse the remote I/O sub-networks without phase lag. Ground fault propagation across separate physical segments is prevented by 1 kV DC optoelectronic channel-to-channel isolation circuits built directly into the transceiving architecture.

Frequently Asked Questions

Q: Does the optical repeater assembly tolerate backplane module removal while the control link is active?

A: Active fiber links require constant transceiver synchronization. Technical constraints dictate that operators must disable active communications via software tools or power down the target network segment before extracting hardware to prevent data frame corruption on the bus.

Q: What mechanisms regulate the internally derived reference voltages during input fluctuations?

A: The input electrical paths utilize high-frequency switching regulators combined with localized decoupling capacitor banks to filter 24 VDC ripples and maintain stable internal voltage potentials.

Q: How do internal components manage thermal energy without integrated fan cooling systems?

A: The chassis utilizes conductive thermal distribution through its aluminum physical frame, delegating heat dissipation to natural convection paths within standard 19-inch electrical enclosures.

Field Installation Guidelines

Enclosure Mounting: Install the unit into a standard 19-inch structural rack frame. Torque all four front panel retention fasteners to nominal limits to prevent mechanical deformation under operational vibration loads.
Fiber Routing: Route the fiber optic cables ensuring the bend radius complies with factory limit thresholds to avoid micro-bending losses. Secure the optical lines using loose hook-and-loop wraps rather than tight zip ties.
Electrical Grounding: Connect the functional earth grounding lug directly to the central cabinet copper bus grounding strip. Verify that the grounding pathway maintains an electrical resistance profile below 1 ohm to ensure efficient common-mode noise redirection.
