AAI543-S50 Yokogawa Analog Output Module

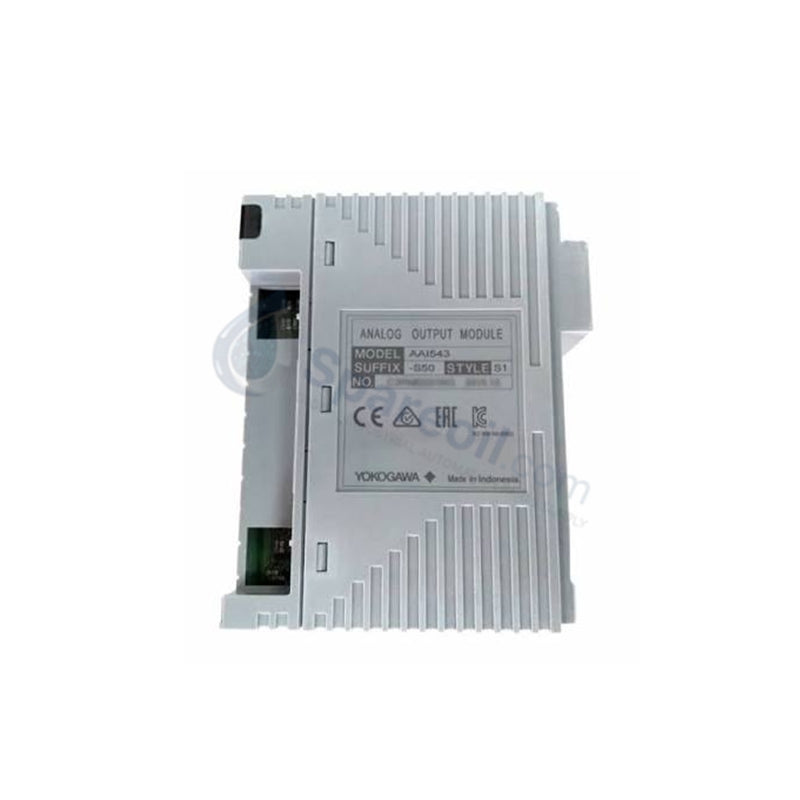

Yokogawa AAI543-S50 CENTUM VP Analog Output Module

Yokogawa AAI543-S50 CENTUM VP Analog Output Module

التوفر: 99 متوفر في المخزون

Yokogawa AAI543-S50 Analog Output Module The Yokogawa AAI543-S50/K4A00, also cataloged as the AAI543-S50 Analog Output Module, operates as a dedicated hardware component for...

رمز المنتج: AAI543-S50/K4A00

Manufacturer: Yokogawa
Product No.: AAI543-S50/K4A00
Product Type: Analog Output Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Yokogawa AAI543-S50 Analog Output Module

The Yokogawa AAI543-S50/K4A00, also cataloged as the AAI543-S50 Analog Output Module, operates as a dedicated hardware component for isolated signal transmission within Yokogawa CENTUM VP and CS 3000 distributed control systems (DCS).

Suffix Breakdown & Model Matrix

Suffix	Description
AAI543	16-Channel Analog Output Module
-S50	Standard type, isolated current output
/K4A00	Pressure clamp terminal block compatibility and specific wiring configuration

Hardware Specifications

Parameter	Specification
Model	AAI543-S50
Brand	Yokogawa
Origin	Japan
Weight	0.3 to 0.4 kg
Dimensions	107.5 x 32.8 x 130 mm
Operating Temp	-20 to 60 deg C
Power Consumption	5 VDC (max 230 mA), 24 VDC (max 540 mA)
Output Channels	16 isolated channels
Signal Range	4-20 mA
Accuracy	+/- 48 uA
Load Resistance	0 to 750 Ohm

DCS Process Control Connectivity

The AAI543-S50 utilizes advanced channel-to-channel isolation to decouple field-side electrical transients from the internal system bus. Each of the 16 outputs is capable of supporting the 4-20 mA HART loop protocol, enabling bi-directional diagnostic data exchange with connected positioners or actuators. To ensure long-term stability in control loops, the module performs continuous cold junction compensation (CJC) emulation for associated input tracking and utilizes high-speed scanning to maintain an update period of 10 ms. The architecture supports galvanic isolation to 1500 V AC, preventing common-mode noise propagation between disparate process ground planes.

Frequently Asked Questions

Q: Does this module support hot-swapping during active DCS operation?

A: Yes, provided the system configuration supports FIO (Field Control Network I/O) module replacement and the specific controller firmware version is compatible with the AAI543 series. Ensure the terminal board cable is securely fastened to prevent signal jitter during the transition.

Q: How is dual-redundant operation achieved with this module?

A: Redundancy is implemented by pairing two identical modules through a common terminal board or via the control bus interface. The system software automatically synchronizes the output signals; however, both modules must be powered from independent supplies to maintain full system availability.

Field Installation Guidelines

Terminal Board Connection: Use the designated KS cable interface adapter to connect the module to the AEA4D terminal board. Verify that all pin-to-pin connections are aligned to prevent shorting of the 24 VDC power rail.
Shielding and Grounding: To comply with EMC standards, terminate the cable shields at the cabinet ground bus bar. Minimize the distance between the cable shield and the ground connection to reduce high-frequency interference.
Thermal Management: Install the module in a well-ventilated cabinet. Maintain a clearance of at least 50 mm above and below the module to facilitate convective cooling, particularly in environments operating near the 60 deg C limit.
Signal Wiring: Ensure all 4-20 mA loops are verified for loop resistance (max 750 Ohm) using a calibrated multimeter before initiating communication with the CENTUM VP controller to avoid over-current fault flags.
