AIP821 Yokogawa CENTUM VP Datasheet & Technical Manual

Yokogawa AIP821 CENTUM VP Flat Operation Keyboard

Yokogawa AIP821 CENTUM VP Flat Operation Keyboard

التوفر: 99 متوفر في المخزون

Yokogawa AIP821 CENTUM VP Industrial Flat Operation Keyboard The Yokogawa AIP821, also cataloged as the Yokogawa AIP821 Industrial Flat Operation...

رمز المنتج: AIP821

Manufacturer: Yokogawa
Product No.: AIP821
Product Type: Operation Keyboards
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

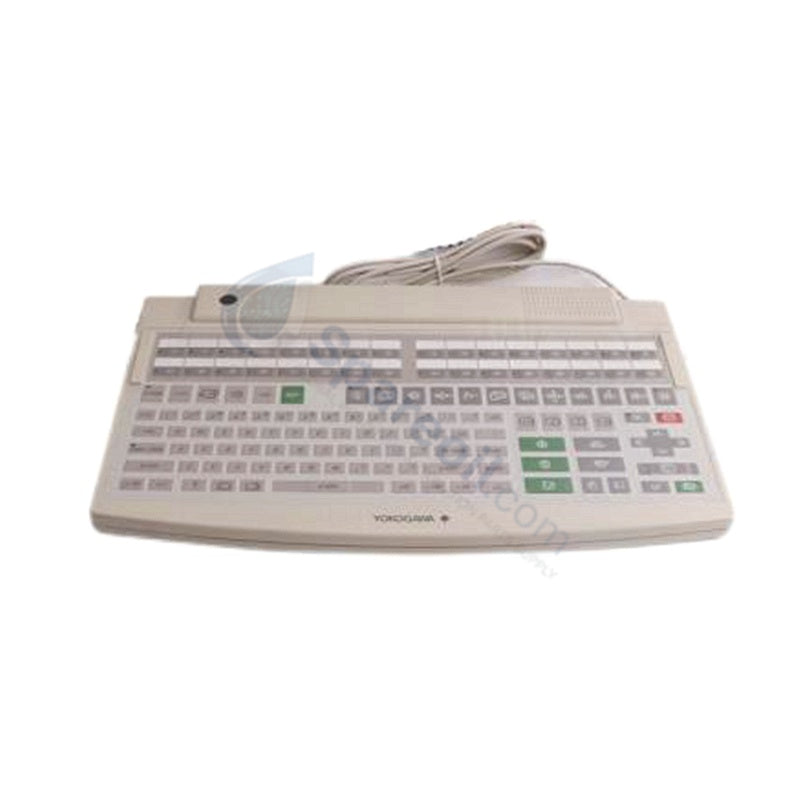

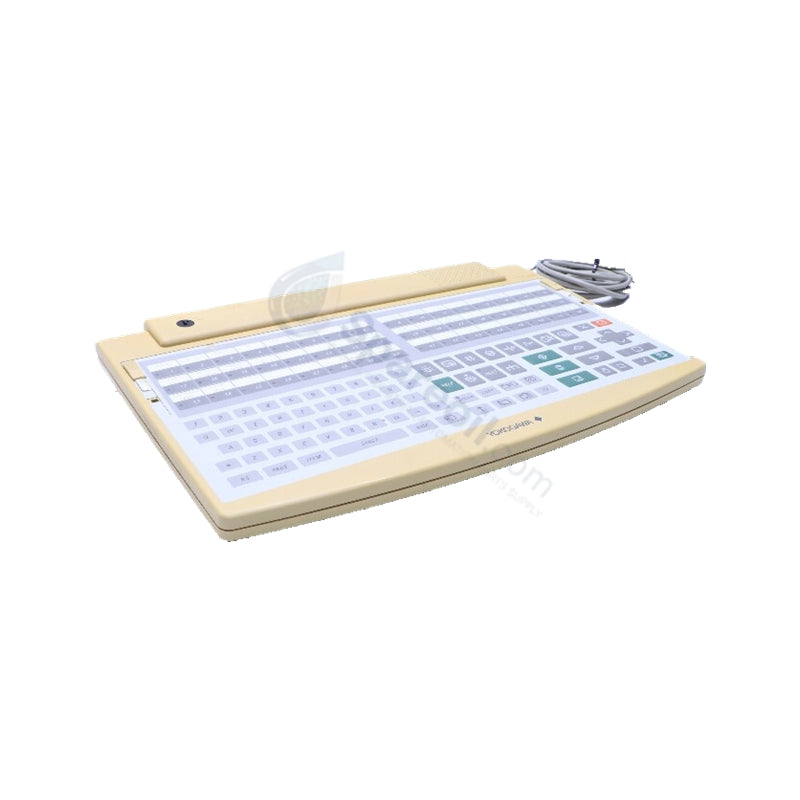

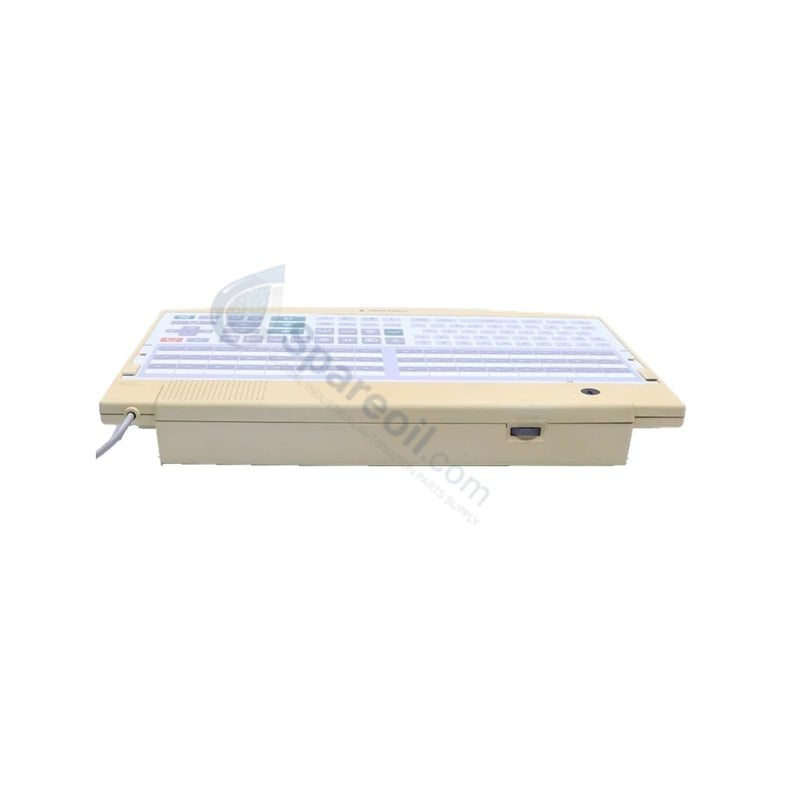

Yokogawa AIP821 CENTUM VP Industrial Flat Operation Keyboard

The Yokogawa AIP821, also cataloged as the Yokogawa AIP821 Industrial Flat Operation Keyboard, operates as a dedicated hardware component for alarm acknowledgment, window management, and instrument control execution within CENTUM VP and CENTUM CS 3000 HIS platforms. The peripheral infrastructure translates physical key matrix actuation into deterministic control commands routed to the host Human Interface Station processor.

Hardware Specifications

Parameter	Specification
Model	AIP821
Brand	Yokogawa
Origin	Japan
Weight	2.0 kg
Dimensions	440 x 285 x 52 mm
Operating Temp	0 to 50 deg C
Storage Temp	-10 to 60 deg C
Power Supply	5 VDC plus/minus 5% via host USB bus
Power Consumption	Maximum 1 A current draw
Interface Ports	Dual USB Type-A connections
USB Standards	USB 2.0 (Keyboard, Full-speed) / USB 1.1 (Audio, Full-speed)
Function Keys	64 programmable operator keys
Integrated Audio	Built-in USB speaker and buzzer
Color	Black (Munsell No. N1.5 equivalent)

Distributed Control System Console Integration

The hardware architecture handles operational command mapping by linking standard alphanumeric clusters and dedicated function paths directly to active distributed control system display views. The internal logic operates downstream of 4-20 mA HART loop protocol parameters, enabling localized console control changes, setpoint corrections, and instantaneous loop silencing from the physical surface. Dual USB cable paths isolate data transmission lines from audio drive currents, maintaining signal integrity and preventing common-mode grounding loops from injecting electrical noise into the workstation motherboard.

Frequently Asked Questions

Q: Why must both USB Type-A cables connect directly to the active HIS workstation?

A: The layout partitions the electronic sub-assemblies to optimize power allocation. The first USB channel establishes a USB 2.0 interface for the 64 programmable keys and alphanumeric data streams, while the second USB channel powers the integrated USB 1.1 sound system for automated system alerts and alerts.

Q: Is this flat keyboard assembly backwards-compatible with older Yokogawa console systems?

A: The module functions as a direct modern functional replacement for legacy AIP811 keyboards, upgrading connection compatibility to standardized USB topologies while maintaining equivalent Munsell N1.5 panel integration dimensions.

Q: How does the internal controller address simultaneous key actuations during high-alarm states?

A: The internal scanning matrix decodes inputs sequentially through an integrated microcontrol unit, preventing keystroke masking and ensuring high-priority actions like alarm acknowledgment register immediately.

Field Installation Guidelines

Mounting Execution: Position the flat housing directly onto the console surface or attach it using an optional VESA mounting bracket. Tighten all hardware to secure the structure against continuous manual operations.
Signal Cable Routing: Run the dual USB interface cables through internal desk trays isolated from high-voltage terminal paths or cabinet utility lines. Maintain physical separation to avoid electromagnetic induction.
Chassis Grounding: Ensure the main workstation enclosure bonds directly to the common room functional earth bus. Proper ground paths guide external electrostatic discharges away from the industrial key switch circuitry.
