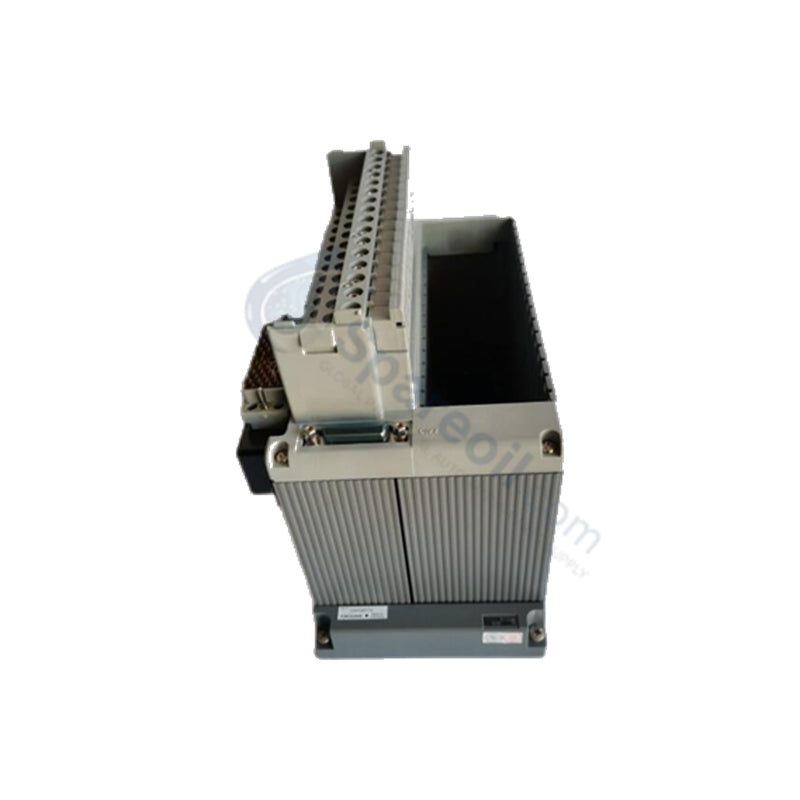

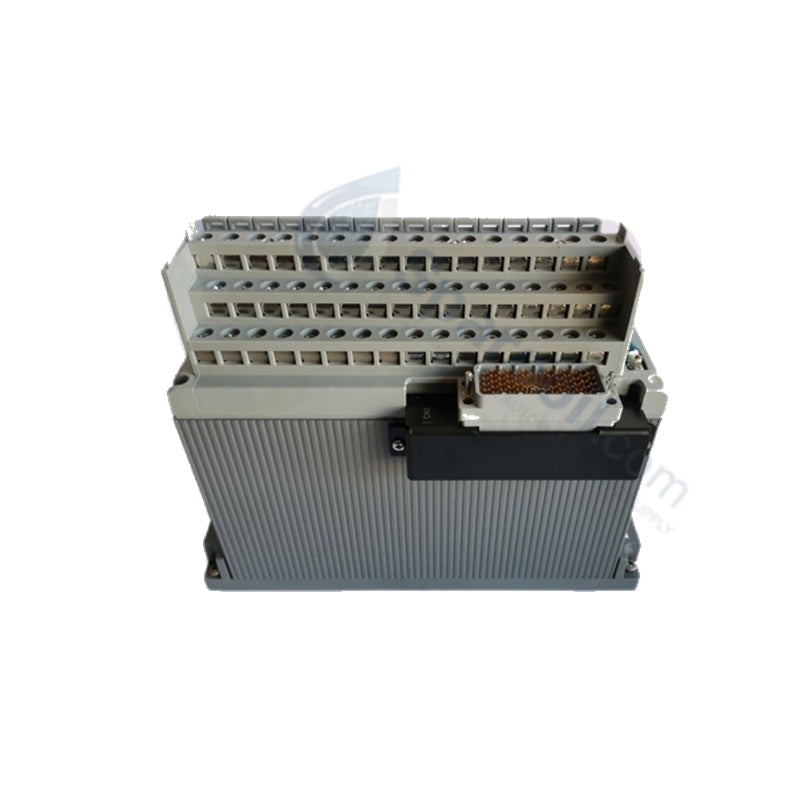

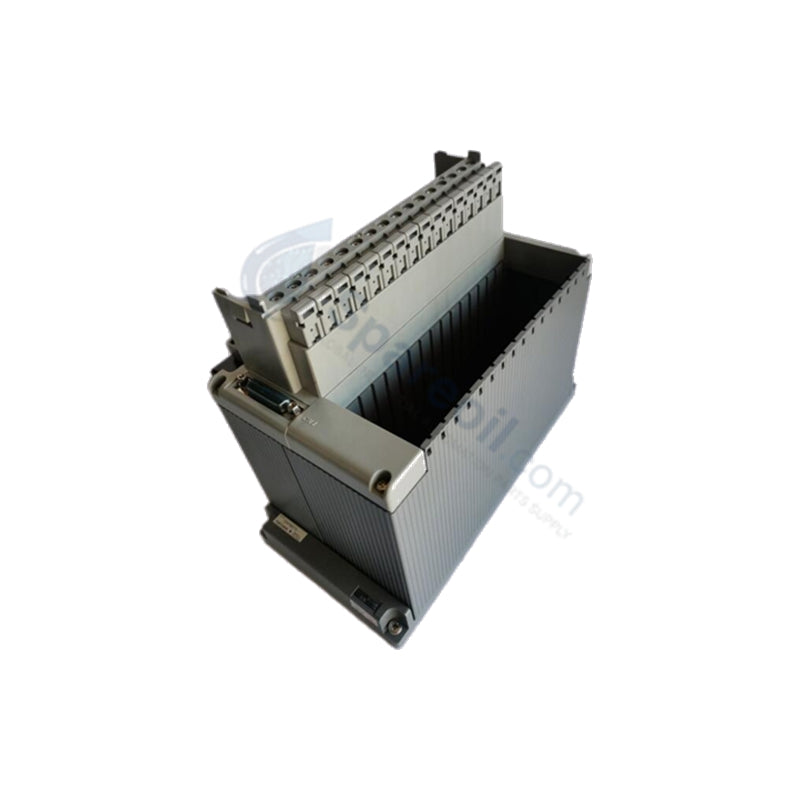

Yokogawa AMN11-S1 Analog I/O Nest for CENTUM Systems

Yokogawa AMN11-S1 Analog I/O Nest for CENTUM Systems

التوفر: 10 متوفر في المخزون

Yokogawa AMN11-S1 Analog I/O Nest Configured for high-density field signal termination within CENTUM control platforms, the Yokogawa AMN11-S1 (AMN11-S1 Analog...

رمز المنتج: AMN11-S1

Manufacturer: Yokogawa
Product No.: AMN11-S1
Product Type: Analog I/O Modules
Product Origin: Japan
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Yokogawa AMN11-S1 Analog I/O Nest

Configured for high-density field signal termination within CENTUM control platforms, the Yokogawa AMN11-S1 (AMN11-S1 Analog I/O Nest) provides direct physical execution of multi-channel analog and digital loop aggregation.

Hardware Specifications

Parameter	Specification
Model	AMN11-S1
Brand	Yokogawa
Origin	USA
Weight	1.5 kg
Dimensions	2.2 × 12.4 × 12.6 cm
Operating Temp	-20 to 70 deg C
Power Consumption	< 10 W
I/O Capacity	16 slots
Interface	32-pin female connectors
Protection Rating	IP20

DCS Connectivity and Channel-to-Channel Isolation

The AMN11-S1 serves as the physical backbone for I/O module deployment in CENTUM CS3000 and CENTUM VP systems. The nest architecture integrates signal-to-signal isolation to maintain the integrity of 4-20 mA loops and voltage inputs. By providing dedicated electrical separation between the field wiring terminals and the system backplane, the unit prevents common-mode noise and ground potential shifts from impacting the accuracy of the process variables transmitted to the DCS controller. Internal design parameters ensure that high-frequency electromagnetic interference (EMI) is suppressed, maintaining stable communication signals across the V-net or RS-485 interfaces.

Frequently Asked Questions

Q: Does the AMN11-S1 nest support live-insertion (hot-swap) of I/O modules?

A: Hot-swapping is restricted. The nest must be fully de-energized via the system power supply prior to the installation or removal of any analog I/O modules to prevent arcing at the backplane connector pins and potential corruption of the I/O bus state.

Q: How should shields for analog signal cables be terminated at the nest?

A: To preserve the efficacy of the channel-to-channel isolation, terminate all cable shields at the designated cabinet grounding bus. Avoid connecting shields directly to the I/O module common terminals to prevent ground loops and inductive coupling into the measurement circuits.

Field Installation Guidelines

Mounting: Secure the nest to a standard industrial rack using the provided mounting holes. Ensure the chassis is bonded to the cabinet protective earth (PE) bus using a low-impedance braided copper strap.
Wiring: Route all analog and digital field wiring through shielded conduit or dedicated cable trays. Maintain a physical separation of at least 200 mm from high-voltage AC lines to minimize crosstalk.
Termination: Use high-quality 32-pin connectors for module interfacing. Verify that each pin is fully seated and that the locking mechanism is engaged to ensure reliable electrical contact.
Environment: While designed for operation in harsh conditions, ensure the nest is shielded from direct moisture and conductive dust ingress. Periodically inspect the terminals for signs of oxidation or thermal discoloration.
