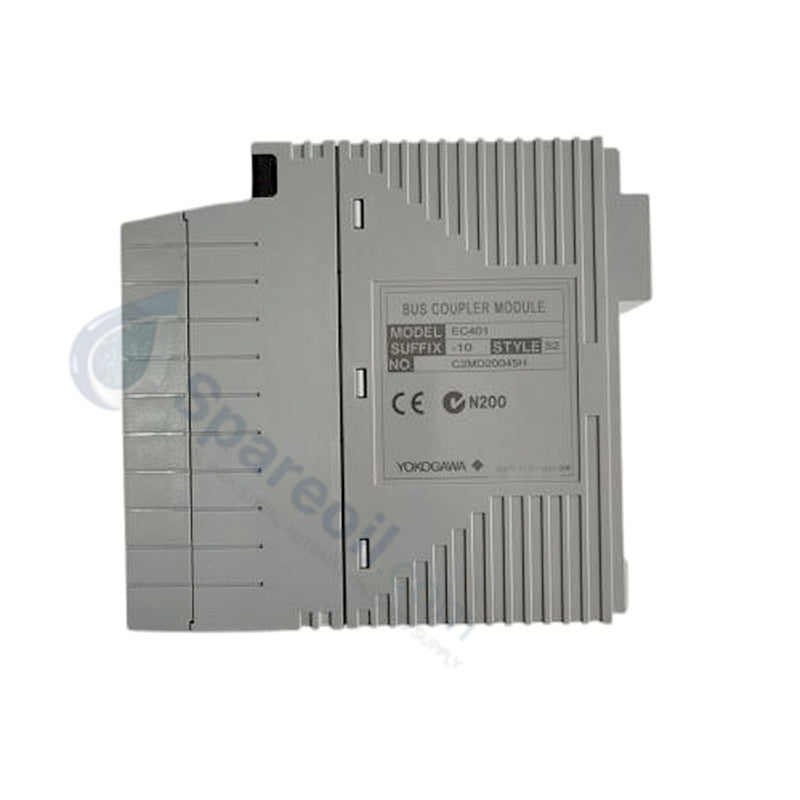

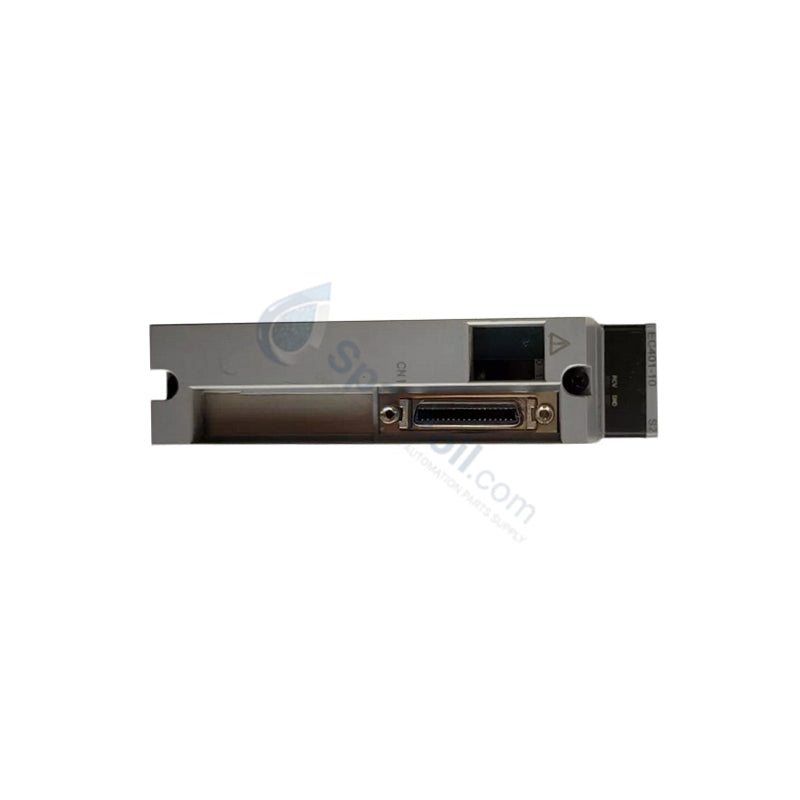

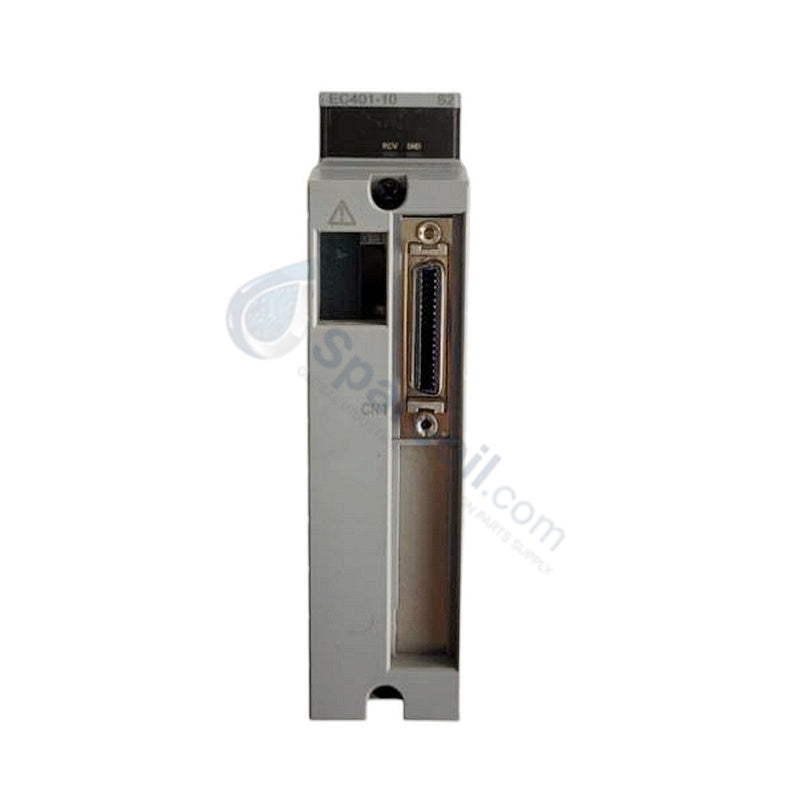

Yokogawa EC401-10-S2 CENTUM VP 128Mbps ESB Bus Coupler Module

Yokogawa EC401-10-S2 CENTUM VP 128Mbps ESB Bus Coupler Module

التوفر: 10 متوفر في المخزون

Yokogawa EC401-10-S2 ESB Bus Coupler Module The Yokogawa EC401-10-S2 serves as the primary Yokogawa EC401-10 ESB Bus Coupler Module utilized...

رمز المنتج: EC401-10 S2

Manufacturer: Yokogawa
Product No.: EC401-10 S2
Product Type: Bus Coupler Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 240g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Yokogawa EC401-10-S2 ESB Bus Coupler Module

The Yokogawa EC401-10-S2 serves as the primary Yokogawa EC401-10 ESB Bus Coupler Module utilized to execute high-speed I/O data transmission across CENTUM VP and CENTUM CS 3000 platforms. The hardware functions as a dedicated Layer 1 master communication block that extends the internal system backplane fabric over an external interface, enabling synchronous inter-node communication between control units and remote expansion baseplates without intermediate bridge drivers.

Suffix Breakdown & Model Matrix

The alphanumeric suffix matrix identifies the specific explosion safety ratings, base system generations, and manufacturing hardware revisions:

Base Model (EC401): Establishes the standard ESB master bus interface hardware containing specialized driver circuits for FIO/N-IO subsystem expansion.
Safety Suffix (-1): Specifies the standard hardware compilation type designated with no explosion protection ratings.
Basic Type Suffix (0): Identifies the basic functional interface block, utilizing a single-port connection physical layout.
Revision Code (S2): Indicates the current manufacturing revision standard. This specific revision guarantees mechanical and electrical form-factor alignment with standard slot layouts.

Hardware Specifications

Parameter	Specification
Model	EC401-10-S2
Brand	Yokogawa
Origin	Japan
Weight	0.24 kg
Dimensions	25 mm x 127 mm x 127 mm
Operating Temp	0 to 50 deg C
Power Consumption	0.5 A at 5 VDC (Current Consumption via Backplane)
Transmission Protocol	Proprietary ESB Bus / FIO Bus Interface
Data Throughput Speed	128 Mbps (I/O module data transmission)
Physical Distance Limit	10 m maximum
Node Scale Capacity	Maximum 9 connected units
Chassis Allocation	Dedicated Field Control Unit (FCU) slots

Distributed Process Integration & Channel Isolation

Operating as a foundational backbone element within distributed control nodes, this module coordinates high-density data updates across up to 9 expansion nests. The module transmits data frames at a raw hardware execution rate of 128 Mbps, securing deterministic cyclic updates for mixed I/O configurations. To maintain system uptime, the card features physical isolation layers between the high-speed bus transceivers and the core backplane logic processing loops. This channel-to-channel isolation safeguards the primary control processors from localized external line surges, preventing noise induced by parallel 4-20 mA HART loop protocol lines or FOUNDATION Fieldbus segments from entering the internal logic framework.

Frequently Asked Questions

Q: Can the EC401-10-S2 bus coupler module be pulled or hot-swapped while the field control unit is powered and running active processes?

A: No, physical extraction of this module from a live backplane slot will instantly break the master ESB bus loop. This results in an immediate loss of communication to all downstream extension nodes, causing the connected I/O points to enter their pre-configured fail-safe states and generating a critical system configuration fault.

Q: What is the maximum physical cable layout length allowed when chaining expansion nodes using this specific module?

A: The physical cable layout using standard YCB301 bus cables is restricted to a maximum total length of 10 m. Exceeding this physical limitation will introduce signal attenuation and timing latency, corrupting the 128 Mbps transmission path and causing bus synchronization failures.

Field Installation Guidelines

Chassis Positioning and Alignment: Mount the card inside the designated Field Control Unit (FCU) rack slot. Slide the module completely along the guide rails to ensure full pin engagement on the backplane connector, then secure the integrated mounting screws.
Cable Connection Lock: Connect the dedicated 36-pin ESB bus cable to the front port panel. Engage the mechanical spring clips on the cable connector housing fully to prevent micro-disconnections caused by low-frequency industrial cabinet vibration.
Enclosure Grounding Protocol: Ensure the host FCU rack structure is bonded directly to a single-point instrument earth bus bar. Correct grounding ensures the external cable shields divert induced high-frequency electromagnetic noise away from the internal logic loops.
Thermal Monitoring Boundaries: Maintain clear airflow through the vertical ventilation slots of the module housing. Verify that cabinet cooling fans maintain ambient operating temperatures between the 0 and 50 deg C boundaries to prevent thermal stress failures.
