AIP601 YOKOGAWA Centum VP Datasheet & Technical Manual

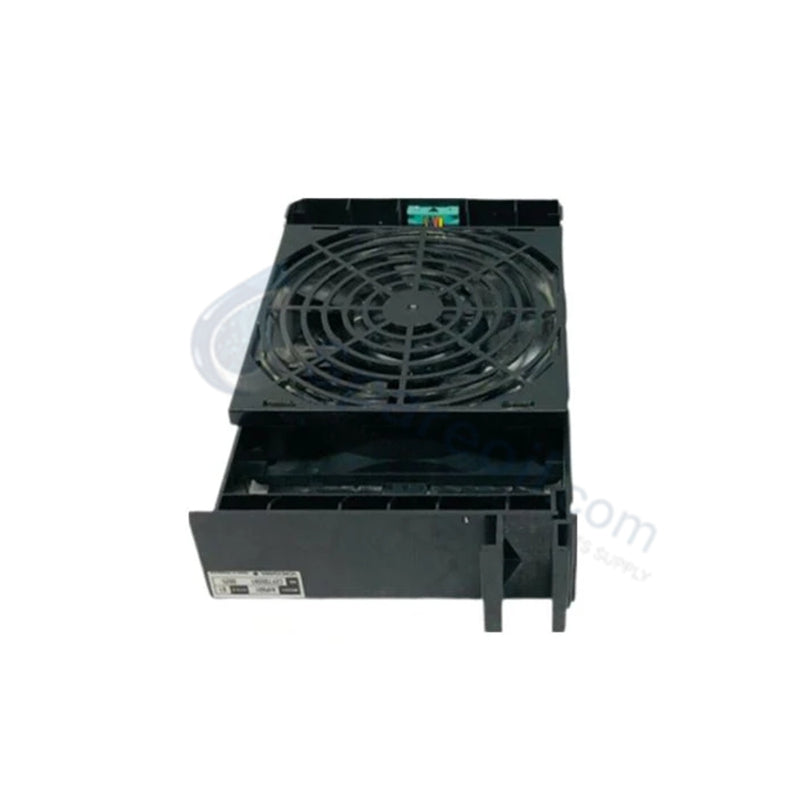

Yokogawa Electric AIP601 Centum VP Cabinet Fan Unit Cooling Module

Yokogawa Electric AIP601 Centum VP Cabinet Fan Unit Cooling Module

التوفر: 99 متوفر في المخزون

YOKOGAWA AIP601 Door Fan Unit The YOKOGAWA AIP601, also cataloged as the AIP601 Door Fan Unit, operates as a dedicated...

رمز المنتج: AIP601

Manufacturer: Yokogawa
Product No.: AIP601
Product Type: Cooling Units
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

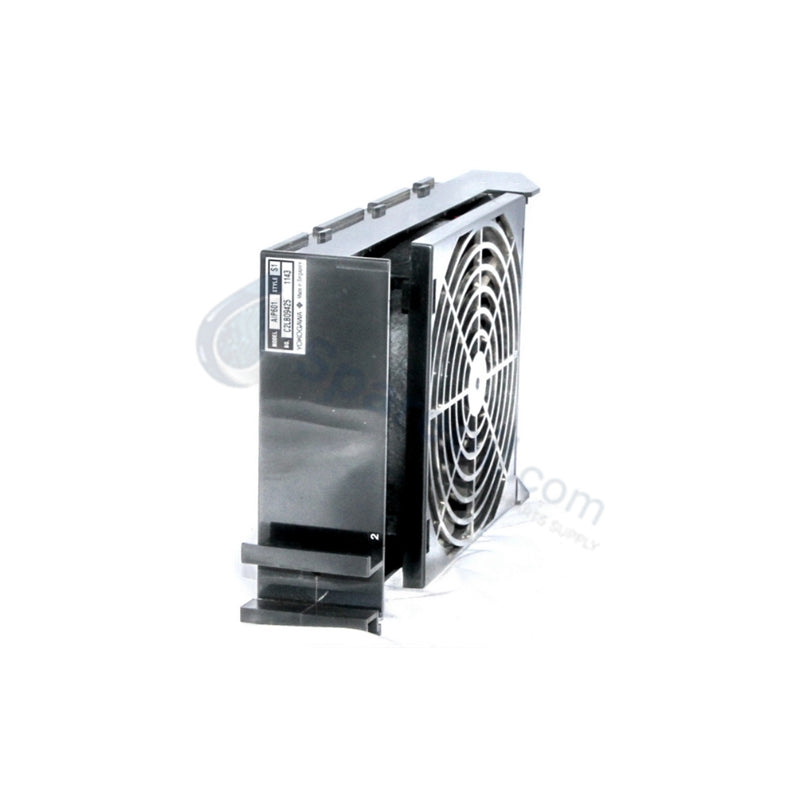

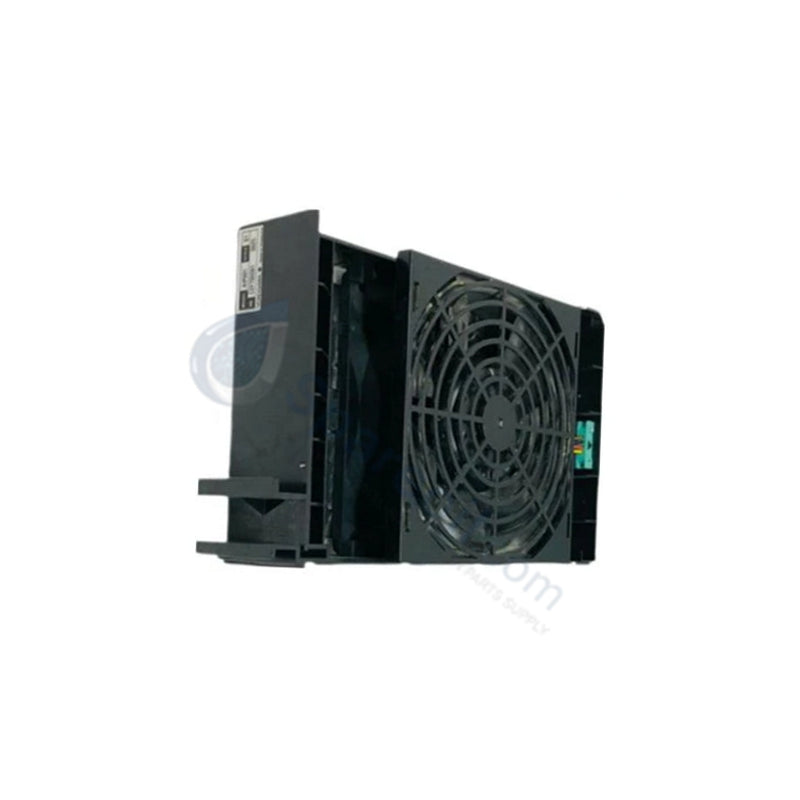

YOKOGAWA AIP601 Door Fan Unit

The YOKOGAWA AIP601, also cataloged as the AIP601 Door Fan Unit, operates as a dedicated hardware component for thermal management and forced-air cooling within Centum CS and Centum VP automation system cabinets.

Hardware Specifications

Parameter	Specification
Model	AIP601
Brand	YOKOGAWA
Origin	Japan
Weight	300 g (Net) / 2 kg (Shipping)
Dimensions	Standard enclosure mount
Operating Temp	Industrial cabinet standard
Power Consumption	System-specific DC input
Applicable Systems	Centum CS, Centum VP
Supported Units	AFV40S, AFV40D, ACB21, ACB31, ACB41, ACB51

Process Control Thermal Dissipation

The AIP601 functions as a critical airflow maintenance component to ensure the internal temperature of field control units and I/O expansion cabinets remains within prescribed thermal operating envelopes. By facilitating consistent circulation, the unit prevents localized thermal saturation of electronics. The module is engineered for integration with Centum VP platforms, providing consistent heat extraction for high-density cabinet configurations, particularly in cabinets housing Vnet/IP field control units or migration kits such as the LOPXLMK. The design ensures minimal vibration transmission to sensitive I/O components while maintaining necessary CFM (cubic feet per minute) throughput.

Frequently Asked Questions

Q: Does the AIP601 support hot-swapping during cabinet operation?

A: No. The unit is designed for permanent installation within the door assembly. Power must be isolated from the specific cabinet circuit before attempting physical removal or inspection.

Q: Is the cooling performance dependent on specific Yokogawa cabinet types?

A: Yes. The module is mechanically keyed for compatibility with specified cabinets, including the AFV40 series control units and ACB series I/O expansion cabinets. It is not compatible with 'no power supply' cabinet variants.

Q: What are the primary failure indicators for this cooling unit?

A: Failure is typically identified through system-level temperature alarms generated by the field control unit (FCU) or localized cabinet thermal sensors. If the fan rotation ceases, the resulting thermal rise will trigger a high-temperature warning in the Centum VP management station.

Field Installation Guidelines

Ensure the control cabinet is in a maintenance-ready state and all power supply units feeding the door assembly are de-energized.
Verify the model compatibility with the target cabinet (AFV40S/D or ACB series) before mounting.
Secure the fan unit into the dedicated door cutout, ensuring that the airflow direction matches the cabinet exhaust design.
Connect the power leads to the internal terminal block, ensuring proper wire gauge usage and cable management to prevent obstruction of the fan blades.
Perform a test run to confirm vibration-free operation and verified airflow before closing the cabinet door to resume system operations.
