F3YD32-1P Yokogawa Transistor Output Module

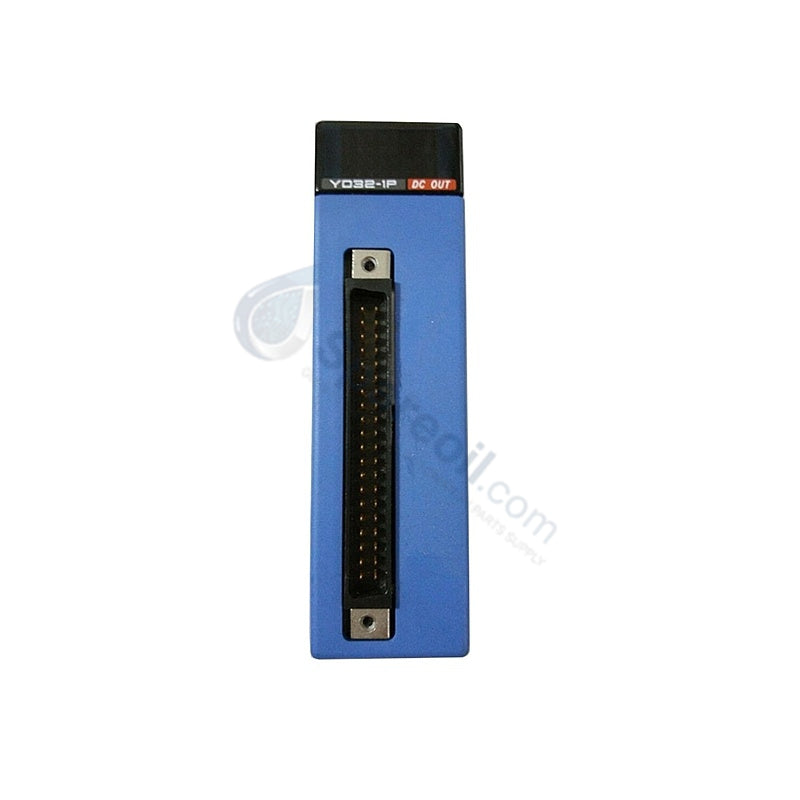

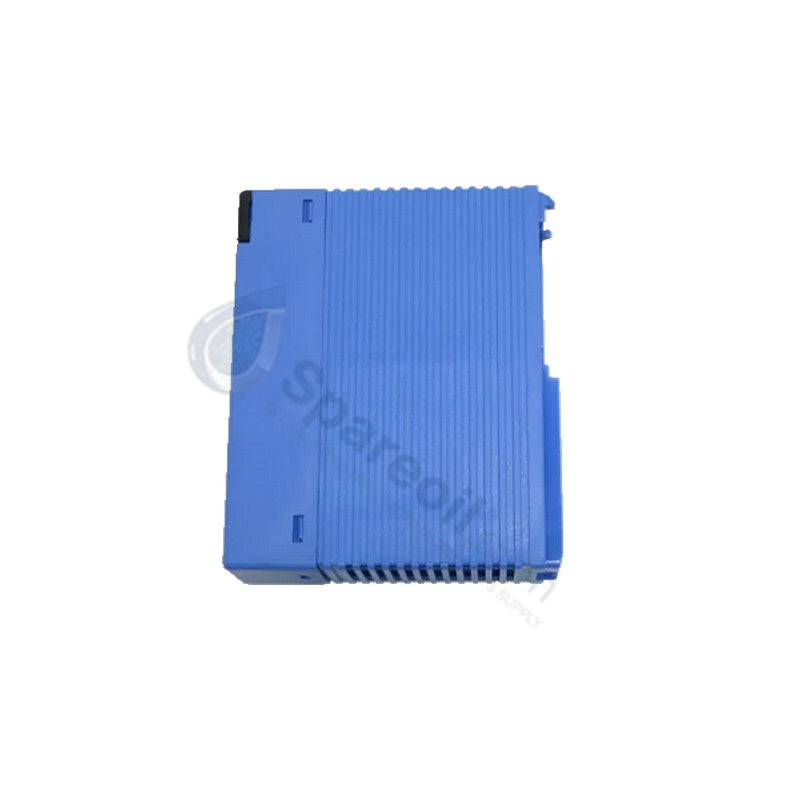

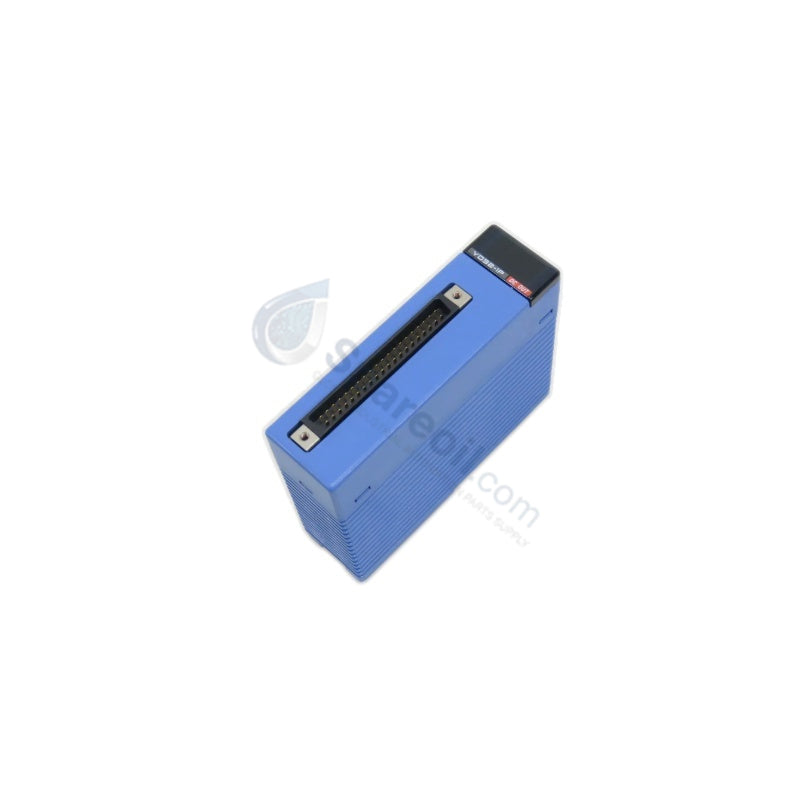

Yokogawa F3YD32-1P FA-M3 Transistor Output Module

Yokogawa F3YD32-1P FA-M3 Transistor Output Module

التوفر: 10 متوفر في المخزون

Yokogawa F3YD32-1P FA-M3 PLC Transistor Output Module Configured for discrete digital output control in FA-M3 PLC platforms, the Yokogawa F3YD32-1P...

رمز المنتج: F3YD32-1P

Manufacturer: Yokogawa
Product No.: F3YD32-1P
Product Type: Transistor Output Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 110g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Yokogawa F3YD32-1P FA-M3 PLC Transistor Output Module

Configured for discrete digital output control in FA-M3 PLC platforms, the Yokogawa F3YD32-1P (F3YD32 Transistor Output Module) provides direct physical/electrical execution. The hardware targets multi-channel switching loops to actuate relays, solenoids, and indicators via a low-side sink configuration. It relies on phototransistor arrays to maintain signal isolation between logic circuitry and external field wiring loops.

Hardware Specifications

Parameter	Specification
Model	F3YD32-1P
Brand	Yokogawa
Platform	FA-M3 PLC series
Output Type	Transistor (sink type)
Channels	32 channels
Common Architecture	8 points per common line
Isolation Method	Photocoupler isolation
Rated Load Voltage	12 to 24 V DC
Operating Voltage Range	10.2 to 26.4 V DC
Max Load Current	0.1 A per point / 0.5 A per common
Response Time	1 ms maximum (ON to OFF, OFF to ON)
ON Voltage Drop	0.5 V DC maximum
OFF Leakage Current	0.1 mA maximum
Internal Current Consumption	160 mA at 5 V DC
External Power Supply	12 to 24 V DC, 95 mA maximum
Withstanding Voltage	1500 V AC for 1 minute
Built-in Protection	Short-circuit controlled, overheat shutdown, surge clamp
Weight	0.11 kg
Dimensions	84.5 x 102 x 28.9 mm
Operating Temperature	0 to 55 deg C
Storage Temperature	-20 to 75 deg C
Ambient Humidity	5 to 95% RH (non-condensing)

Process Control Loops and DCS Instrument Integration

The module implements 4-20 mA HART loop protocol compatibility buffers and channel-to-channel isolation parameters through its optocoupler network. This physical isolation prevents field ground loops from bleeding electrical noise into the FA-M3 backplane data bus. Field signals routed through the internal logic architecture interface directly with cold junction compensation units when mapping diagnostic temperatures across hybrid DCS architectures. The sink-type configuration guarantees a defined current path back to the reference return line of the power supply.

Frequently Asked Questions

Q: What is the primary cause of an individual channel thermal shutdown?

A: An overcurrent condition exceeding 0.1 A per point or a dead short across the output transistor causes localized junction heating, triggering the internal thermal protection circuit until temperature thresholds recover.

Q: Can this module mix different voltages across its common groups?

A: Yes. The module is split into 4 independent isolated common blocks containing 8 points each. Each common block can operate at a distinct load voltage within the 10.2 to 26.4 V DC operational range.

Q: Is hot-swapping supported on the base unit for this module?

A: No. System power to the FA-M3 base unit must be isolated before inserting or extracting the module to prevent electrical arcing across the backplane pins.

Field Installation Guidelines

Grounding Protocol: Ensure the terminal block shield wire connects to a single low-resistance instrumentation earth point. Do not loop the ground between adjacent high-power inductive circuits.
Separation of Cables: Route the DC field wiring separate from AC power distribution lines to prevent induced electromagnetic noise inside the 1 ms response window.
Wire Termination: Strip field wires back to specified lengths and torque terminal screws to industrial standards to maintain mechanical integrity under continuous vibration.
External Power Supply: Verify that the external 12 to 24 V DC supply meets current capacity specs, accounting for the 95 mA standby consumption plus the aggregate load current of the active channels.
