PFCD-S5520 Yokogawa Field Control Station

Yokogawa PFCD-S5520 Field Control Station Technical Manual

Yokogawa PFCD-S5520 Field Control Station Technical Manual

التوفر: 10 متوفر في المخزون

Yokogawa PFCD-S5520 Field Control Station The Yokogawa PFCD-S5520 serves as the primary PFCD-S5520 Field Control Station utilized to execute process...

رمز المنتج: PFCD-S5520/2-TE

Manufacturer: Yokogawa
Product No.: PFCD-S5520/2-TE
Product Type: Field Control Stations
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 8160g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

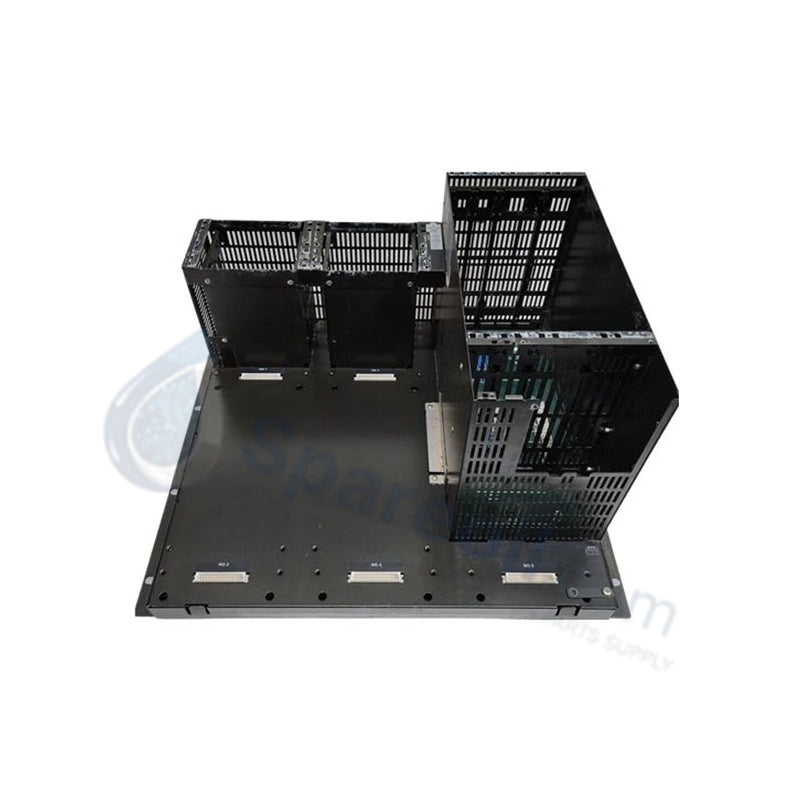

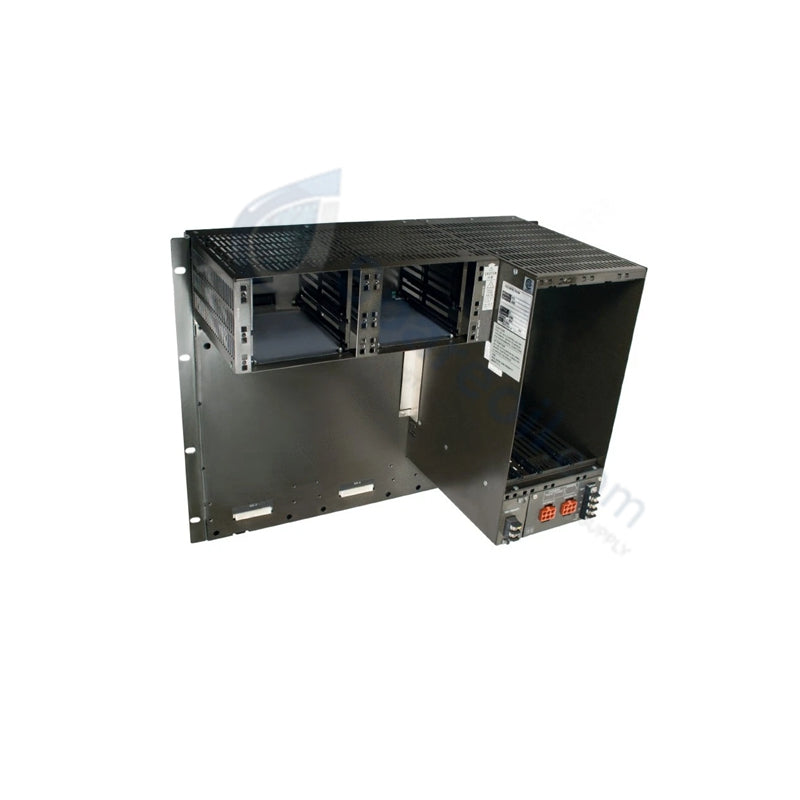

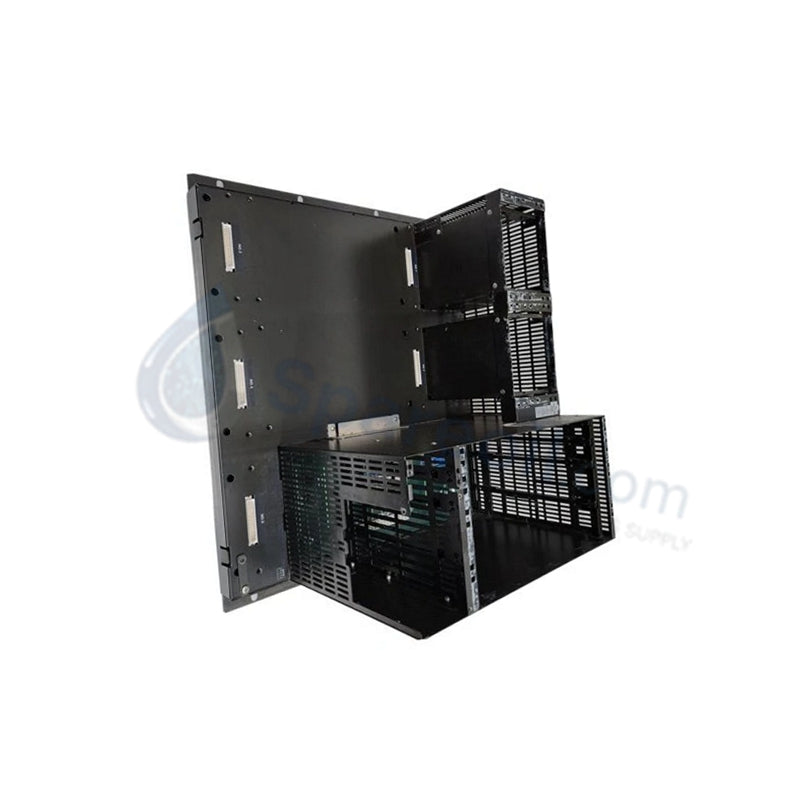

Yokogawa PFCD-S5520 Field Control Station

The Yokogawa PFCD-S5520 serves as the primary PFCD-S5520 Field Control Station utilized to execute process control logic and I/O signal processing across distributed control system platforms.

Hardware Specifications

Parameter	Specification
Model	PFCD-S5520
Brand	Yokogawa
Origin	Japan
Weight	8.16 kg (18.00 lbs)
Dimensions	Standard Yokogawa FCS Chassis Format
Operating Temp	0 deg C to 50 deg C
Power Consumption	Dependent on I/O load configuration
System Compatibility	Yokogawa CENTUM Series
Communication Protocol	Vnet/IP / Fieldbus
Mounting	Cabinet Rack Mount

Process Control and DCS Connectivity

The PFCD-S5520 is designed to operate as a core node within the Field Control Station architecture, managing input and output signal conversion from field instrumentation. The station supports integration with the 4-20 mA HART loop protocol, enabling the controller to access secondary process variables and device diagnostics directly from smart transmitters. To maintain signal integrity in complex process environments, the module implements channel-to-channel isolation, which mitigates ground loop issues and electromagnetic interference between distinct loops. The internal architecture facilitates deterministic scan execution, ensuring that loop control and sequence logic are updated at fixed intervals to maintain process stability.

Frequently Asked Questions

Q: Does the PFCD-S5520 support redundant processor configurations?

A: Yes, this unit is engineered to support redundant control pair configurations. The controller firmware ensures synchronization between the active and standby units, facilitating seamless switchover in the event of a primary processor fault.

Q: Are there specific requirements for maintenance of the cooling system?

A: The chassis relies on forced-air cooling. Obstruction of the airflow vents or failure of the internal fan assembly will trigger a thermal alarm. Regular inspection of the ventilation intake and exhaust paths is necessary to prevent thermal degradation of the internal circuitry.

Field Installation Guidelines

Mounting: Install the PFCD-S5520 into the designated system rack, ensuring proper alignment with the backplane connectors. Secure the mounting screws to provide a stable, vibration-resistant connection.
Grounding: Ensure the chassis is connected to a dedicated functional earth (FE) ground bus. A low-impedance ground path is required to suppress common-mode noise and maintain signal reference accuracy.
Wiring: Route signal cabling and power cabling through separate wireways. Observe minimum bend radii for shielded signal cables to prevent damage to the internal conductors.
Power: Verify that the input voltage matches the rated DC supply requirements of the rack before applying power. Ensure that the power distribution circuit is protected by an appropriately sized overcurrent protection device.
