RS81B YOKOGAWA CENTUM XL Datasheet & Technical Manual

YOKOGAWA RS81*B CENTUM XL Micro XL Interface Card

YOKOGAWA RS81*B CENTUM XL Micro XL Interface Card

التوفر: 10 متوفر في المخزون

YOKOGAWA RS81*B Interface Card Configured for field signal conditioning and termination in CENTUM XL and Micro XL DCS platforms, the...

رمز المنتج: RS81-B

Manufacturer: Yokogawa
Product No.: RS81-B
Product Type: Interface Modules
Product Origin: Japan
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

YOKOGAWA RS81*B Interface Card

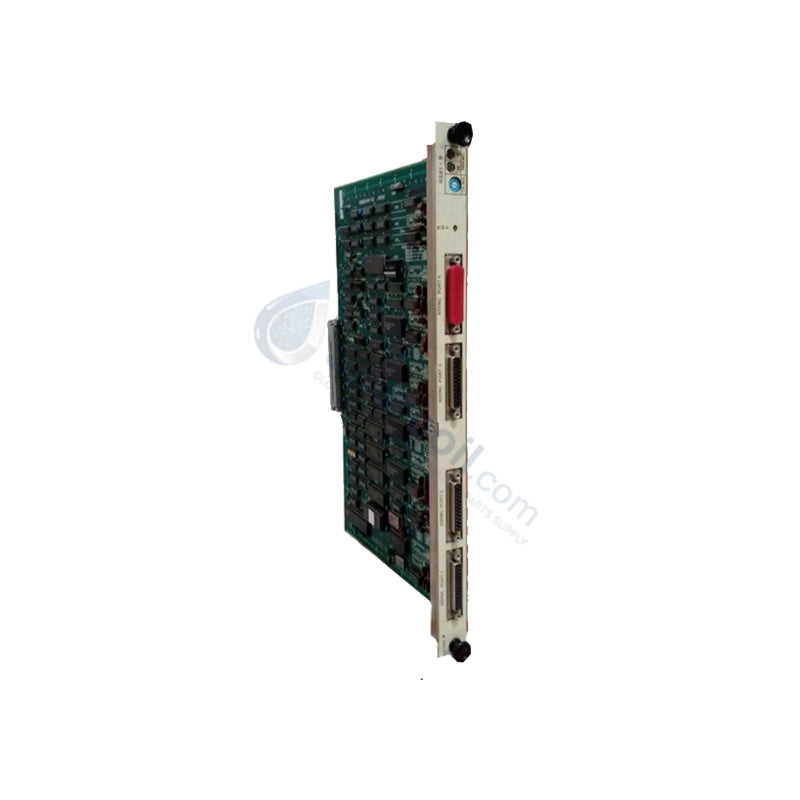

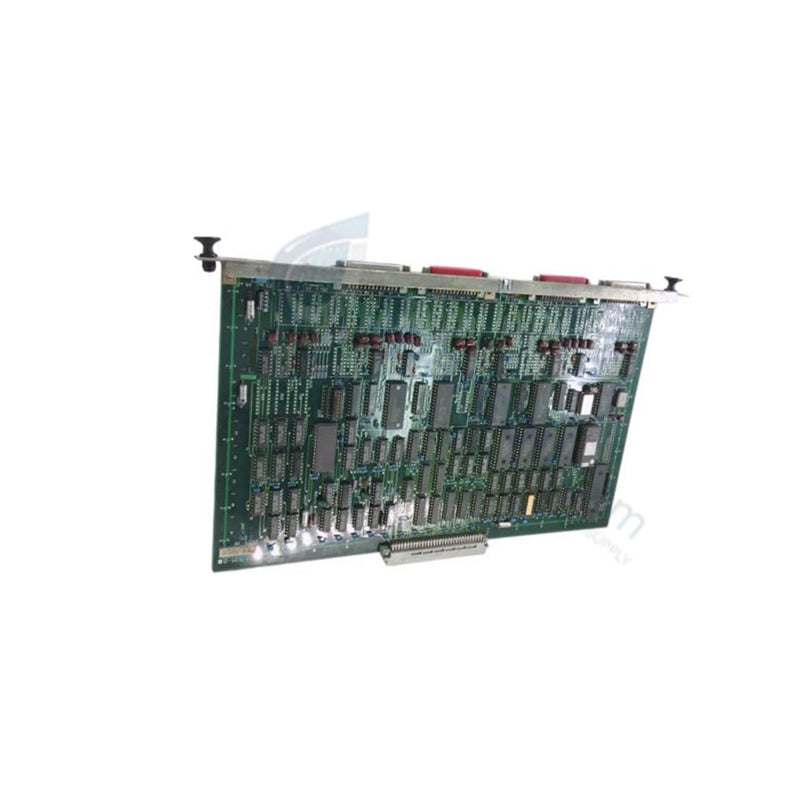

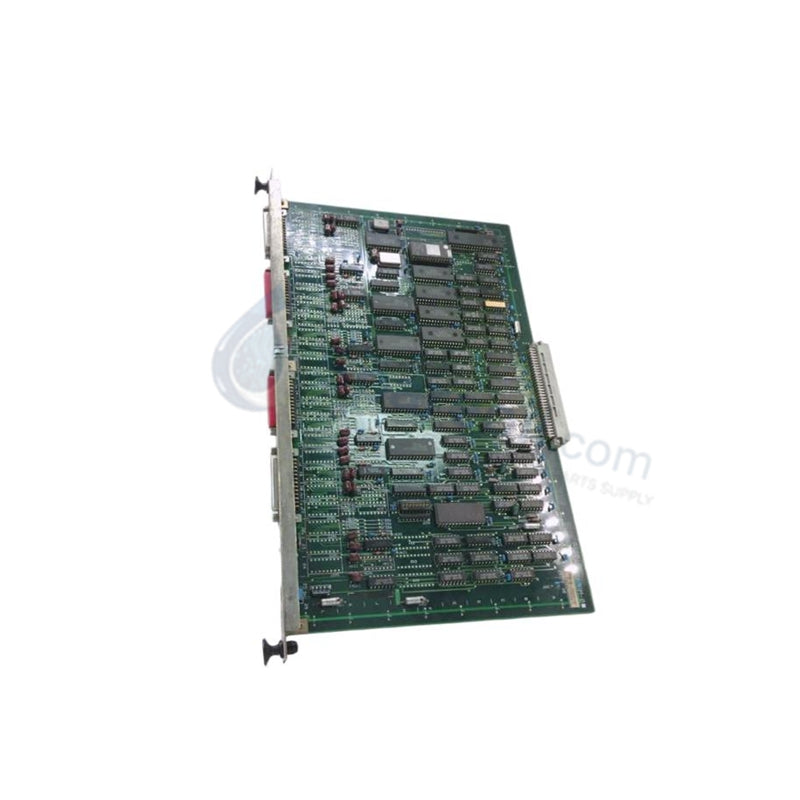

Configured for field signal conditioning and termination in CENTUM XL and Micro XL DCS platforms, the YOKOGAWA RS81*B (RS81B Interface Card) provides direct physical/electrical execution of sensor-to-controller signal interface management.

Suffix Breakdown & Model Matrix

RS81: Base model identifier for signal conditioning, termination, and input interface functionality.
*B: Hardware revision and interface designation indicating compatibility with CENTUM XL and Micro XL system bus architectures.

Hardware Specifications

Parameter	Specification
Model	RS81*B
Brand	YOKOGAWA
Origin	USA
Weight	0.8 kg
Dimensions	381 × 254 × 25 mm
Operating Temp	-10 deg C to +55 deg C
Power Consumption	Passive
I/O Type	Analog and Digital
Isolation	Electrical
Protection	Built-in Surge Suppression

DCS Process Control & Isolation Attributes

The RS81*B functions as a primary interface layer for field instrumentation, facilitating the transition between external field wiring and internal DCS signal processing modules. To preserve measurement integrity, the card incorporates electrical isolation between the field wiring terminal block and the system bus, effectively mitigating common-mode voltage contamination. The design features integrated surge protection circuitry to shield downstream I/O modules from transient voltage spikes originating in the field-side cable runs. The module employs channel-to-channel isolation to prevent ground-loop interference, ensuring that high-density signal environments maintain signal fidelity across all analog and digital input paths.

Frequently Asked Questions

Q: Does the RS81B card require external power for operation? A: No, the RS81B serves as a passive signal conditioning and interface assembly; power for the associated field devices is provided via the connected I/O module loops.

Q: How should I verify the integrity of the integrated surge protection?

A: The surge protection components are designed for industrial longevity. However, if a high-energy transient event occurs, perform a continuity check on the suppression paths and replace the unit if impedance measurements deviate from established baseline values.

Q: Can this module be utilized for both analog and digital signals simultaneously?

A: Yes, the terminal architecture permits the routing of mixed analog and digital signals, provided that the wiring segregation standards for the connected DCS I/O modules are maintained.

Field Installation Guidelines

Mounting: Secure the card into the system rack using the provided mounting holes. Ensure the chassis is bonded to the cabinet's equipotential ground plane to maximize the effectiveness of the internal surge protection.
Wiring: Utilize shielded instrumentation-grade cable for all analog signals. Terminate shields at the cabinet-level grounding rail rather than at the card itself to prevent ground loops.
Signal Isolation: Maintain physical separation of at least 150 mm between the termination assembly wiring and high-current power conductors to prevent inductive noise injection into the signal loops.
Maintenance: Periodically inspect terminal screw torque to ensure low-resistance connections, particularly in environments subject to vibration.
