SDV531-LFC Yokogawa SDV Series Datasheet & Technical Manual

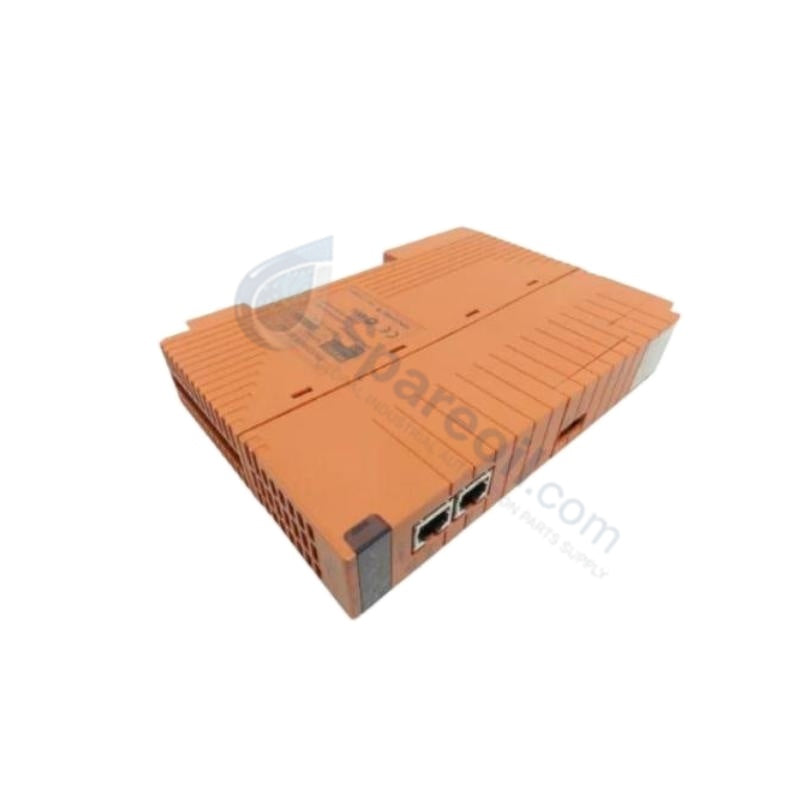

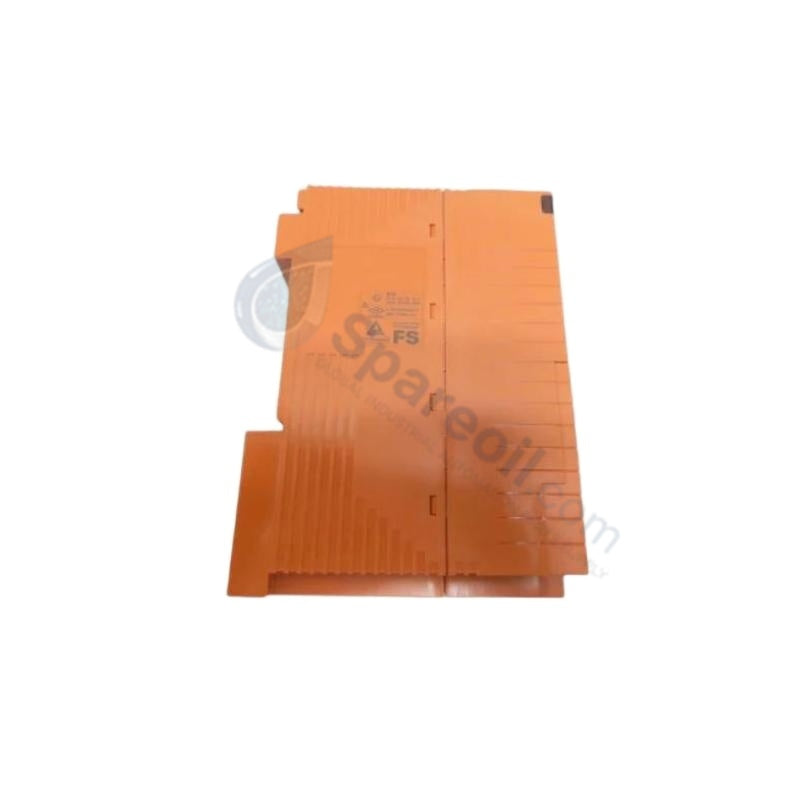

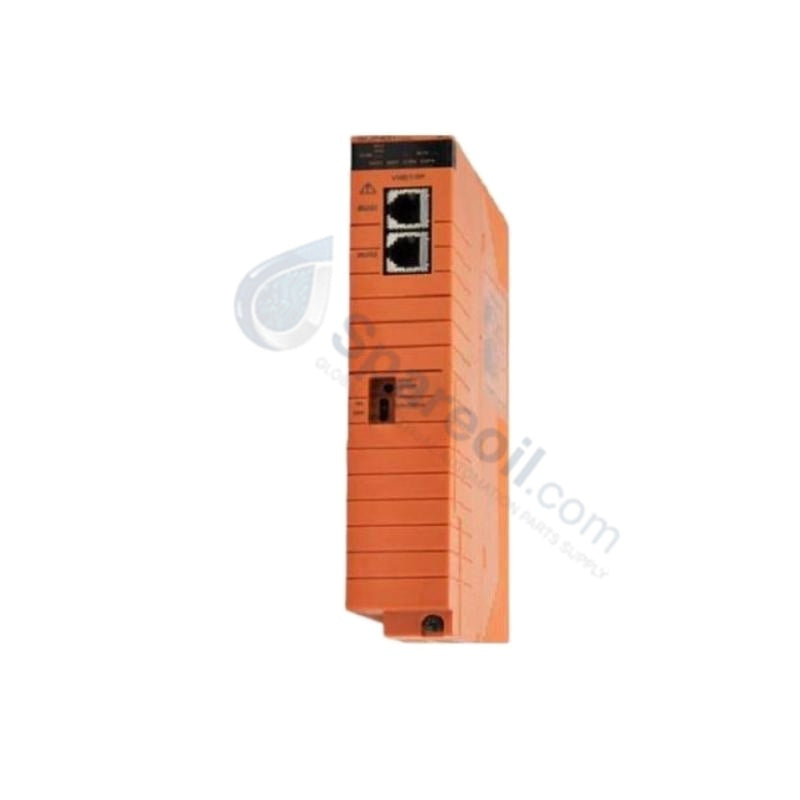

Yokogawa SDV531-LFC SDV531-L53/B4D00 SIL3 Digital Output Module

Yokogawa SDV531-LFC SDV531-L53/B4D00 SIL3 Digital Output Module

التوفر: 10 متوفر في المخزون

Yokogawa SDV531-LFC SDV Digital Output Module Configured for high-integrity actuator control in safety instrumented systems, the Yokogawa SDV531-LFC (SDV531 Digital...

رمز المنتج: SDV531-LFC

Manufacturer: Yokogawa
Product No.: SDV531-LFC
Product Type: Digital Output Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Yokogawa SDV531-LFC SDV Digital Output Module

Configured for high-integrity actuator control in safety instrumented systems, the Yokogawa SDV531-LFC (SDV531 Digital Output Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The SDV531 series uses specific ordering codes to define communication, environment, and physical integration options:

Base Model (SDV531): Defines an 8-channel, isolated digital output hardware assembly.
Distance Suffix (-L): Specifies long-distance interface circuitry.
Interface Suffix (5): Identifies integration with a signal cable interface adapter without explosion protection.
Environmental Suffix (3): Establishes compliance with ISA Standard G3 corrosion parameters and extends the operating thermal limits from -20 to 70 deg C.
Option Code (/B4D00): Designates a dual-redundant pressure clamp terminal block assembly without a surge absorber.

Hardware Specifications

Parameter	Specification
Model	SDV531-LFC (SDV531-L53/B4D00)
Brand	Yokogawa
Origin	Japan
Weight	0.34 kg (up to 3 kg shipping weight with adapters)
Dimensions	Standard Yokogawa safety card slot dimensions
Operating Temp	-20 to 70 deg C
Power Consumption	280 mA (at 5 V DC), 140 mA (at 24 V DC)
Number of Channels	8 isolated current-source outputs
Isolation	Channel-to-system, 2 kV AC withstand voltage for 1 minute
Output Rating	24 VDC (0.6 A per channel maximum, 4.8 A total module load)
Leakage Current	1.6 mA maximum in OFF state

safety instrumented systems and HART Loop Diagnostics

The digital output module operates under an IEC 61508 SIL3 certification, making it a critical asset inside process safety platforms. It provides galvanic isolation between the internal processing logic and external 24 VDC loops, which prevents transient electrical faults from damaging system processors. Dedicated diagnostic routines verify loop continuity, monitoring minimum load currents down to 35 mA to detect broken wire or short-circuit failures in field-side solenoids. When process conditions demand SIL3 safety interlock activation, the module executes fail-safe state commands within 30 ms.

Frequently Asked Questions

Q: How does the module handle dual-redundant setups, and do both units require the same suffix?

A: When configuring redundant pairs, operators must order two modules with identical hardware suffixes (e.g., SDV531-L53). However, only the primary slot unit requires the /B4D00 terminal block option code.

Q: How can engineers mitigate the 1.6 mA leakage current when driving low-power relays?

A: Because the 1.6 mA OFF-state leakage current can keep low-power interposing relays or sensitive LED indicators energized, technicians should install shunt resistors across the load terminals.

Q: Is this module approved for direct deployment in Class I Division 2 hazardous locations?

A: No, the suffix "5" indicates a design without built-in explosion protection, meaning engineers must route output lines through external intrinsic safety barriers before they enter hazardous areas.

Field Installation Guidelines

Terminal Torque: Secure field wires into the /B4D00 dual-redundant terminal block, tightening the pressure clamps to prevent high-resistance contact points in 24 VDC control loops.
Cable Routing: Route MIL-spec interface cables and signal adapter wires in dedicated, grounded steel wire ways to isolate low-voltage signals from power supply cables.
Chassis Grounding: Verify that the system rack chassis maintains low-impedance ground bonding to maximize the protection provided by the 2 kV channel-to-system galvanic isolation.
G3 Environment Verification: Keep cabinet doors closed and use filtered, conditioned cooling air to preserve the ISA G3 corrosion-resistant conformal coating in sulfurous or high-humidity process areas.
